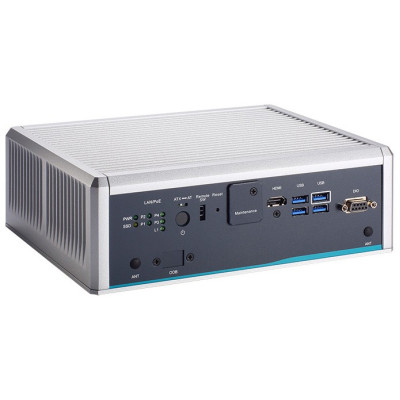

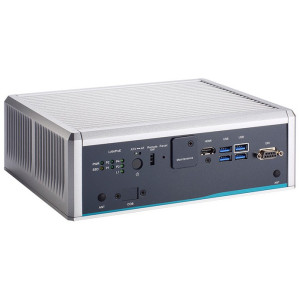

Axiomtek AIE900B-ONX Fanless Edge AI System with NVIDIA Jetson Orin NX

Axiomtek AIE900B-ONX High-Performance AI Computer for 5G, WiFi, and Robotics Applications

The AIE900B-ONX is a high-performance, fanless edge AI system designed for demanding applications such as robotics, autonomous mobile applications (AMR), and intelligent video analytics. It is powered by the advanced NVIDIA Jetson Orin NX which features an 8-core Arm Cortex A78AE CPU and a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, delivering an impressive AI performance of up to 157 TOPS (Trillions of Operations Per Second). This processing power makes the AIE900B-ONX capable of handling complex AI workloads directly at the edge, reducing latency and reliance on cloud infrastructure.

Built for durability, the system features a robust, IP40-rated aluminum and heavy-duty steel enclosure, allowing it to operate reliably in harsh industrial environments with a wide temperature range of -25°C to +70°C. Its fanless design further enhances reliability by minimizing dust ingress and mechanical failures, while rigorous testing (IEC 60068-2-64 for vibration and IEC 60068-2-27 for shock) ensures resilience in rugged conditions.

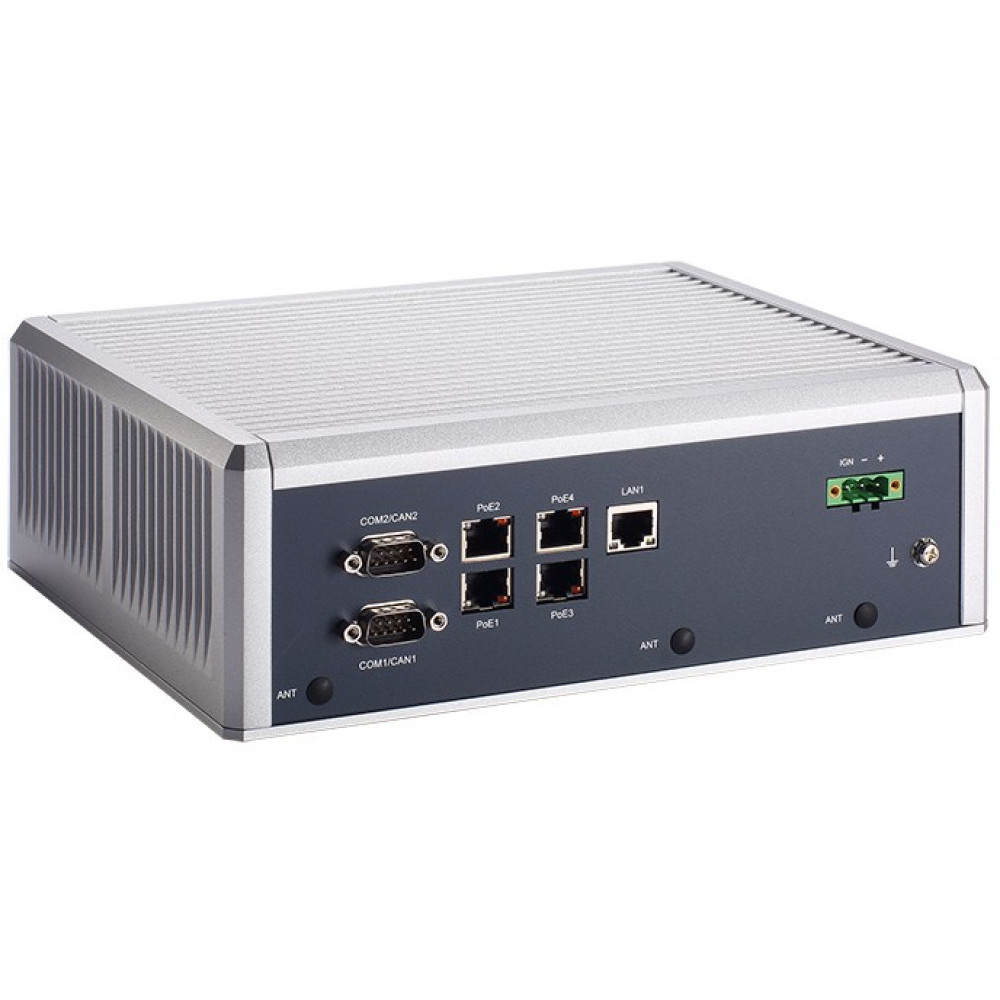

The AIE900B-ONX includes four Gigabit Ethernet ports with PoE functionality (IEEE 802.3at, up to 30W per port) to power and connect cameras and other sensors efficiently. This extensive PoE support is ideal for multi-camera vision systems used in surveillance or quality control. The device also offers a rich assortment of other I/O options, including four USB 3.2 Gen 2 ports, two COM/CAN ports (RS-232/422/485 & CAN) for motion and direction control, 8-channel Digital I/O (DIO), and a lockable HDMI 2.1 port with 4K2K support. For flexible networking, the system provides expansion slots for wireless connectivity, including a full-size Mini PCIe slot and an M.2 Key B slot for optional Wi-Fi, LTE, or 5G modules, along with a Nano SIM slot.

Tailored for computer vision, service robots, robotics, AMRs, and other edge AI applications, the AIE900B-ONX stands out as an exceptional platform. Its flexible features and high performance capabilities establish it as an outstanding system suitable for a wide range of comprehensive edge AI applications across diverse industries.

Key Features

• NVIDIA Jetson Orin NX (Up to 157 TOPS)
• Supports Super Mode with Jetpack 6.2 and above
• Seamless connectivity with 5G, Wi-Fi, and GbE combined
• Effortless management with USB and PoE device power control
• Supports 4 USB and 4 PoE for camera and sensor connectivity
• Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon

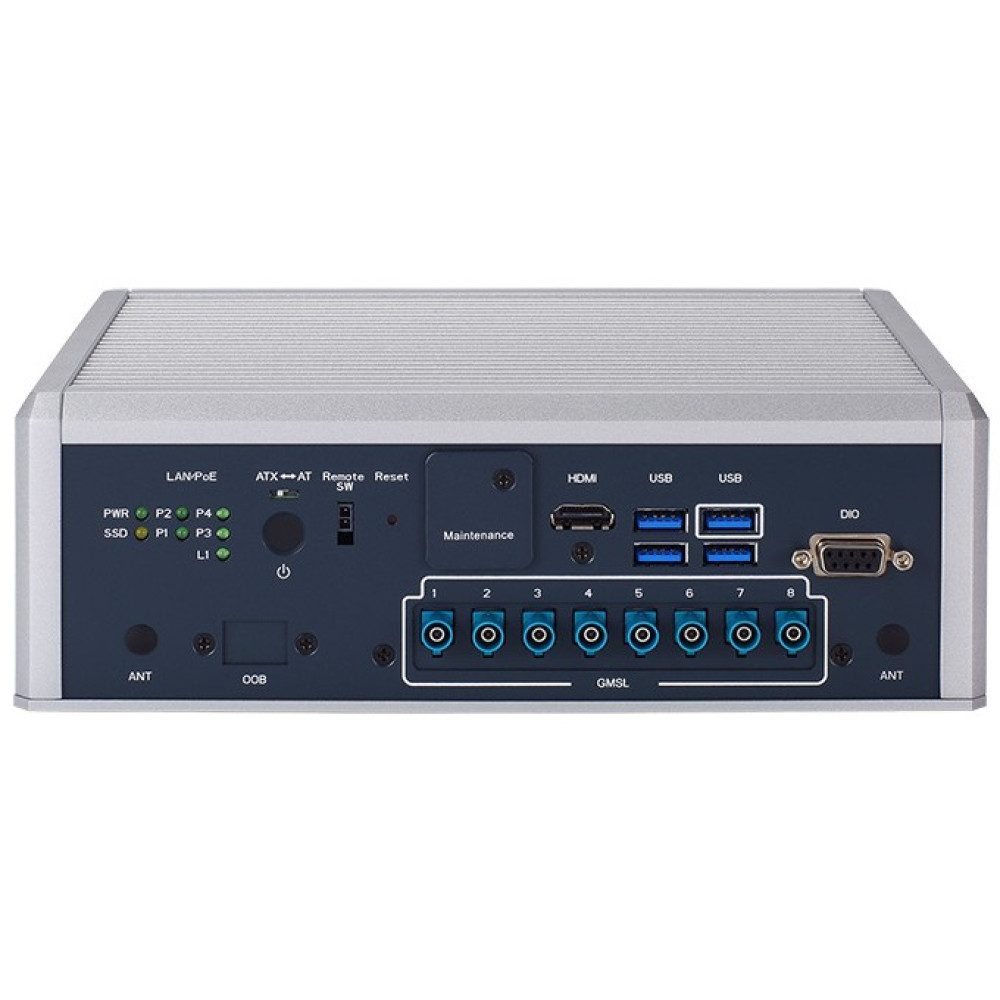

• 8-CH GMSL for AMR & Robotics (optional)
• Supports the NVIDIA Isaac Robot Operating System (ROS) SDK for AI-powered robot development

Optional Accessories

• LTE module kit
• Wi-Fi module kit
• 5G module kit
• Wall mount kit
• VESA mount kit
• DIN-rail kit
• M.2 NVMe SSD 128GB or above
• 24V/120W adapter
• Power Cord
• Out-of-band (OOB) module

Contact Westward Sales today for options and accessory pricing on this Fanless Edge AI System.
