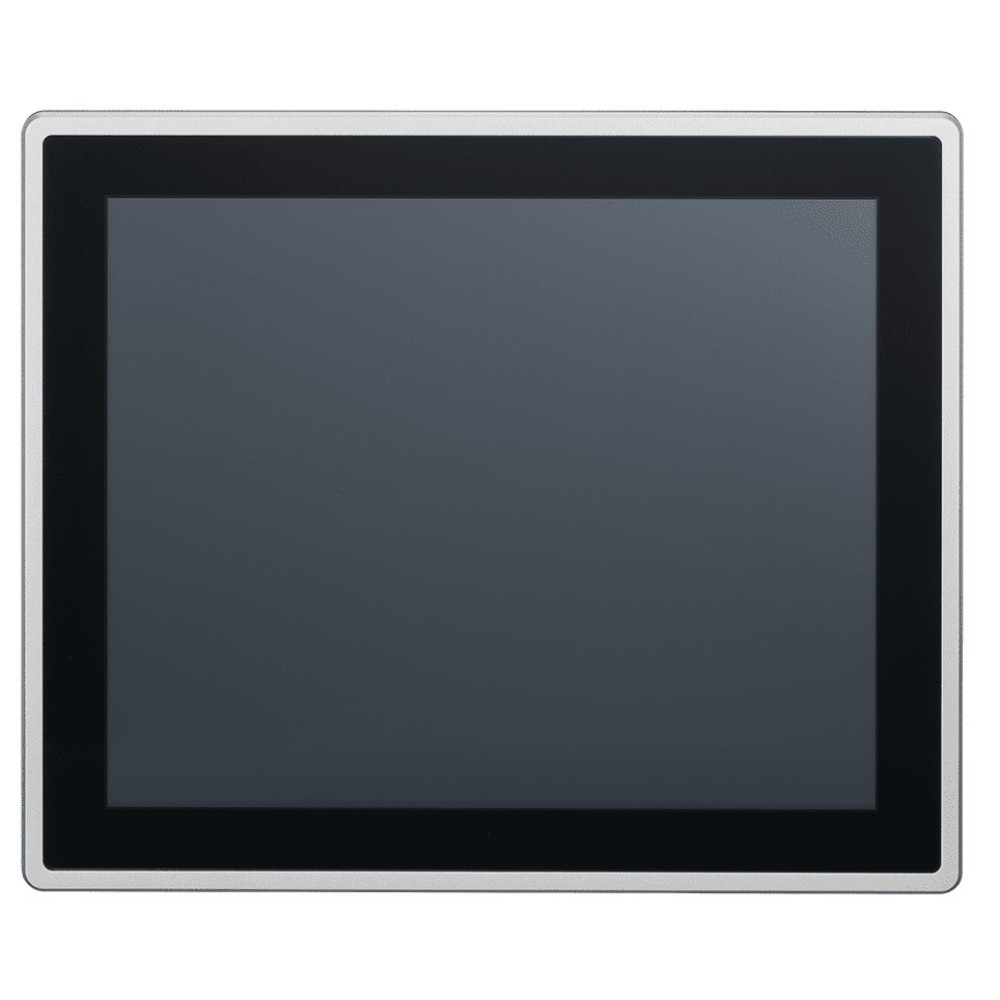

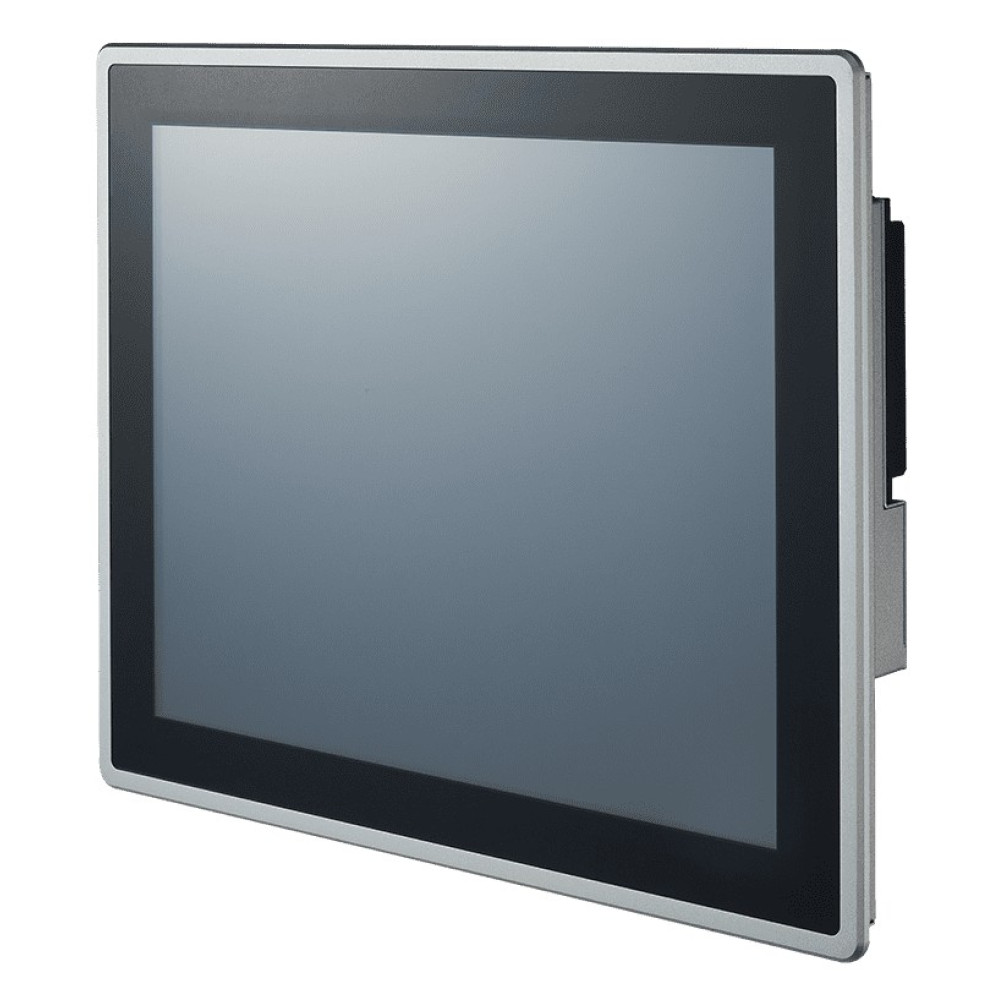

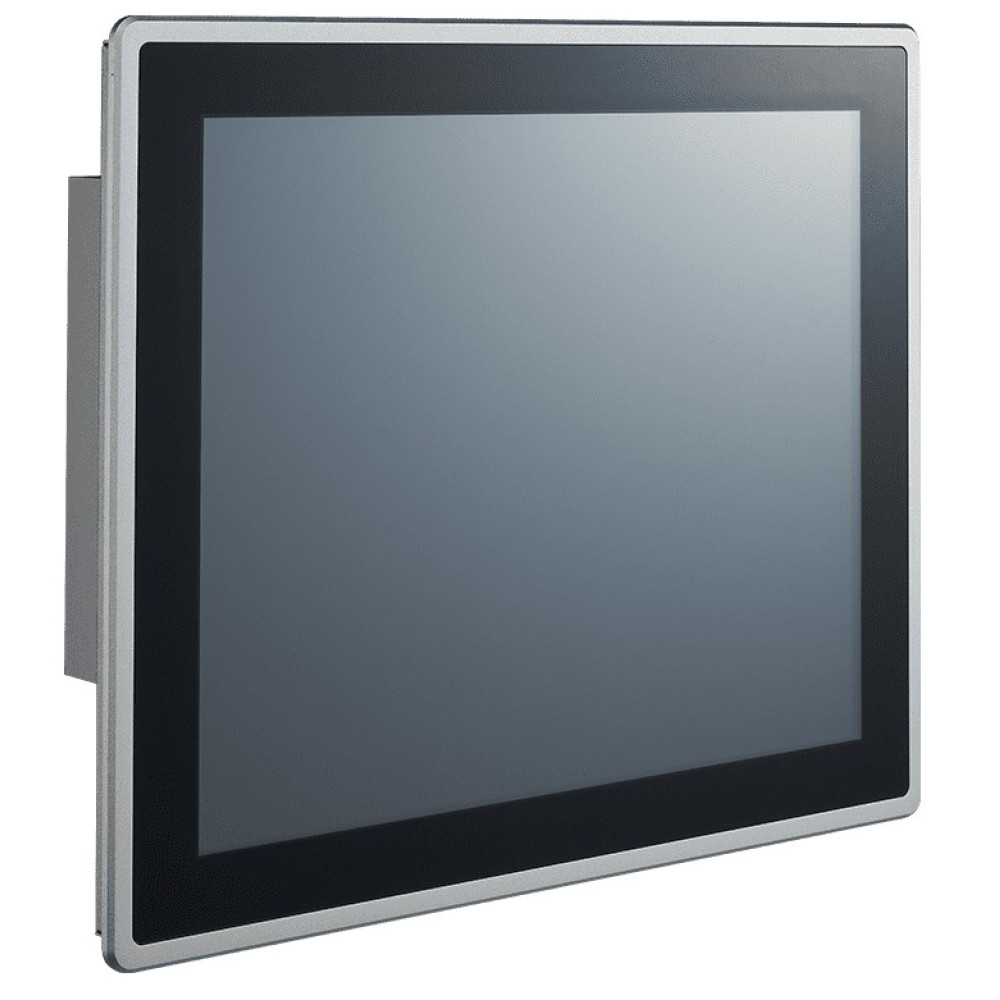

ARBOR iTC-1150R-EXP 15" Industrial Panel PC, Intel Celeron J6413, Power Backup

ARBOR iTC-1150R-EXP Fanless Panel PC & SuperCAP Power Backup Module, 4 GB RAM Installed

The iTC-1150R-EXP stands out for its flexibility and rich input/output options, empowered by the Intel Elkhart Lake Cleron J6413 processor. This rugged panel PC comes with a 15" 1024 x 768 XGA LCD display. It utilizes resistive multi-touch for demanding automation environments such as the food industry and other factory applications.

This fanless and rugged panel boasts a robust aluminum front bezel, ensuring durability. With IP65 waterproof compliance, it's ideal for interactive information kiosks and digital terminals. Experience uninterrupted operation with the Supercap power backup module, a critical safety feature that ensures equipment can safely shut down during unexpected power failures, preventing data loss.

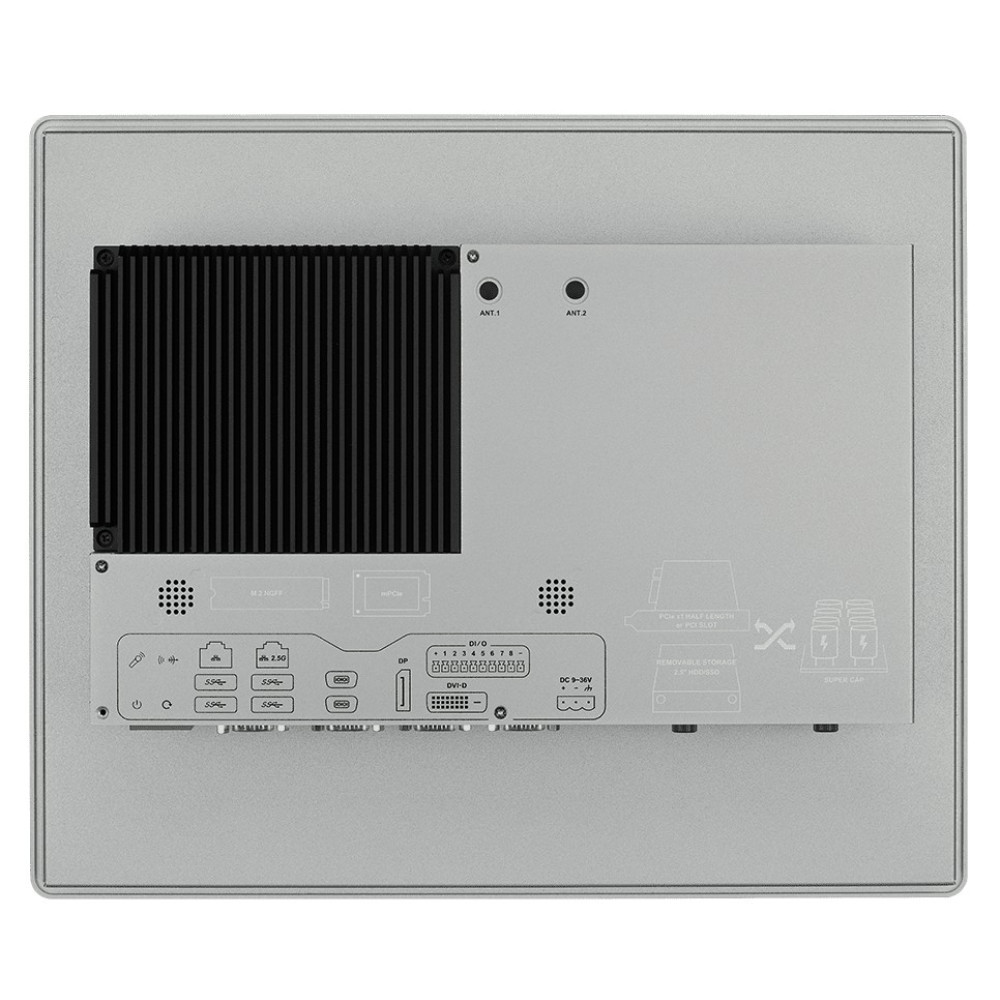

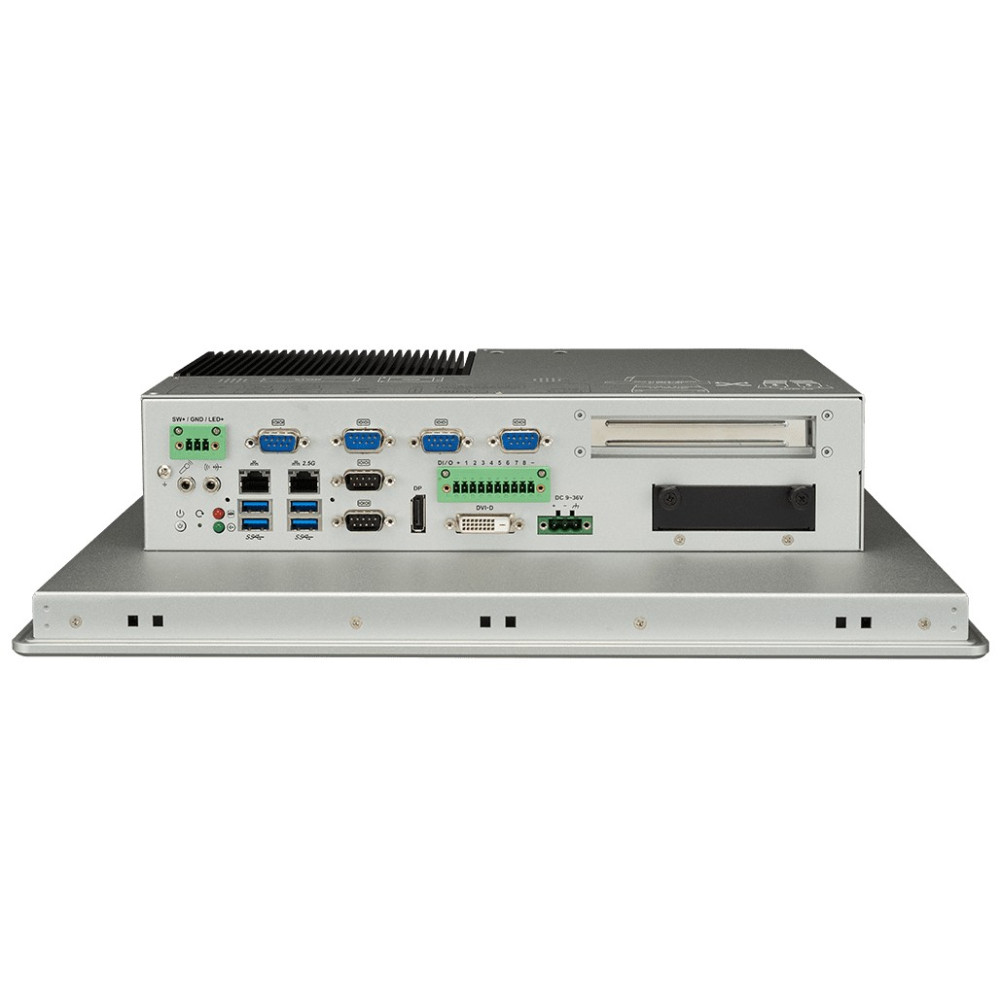

The iTC-1150R-EXP offers extensive connectivity and expansion options, including rich I/O (six COM ports, one 2.5GbE LAN port and one GbE LAN port, four USB 3.2 Gen 1 ports), dual video outputs (DisplayPort and DVI-D), and support for both PCIe and Mini PCIe expansion for wireless modules or additional storage. It supports a wide-range 9-36V DC power input with reverse protection and is designed for easy maintenance, with a clear internal layout.

It operates in a wide temperature range of -10 to 55ºC. With its rich features and built-in power safety solution, the iTC-1150R-EXP provides a reliable and versatile computing solution for various industrial automation and control applications.

Key Features

• Intel Celeron Processor J6413 (1.5M Cache, up to 3.00 GHz)
• 15" 1024 x 768 XGA LCD display
• Fanless design with Aluminum Front bezel
• Flush front panel with IP65 waterproof compliance
• 1 x RJ-45 port for GbE LAN, 1 x RJ-45 port for 2.5 GbE LAN
• 4 x USB 3.2 Gen1
• 6 x COM ports
• DisplayPort and DVI-D
• Easy-accessible expansion for storage and wireless module
• 9~36V wide-range DC input with reverse protection
• Support PCIe x 1 (half-length) and PCI 32-bit expansion
• Support SuperCAP Power Backup module
• Supports VESA and panel mount
• Supports Windows10 (64bit), Windows11 (64bit)

In the Box

1. iTC-1150R-EXP
2. User Manual
3. 4 x M3x4L screws (for 2.5" SSD/ HDD tray)
4. Panel-mount Clamps w/ screws (clamps and M4x18L screws)
5. 10-pin plug (for D I/O)
6. 1 x Rubber O-ring
7. 3-pin plug x 2 (one for DC input block; one for Remote Control block)
8. 1 x PCIex1 & 1 x PCI Riser Cards
