Manufacturer: ARBOR Technology

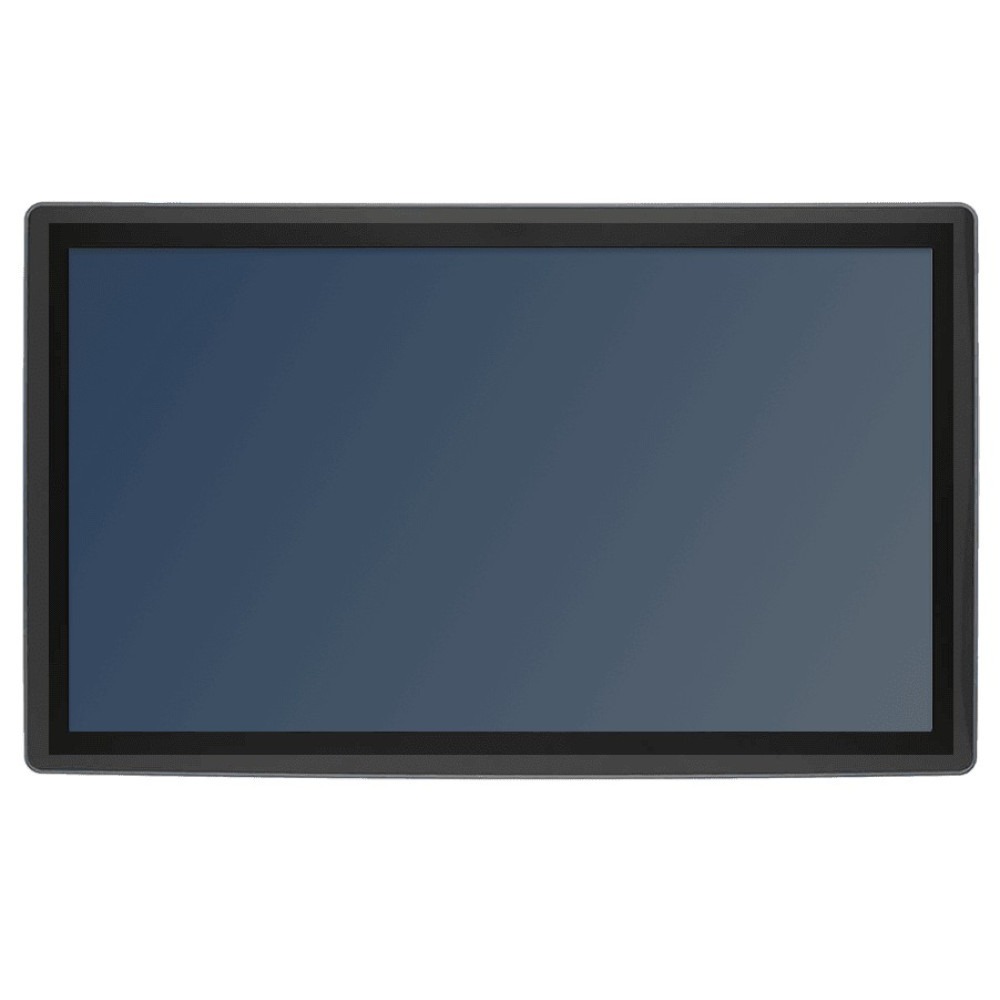

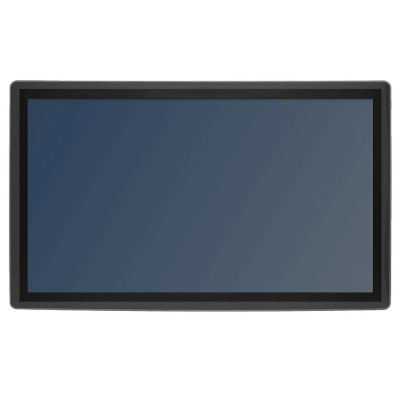

The SP-181C-2J64 is part of ARBOR's SP series of Industrial Panel PCs and is a cost-effective all-in-one computer with high stability and long service life. It is a most suitable solution for industrial applications such as human-machine interface, production management, and environmental monitoring. The SP-181C-2J64 features an onboard Intel Celeron J6412 quad core CPU and a 18.5" LCD panel with LED backlight that supports 350 nits brightness. Among other internal expansion I/O, it includes a SIM socket for 3G/4G, and Mini-PCle expansion slots. The variable I/O interface enhances work efficiency for multiple applications.
The robust, fanless, and stylish IP66 design excels in any environment. This SP panel PC can meet different installations in various fields and supports standard VESA and panel mount. Upgrade your operations today with this touch panel HMI.
| Computing | |
| System Type | Panel PC |
| CPU | Intel Celeron |
| System Memory Configuration | 8GB DDR4 SO-DIMM pre-installed |
| Maximum System Memory | 32 GB |
| Drive Storage | 128GB M.2 SSD pre-installed |
| Expansion Slots | See datasheet |
| Operating Systems | Windows 10/11, Linux Ubuntu 22.04 |
| Video | |
| Diagonal | 18.5" |
| Display Type | HDMI |
| Resolution | 1920 x 1080 |
| Touchscreen | Capacitive Multi-Touch |
| Brightness | 350 nits |

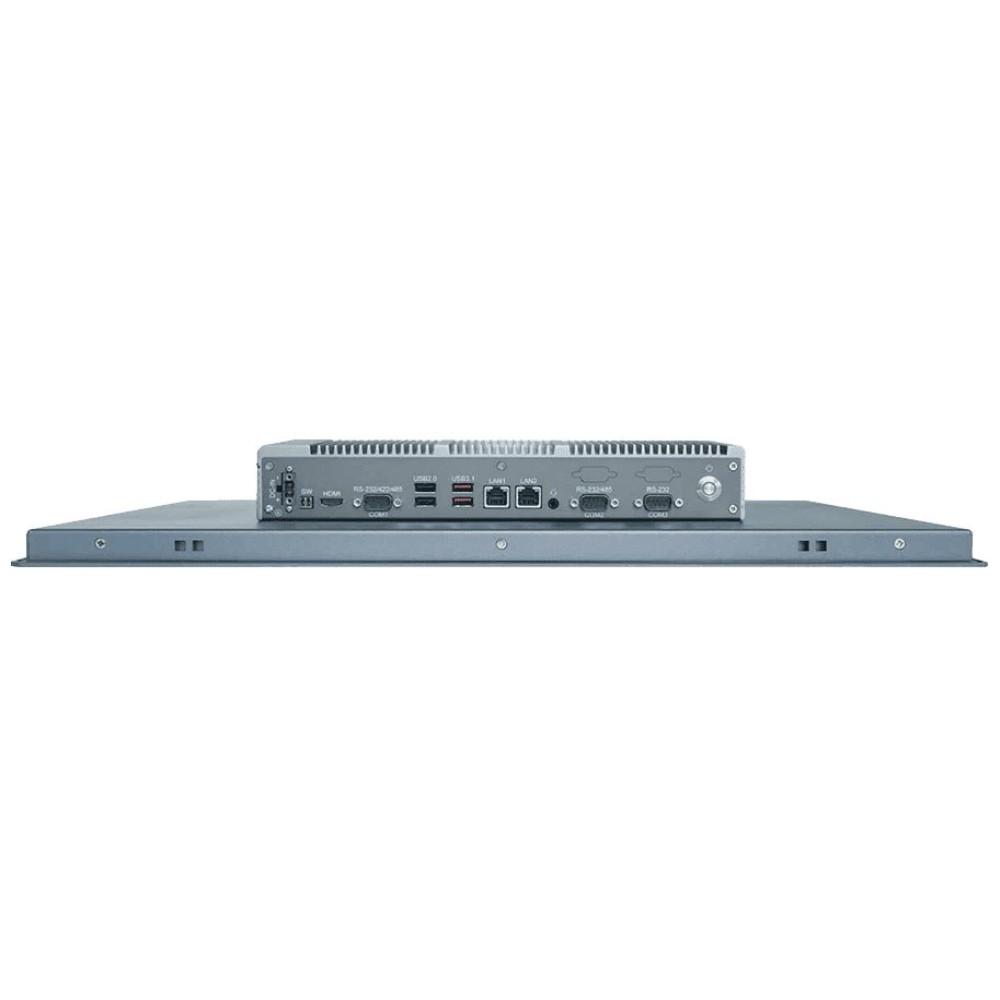

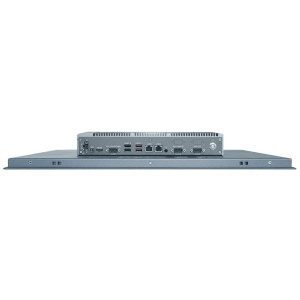

| Interfaces | |
| LAN Ports | 2 2.5 Gigabit Ethernet |
| USB | 2x USB2.0, 2x USB3.1 |
| Total Serial Ports | 3 |
| Serial | 1x RS232/422/485, 1x RS232/RS485,1x RS232 |
| Video Ports | 1 HDMI |
| Audio | Line-out & Mic-in 2 in 1 |
| Power | |
| Input Voltage | 12 to 36V DC |
| Mechanical | |
| Enclosure | Aluminum front panel |
| Mounting | Wall mount, Panel mount, VESA mount |
| Shock / Vibration | Operation: 10G@11ms, Non-operation: 30G@11ms |
| Weight | 6.2 kg |
| Dimensions | 470.5(W) x 295.6(H) x 67(D) mm |
| Ratings | |
| Operating Temperature | -10° to 60°C |
| Storage Temperature | -40 to 70°C |
| Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC |
| Download Name | File Size |
| ARBOR SP-181C-2J64 Datasheet | 928.91KB |
