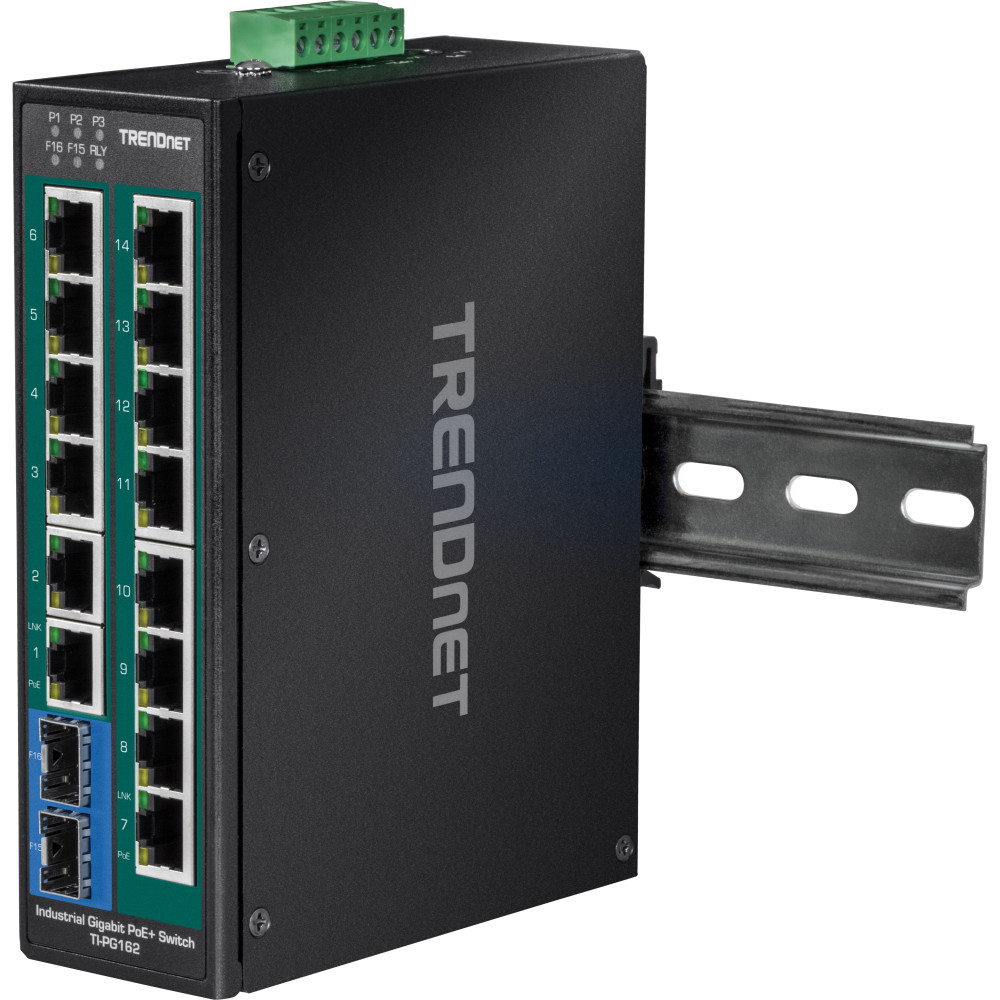

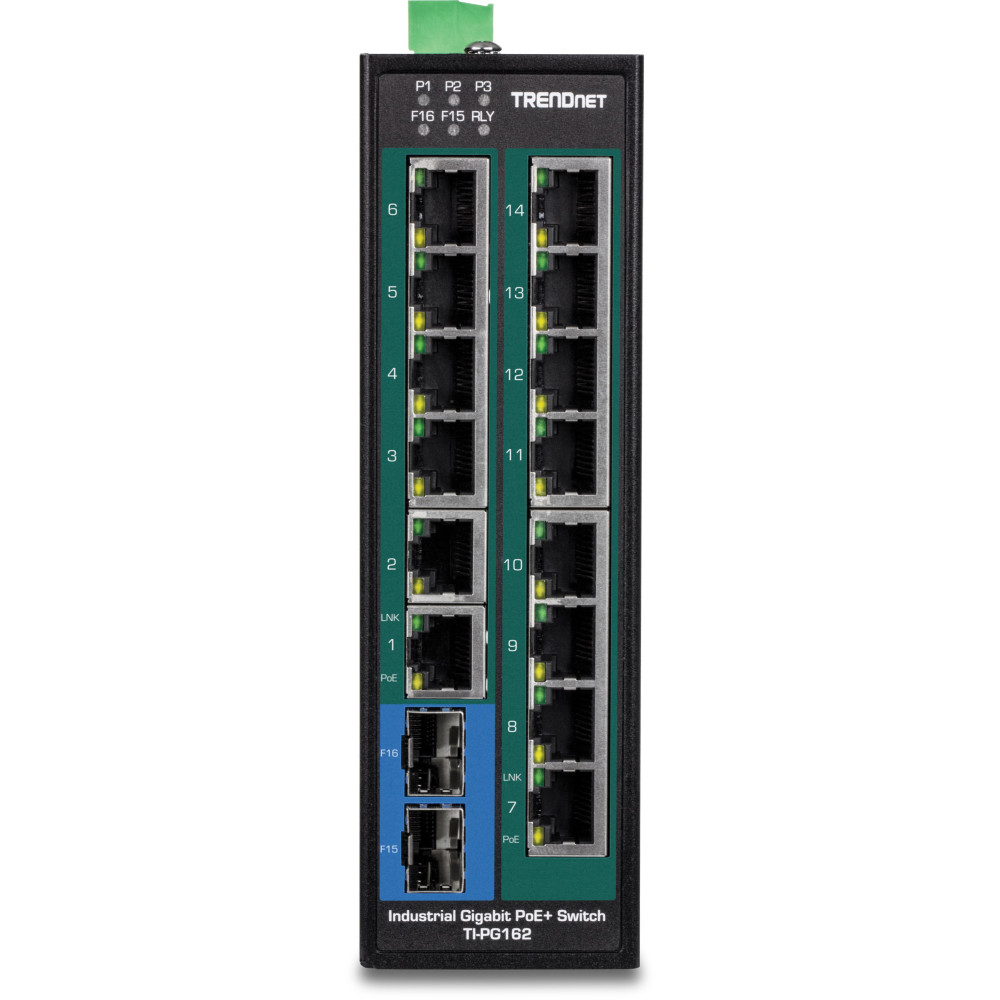

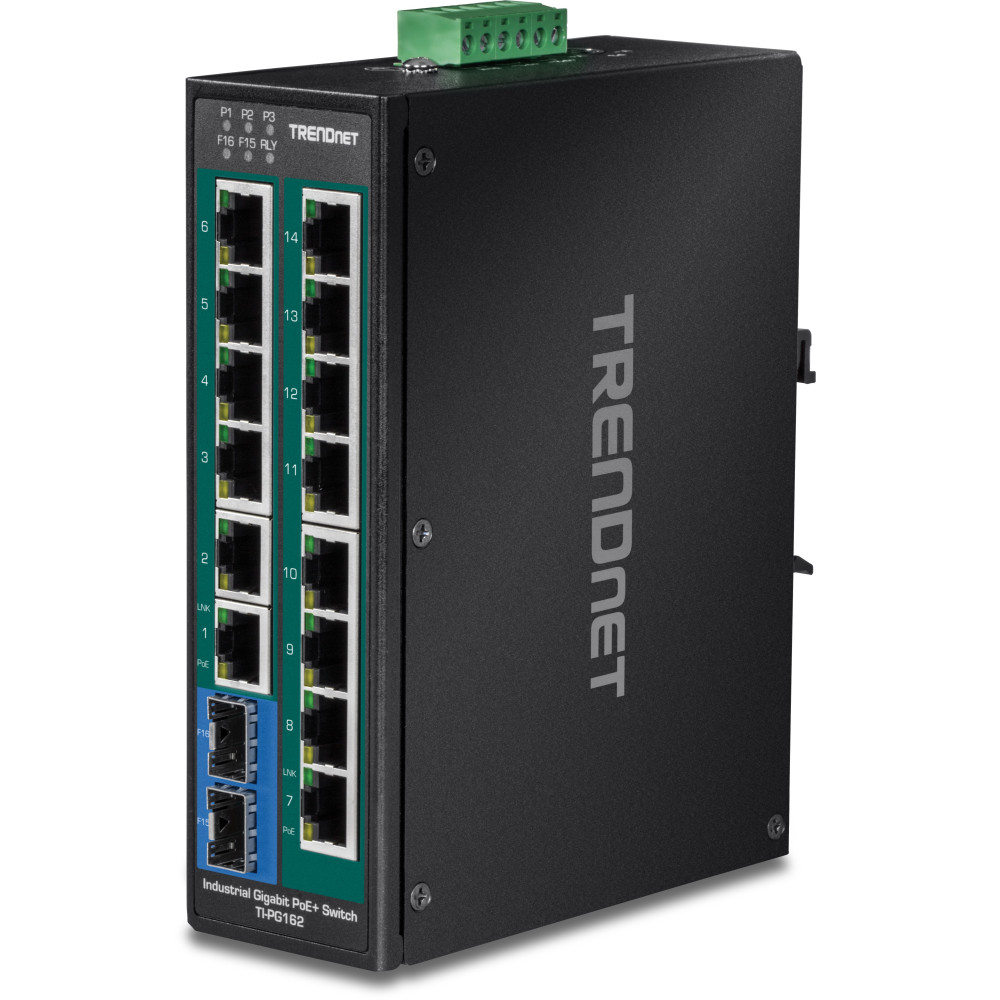

The TI-PG162 16-Port Industrial Gigabit PoE+ DIN-Rail Switch has fourteen gigabit PoE+ ports with a 240 W PoE power budget for high-speed device connections, plus two SFP slots that support 1000Base-FX modules for long distance fiber networking applications. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 16 |
| Ethernet Ports | 14 Gigabit PoE+ ports |
| Standards | IEEE 802.3, IEEE 802.3u ,IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex), SFP: 2000Mbps (full duplex) |
| Jumbo Frame Support | 9 KB |
| MAC Table Size | 8 K |
| Power | |
| Power Consumption | 13 W max. (no PoE) |

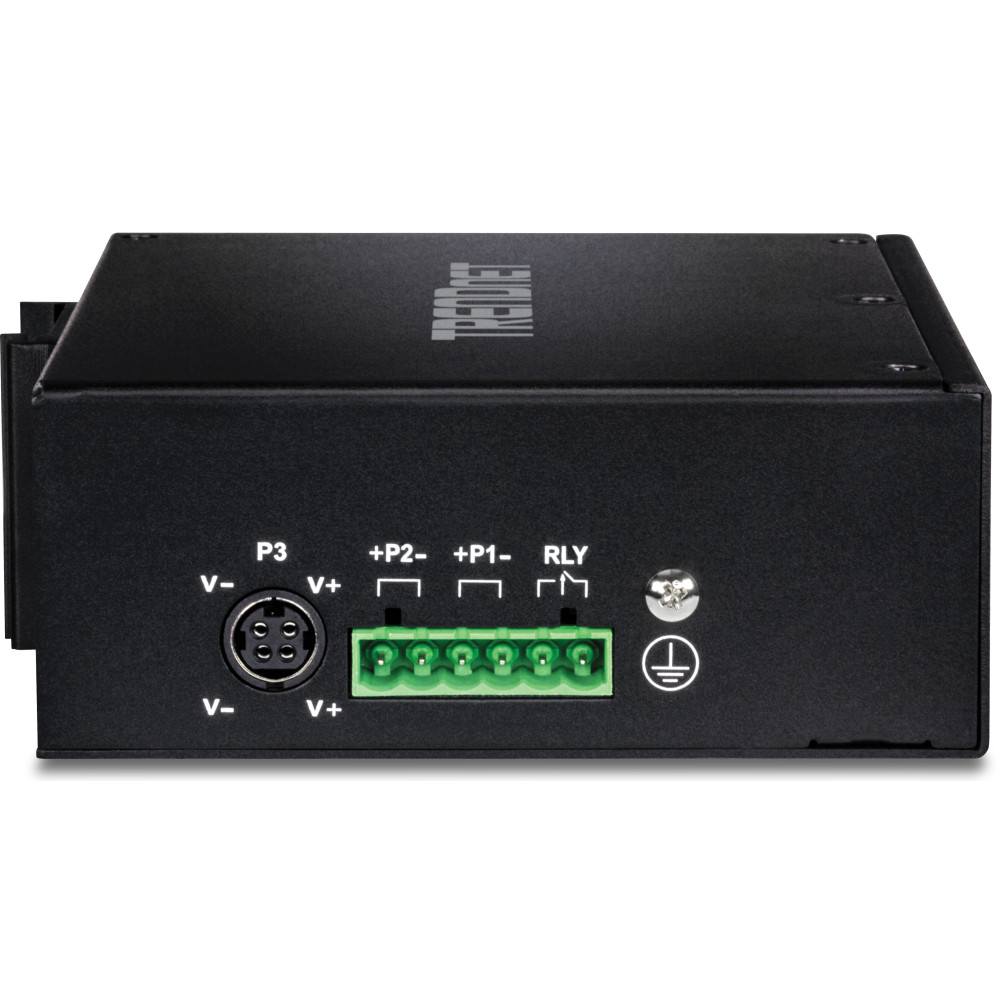

| Connection | 6-pin terminal block |
| Input Voltage | 48-56V DC |
| Overload Protection | Yes |
| Mechanical | |

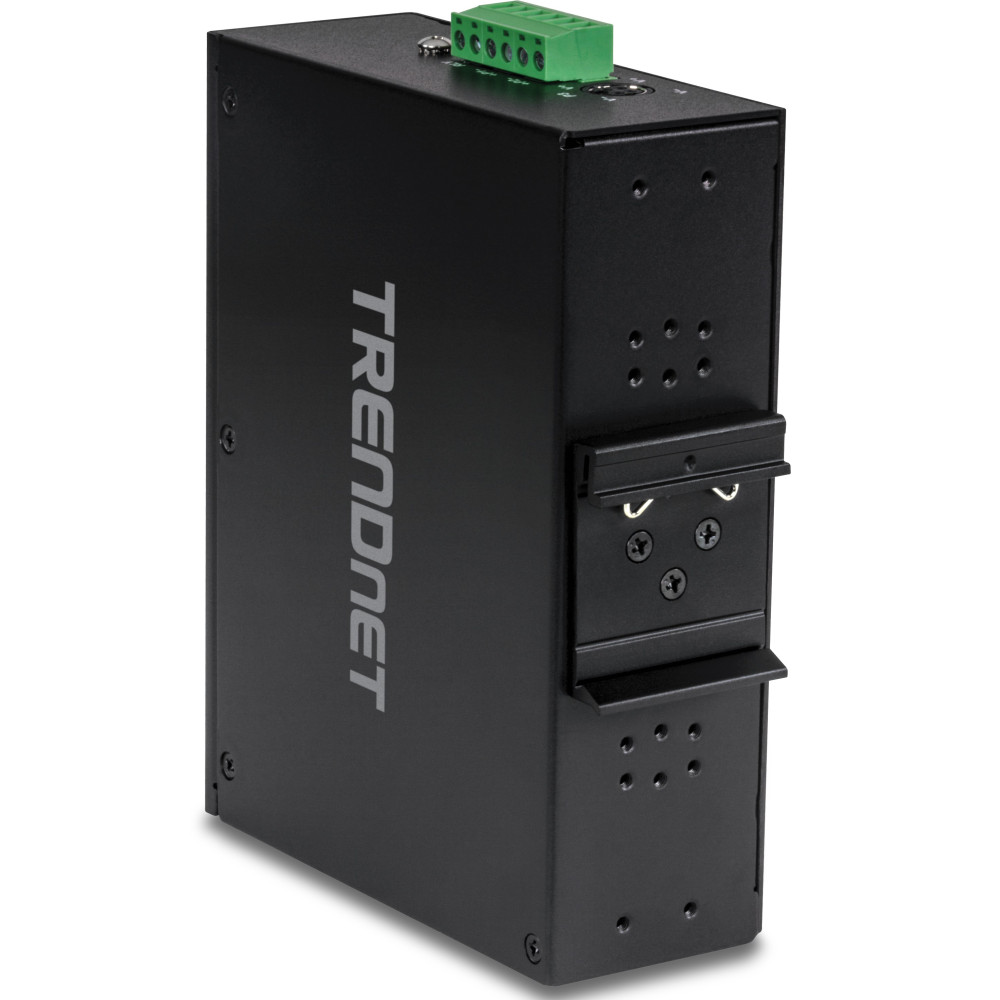

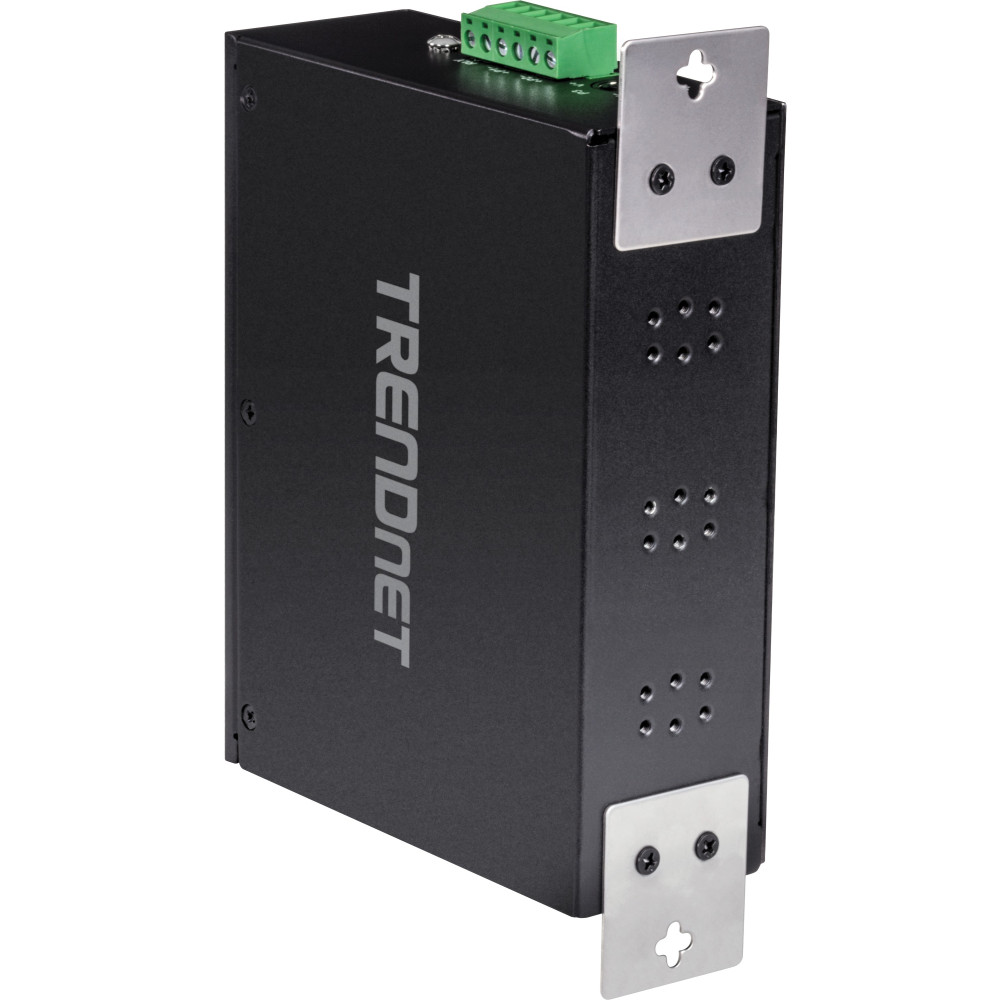

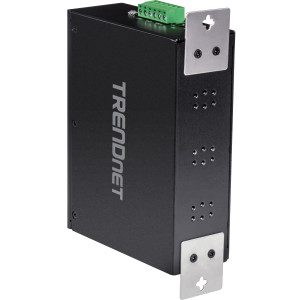

| Mounting | DIN-rail or wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP30 metal case |
| Weight | 562g (19.8 oz.) |
| Dimensions | 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, MET |
| MTBF | 504,738hrs @ 50° C, 222,000hrs @ 75° C |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet PoE Unmanaged Industrial Switch QIG | 5.58MB |
| TRENDnet TI-PG162 Datasheet | 488.12KB |
