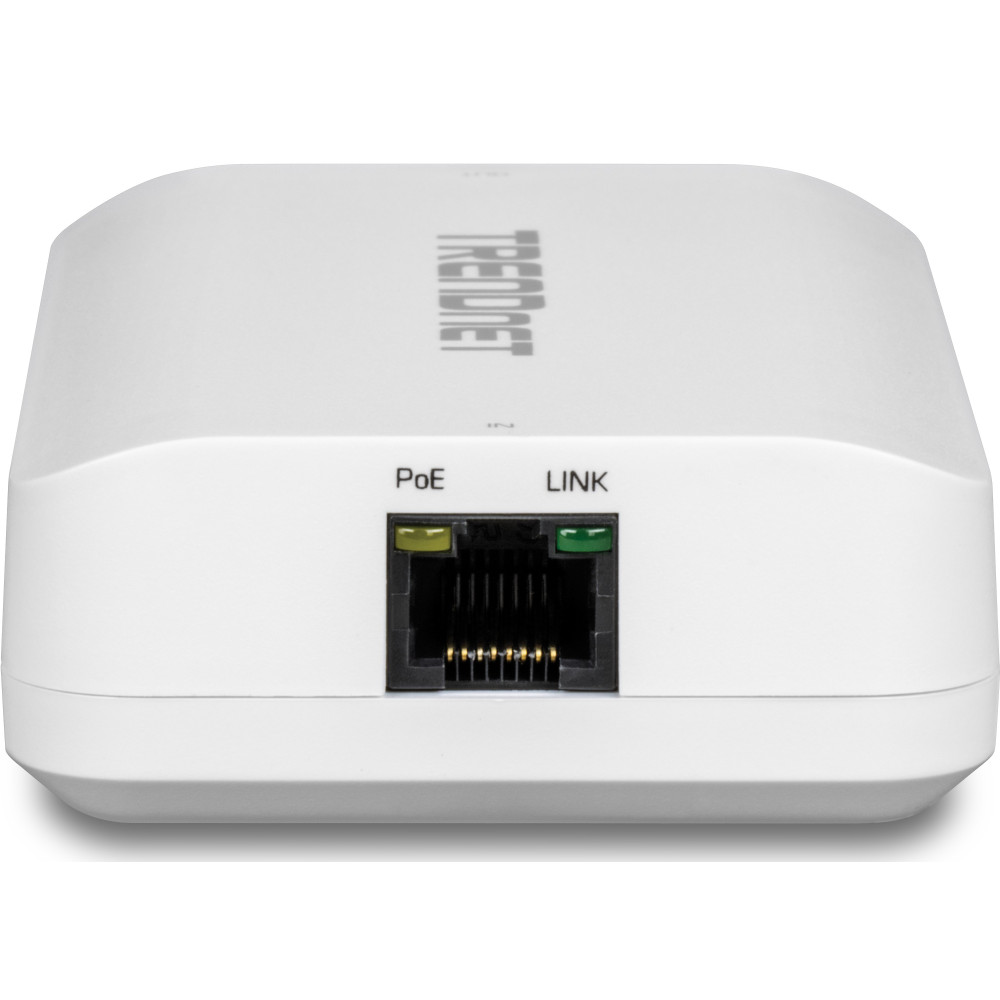

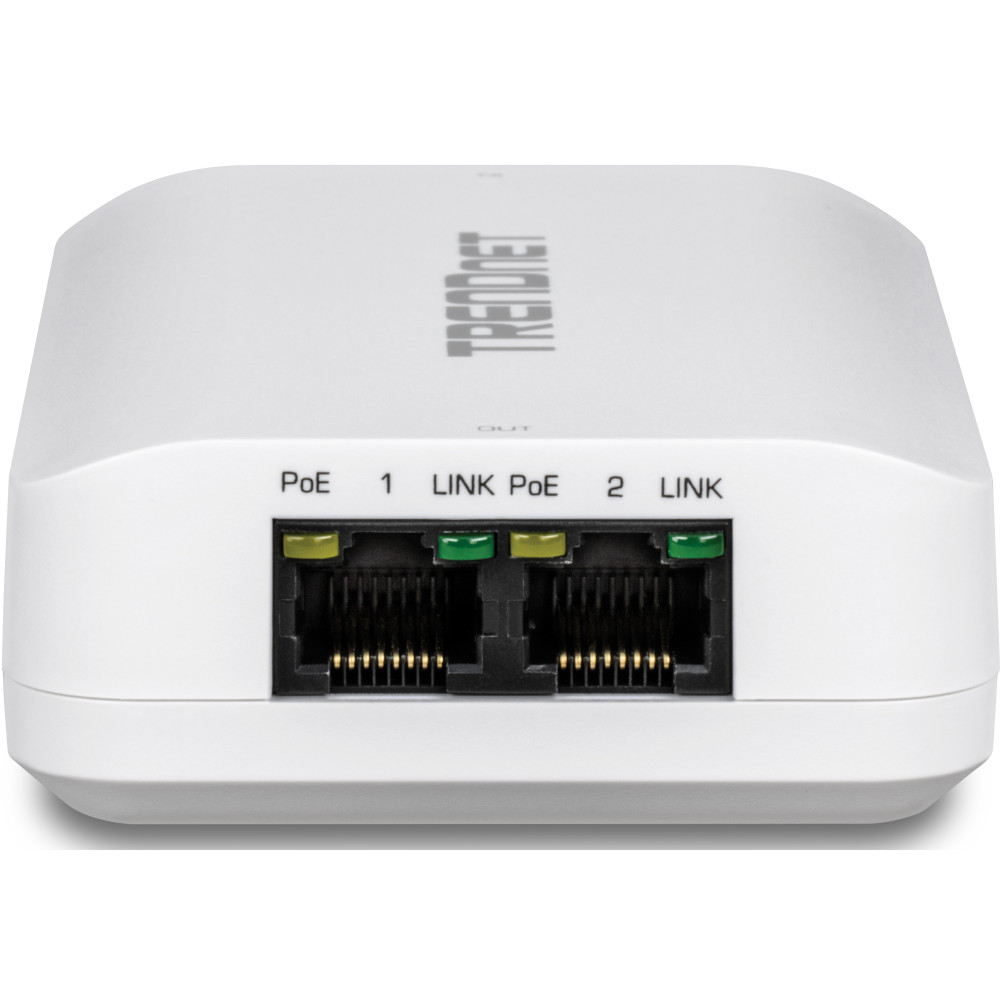

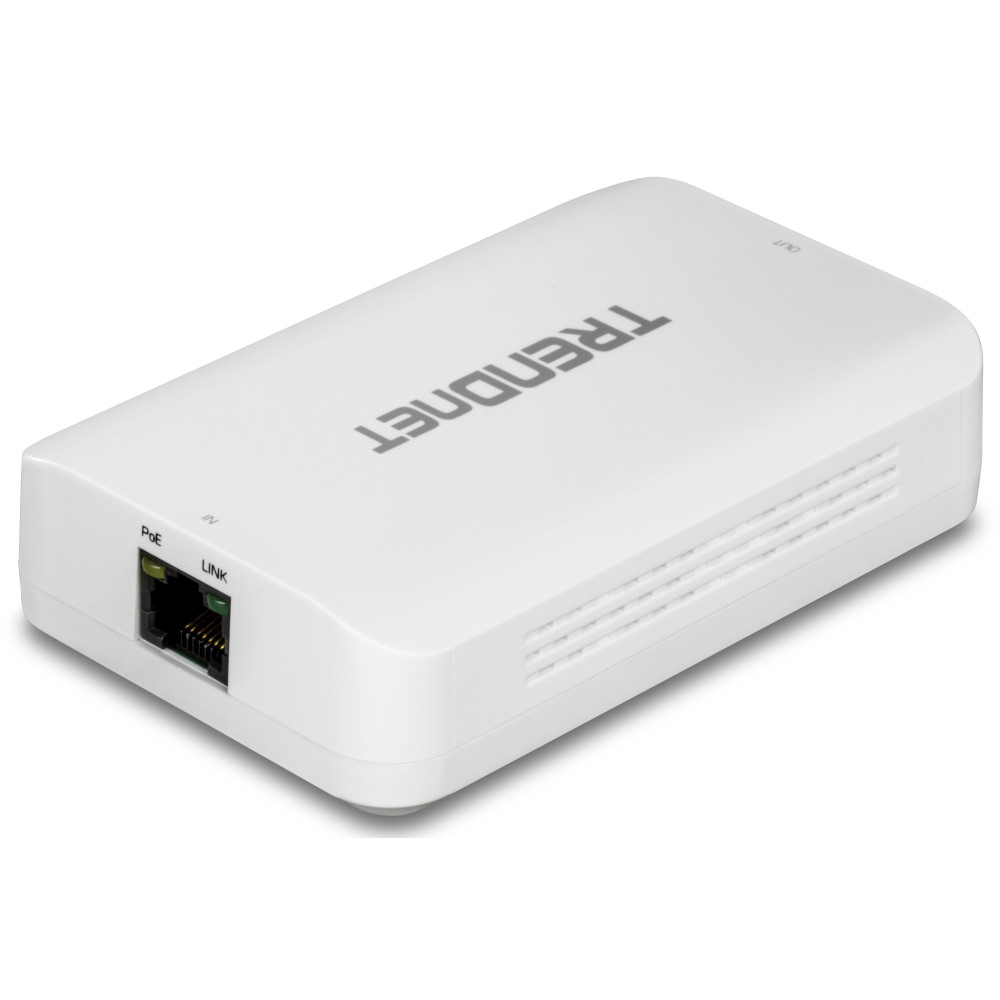

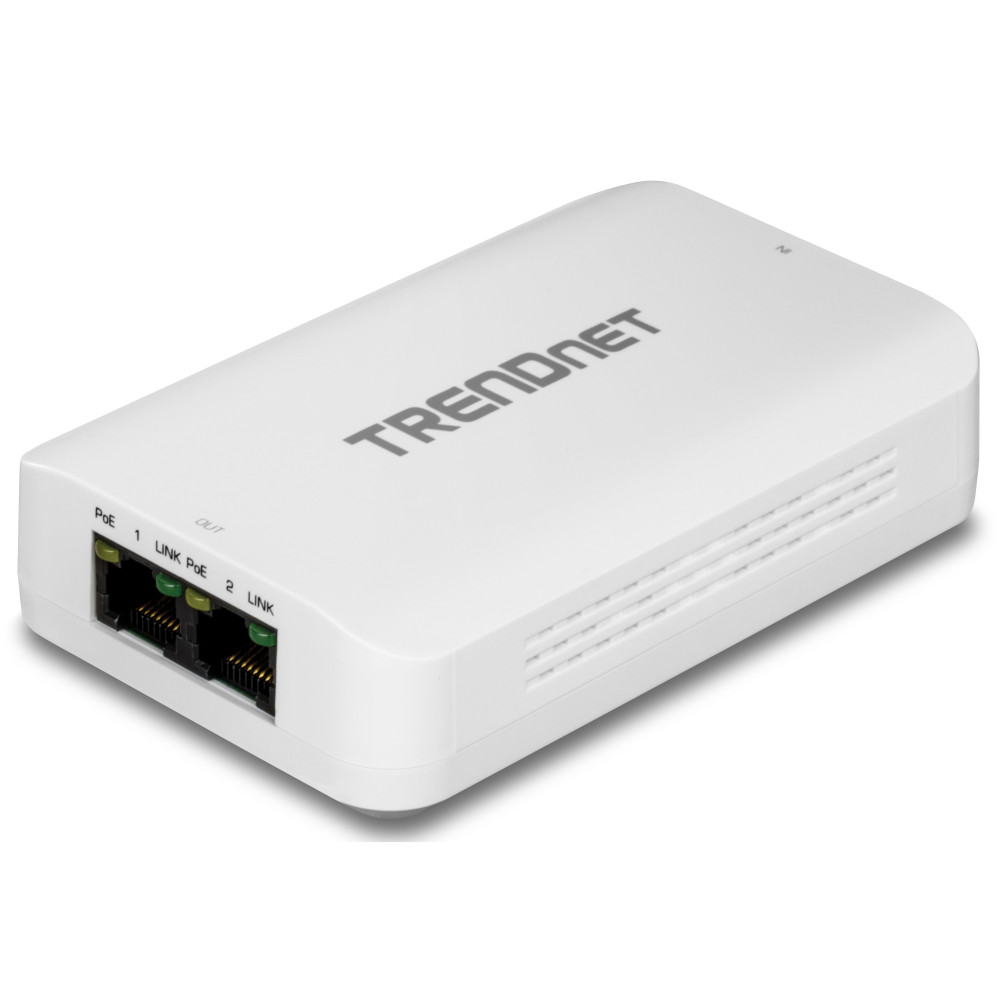

TRENDnet TPE-BE200 2-Port Gigabit PoE++ Extender

New TRENDnet TPE-BE200 Gigabit PoE++ Extender, daisy chain 4 units, wall mountable
Model: TPE-BE200
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TPE-BE200 Gigabit PoE++ Extender, Daisy-Chainable for 4 Units, Wall Mount

TRENDnet’s 2-Port TPE-BE200 Gigabit PoE++ Extender takes a single PoE++ (60W) connection and extends it an additional 100m (328 ft.) for up to two PoE+ (30W) devices. This dual/multi-port extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) input, and extends it for a total distance of up to 200m (656 ft.) from the PoE source. Daisy chain up to four extenders for a total PoE network extension of up to 500m (1,640 ft.). This gigabit PoE++ range extender features a single PoE++ (60W) input port and two PoE+ (30W) output ports.

Key Features

  • Easy installation
  • Extends 100m (328 ft.) for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)
  • Use a single PoE++ (60W) connection to extend PoE+ (30W) for up to two devices
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices
  • Convenient wall mountable design
  • No external power adapter required
  • NDAA / TAA compliant (U.S. and Canada only)
  • 3-Year warranty

In the Box

  1. TPE-BE200
  2. Quick Installation Guide
Technology
CategoryEthernet Extender
Total Ports3
Ethernet Ports1 x Gigabit PoE++ input, 2 x Gigabit PoE output
Transfer RateEthernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex)
Jumbo Frame Support9KB
MAC Table Size2K
Power
PoE Power Output60 Watts
Power Consumption3.3W
Mechanical

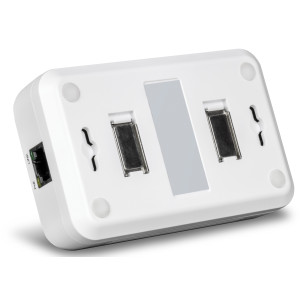

MountingWall mountable
Weight125g (4 oz.)
Dimensions110 x 70 x 29mm (4.3 x 2.8 x 1.1 in.)
Ratings
Operating Temperature0° - 45° C (32° - 113° F)
Humidity95% non-condensing
CertificationsCE, FCC
Warranty3 year
Tags: TPE-BE200
