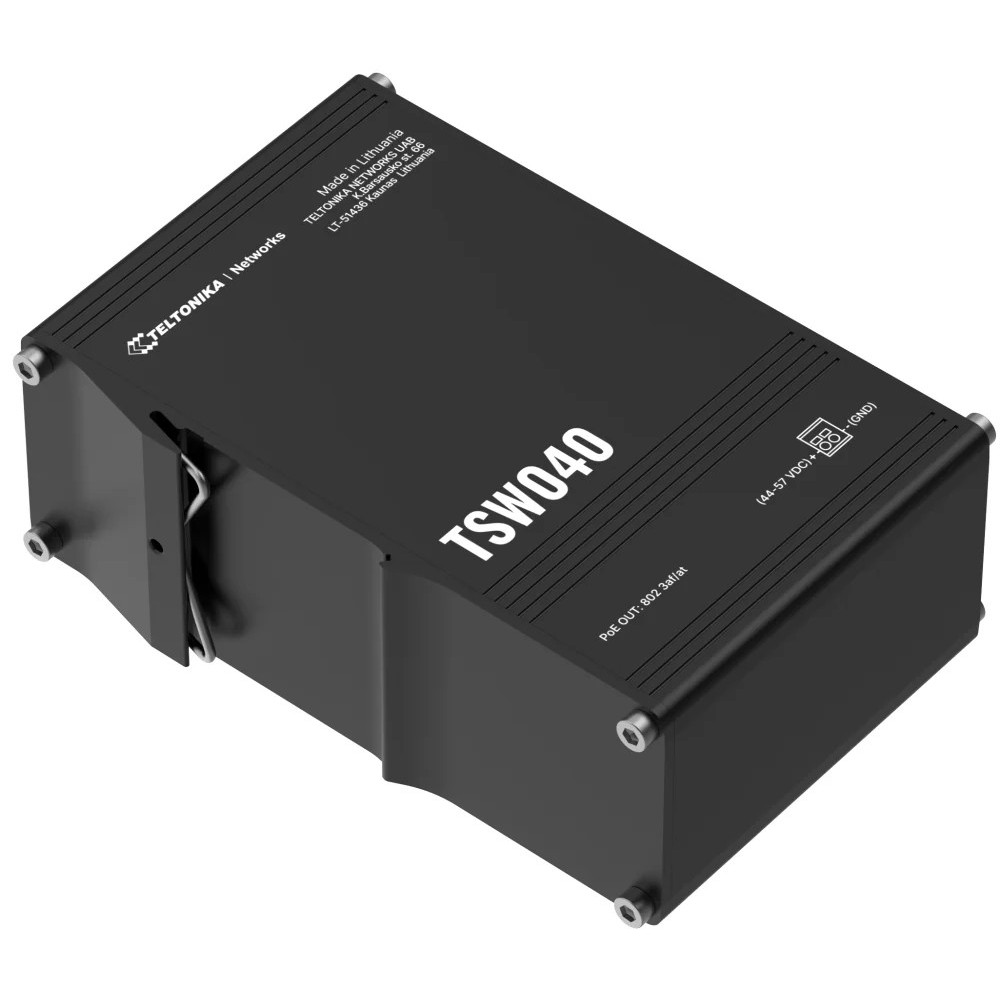

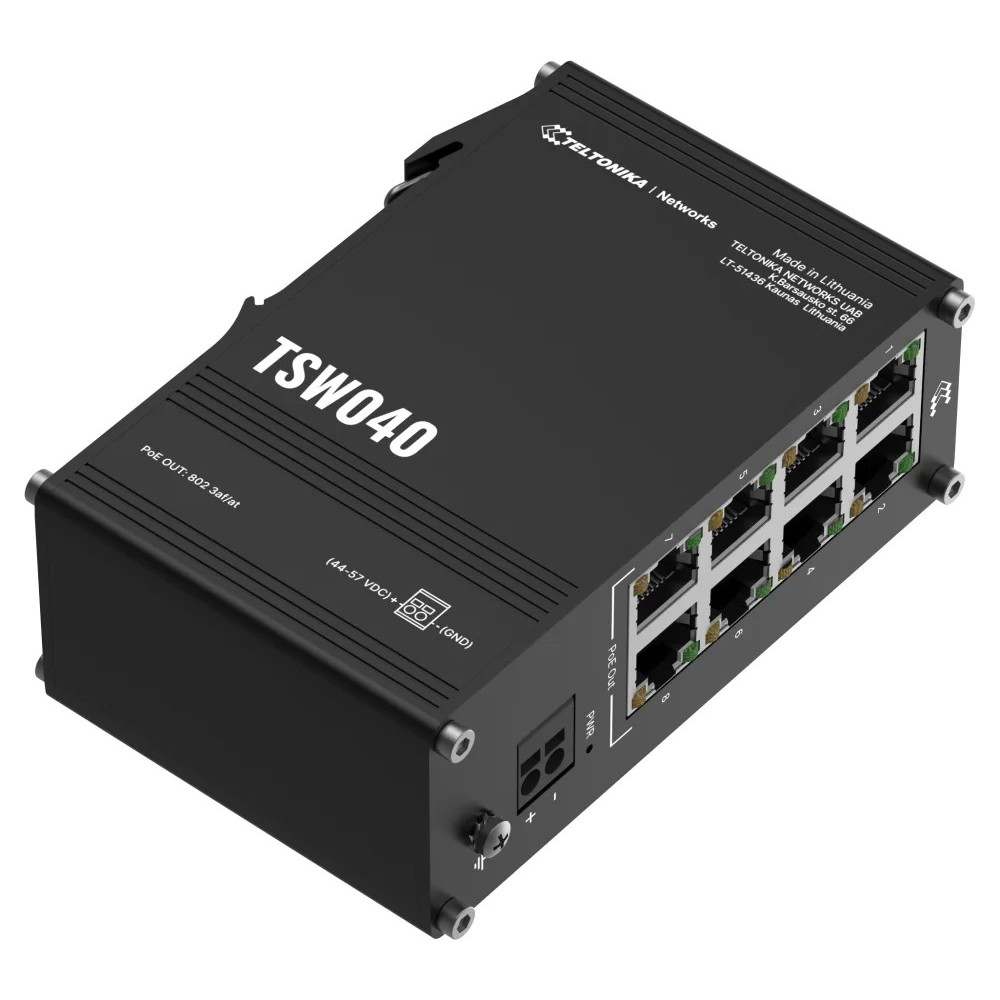

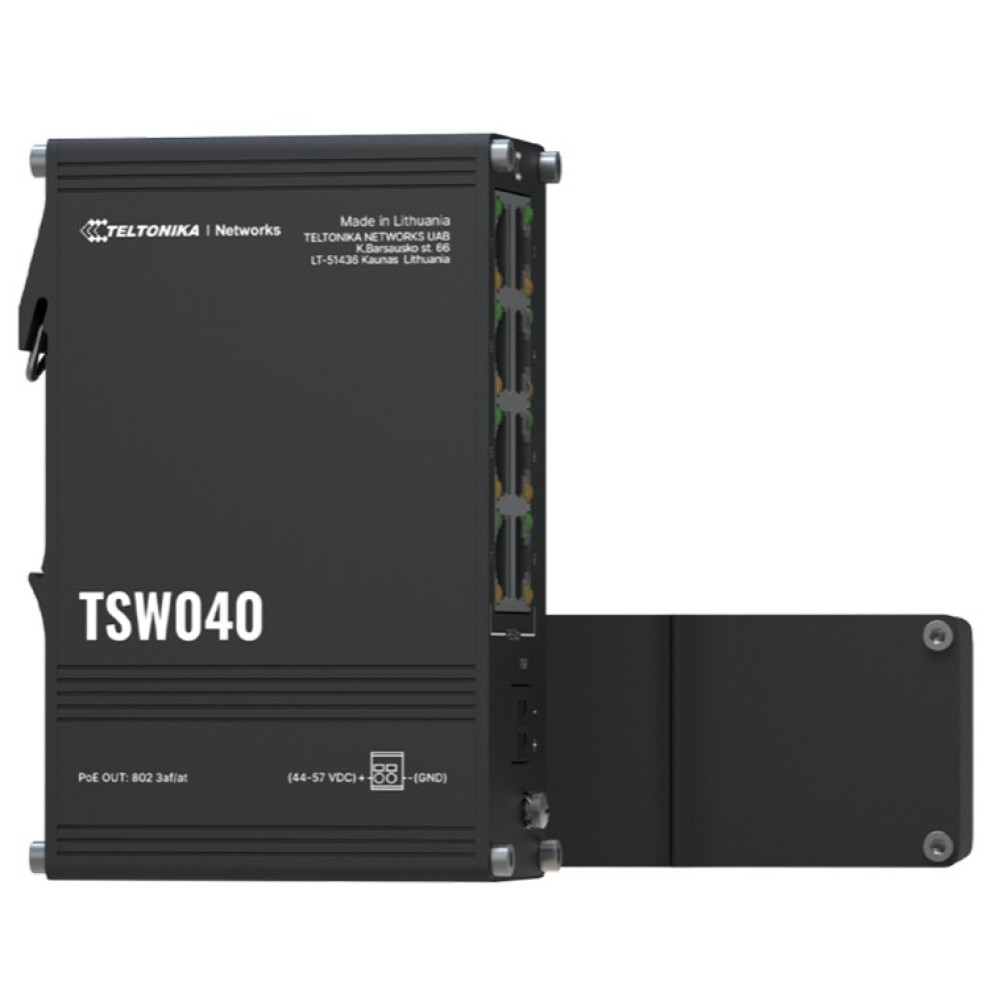

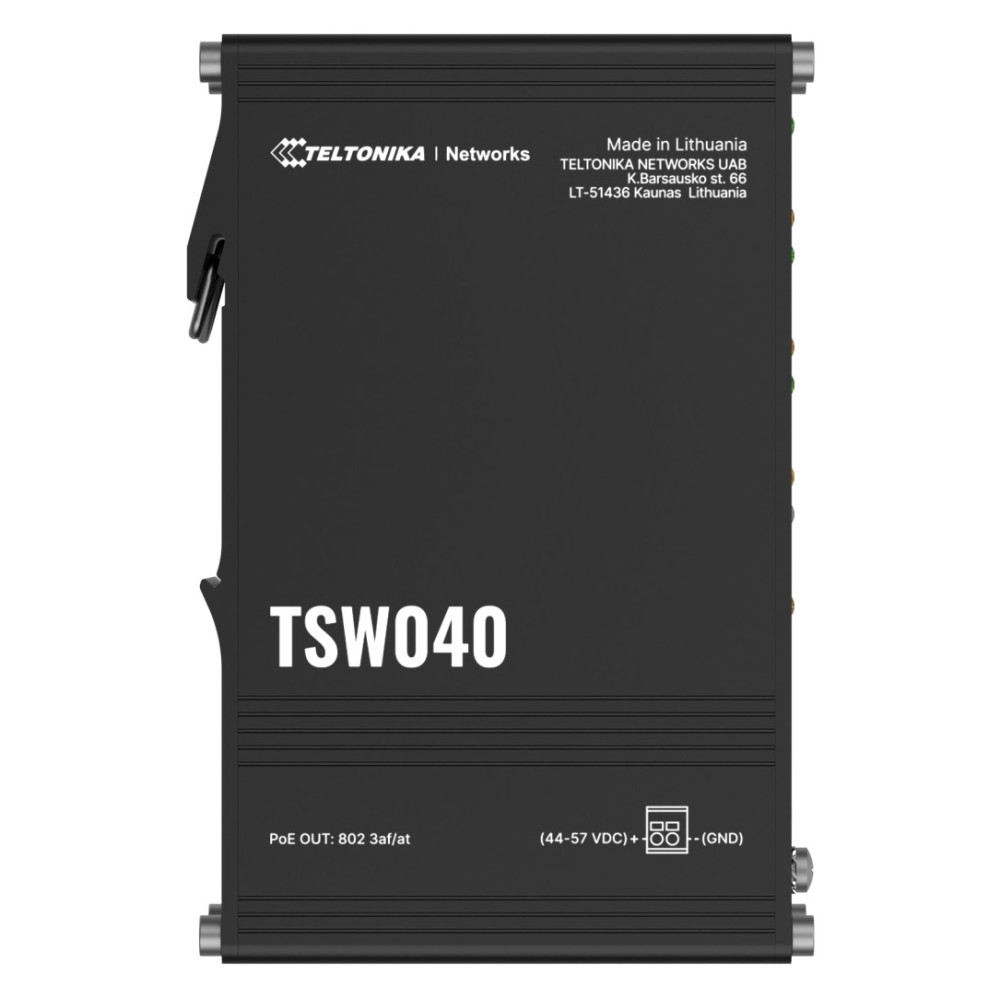

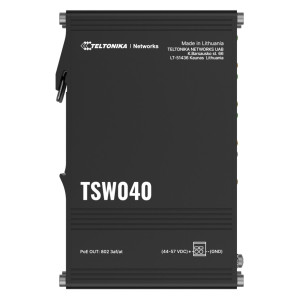

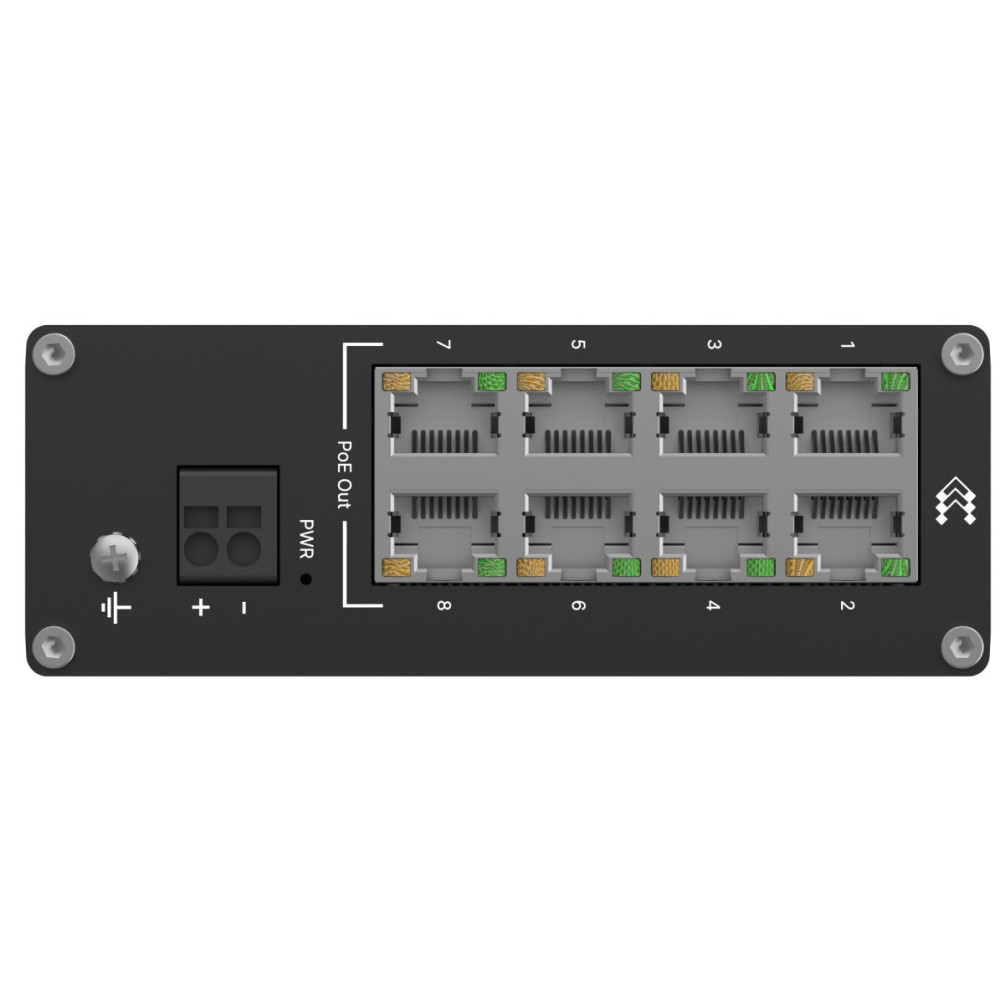

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC. The switch itself has a wide voltage range of 7-57 VDC.
This PoE Ethernet switch is a compact, industrial-grade device. It measures only 113.1 x 41.2 x 74.6 mm and is housed in anodized aluminium, allowing it to withstand extreme temperatures of -40 °C to 75 °C and take a few good hits.
TSW040000200, Switch with power supply
TSW040000000, Switch without power supply
For affordability and performance, it’s hard to compete with the TSW040. You’ll not only save money with this switch, but you’ll also reduce spending on network management and upkeep. Get in touch with our team today to discuss your network requirements. We’ll outfit your project with the right devices that get the job done.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 8 |
| Ethernet Ports | 8 Fast PoE+ Ethernet (10/100TX) |
| Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, IEEE 802.3af, IEEE 802.3at |
| MAC Table Size | 2 K |
| Power | |
| Power Consumption | Idle: 1 W / Max: 2 W / PoE Max: 246 W |
| Connection | 2-pin industrial DC power socket |
| Input Voltage | 7 - 57 VDC |
| Reverse Polarity Protection | Yes |
| Overload Protection | Yes |
| Mechanical | |
| Enclosure | Aluminum Casing, IP30 |

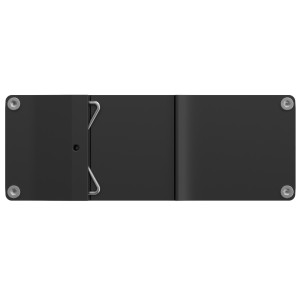

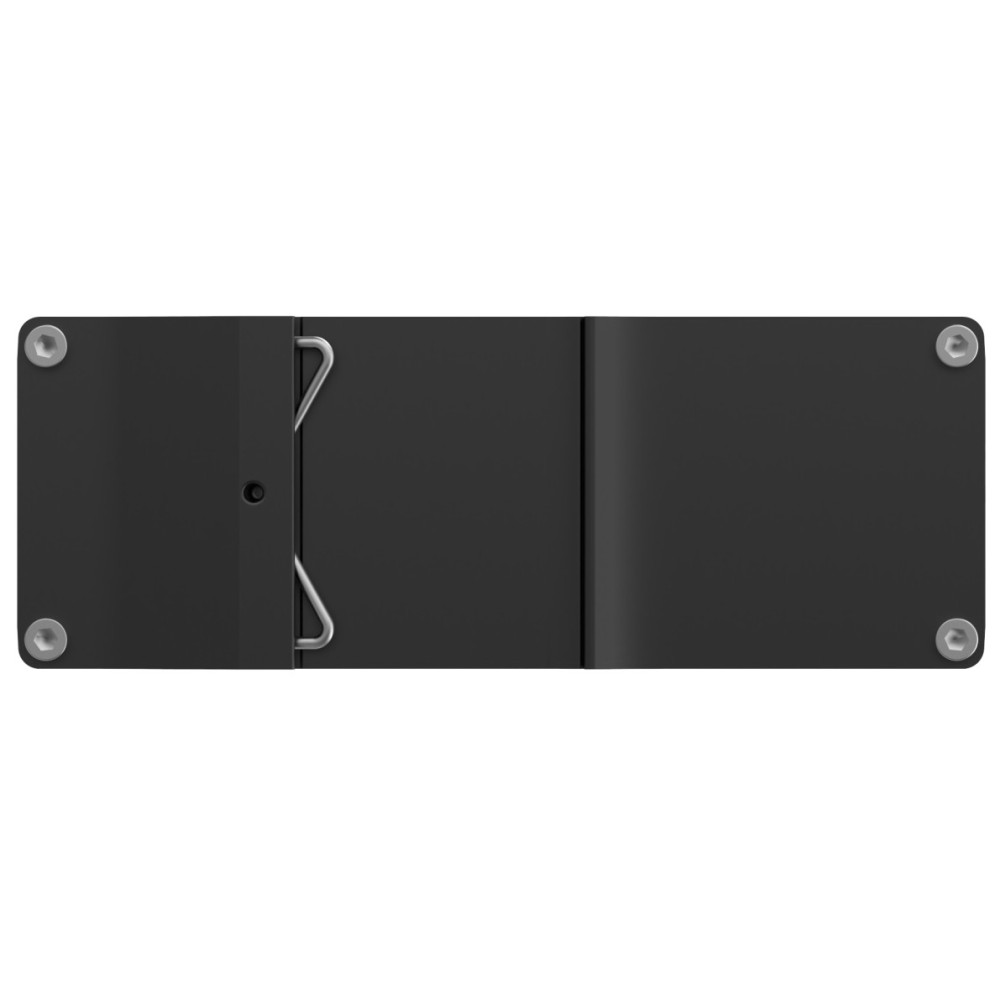

| Mounting | Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Weight | 280 grams |
| Dimensions | 113.1 x 41.2 x 74.6 mm |
| Ratings | |
| Operating Temperature | -40 to 75°C |
| Humidity | 5 to 95% non-condensing |
| Certifications | IP30 |
| Warranty | 24 months |
| Download Name | File Size |
| Teltonika TSW040 Datasheet | 1.88MB |
| Teltonika TSW040 Flyer | 1.52MB |
