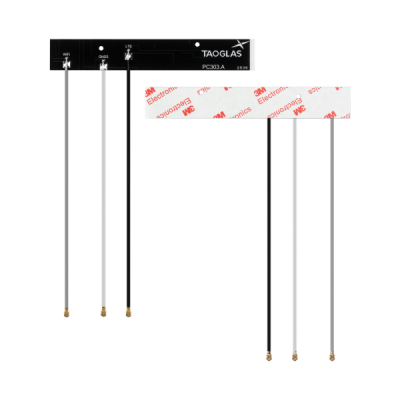

Taoglas PC303.A.001 3-in-1 GNSS, Cellular & WiFi FR4 PCB Antenna with I-PEX Connector

Taoglas PC303.A.001 3-in-1 GNSS, Cellular & WiFi FR4 PCB Antenna, I-PEX MHF I Connector

The Taoglas FXP303 is an ultra-thin, high-performance antenna designed to consolidate Wideband Cellular (600MHz–8GHz), Tri-band Wi-Fi (2.4/5.8/7.125 GHz), and GNSS (L1/B1I/G1/L-Band) into a single, compact solution. Measuring 130 x 20 x 1.1 mm, this ground-plane independent antenna is constructed from a flexible polymer, making it an ideal choice for space-constrained devices and high-vibration environments. By replacing three separate antennas with one integrated plane, the FXP303 significantly reduces BOM costs, simplifies cable management, and minimizes mechanical failure points.

Installation is fast and secure via a "peel-and-stick" 3M adhesive backing, suitable for mounting on non-metal surfaces like plastic or glass. With peak gains of up to 3.77 dBi for Cellular, 3.13 dBi for Wi-Fi, and 1.6 dBi for GNSS, it provides robust global connectivity for asset tracking, telematics, e-mobility, and smart agriculture. The antenna is supplied plug-and-play ready with pre-assembled cables and connectors that can be fully customized to meet specific project requirements and streamline production assembly.

Key Features

• 2.4 GHz: 2.5dBi, 56% Efficiency
• Cable: 150 mm of 1.37 mm diameter coax
• Connector: I-PEX MHF I (U.FL compatible)
• Dimensions: 130 x 20 x 0.24 mm
• RoHS Compliant
