SENA SS100 1-Port RS-232/422/485 Programmable Device Server

1-Port RS-232/422/485 Programmable Device Server, SS100
1-Port RS-232/422/485 Programmable Device Server, SS100 1-Port RS-232/422/485 Programmable Device Server, SS100 1-Port RS-232/422/485 Programmable Device Server, SS100
Model: SS100
Availability: Discontinued

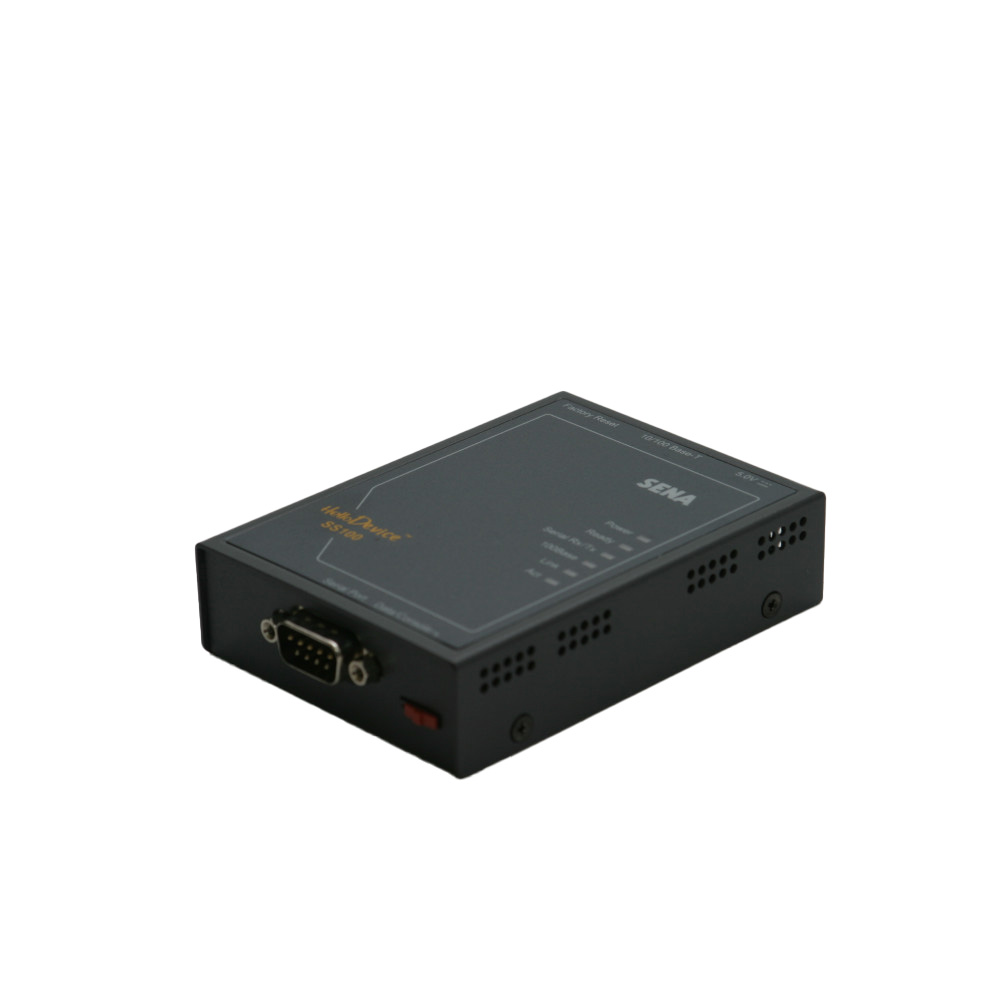

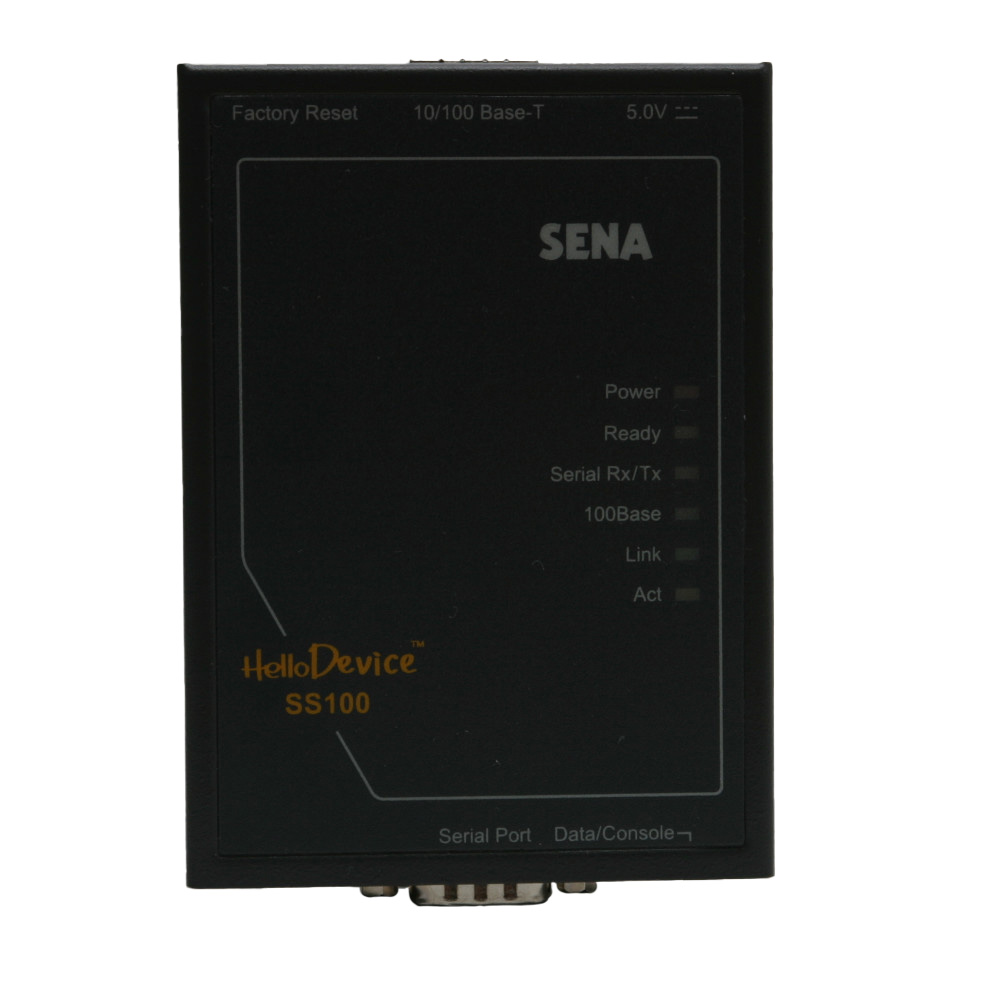

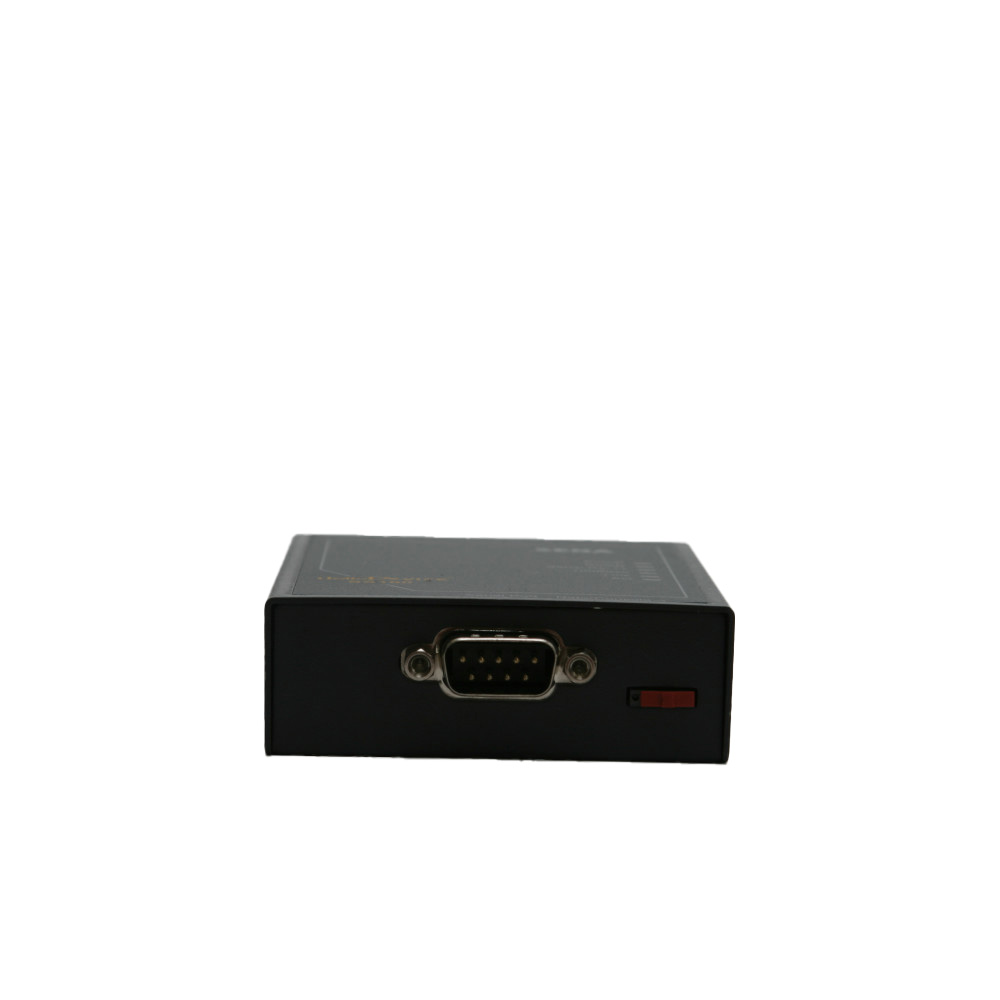

SS100 1-Port RS-232/422/485 Programmable Device Server

The SS100 is a single-port secure device server that connects RS-232/422/485 serial devices to the industry standard 10/100Base-T Ethernet network. Web based security features include HTTPS, IP address filtering and SCP. The SS100 device servers incorporate advanced features such as such as flexible operation mode, TCP/UDP multicasting, telnet COM port control protocol support (RFC2217 compliant), SSL encryption, and port event handling. The SS100 is a ideal solution for connecting RS232, RS422 or RS485 serial devices onto a ethernet network.

  • Connects legacy serial devices to 10/100Base-T Ethernet network
  • Supports RS232/422/485 based serial devices, up to 230Kbps speed
  • Flexible TCP/UDP host mode support: Multiple host connection/data transfer
  • Powerful security support, SSL (Secure Socket Layer), RC4 and 3DES
  • Easy-to-Use customization support: User space, Library and Scripts (network/port access)
  • System logging & port buffering
  • Dynamic DNS protocol for broadband Internet connection
  • Configuration via Web, Telnet/SSH, Windows Utility or console
  • Management software for configuration and administration included
  • Internal surge protector included
Download NameFile Size
SENA Device Server Catalog2.7MB
SS100 Datasheet474.43KB
SS100 User Manual2.72MB
SS100 Quick Start Guide544KB
ImageModelProduct NamePrice
DIN-RAIL-KITMounting Kit for DIN-Rail Tracks, DIN-RAIL-KIT$7.00Add to Cart
GC-F09F09-NGC-F09F09-N Null Modem Gender Changer with Female DB-9 Connectors$12.00Add to Cart
GC-F09F09-SGC-F09F09-S Miniature Gender Changer Female DB9, Straight Through$0.00Add to Cart
GC-F09M09-NGC-F09M09-N Null Modem Gender Changer with Male and Female DB-9s$0.00Add to Cart
