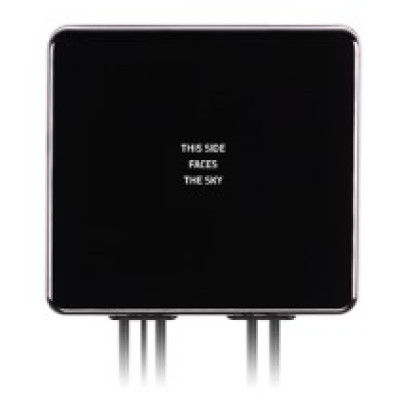

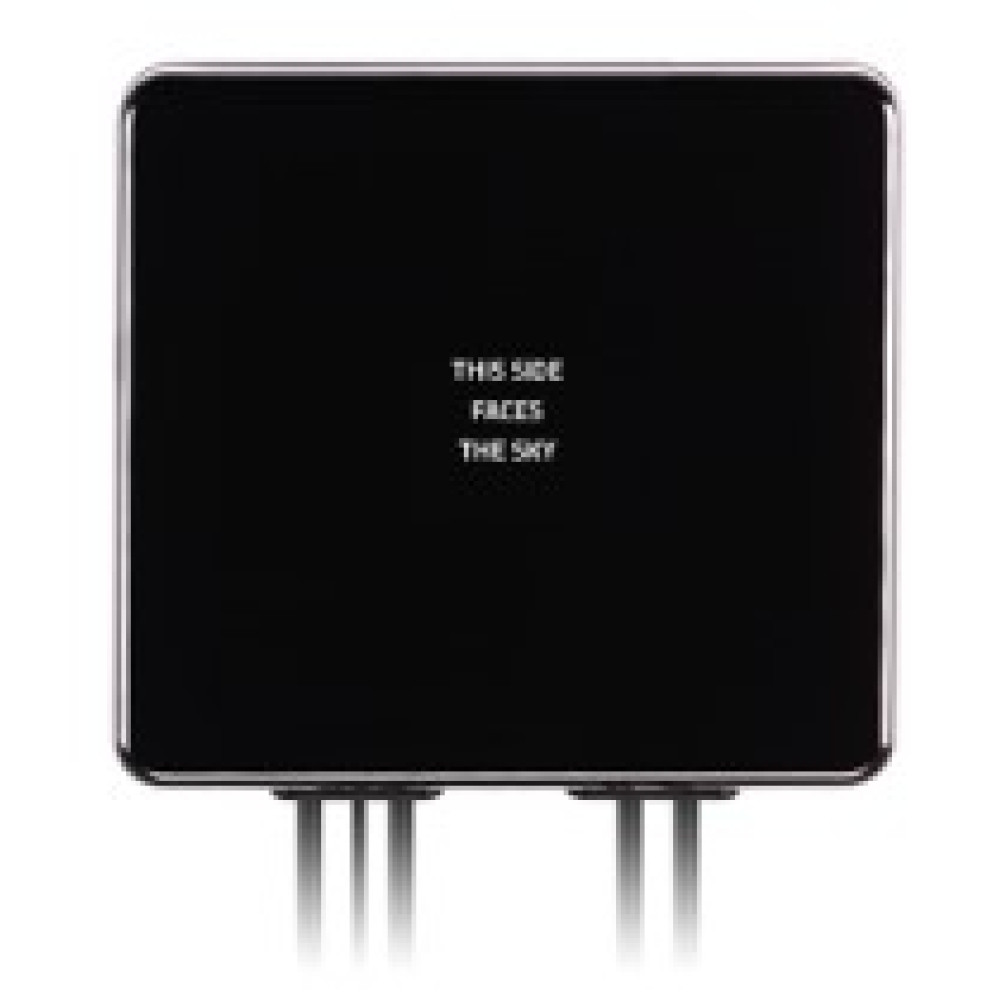

Semtech 6001548 7-in-1 Flat Panel Antenna for the Airlink XR60 Router

Name: Semtech 6001548 7-in-1 Flat Panel Antenna for the Airlink XR60 Router
Brand: Semtech
SKU: 6001548
Price: 223.44 USD
Availability: OnlineOnly

New

Semtech 6001548 7-in-1 Antenna for the XR60 router, 4 LTE, 2 WiFi, GPS, black

Model: 6001548
Availability: Normally in Stock

Manufacturer: Semtech

FREE SHIPPING !

$223.44

Request a Volume Quote

Qty: Add to Cart

Add to Wish List Add to Compare

Description Specifications Downloads

Semtech 6001548 7:1 Panel Antenna with 4x4 MIMO LTE, MIMO WiFi, GPS

The 7-in-1 Flat Panel 6001548 is a specialized antenna solution engineered and certified for Semtech (Sierra Wireless) AirLink XR60 mobility applications. The antenna panel features 4x4 MIMO for 4G/5G (617-6000 MHz), MIMO dual-band 2.5/5 GHz Wi-Fi, and an active L1/L5 GPS/GNSS antenna.

Key Features

Omnidirectional 7-in-1 5G LTE vehicle antenna for the Airlink XR60 router
4x4 MIMO LTE, 617-960, 1427-6000 MHz ranges
2x2 MIMO WiFi, 2.4 and 5.0 GHz ranges
GPS, 1559-1612 MHz / 1164-1189 MHz ranges
SMA/RP-SMA connectors
Available in black
-40 to 80°C operating temperature range
IP67 Rated in black

In the Box

Flat panel antenna
Double sided adhesive foam

Technology
Category	Antenna
Wireless
7:1 Combination Antennas	7:1 (4 LTE, 2 WiFi, GPS)
Pattern	Omnidirectional
Cellular Frequencies	617-6000 MHz
Wi-Fi Frequencies	2.4 GHz / 5 GHz
Impedance	50 Ohms
Interfaces
GPS	1559-1612 MHz / 1164-1189 MHz
Mechanical
Cabling	Cellular & WiFi: 3m TGC-302, GPS: 3m RG-174
Connector Type	SMA/RP-SMA (M)
Mounting	Adhesive Mount
Color	Black
Dimensions	146.05 mm L x 136.05 mm W x 20 mm H
Ratings
Operating Temperature	-40 to 85°C
Certifications	IP67
