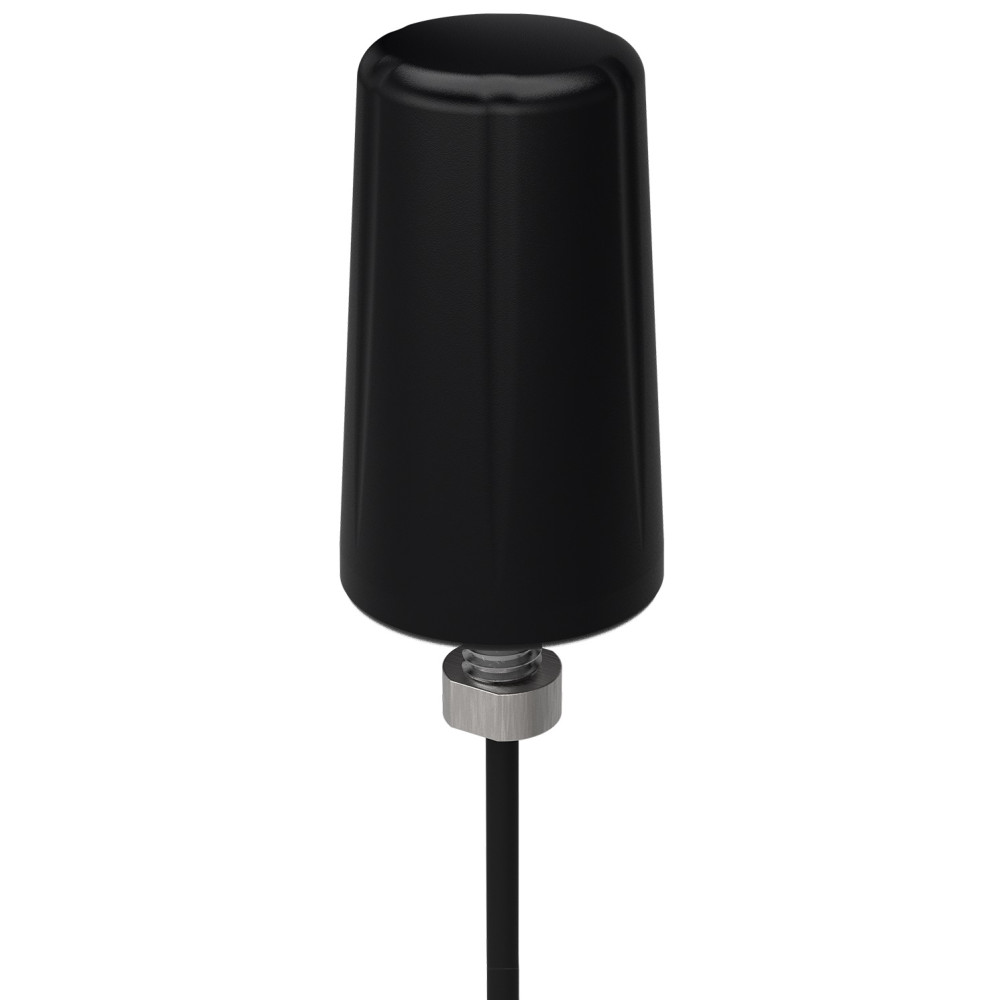

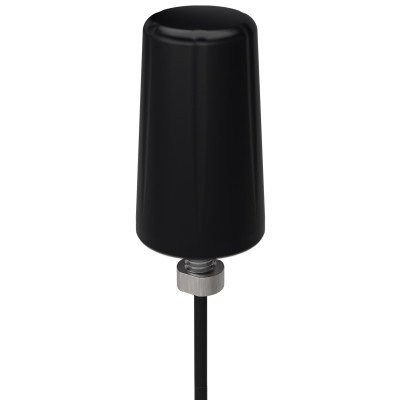

Panorama LPBSC-6-60 Low Profile 5G/4G/3G/2G Cellular Antenna, IP68 Rated

Panorama LPBSC-6-60 SISO 5G/4G LTE Antenna, Immersion and Corrosion Resistant (IP68)

The LPBSC-6-60 by Panorama is an omnidirectional broadband antenna range covering 617-960/1427-6000MHz which has been specially adapted for use in hostile, frequently flooded environments for applications like sewer monitoring, water metering, and flood control. The exposed metal parts of the antenna body are 316 stainless steel making the antenna very resistant to corrosion.

The omnidirectional radiation pattern allows easy placement of the antenna in any position, without requiring directional alignment. The LPBSC-6-60 antenna is supplied with an integral ultra low loss FR CS29 coaxial cable fitted with a special SMA plug which forms a seal preventing water wicking up the cable into the antenna housing during submersion. This antenna is protected to IP68 (5m / 7 days) provided that the SMA plug is properly connected.

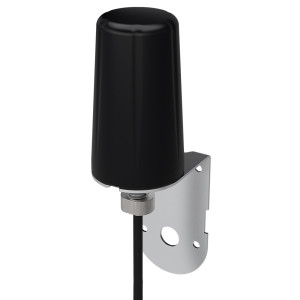

The antenna is designed to be wall, mast, or panel mounted on a device or enclosure. The LPBSC-6-60 is also available with a bracket for more flexible mounting, orientation, and deployment in confined spaces. See the B4BSC-6-60 antenna.

Key Features

• Omnidirectional, Low profile wideband antenna
• 2G/3G/4G/5G antenna solution covering global bands
• Suitable for NB-IoT, CAT-M1 & LoRaWAN applications
• Designed for cabinet/enclosure installation
• Integrated double shielded coaxial cable, 2-meter CS29
• IP68 compliant
• Sealed against ingress up to 5m (16.4’) depth for 7 day
• Operates over the 617 to 960 MHz and 1427 to 6000 MHz frequency ranges
• Supports band 71 and CBRS
• 30 W maximum input power
• SMA male connector
• Operating temperature from -40 to 85°C
