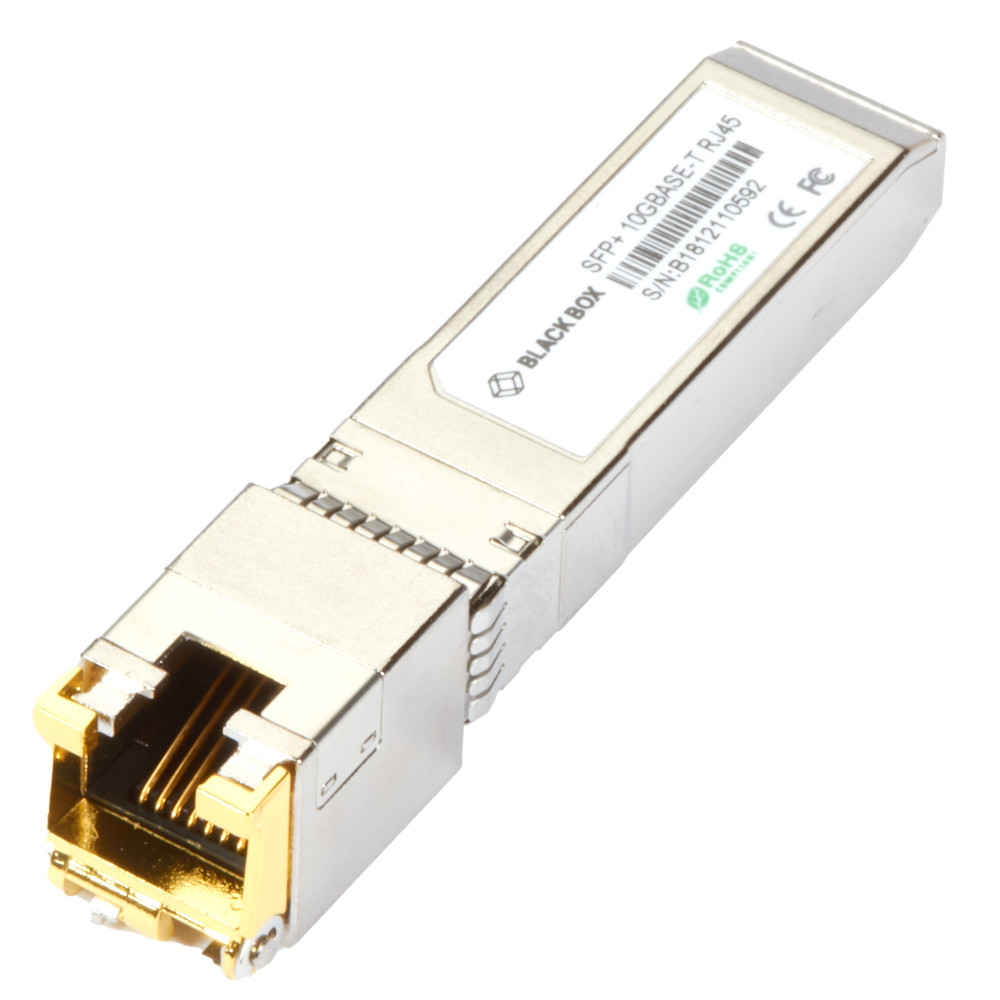

Black Box LSP444 SFP+ to 10G Ethernet (RJ45) Transceiver for Extreme Temperatures

New Black Box LSP444 SFP+ to 10G Ethernet (RJ45) Transceiver, 30m, for extreme temperature
Model: LSP444
Availability: Contact Westward Sales
Standard Shipping & Handling
Qty:

Black Box LSP444 SFP+ to 10G Ethernet (RJ45) Transceiver, -40°C to 85°C

The Black Box LSP444 transceiver is based on the SFP Multi-Source Agreement (MSA). It is compatible with the 10Gbase-T, 5Gbase-T, 2.5Gbase-T, 1000base-T standards as specified in IEEE Std 802.3. SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Key Features

  • Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
  • Hot-pluggable SFP footprint
  • Compact RJ-45 connector assembly
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 10 Gigabit Ethernet up to 30m over Cat 6A cable
  • Extended Operating temperature: -40°C to 8°C
  • 1 Year Double Diamond™ Warranty (Standard) included. Extended warranty available. Contact Westward Sales.
Technology
CategorySFP
SFP Characteristics
SFP Data Rate10 Gbps
InterfaceCATx
Transmit Distance30 m
Operating Voltage3.3 V
Output Power3 W
Ratings
Operating Temperature-40°C to 85°C
Storage Temperature-40°C to 85°C
Download NameFile Size
Black Box LSP444 Datasheet1.84MB
