Axiomtek GOT312A-ELK-TCD 12.1" Fanless Touch Panel PC with Intel Celeron J6412

AxiomTek GOT312A-ELK-TCD Fanless, Multi-Touch Panel PC with 12.1” XGA TFT Touchscreen, 2.5 GbE LAN

This GOT312A-ELK-TCD is a multi-touch panel PC featuring a 12.1-inch XGA LCD display and supporting the Intel Celeron processor J6412. This fanless platform is particularly designed for operation under harsh environment s including steel refineries, oil pipes, ships, machine makers, and many more.

The 12.1-inch XGA LCD display boasts 500 nits brightness and can render content in XGA resolution. Equipped with a projected capacitive multi-touch screen, users can interact with the device more intuitively and efficiently. The touch glass surface is designed to withstand scratches, with a hardness rating of up to 7H.

It provides an IP65-rated aluminum front bezel for dust and spill resistance and supports a wide range of 9 to 36 VDC power input. The GOT312A-ELK-TCD is specifically designed for vibration-prone environments, best for the transportation (vehicle, railway, marine) and industrial machinery markets. With a patented antivibration design, the GOT312A-ELK-TCD is able to work in operation mode under 2G (5 ~ 500Hz), which has significantly improved system reliability and sustainability.

The GOT312A-ELK-TCD supports one 260-pin DDR4-2133/2400/2666/3200 SO-DIMM slot with up to 32 GB system memory and offers one 2.5" SATA SSD and one mSATA. Ready for more expansion possibilities, the panel PC comes with one full-size PCI Express Mini Card slot (PCIe + SATA + USB) and one M.2 Key E 2230 slot for wireless connectivity. Its rich I/O interface includes one COM for RS-232/422/485, one RJ-45 2.5Gb Base-T Ethernet, one RJ-45 1Gb Base-T Ethernet, four USB 3.2 Gen2 ports, one HDMI, and one VGA. It also supports one Phoenix-type connector for DC power input, one ATX switch for power on/off, one Line-in/out, one remote power switch, one AT/ATX switch (for DC type only), and one grounding hole (for DC version). Furthermore, it supports TPM 2.0 for a higher level of security capabilities. It supports various OS, including Win10, Win10 IoT, Win11, Win11 IoT, and Linux, to facilitate the development of unique applications.

Key Features

• 12.1" XGA projected capacitive multi-touch widescreen
• Fanless design with Intel Celeron processor J6412

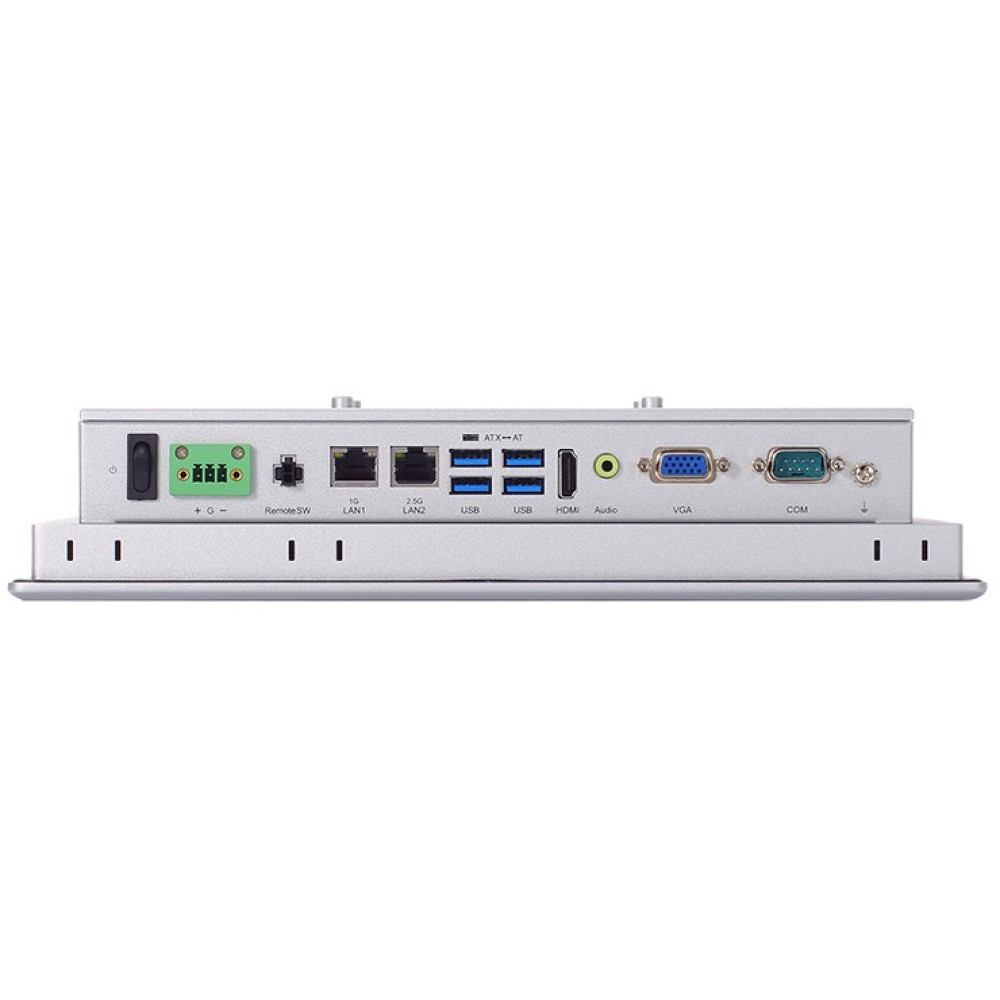

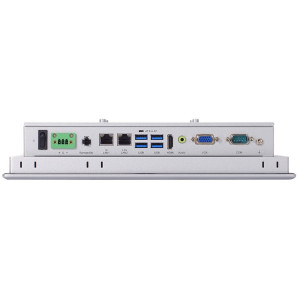

• 2 LAN, 4 USB, HDMI, VGA, and COM (RS-232/422/485)
• IP65-rated aluminum front bezel
• Supports WLAN module and antenna (optional)
• Operating temperature: -10°C to +50°C
• Supports wall mount, panel mount, VESA mount, and desktop stand

Optional Accessories (Call for pricing)

• 4G LTE kit
• Wi-Fi kit
• RFID kit
• Barcode scanner kit
• Wall mount kit
• Panel mount kit
• Stand kit
• AC to DC adapter 24V 120W wire type

The GOT312A-ELK-TCD aims for boosting greater productivity and efficient data visualization across businesses from industrial automation, the public sector, to the retail industry. Whether your operation is looking for tools like this panel computer for similar uses or a HMI built for a different implementation, our sales experts are ready to help find the right device for the job. Call today and speak to our sales staff to customize this panel PC. We're excited to offer our vast knowledge on industrial computing and networking devices to help you get more from technology for your operation.
