Manufacturer: Axiomtek

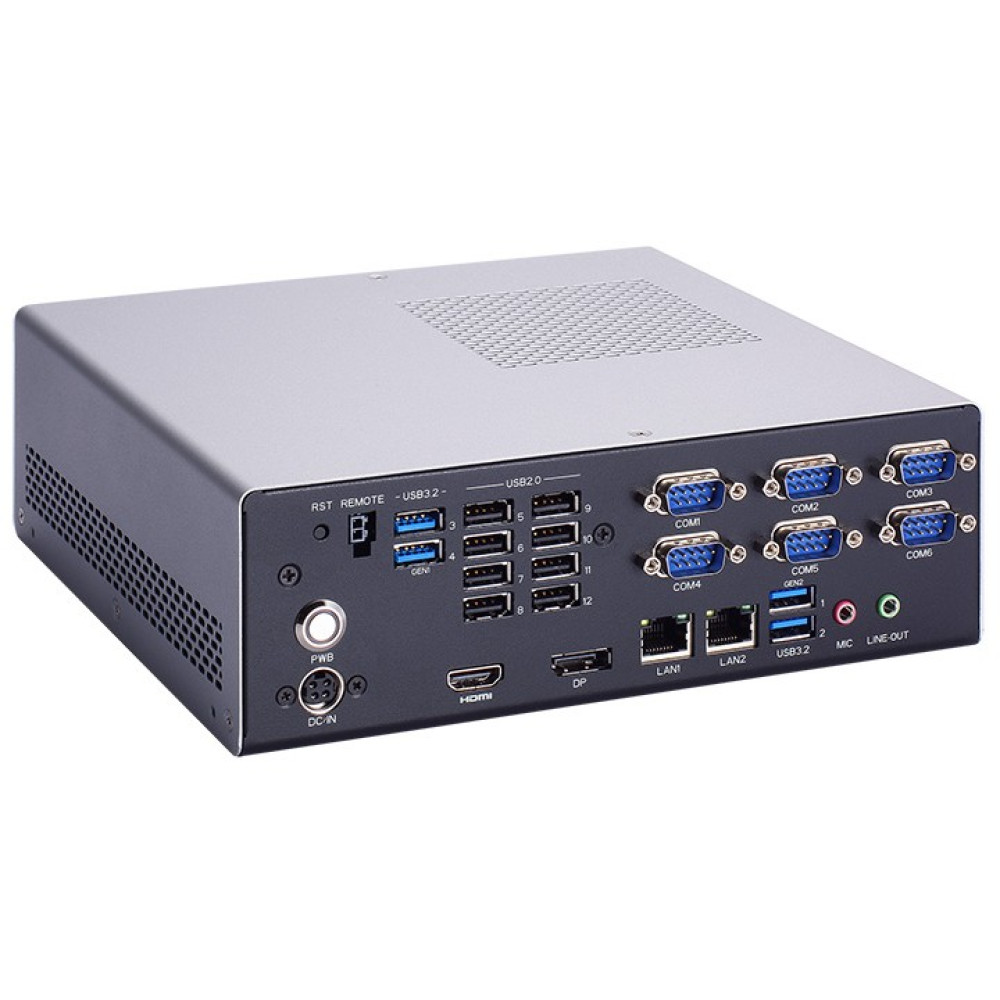

The DSP801 is an advanced kiosk control system designed for self-service kiosks, ticketing systems, self-ordering terminals, and hotel check-in kiosks. Combining high computing power, low power consumption, and extensive connectivity with up to twelve USB ports, this system delivers superior performance for modern, space-constrained retail environments.
Powered by 13th/12th gen Intel Core i7/i5/i3 processors and the Intel H610 chipset, the DSP801 delivers exceptional computing and 4K video playback while maintaining excellent energy efficiency. With up to 64GB of dual DDR4-3200 memory, it ensures smooth multitasking and reliable performance for demanding self-service operations.

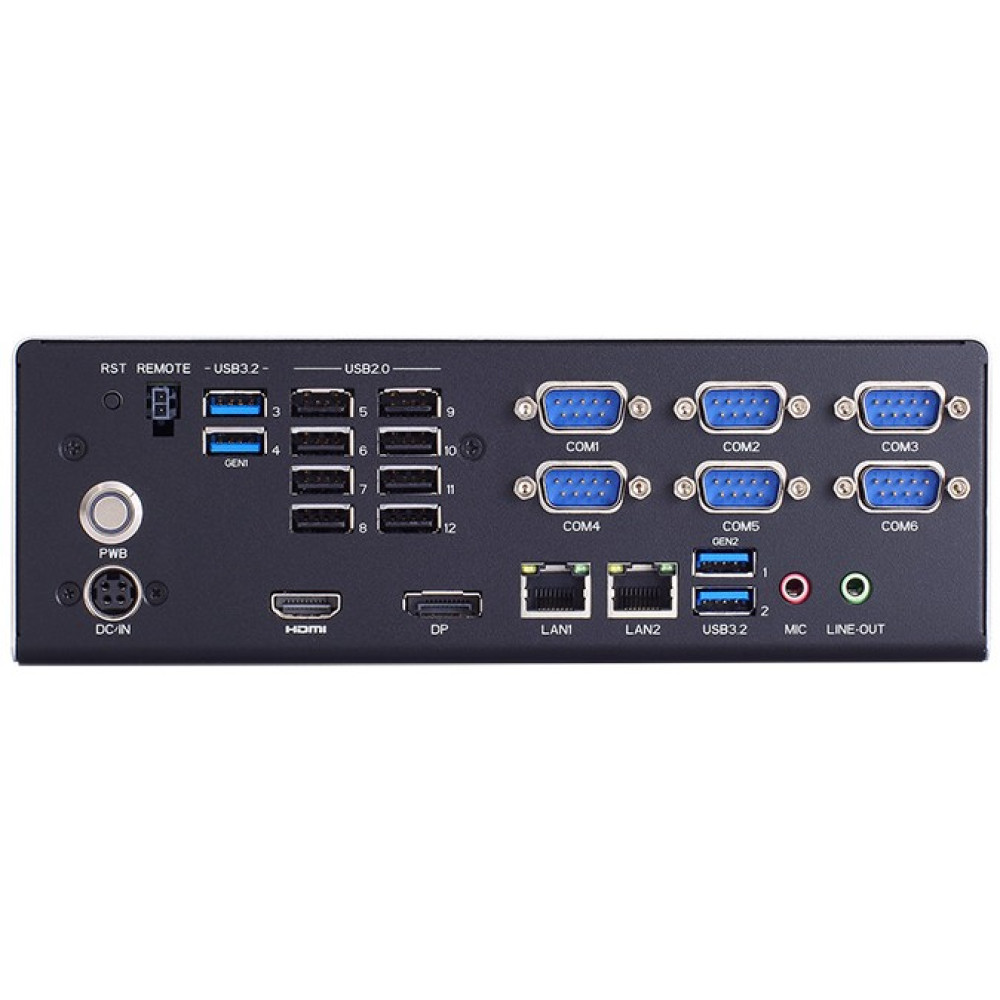

Designed for maximum expandability, it delivers industry-leading connectivity with twelve USB ports, supporting a wide range of retail peripherals simultaneously. With six COM ports and front-facing HDMI/DisplayPort outputs, it ensures quick installation, reduced setup effort, and seamless operation in compact self-service or retail environments. Engineered to minimize integration effort and total cost of ownership, the system offers flexible mounting options, simplified maintenance, and versatile expansion through M.2 and SATA interfaces. Combining a compact design with rich connectivity, it is a perfect choice for kiosk, ticketing, and hospitality applications that demand reliable and scalable system solutions.
Contact Westward Sales today to learn more about the DSP801 Kiosk Controller.
| Computing | |
| System Type | Digital Signage Player |
| CPU | Intel Core i9/i7/i5/i3 |
| System Memory Configuration | 2 x DDR4-3200 SO-DIMM, up to 64GB (DDR5 version will be available in Q1 2026) |
| Maximum System Memory | 64 GB |
| Operating Systems | Windows 11 IoT, Linux |
| Interfaces | |
| LAN Ports | 2 x 10/100/1000 Mbps Ethernet |
| USB | 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 8 x USB 2.0 |
| Video Ports | 1 x HDMI 2.0 (4K display), 1 x DP1.4 (4K display) |
| Audio | 1 x Line-out, 1 x Mic-in |
| Power | |
| Input Voltage | 12 to 19 VDC |
| Mechanical | |
| Weight | 1.8 kg (3.96 Ibs.) |
| Dimensions | 215 x 200 x 72 mm (8.46" x 7.87" x 2.83") |
| Ratings | |
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |
| Humidity | 10 - 95% (non-condensing) |
| EMC | CE, FCC class A |
| Download Name | File Size |
| Axiomtek DSP801 Datasheet | 447.14KB |
