Manufacturer: Axiomtek
The DSP311 is a palm-sized, fanless digital signage player designed for retail displays, POS systems, and video conferencing, this solution delivers high performance, energy efficiency, and cost-effectiveness. Its ultra-compact design enables flexible installation in space-constrained environments, making it an ideal choice for businesses seeking streamlined deployment, reduced operational costs, and fast time-to-market.
Equipped with the Intel processor N97 (four cores, up to 3.6GHz) and 8GB DDR4 memory (expandable up to 16GB), the DSP311 delivers smooth multimedia playback and responsive performance for real-time retail operations. Its energy-efficient design helps businesses achieve ESG goals, while the fanless construction ensures reliable, low-maintenance operation.

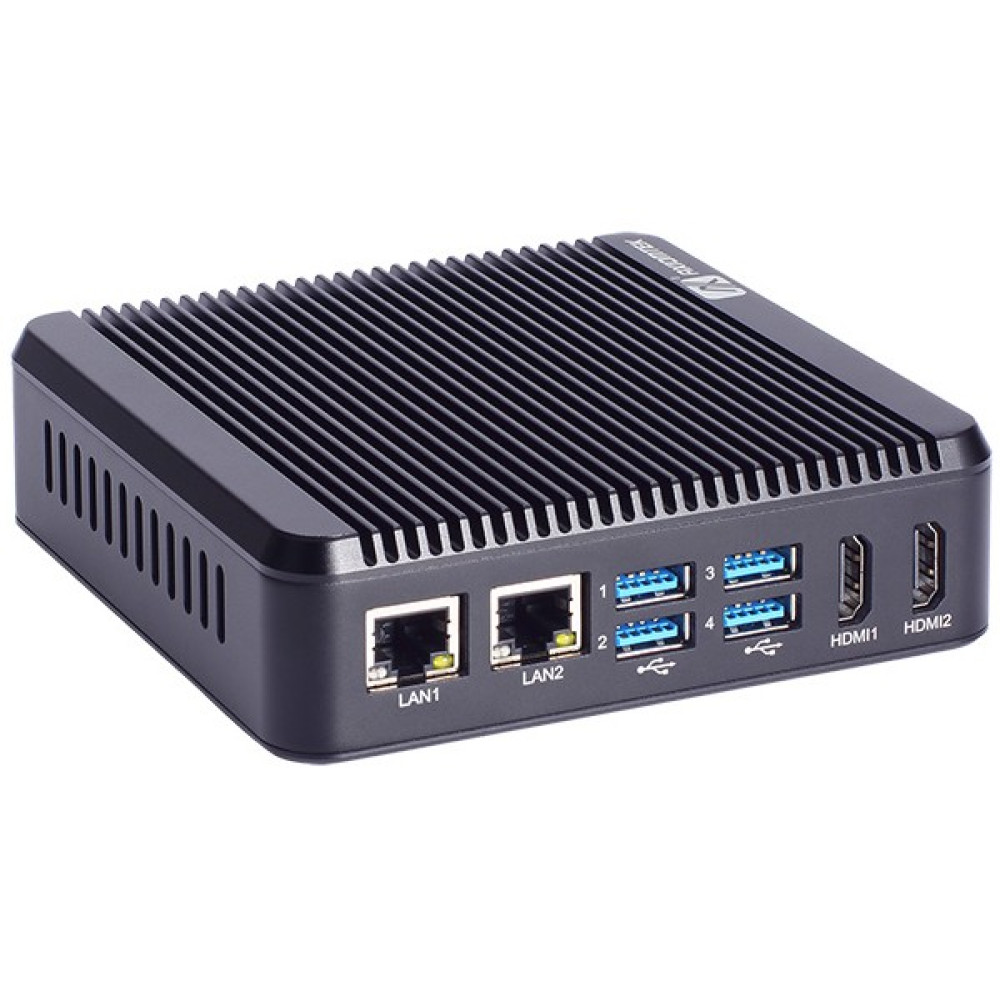

The DSP311 provides essential connectivity options, including four USB 3.2 ports for peripheral devices and dual Gigabit LAN ports for reliable network communication. A PCIe Mini Card slot allows storage expansion, and the system operates on a +12V DC input, making it well-suited for embedded and commercial deployments. Its dual 4K display support, versatile connectivity, compact form factor, and cost-effective design make it an excellent choice for businesses that prioritize reliability, performance, and efficiency.

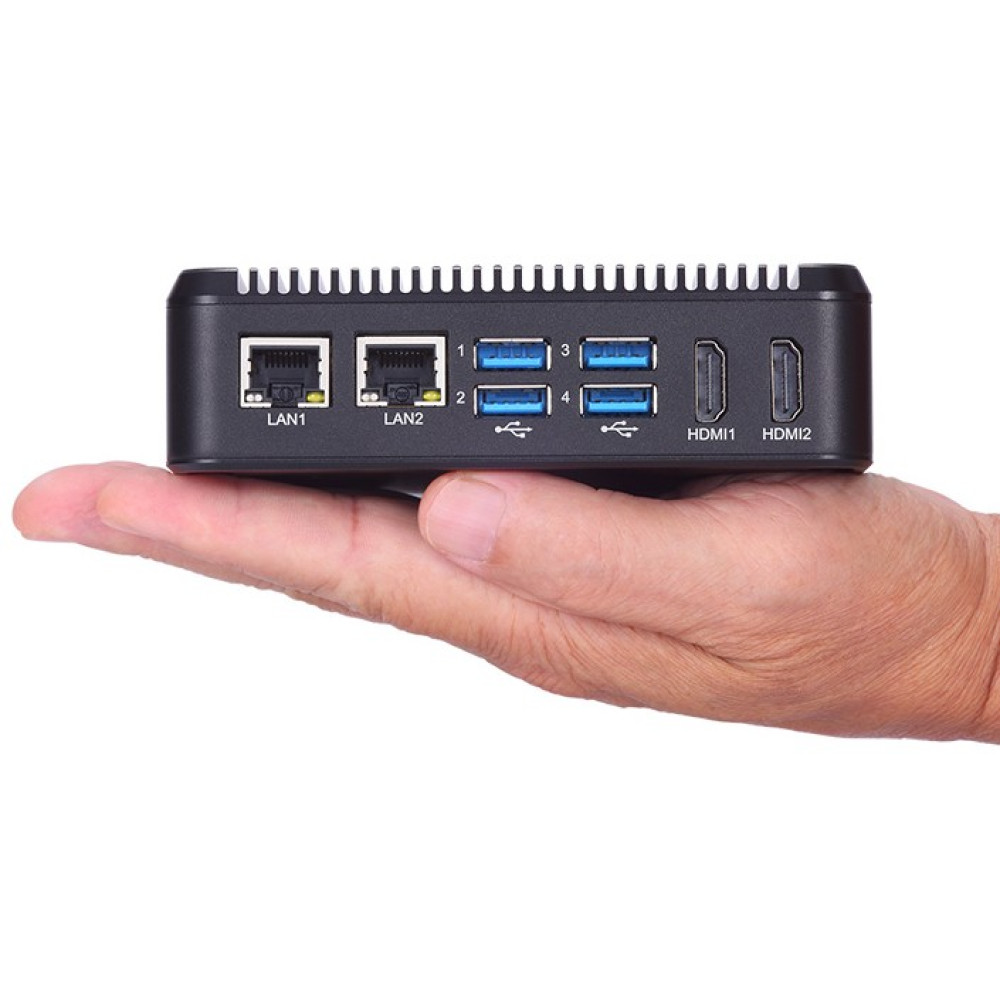

The DSP311 supports two independent HDMI 2.0 outputs, each delivering 4K resolution at 60Hz, enabling vibrant, high-definition content across multiple displays. This dual-display capability is ideal for promotional content, product information, or interactive visuals in retail stores, restaurants, and meeting rooms. Measuring just 137 x 127 x 41 mm and weighing only 0.5 kg, the digital signage platform easily fits into tight spaces such as cashier counters, kiosks, or shelf displays. Its small footprint allows flexible installation while maintaining reliable operation in 24/7 environments.
Contact Westward Sales today to learn more about the DSP311 Digital Signage Player.
| Computing | |
| System Type | Digital Signage Player |
| CPU | Intel N-Series |
| System Memory Configuration | DDR4 8GB 260-pin SO-DIMM |
| Maximum System Memory | 8 GB |
| Operating Systems | Windows 11, Linux |
| Interfaces | |
| LAN Ports | 2 x RJ-45 LAN 10/100/1000M (Realtek 8111H) |
| USB | 4 x USB 3.2 |
| Video Ports | 2 HDMI |
| Audio | 1 x Mic-in, 1 x Speaker-out |
| Power | |
| Input Voltage | +12V DC-in |
| Mechanical | |
| Weight | 0.5 kg (1.1 lbs.) |
| Dimensions | 137 x 127 x 41 mm (5.39" x 5" x 1.61") |
| Ratings | |
| Operating Temperature | 0°C to +45°C (+32°F to +113°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5 - 95% (non-condensing) |
| EMC | CE |
| Download Name | File Size |
| Axiomtek DSP311 Datasheet | 543.82KB |
