Manufacturer: Axiomtek

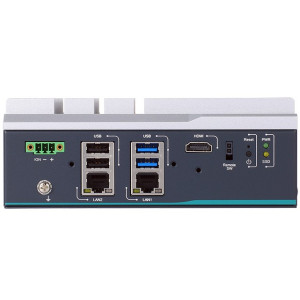

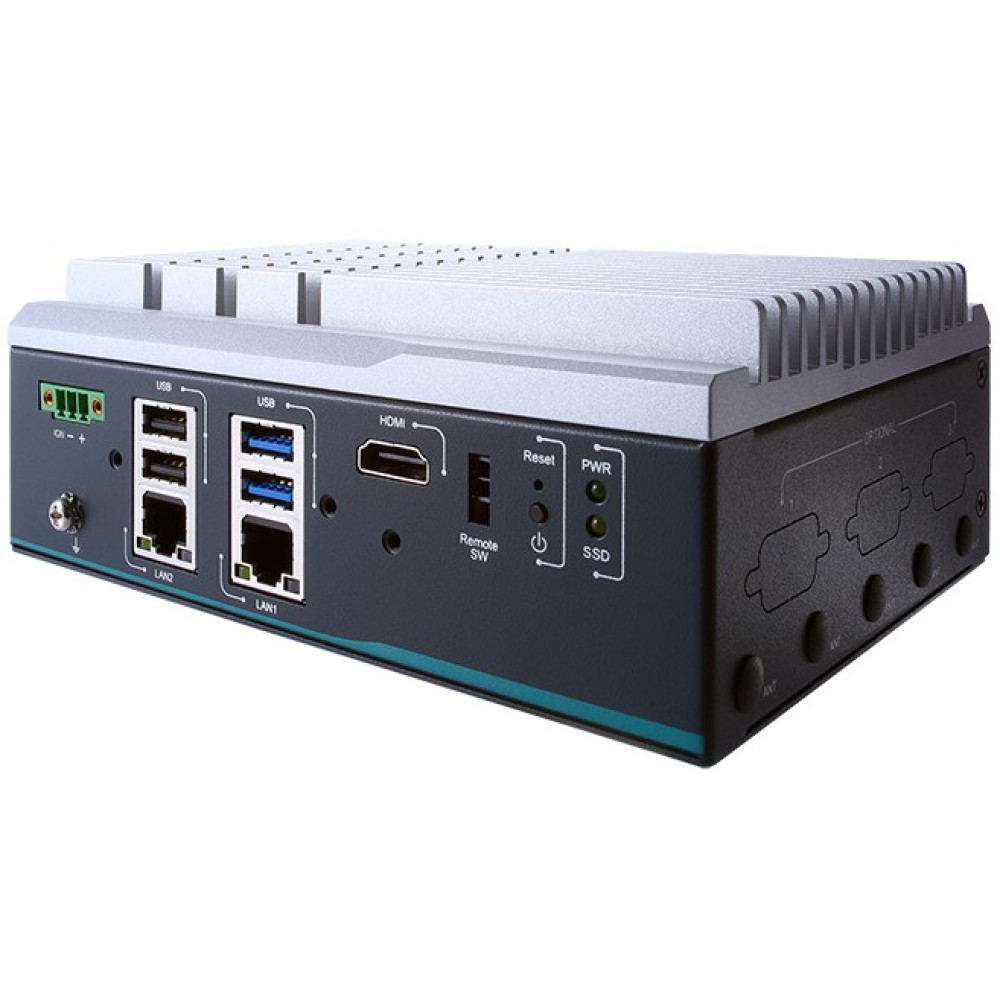

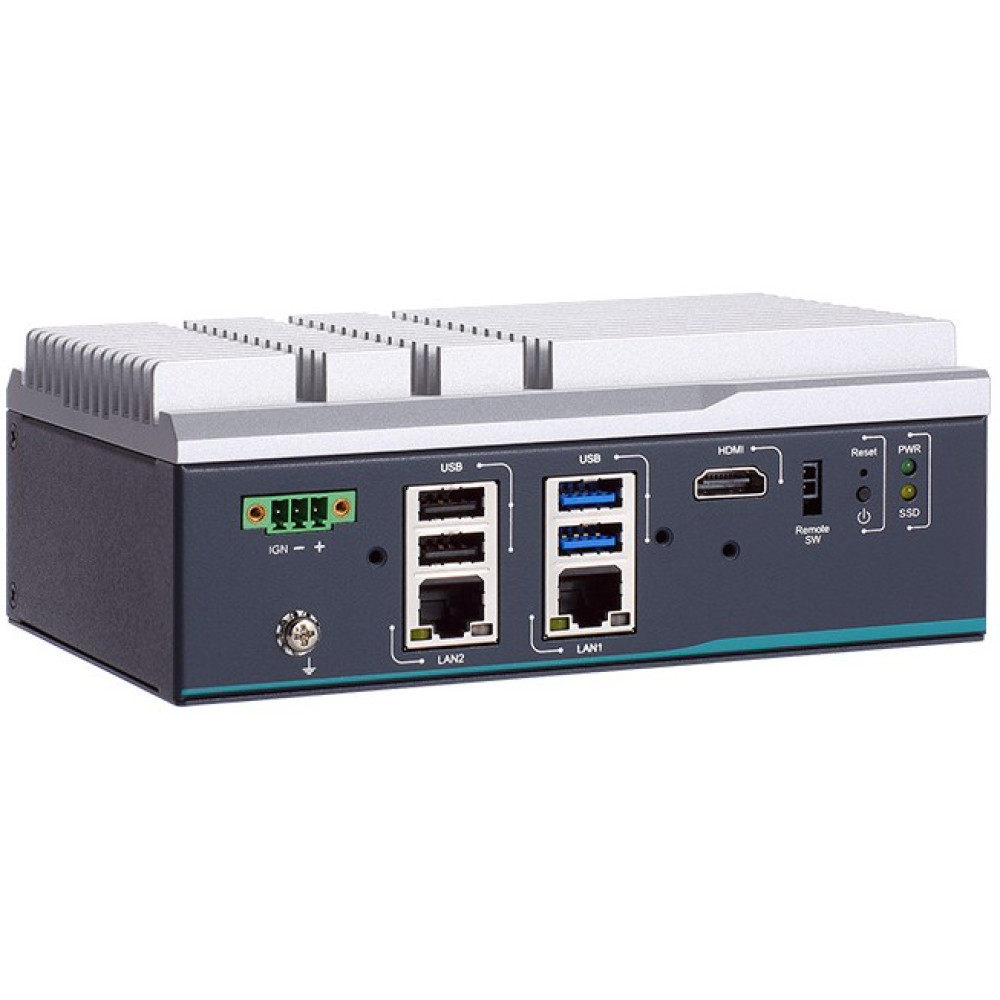

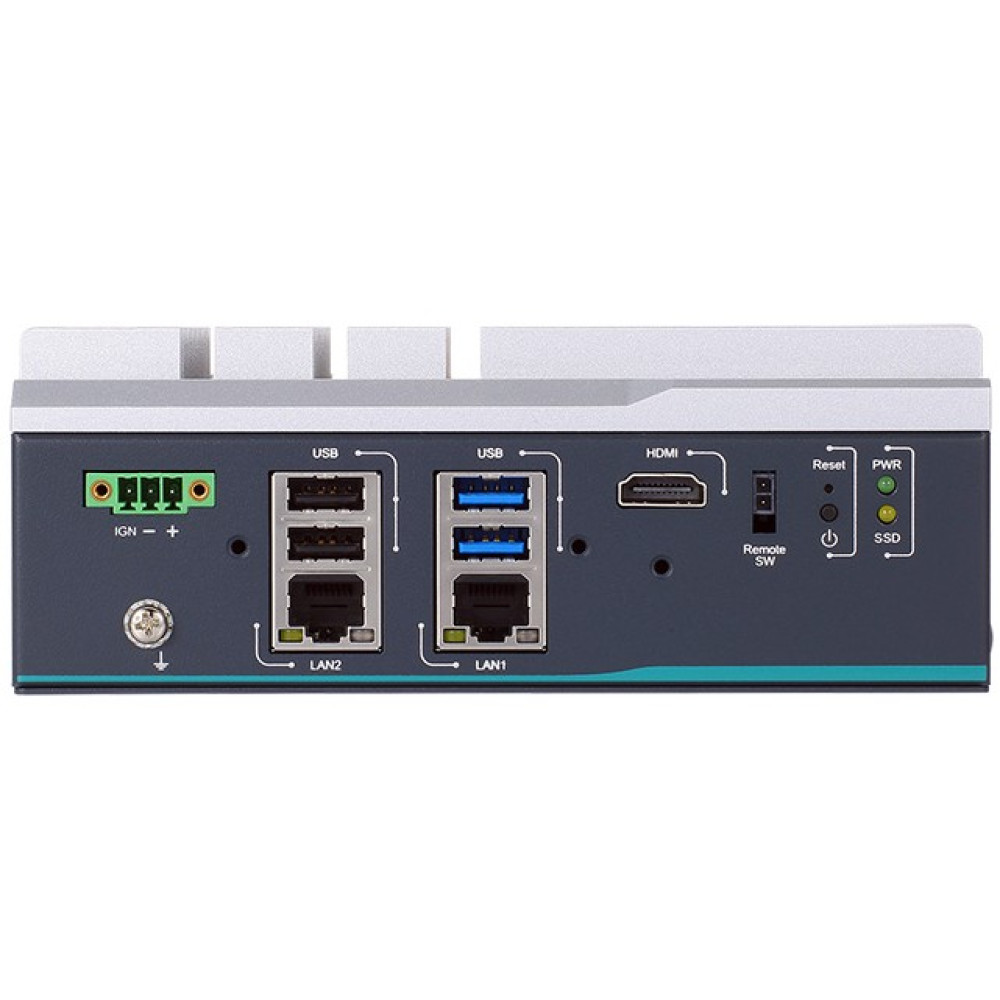

The AIM101 is a compact, efficient industrial-grade fanless edge AI system with Intel processor N150, featuring a PCIe Gen3 x4 M.2 slot to run AI accelerator at full performance capability. It offers rich connectivity options, including dual 2.5GbE LAN, USB 3.2, HDMI, and wireless support for Wi-Fi 6E and LTE. It also offers 3 optional I/O for DIO, COM or CAN bus for peripheral connectivity and communication protocols. Suitable for computer vision inference of smart city, smart manufacturing, edge computing, factory automation applications. and more at the edge.
It supports various AI accelerator cards with up to 100 TOPS performance via a PCIe Gen3 x4 M.2 slot. The system supports a wide voltage input range from 9 to 36 VDC with smart ignition and flexible power control for USB and LTE devices, making it ideal for edge deployment. Its compact yet durable construction and operating temperature range of -20°C to 60°C ensure reliable performance for machine vision, video analytics, and real-time AI inference at the edge.
The AIM101 now integrates seamlessly with the Axelera M.2 AI inference acceleration card, featuring a quad-core Metis AIPU. This combination delivers data center-class AI performance directly to the edge, enabling real-time computer vision processing. The result is faster, more efficient operations, reduced latency, and expanded opportunities for AI-powered industrial automation. Delivered by Axelera AI, the Metis AI processing unit is purpose-built to deliver high-performance compute capabilities while maintaining the energy efficiency needed for edge use cases. Metis is accompanied by the Voyager SDK, which offers a user-friendly and easy-to-integrate environment for building a data pipeline.
By combining this robust system design with Axelera’s high-performance inference engine, customers can deploy more intelligent, responsive, and cost-effective machine vision applications at the edge.
| Computing | |
| System Type | AI / GPU Computer |
| CPU | Intel N-Series |
| CPU Chipset | SoC integrated |
| System Memory Configuration | Onboard 8GB LPDDR5 (16GB by option) |
| Maximum System Memory | 16 GB |
| BIOS | AMI |
| Watchdog Timer | 255 levels, 1 to 255 sec. |
| Drive Storage | 1 x 2.5" SATA HDD/SSD, 1 x M.2 Key M 2280 NVMe SSD, 1 x mSATA SSD |
| Expansion Slots | 1 x M.2 Key M 2280 slot (PCIe Gen 3 x4) for AI accelerator card or NVMe SSD, 1 x M.2 Key E 2230 slot for Wi-Fi 6E, 1 x full-size PCI Express Mini Card slot (USB + PCIe/SATA) for Wi-Fi/LTE/GPS or mSATA, 1 x Nano SIM slot |
| Operating Systems | Windows11 IoT and Linux Ubuntu 24.04 LTS |
| Cellular Interface | |
| SIM Holder | 1 x Nano SIM slot |
| Interfaces | |
| LAN Ports | 2 x 2.5GbE Ethernet (PoE) |
| USB | 2 x USB 3.2 Gen 2, 2 x USB 2.0 |
| Total Serial Ports | 2 |
| Serial | 2 x RS-232/422/485 |
| Power | |
| Input Voltage | 9 to 36 VDC |
| Input Connection | 9-36V Phoenix DC |
| Mechanical | |
| Enclosure | Aluminum extrusion and heavy-duty steel, IP40 |
| Mounting | Wall mount, DIN-rail |
| Shock / Vibration | MIL-STD-810H, IEC 60068-2-27, IEC 60068-2-64 |
| Antenna Connection | 5 x antenna opening for Wi-Fi/LTE/GPS |
| Weight | 1.1 kg (2.43 lbs.) |
| Dimensions | 167 x 119 x 62.6 mm (6.57" x 4.69" x 2.46") |
| Ratings | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) (with W.T. AI accelerator card, DRAM and SSD) |
| Humidity | 10% to 95%, non-condensing |
| Certifications | CE, FCC Class A |
| Download Name | File Size |
| Axiomtek AIM101 Datasheet | 497.71KB |
| Axiomtek AIM101 User's Manual | 5.94MB |
