Axiomtek SCM330 SMARC Module with Intel Core or Intel Atom Processors

New Axiomtek SCM330 SMARC Module with Intel Core/Pentium/Celeron or Intel Atom, 8 USB, dual multi-gigabit Ethernet, HDMI and DisplayPort video outputs
Model: SCM330
Availability: Contact Westward Sales
Standard Shipping & Handling
NCNR: YES
Qty:

Axiomtek SCM330 Intel Core, Pentium, or Atom x7000 SMARC Module, LPDDR5 Memory, 8 USB, Dual 2.5 GbE LAN

SMARC (Smart Mobility Architecture) modules are ultra-small system-on-modules targeted towards applications that demand compactness and energy-efficiency. They are ideal for next-generation embedded systems in smart manufacturing, IoT gateways, medical devices, transportation, and more. The SMARC system-on-modules also support Axiomtek evaluation carrier boards for easy integration and hardware design reference.

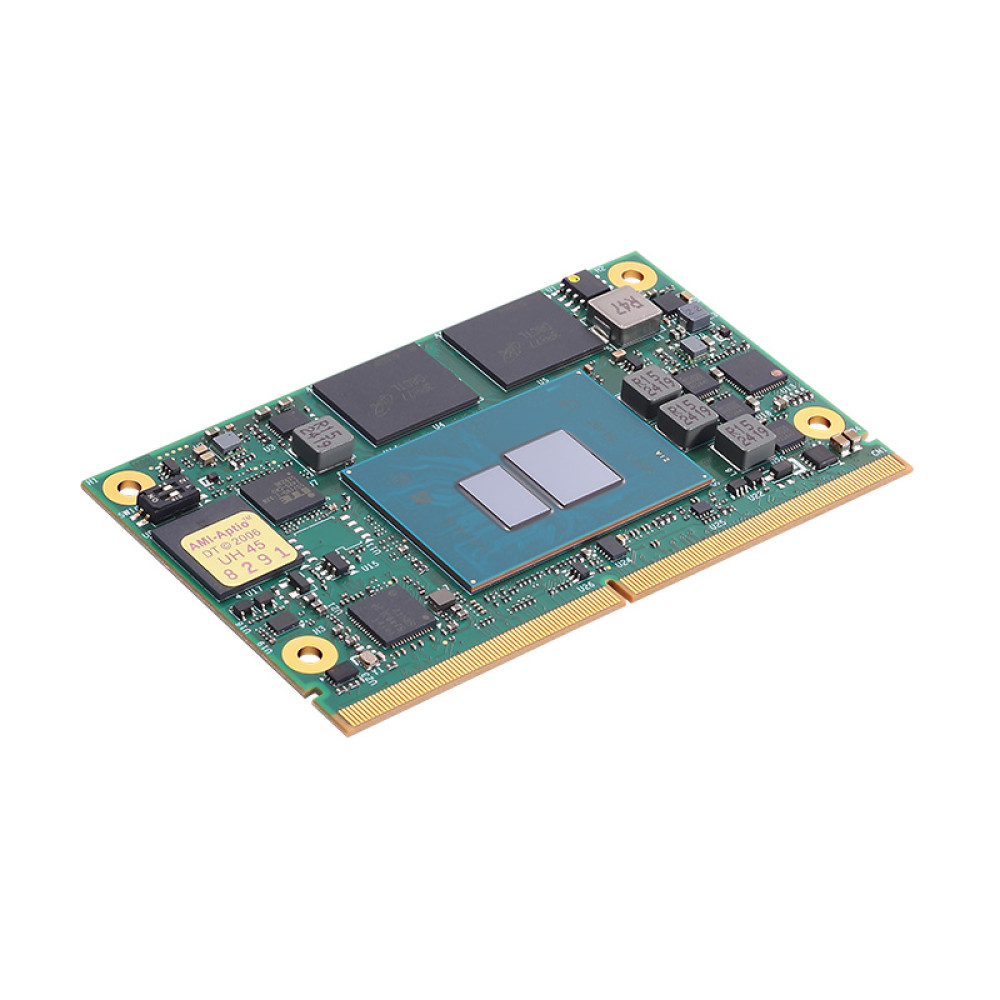

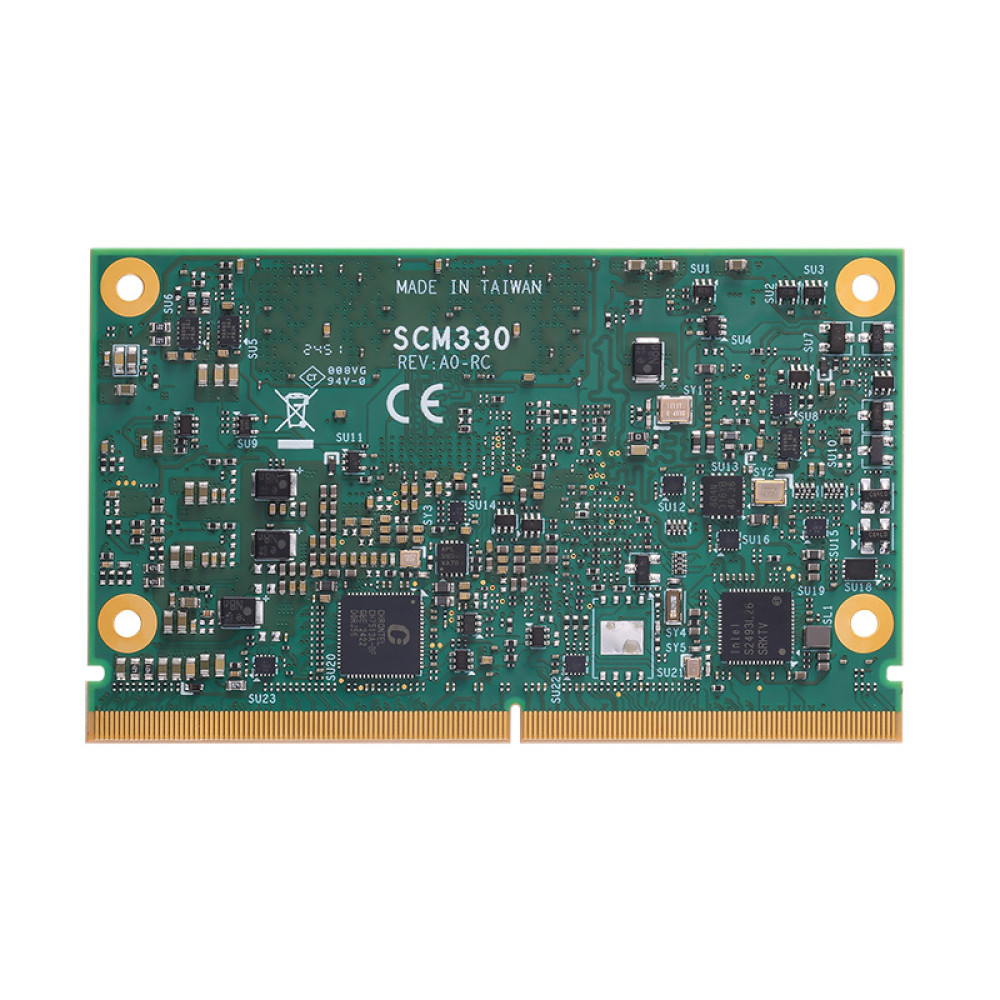

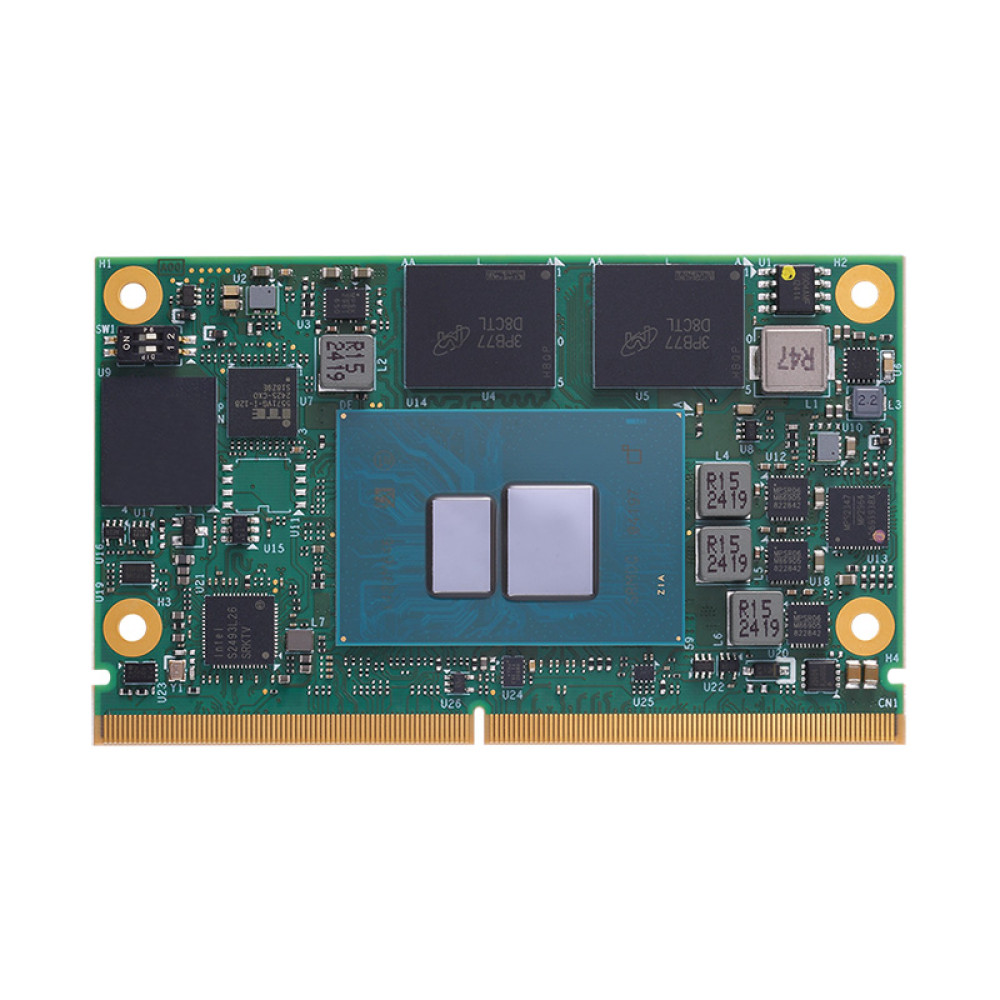

Featured here is the SCM330 SMARC 2.1.1 system-on-module. It has a tiny 82 x 50 mm form factor and is available with the Intel Core/Pentium/Celeron or Intel Atom processors x7000 series. It is equipped with soldered LPDDR5 RAM operating at 4800 MT/s and includes an onboard eMMC 5.1 flash module. The robust module features a wide range of interfaces including three PCIe x1, 8 USB ports, two Ethernet ports at 10/100/1000/2500 Mbps for network connection, HDMI and DisplayPort video, SDIO, UART, LVDS, and GPIO. It supports CANbus, SPI, I2C, and eSPI buses.

Built to withstand tough environments, it operates from -40 °C to +85 °C.

Key Features
  • Intel Core/Pentium/Celeron or Intel Atom processors x7000 series
  • LPDDR5-4800 with IBECC support, up to 16GB
  • Up to 4 lanes of PCI Express
  • 1 SATA Gen3
  • 2 USB 3.2 Gen.1 and 6 USB 2.0
  • Supports eMMC5.1 for up to 128GB of memory
  • Supports fTPM
  • SMARC2.1.1 pinout compliance
Configurations

SCM330-i3N305,    i3-N305, 16GB RAM, 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS, 64GB eMMC, and two 2.5GbE LAN
SCM330-N97,         N97, 8GB RAM, 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS, 32GB eMMC, and two 2.5GbE LAN
SCM330-x7835RE, x7835RE, 16GB RAM, 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS, 64GB eMMC, and two 2.5GbE LAN
SCM330-x7211RE, x7211RE, 8GB RAM, 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS, 32GB eMMC, and two 2.5GbE LAN

Accessories Available
  1. Heat Spreader
  2. Heat sink with fan
  3. Heat sink without fan
Technology
CategorySystem on Module
Computing
Form FactorSMARC
CPUIntel Atom | Intel Pentium | Intel Core i9/i7/i5/i3 | Intel Celeron
CPU ChipsetSoC Integrated
Maximum System Memory16 GB
System Memory ConfigurationLPDDR5-4800 with IBECC support
BIOSAMI uEFI (Legacy Free)
Watchdog Timer65536 levels, 0 to 65535 sec.
Video
Display Type1 x LVDS - 18/24-bit single/dual-channel (optional eDP 1.4b), 1 x HDMI, 1 x DisplayPort/HDMI
Interfaces
USB2 x USB 3.2 Gen1, 6 x USB 2.0
AudioHDA link interface to baseboard for codec
Mechanical
Dimensions82 x 50 x1.2 mm
Ratings
Operating TemperatureIndustrial: -40°C to +85°C (-40°F to +185°F) with a system thermal solution, Standard: 0°C to +60°C (32°F to +140°F) with operation
Humidity10 to 95% non-condensing
Download NameFile Size
Axiomtek SCM330 Datasheet399.36KB
