ARBOR EmSMK-i2403 SMARC 2.0 CPU Module with Intel Atom E39xx Processor

ARBOR EmSMK-i2403 Intel Atom x7-E3950/x5-E3940/x5-E3930 SMARC Module, 8 GB Memory, Supports 1 Ethernet

ARBOR’s SMARC (Smart Mobility ARChitecture) Modules are designed for compact, low-power, and high-performance edge computing applications. Built on the flexible and scalable SMARC standard, these modules are ideal for next-generation embedded systems in smart manufacturing, IoT gateways, medical devices, transportation, and more. Whether you are developing a compact AI gateway or deploying edge devices at scale, ARBOR’s SMARC Modules offer the performance, flexibility, and efficiency to accelerate your embedded innovation.

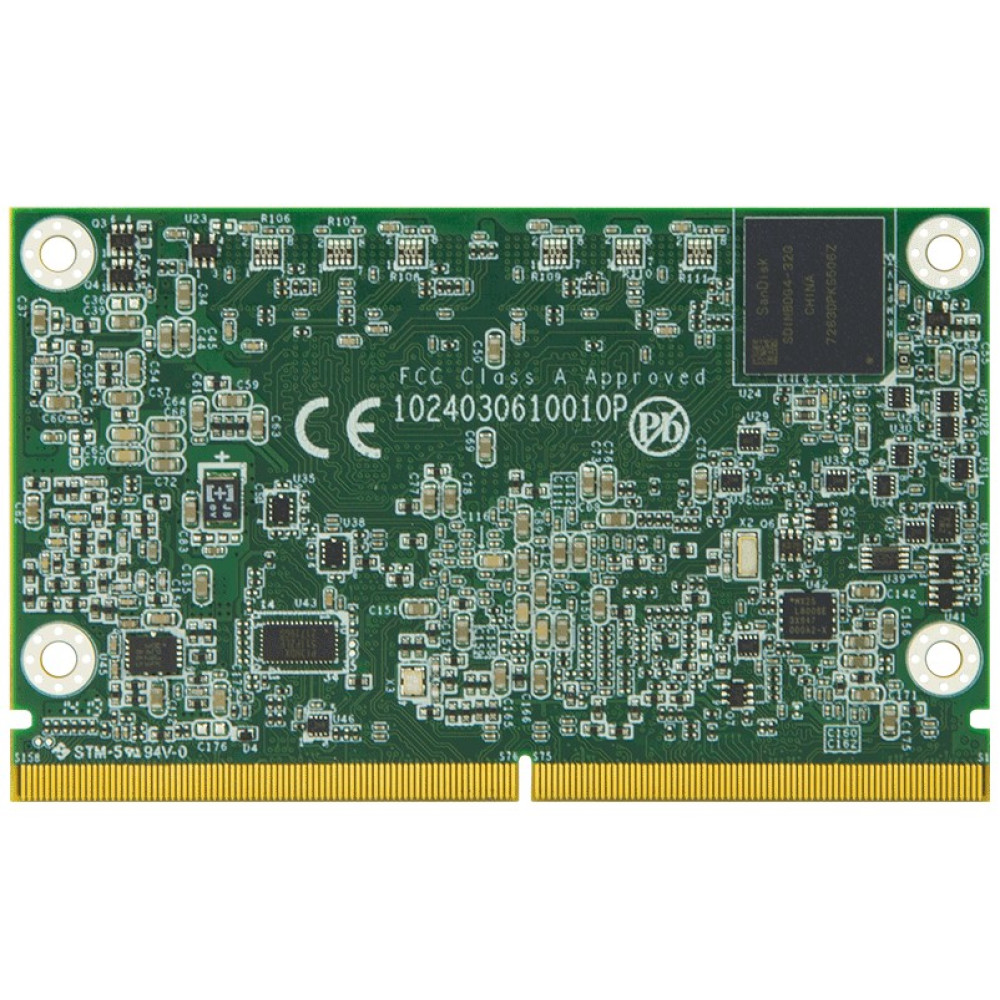

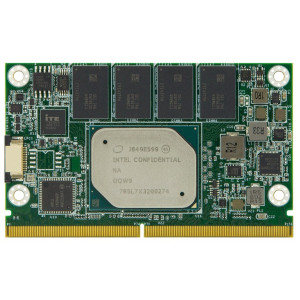

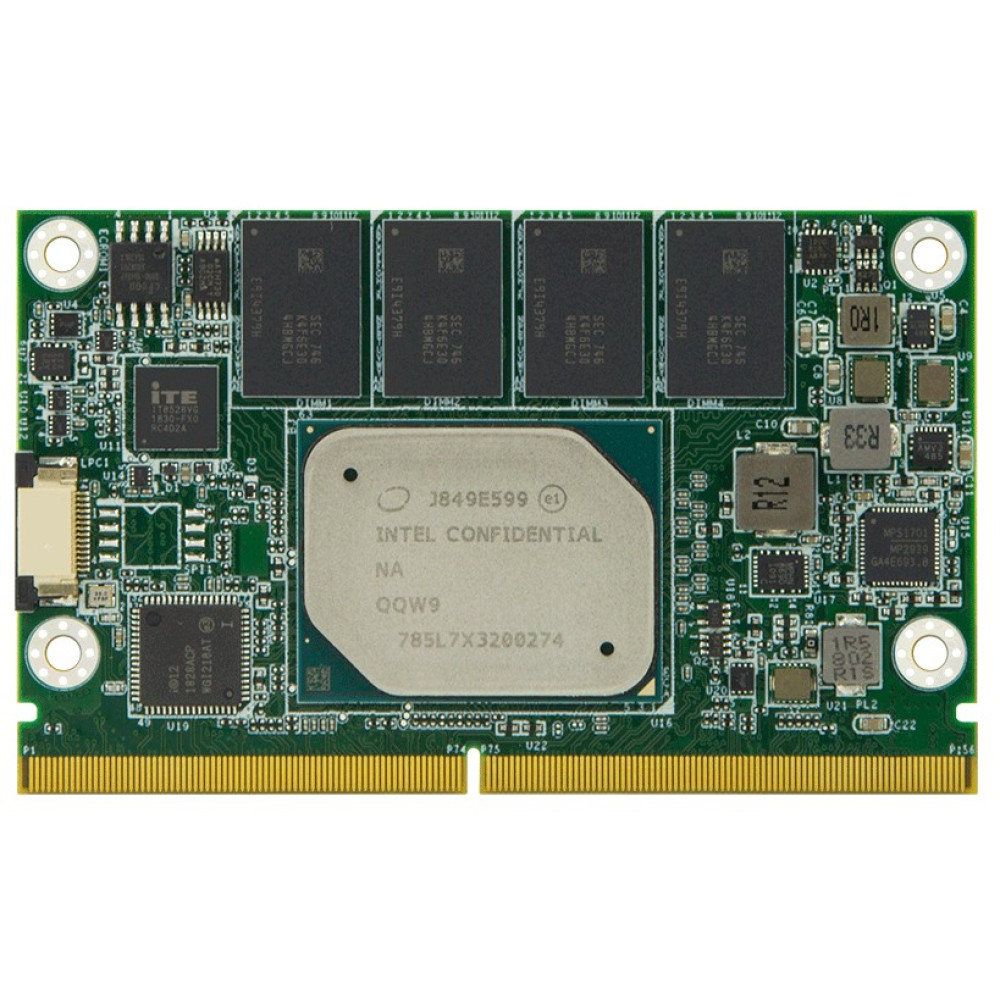

Featured here is the EmSMK-i2403 SMARC 2.0 system-on-module. It has a tiny 82 x 50 mm form factor and is available with the Intel Atom x7-3950, x5-3940, or x5-E3930 processor. It features 2 USB 3.0 and 6 USB 2.0. Users are able to choose the SATA type HDD or eMMC for the storage. With an extended range operating temperature of -20 to 85˚C, the EmSMK-i2403 is suitable for harsh environments. With SDIO, I2S, I2C, and SMBus, the EmSMK-i2403 can reduce latency and broaden the device communication path for multiple applications.

The EmSMK-i2403 also provides 4 PCIe lanes, SDIO, and SMBUS which allows users to use more devices for different applications. The EmSMK-i2403’s attributes make it an ideal solution for applications in the medical, IoT, automation, and transportation industries.

The PBS-9015 Carrier Board can provide the physical connectors and circuitry to make interfaces usable.

Key Features

• Onboard Intel Atom E3950, E3940, E3930 processor
• Supports 4 PCIex1 lanes
• Supports one Ethernet
• Supports 1 eDP, 1 HDMI, 1 DP++
• Supports Windows 10 and Linux OS
• Extended Range Operating Temperature: -20 to 85˚C

Configurations

EmSMK-i2403-E3950-8GB, Intel Atom x7-E3950 SMARC R2.0 CPU module w/ 8GB memory down, -20 to 85˚C
EmSMK-i2403-E3940-8GB, same as above with Intel Atom x5-E3940
EmSMK-i2403-E3930-8GB, same as above with Intel Atom x5-E3930

Optional Accessories

1. PBS-9015 SMARC R2.0 Carrier Board
2. HS-2403-F1 Heat Spreader
3. CBK-02-9015-00 Cable Kit (COM Cable, SATA Cable)
