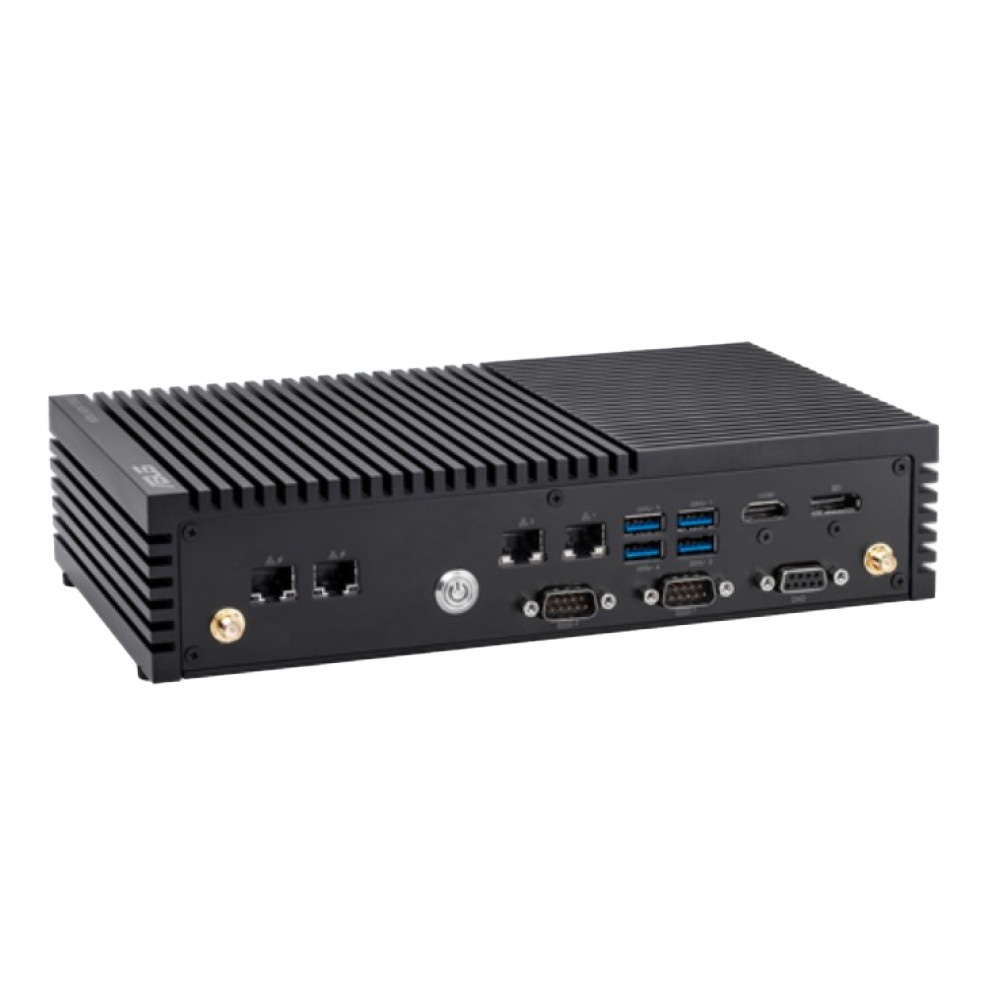

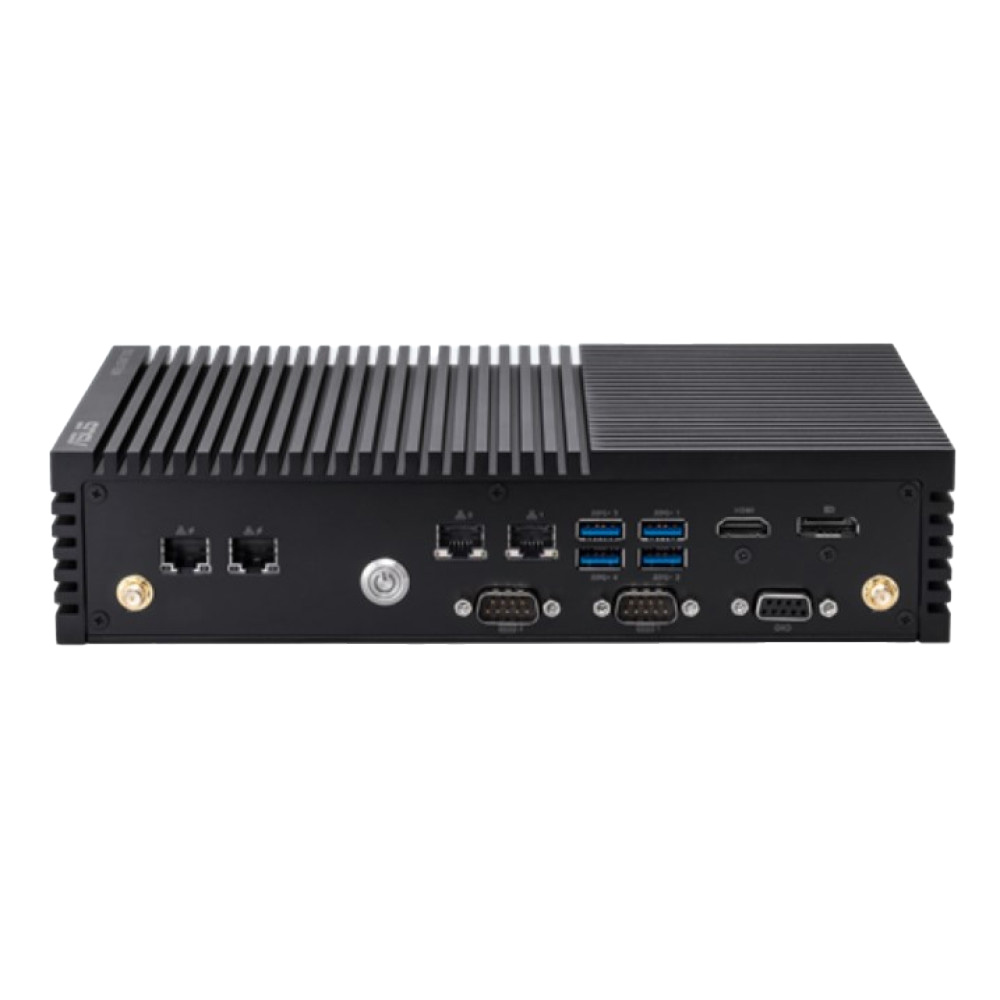

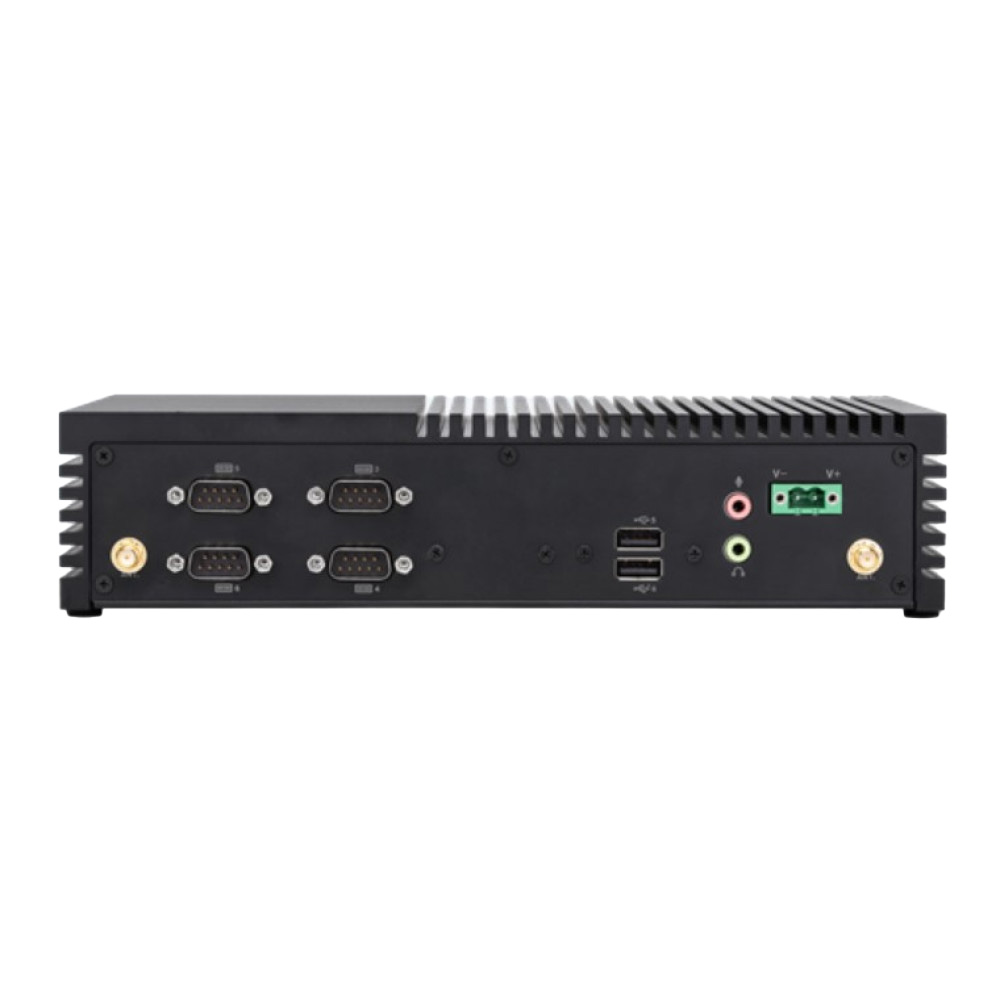

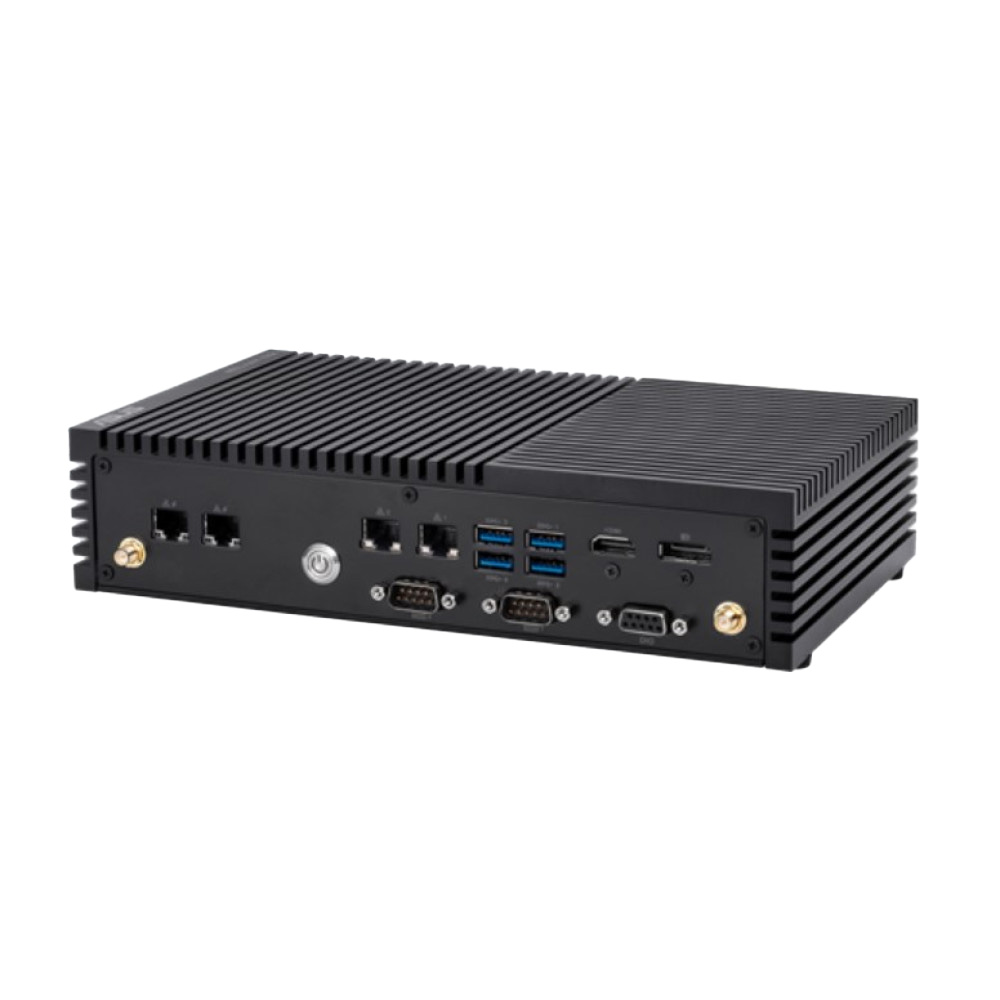

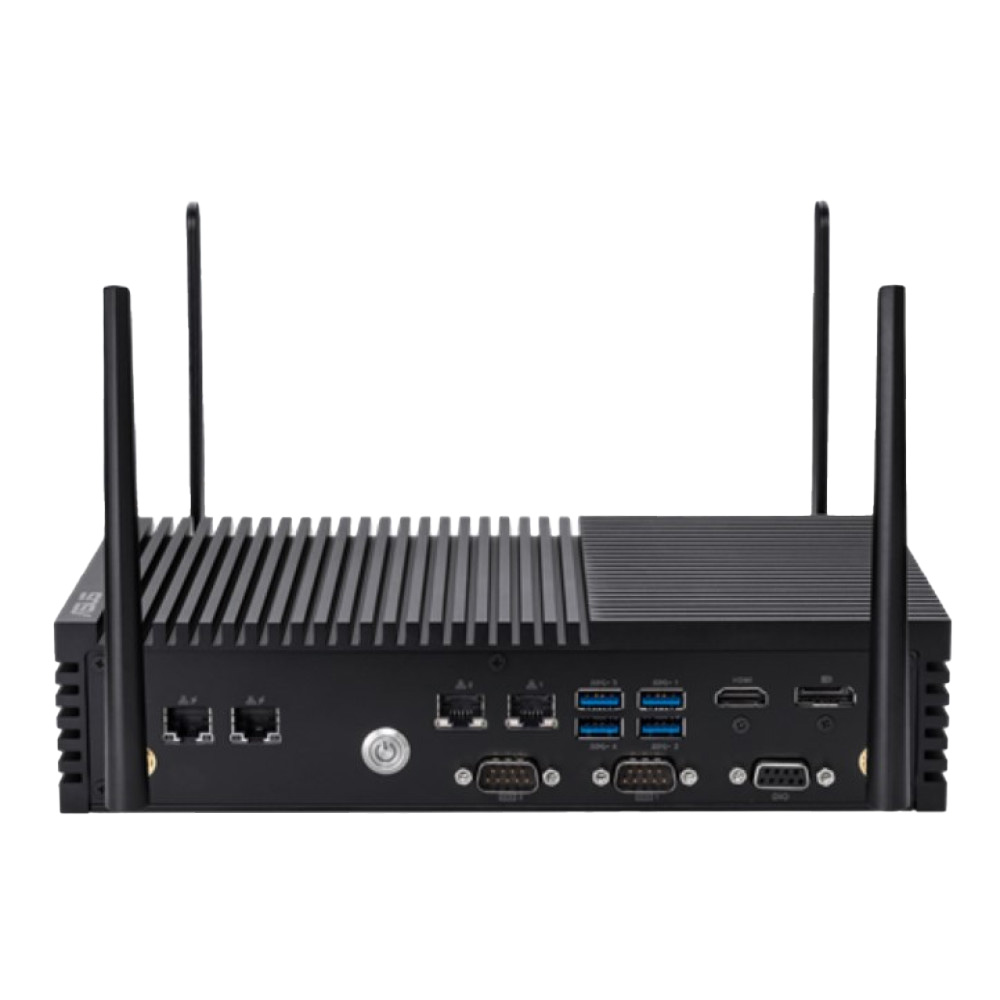

ASUS PE200S Intelligent Edge Computer with Intel Atom X5/X7 Quad Core Processor

ASUS PE200S Intelligent Edge Computer, Intel Atom X5-E3930, X5-E3940, or X7-E3950

The ASUS PE200S is an Intelligent Edge Computer with a high-quality, TCO-optimized solution for AIoT computing. It includes up to 6 COM ports (2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. The PE200S is designed for high performance and silent operation in harsh environments. It’s capable of achieving full CPU utilization while being cooled by a fanless thermal solution.

The ASUS PE200S Edge Computer offers enhanced features to ensure optimal performance and the flexibility to adapt to the surrounding environment, configure easily with a wide range of power inputs (12-24V), operating temperatures (-20°-60°C), diversified I/O interface and expansion for multiple vertical markets. The PE200U is built for 24/7 stability and reliability and is combined with world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.

Key Features

• Achieve high performance with full CPU utilization and fan-less thermal
• Wide range of power inputs (12-24V) and operating temperatures (-20°-60°C)
• Diverse I/O interface and expansion options for multiple markets
• World-class after-sales service and long-term availability guarantee
• A high-quality, TCO-optimized solution for AIoT computing
• Supports I2C, SMBus and GPIO
• Supports 2 x RS-232/422/485, 4 x RS-232
• Supports dual independent video outputs
• Supports Windows 10 IoT Enterprise or Linux YoctoOS
• Power Input: 12 to 24 VDC, 2-pin terminal block
• Wide Operating Temperature Range: -20-60°C
• Edge AI solution featuring the Google Coral TPU

Configurations

PE200S-X5-E3930, Intelligent Edge Computer with Intel Atom X5-E3930 processor and 12 to 24 VDC power input
PE200S-X5-E3940, Same as above with Intel Atom X5-E3940 processor
PE200S-X7-E3950, Same as above with Intel Atom X7-E3950 processor

In the Box

1. PE200S Intelligent Edge Computer
2. Power terminal block to power jack adaptor, 10 cm
3. PE200S Wall mount bracket
4. SATA 22P to SATA 7P+4P 15+12CM
5. 2.5 HDD screw pack
6. Dust cover set (1 HDMI; 1mDP; 6 DB9; 6 USB; 4 LAN; 2 audi jack; 4 SMA)
7. Quick installation guide

Call Westward Sales today for options and pricing.
