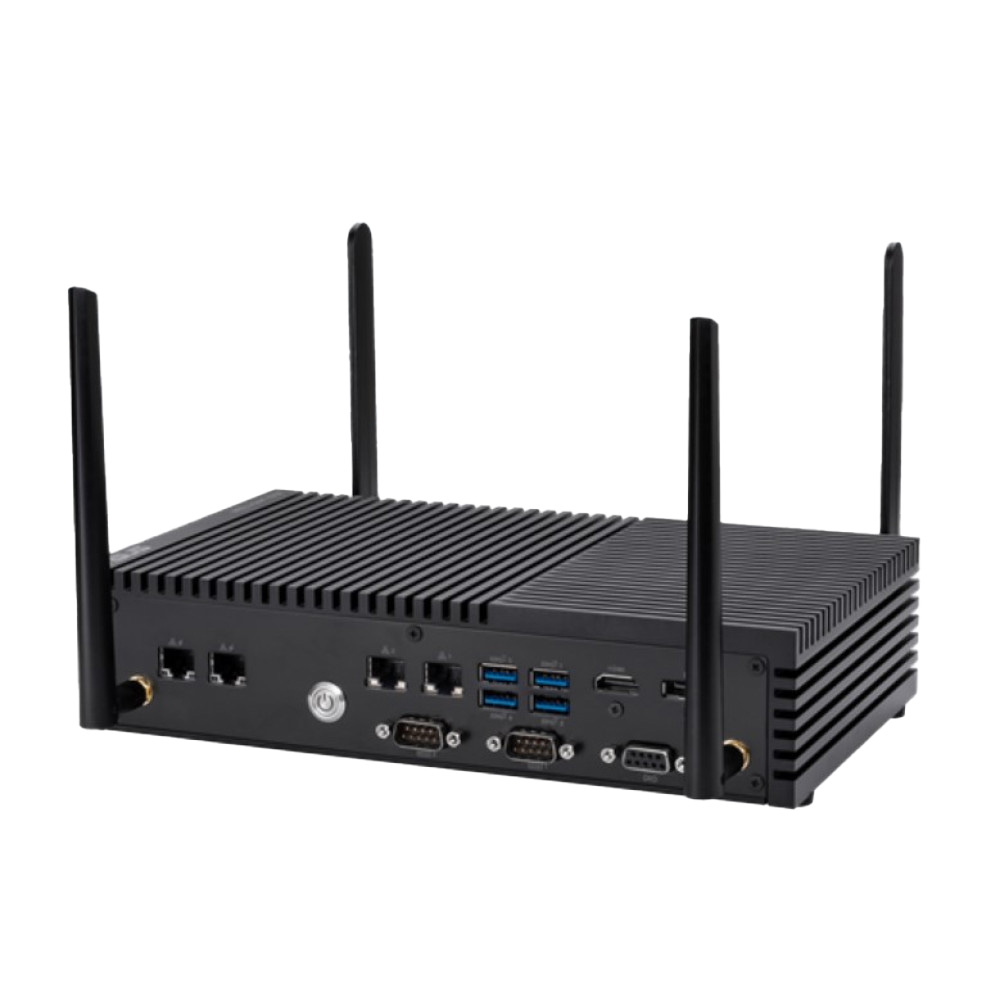

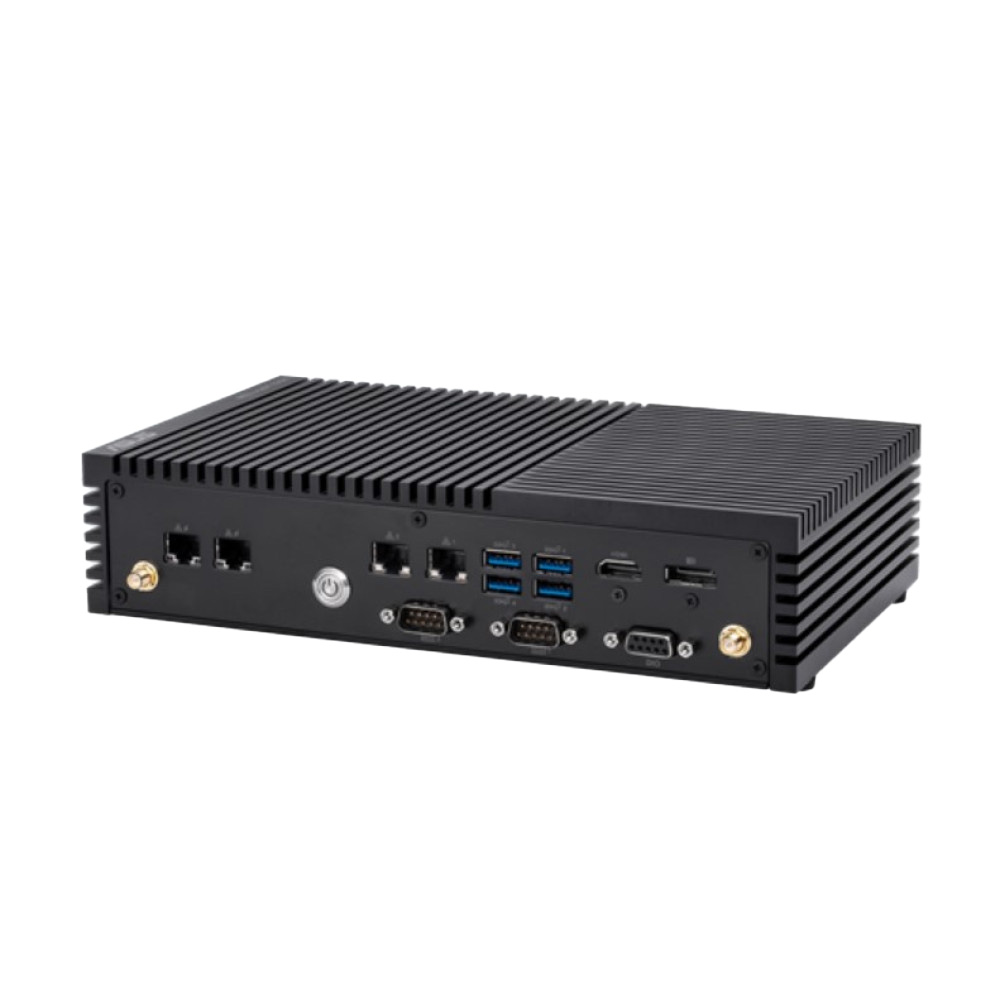

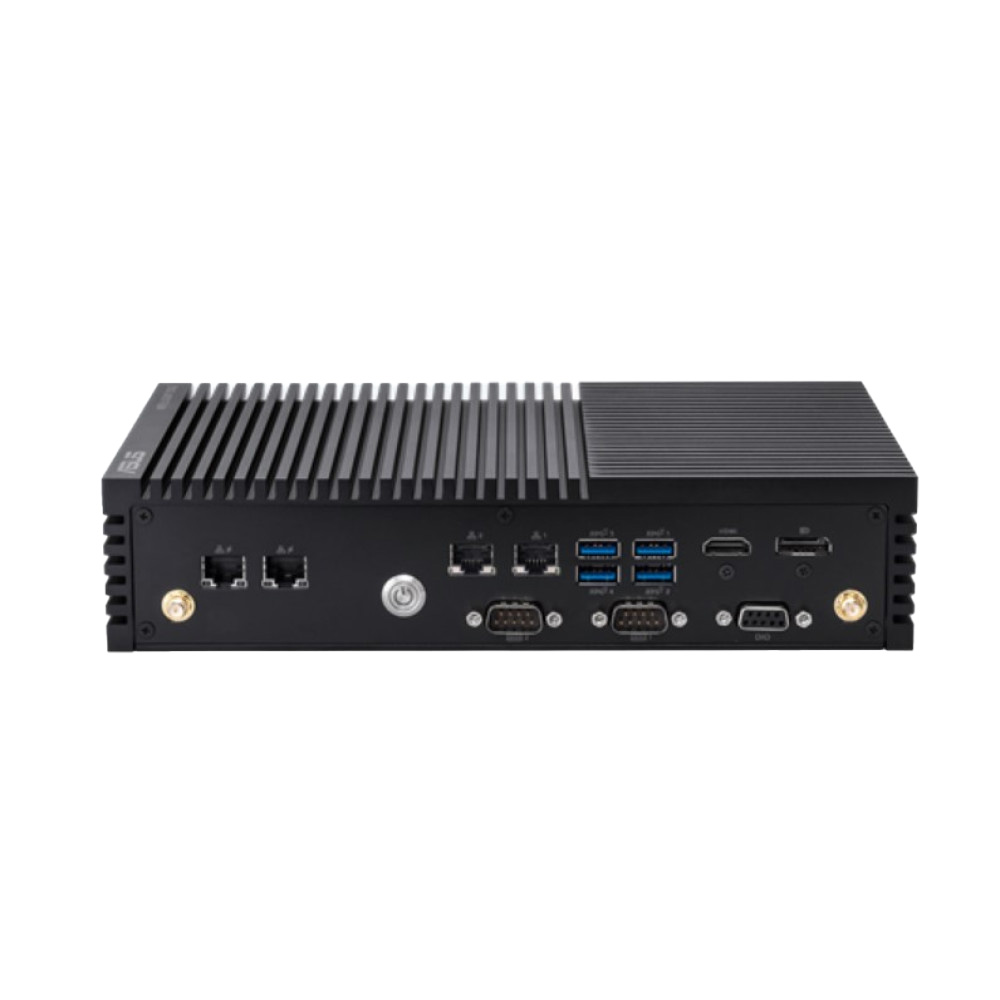

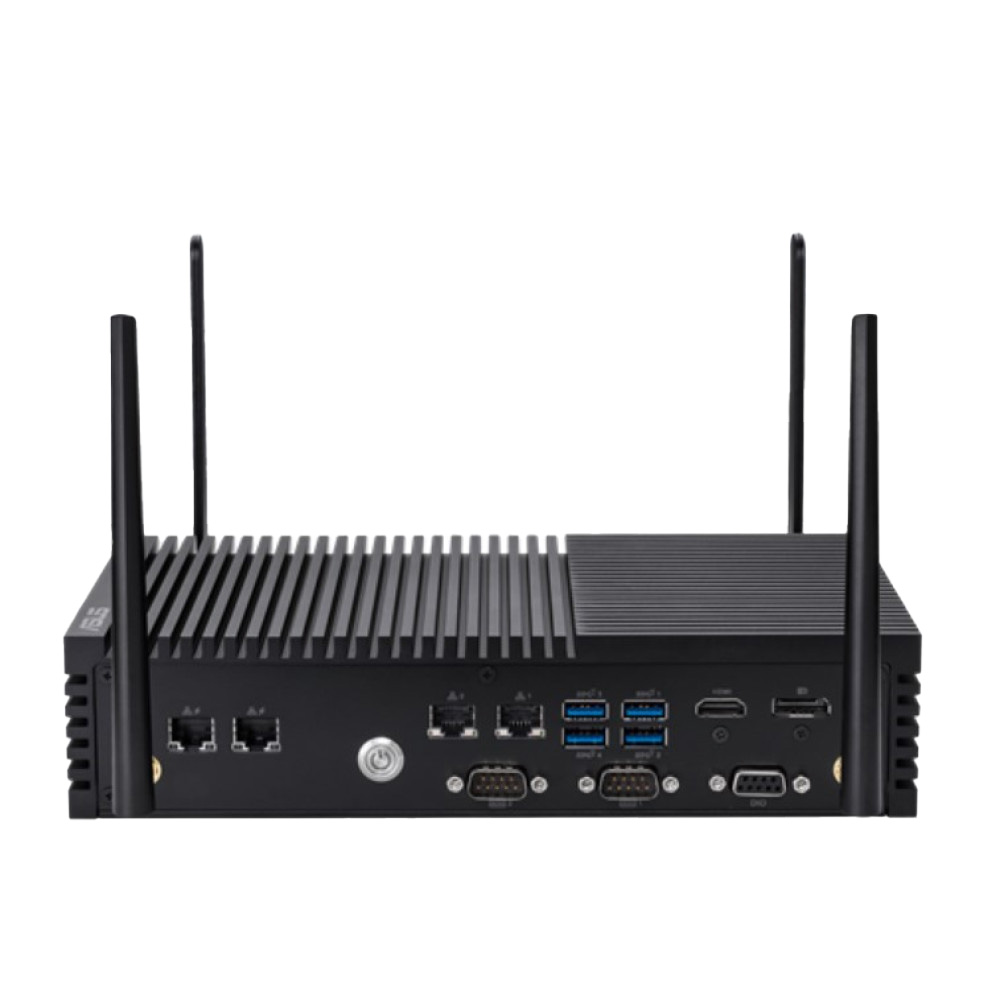

ASUS PE200U Intelligent Edge Computer with Intel Core i7/i5/i3 Processor

ASUS PE200U Intelligent Edge Computer, Intel Core i7/i5/i3 Processor, mini PCIe slot, DDR4 2400 MHz
Model: PE200U
Availability: Contact Westward Sales
Standard Shipping & Handling

Choose Options

* Processor Configurations:


ASUS PE200U Intelligent Edge Computer, Intel Core i7-8665UE, i5-8365UE, or i3-8145UE

The ASUS PE200U is an Intelligent Edge Computer with a high-quality, TCO-optimized solution for AIoT computing. It includes up to 6 COM ports (2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. The PE200U is designed for high performance and silent operation in harsh environments. It’s capable of achieving full CPU utilization while being cooled by a fanless thermal solution.

The ASUS PE200U Edge Computer offers enhanced features to ensure optimal performance and the flexibility to adapt to the surrounding environment, configure easily with a wide range of power inputs (12-24V), operating temperatures (-20°-60°C), diversified I/O interface and expansion for multiple vertical markets. The PE200U is built for 24/7 stability and reliability and is combined with world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.

Key Features

  • Achieve high performance with full CPU utilization and fan-less thermal
  • Wide range of power inputs (12-24V) and operating temperatures (-20°-60°C)
  • Diverse I/O interface and expansion options for multiple markets
  • World-class after-sales service and long-term availability guarantee
  • A high-quality, TCO-optimized solution for AIoT computing
  • Supports I2C, SMBus and GPIO
  • Supports 2 x RS-232/422/485, 4 x RS-232
  • Supports dual independent video outputs
  • Supports Windows 10 IoT Enterprise or Linux YoctoOS
  • Power Input: 12 to 24 VDC, 2-pin terminal block
  • Wide Operating Temperature Range: -20-60°C
  • Edge AI solution featuring the Google Coral TPU


PE200U-i3-8145UE, Intelligent Edge Computer with Intel Core i3-8145UE processor and 12 to 24 VDC power input
PE200U-i5-8365UE, Same as above with Intel Core i5-8365UE processor
PE200U-i7-8665UE, Same as above with Intel Core i7-8665UE processor

In the Box

  1. PE200U Intelligent Edge Computer
  2. Power terminal block to power jack adaptor, 10 cm
  3. PE200U Wall mount bracket
  4. SATA 22P to SATA 7P+4P 15+12CM
  5. 2.5 HDD screw pack
  6. Dust cover set (1 HDMI; 1mDP; 6 DB9; 8 USB; 4 LAN; 2 audi jack; 4 SMA)
  7. Quick installation guide

Call Westward Sales today for options and pricing.

CategoryIndustrial Computer
System TypeEmbedded Computers
CPUIntel Core i9/i7/i5/i3
Maximum System Memory32 GB
System Memory Configuration1 x SO-DIMM DDR4-2400 up to 32GB
Drive Storage1 x SATA 6, 1 x mSATA, 1 x Micro SD Card slot
Watchdog TimerYes. HW WDT Enable (WDT_EN)
Operating SystemsWindows 10 IoT Enterprise (64 bit), Linux Yocto
USB4 x USB 3.2 Gen2, type A
Serial2x COM RS-232/422/485, DB9
Video Ports1 x HDMI 1.4, 1 x DP 1.2a
Input Voltage12 to 24 VDC
Dimensions254 (H) x 147 (W) x 57 (D) mm
Weight2.45 kg
MountingWall mount or VESA mount
Shock / Vibration0.21 Grms, 5-500 Hz, 20 min duration
Operating Temperature-20° to 60°C with wide temperature parts
Humidity5 to 95% non-condensing
Download NameFile Size
ASUS PE200U Datasheet1.08MB
ASUS PE200U User Manual10.24MB
