Manufacturer: ASUS IoT

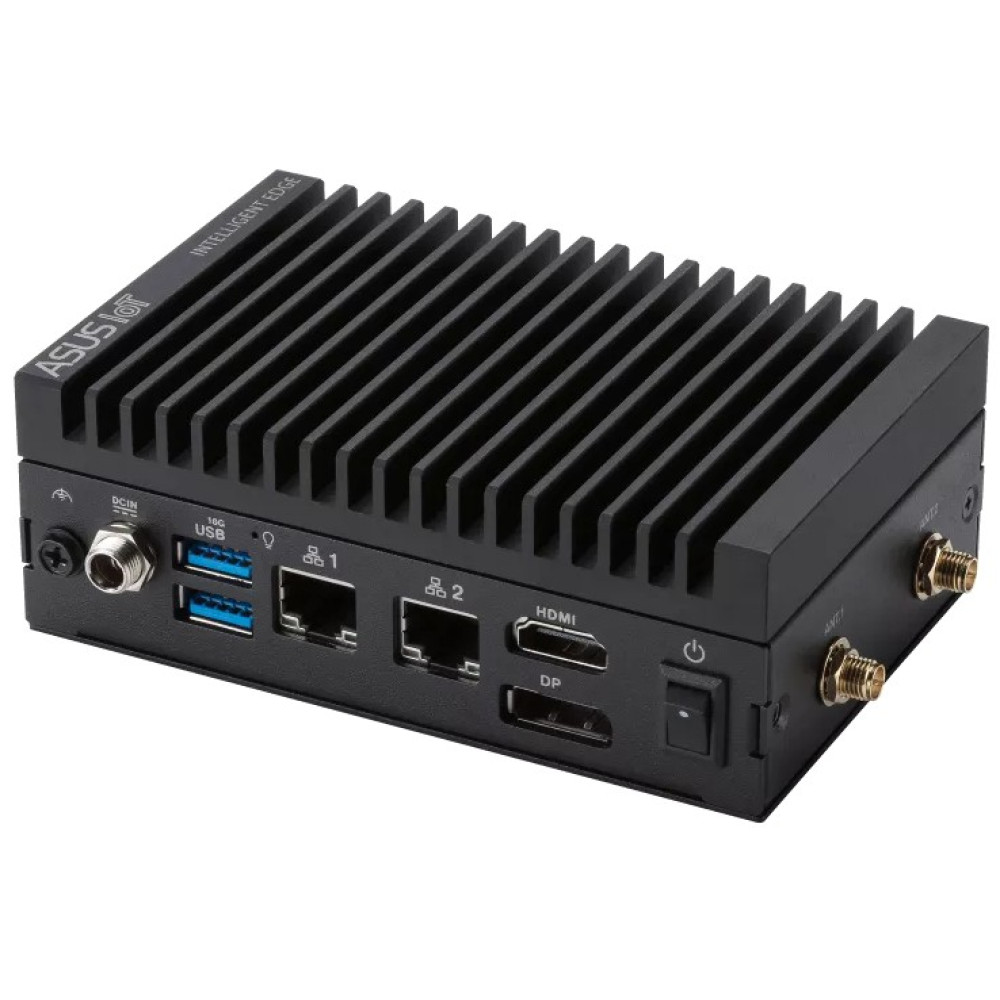

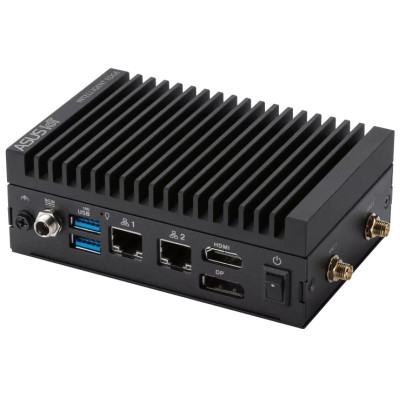

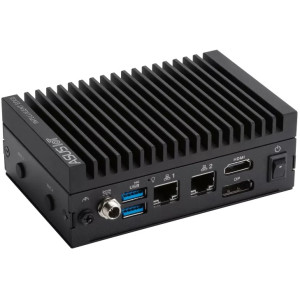

The EBS-P310W is an extreme light box PC, powered by an Intel Amston Lake SoC and 16GB LPDDR5 memory. Engineered for harsh environments, it delivers outstanding performance and high flexibility.
Meeting industrial I/O demands, the EBS-P310W offers a wide voltage range (9 - 36V) and dual GbE LAN ports supporting 2.5Gbe Ethernet. Moreover, it includes M.2 B-Key and M.2 E-Key expansion slots, allowing customers to expand its capabilities through module connections.
Optimize your industrial operations with the ASUS EBS-P310W, ideal for various smaller IIoT, IoRT, and IoMT.
Optional Accessories
Contact Westward Sales today for option and accessory pricing on this Fanless Embedded Computer.
| Computing | |
| System Type | Industrial PC |
| CPU | Intel Atom |
| System Memory Configuration | LPDDR5 4800 |
| Maximum System Memory | 16 GB |
| Watchdog Timer | Yes |
| Drive Storage | 128 GB |
| Operating Systems | Windows 10 (64bit)/Windows IoT enterprise/Windows 11 IoT enterprise,Ubuntu, RedHatEnterprise, Fedora Workstation, OpenSUSE |
| Interfaces | |
| LAN Ports | 2 2.5 Gigabit Ethernet |
| USB | 2x USB 3.2, 2x USB 2.0 |
| Serial | 2x RS-232/422/485 |
| Video Ports | 1x HDMI 2.0, 1 DP++ 1.4 |
| Power | |
| Input Voltage | 9 to 36 VDC |
| Mechanical | |
| Mounting | Wallmount or DIN rail |
| Material | Aluminum housing |
| Dimensions | 123 x 81 x 43 mm |
| Ratings | |
| Operating Temperature | -40° to 60°C |
| Storage Temperature | -40° to 85°C |
| Humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC |
| Download Name | File Size |
| Asus EBS-P310W Datasheet | 355.27KB |
