ARBOR SM1200 MediaTek Genio 1200 SoC, SMARC 2.1.1 System on Module

New ARBOR SM1200 SMARC Module with MediaTek Genio 1200 SoC, supports MIPI, HDMI, LVDS, DP, eDP
Model: SM1200
Availability: Contact Westward Sales
Standard Shipping & Handling
Qty:

ARBOR SM1200 MediaTek Genio 1200 SMARC Module, LPDDR4X Memory, 8 USB, Dual 2.5 GbE LAN

ARBOR’s SMARC (Smart Mobility ARChitecture) Modules are designed for compact, low-power, and high-performance edge computing applications. Built on the flexible and scalable SMARC standard, these modules are ideal for next-generation embedded systems in smart manufacturing, IoT gateways, medical devices, transportation, and more. Whether you are developing a compact AI gateway or deploying edge devices at scale, ARBOR’s SMARC Modules offer the performance, flexibility, and efficiency to accelerate your embedded innovation.

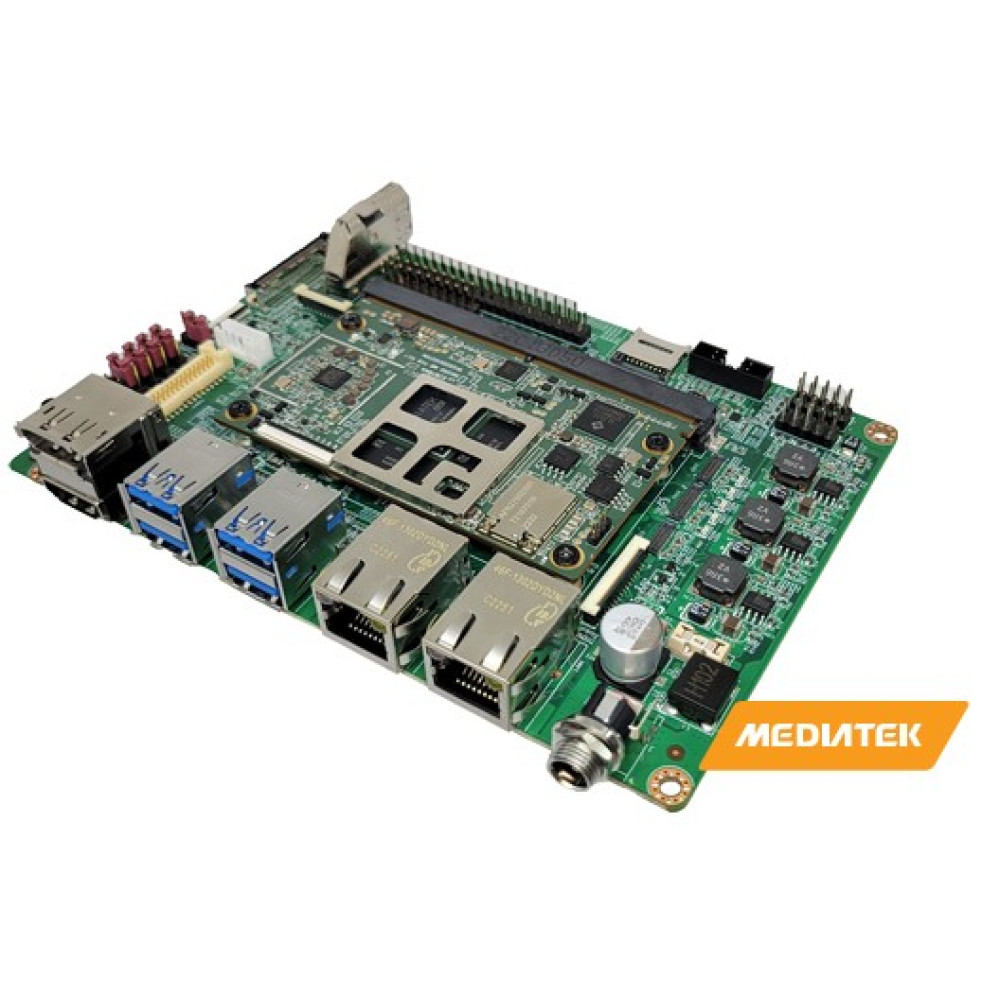

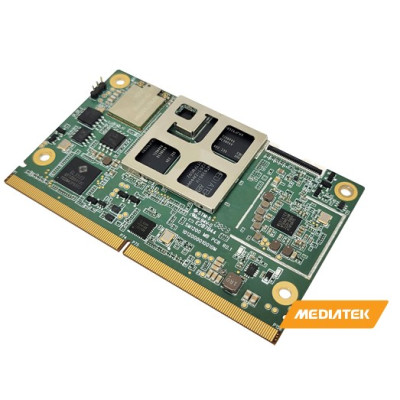

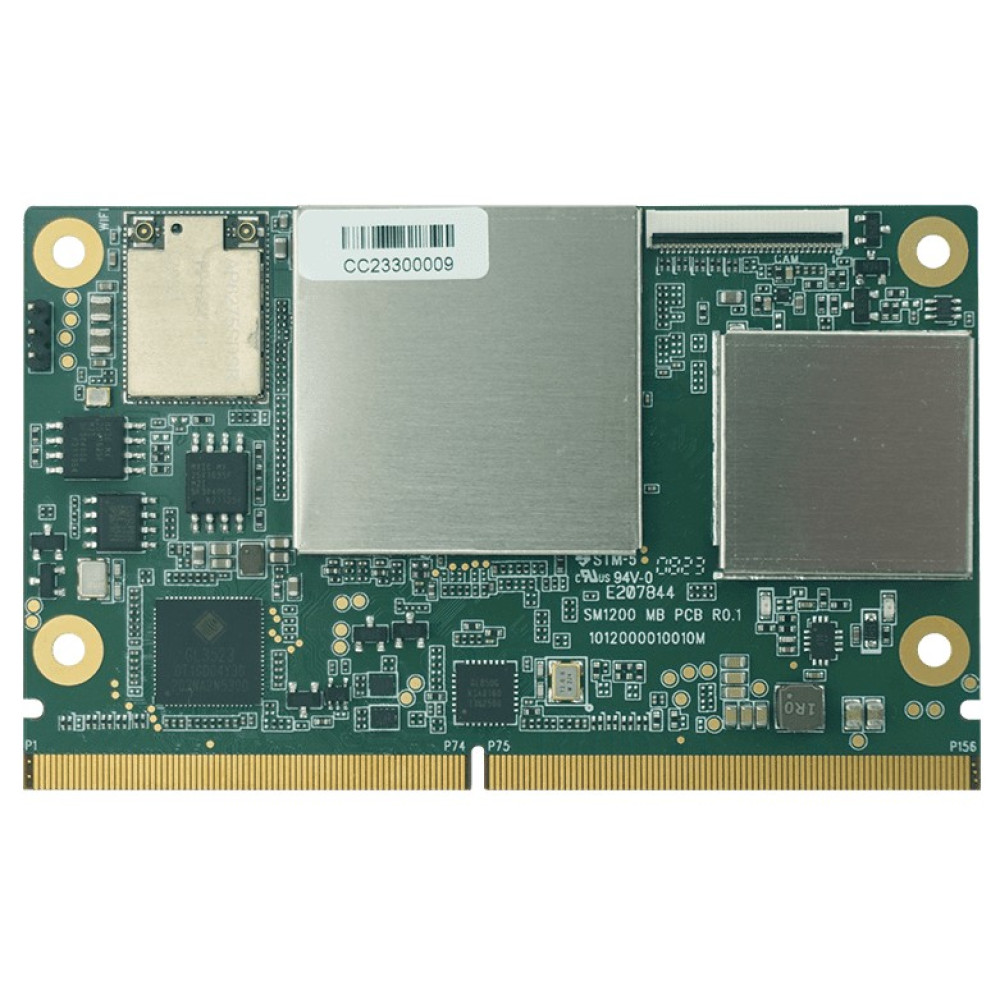

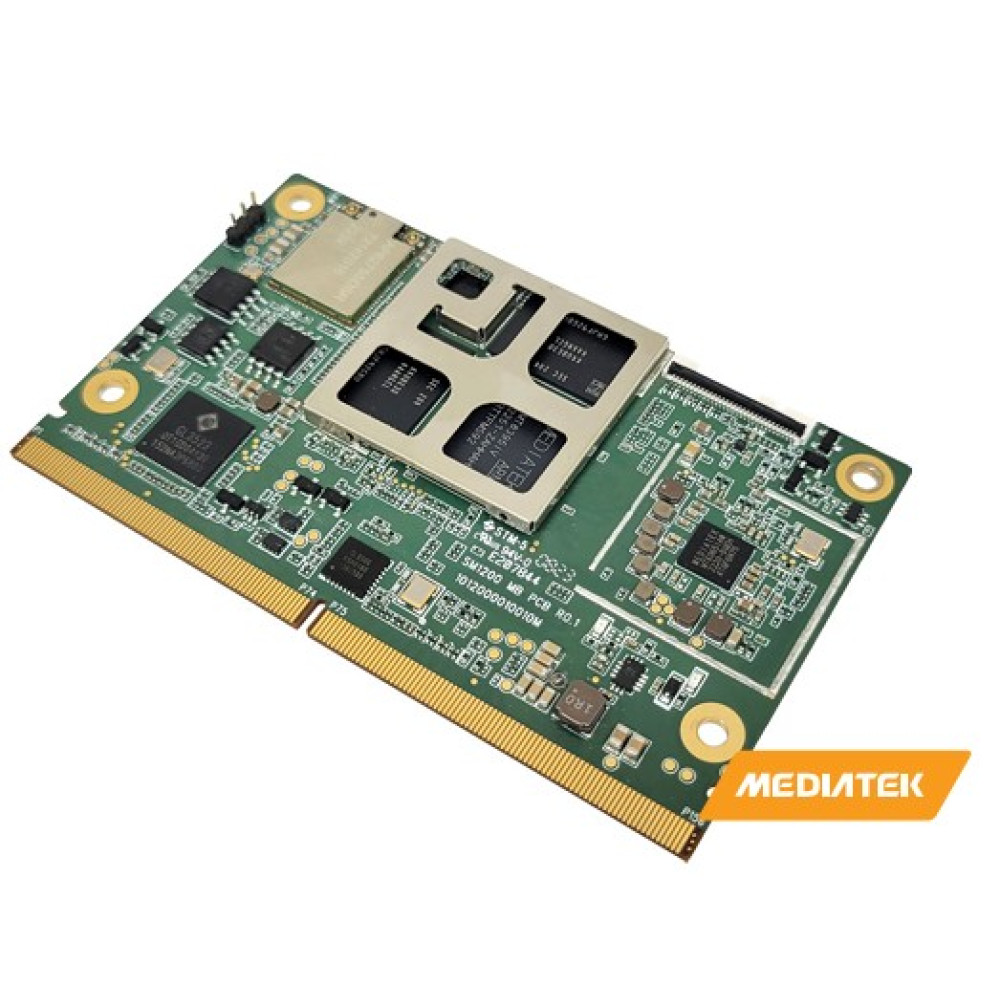

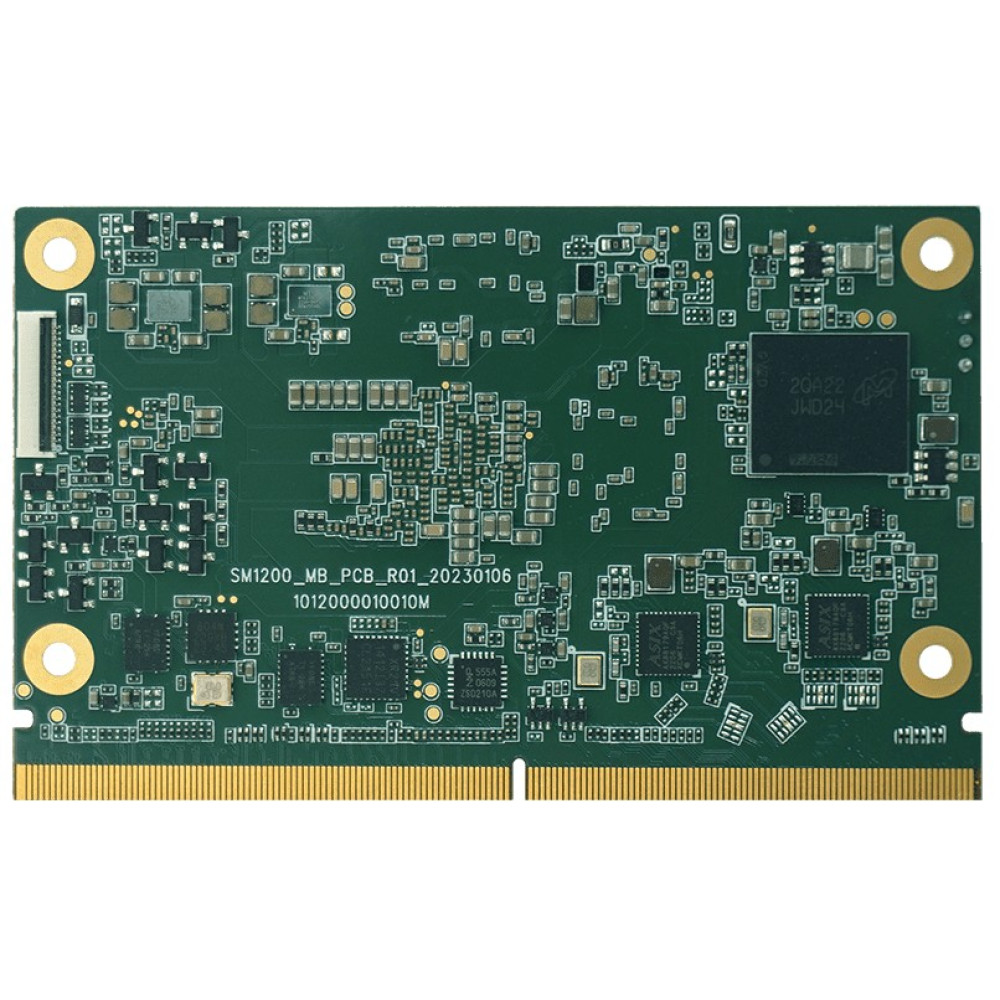

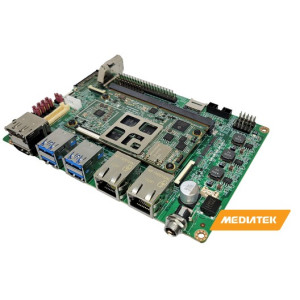

Featured here is the SM1200 SMARC 2.1.1 system-on-module. It has a tiny 82 x 50 mm form factor and is available with the MediaTek Genio 1200 Octa-Core SoC processor. The SM1200 is capable of driving 4K displays and multiple touch screens and supports the processing of high-resolution cameras. ARBOR's SM1200 SoM features an industrial-grade SMARC 2.1.1 compatible module design and comes with an entry-level tool kit that can speed up the product development process. Furthermore, this SoM includes a powerful AI computing platform, consisting of APUs, VPUs, and GPUs. Designers are also able to choose from a variety of operating systems, such as Android 13 and Yocto Linux. The CB100 Carrier Board is the main board that provides the physical connectors and circuitry to make interfaces usable.

Built to withstand tough environments, it operates from -40 °C to +85 °C.

Key Features
  • MediaTek Genio 1200 SoC-High-performance, low-power platform
  • 6nm MT8395 with Octa-Core, Arm Cortex-A78 x4 + A55 x4, TDP: 3.1W
  • MediaTek APU AI engine, up to 4.8 TOPS performance
  • SMARC 2.1.1, supports MIPI, HDMI, LVDS, DP, eDP
  • Dual Display (4K60+4K60), Triple Display (FHD60+ FHD60+4K60)
  • Video Decoder: 4K90, AV1/VP9/H.265/H.264
  • Video Encoder: 4K60, H.265/H.264
  • HDMI RX support HDMI2.0 video input Max 4K60
  • Supports Android and Yocto OS
  • M.2 B/E/M- key slot reserved for 5G/WIFI6+BT/SSD module expansion
  • 10-year product longevity
Technology
CategorySystem on Module
Computing
Form FactorSMARC
CPUMediaTek Genio
CPU ChipsetOcta-Core SoC
Maximum System Memory8 GB
System Memory ConfigurationLPDDR4X
Watchdog TimerYes
Video
Display TypeDP, HDMI
Interfaces
USB2x USB 3.1(HOST), 2x USB 2.0 (Host), 1x USB 2.0 (Host/Device), 1x USB 2.0 (DL Port)
AudioI2S audio codec located on carrier board
Mechanical
Dimensions82 x 50 mm
Ratings
Operating Temperature-40°C ~ 85°C
Humidity0 to 95% non-condensing
Tags: SM1200
