Manufacturer: ARBOR Technology

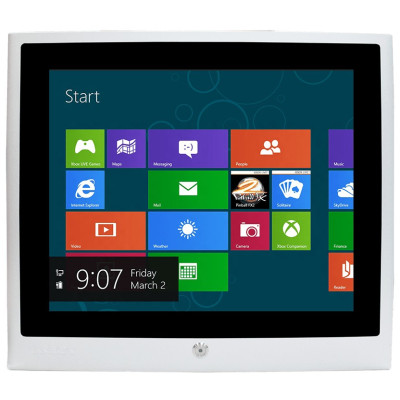

The LYNC-817 stands out for its flexibility and rich input/output options, empowered by the Intel Celeron J1900 quad core processor. This rugged panel PC comes with a 17" 1280 x 1024 SXGA LCD display. It utilizes 5-wire resistive touch for demanding industrial environments such as automation and control systems.
This fanless and rugged panel boasts a robust aluminum front bezel, ensuring durability. With a flush, IP65 rated touchscreen it's ideal for applications requiring high reliability and performance while still offering crisp visuals and responsive input.

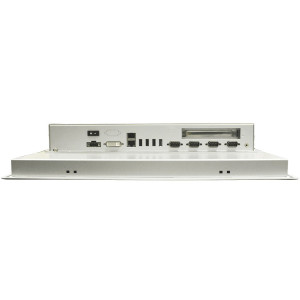

The LYNC-817 provides rich connectivity options, including dual RJ-45 GbE LAN ports, multiple USB 2.0 and USB 3.0 ports, and several serial (COM) ports. It supports a wide-range 9V to 36V DC power input . It features two SMA Antenna Holes for optional WiFi Function.

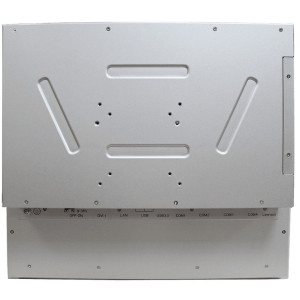

The durable chassis is designed for panel mounting and VESA-75/100 mounting.
| Computing | |
| System Type | Panel PC |
| CPU | Intel Celeron |
| System Memory Configuration | 4GB DDR3L SO-DIMM pre-installed |
| Maximum System Memory | 8 GB |
| Drive Storage | 1 x outside-accessible CFast slot, 1 x outside accessible 2.5” Drive Bay (Default), or CFast slots (optional) |
| Expansion Slots | 1 x Mini-card socket ( full-size) (USB only), 1 x PCI 32-bit slot (default) or 1 x PCIe x1 slot (both Riser Cards are included in Standard Accessories) |
| Operating Systems | Windows 7, Windows 8.1, Windows 10 |
| Video | |
| Diagonal | 17" |
| Display Type | DVI-I |
| Resolution | 1280 x 1027, SXGA |
| Touchscreen | 5-wire Analog Resistive |
| Brightness | 350 cd/m² |
| Interfaces | |
| LAN Ports | 2 Gigabit Ethernet |
| USB | 1 USB 3.0 Type-A USB port, 3 USB 2.0 Type-A ports |
| Total Serial Ports | 4 |
| Serial | 2 x RS-232 and 2 x RS232/485 ports |
| Video Ports | 1 |
| Audio | Line-out |
| Power | |
| Input Voltage | DC 9-36V |
| Mechanical | |
| Mounting | Panel mount, VESA mount |
| Shock / Vibration | Operating 10G, 11ms / 5 ~ 500Hz, 2Grms Random (with CF/SSD) |
| LED Indicators | Power-on status |
| Material | Aluminum front bezel and steel-metal chassis |
| Weight | 6.5 kg (14.3 lb) |
| Dimensions | 428 x 380 x 77 mm (16.81” x 14.97” x 3.03”) |
| Ratings | |
| Operating Temperature | 0ºC ~ 55ºC (32 ~ 131°F) |
| Storage Temperature | -10ºC ~ 75°C (-50 ~ 167°F) |
| Humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC Class A |
| Download Name | File Size |
| ARBOR LYNC-817 Datasheet | 1.26MB |
| ARBOR LYNC-817 User's Manual | 9.62MB |
