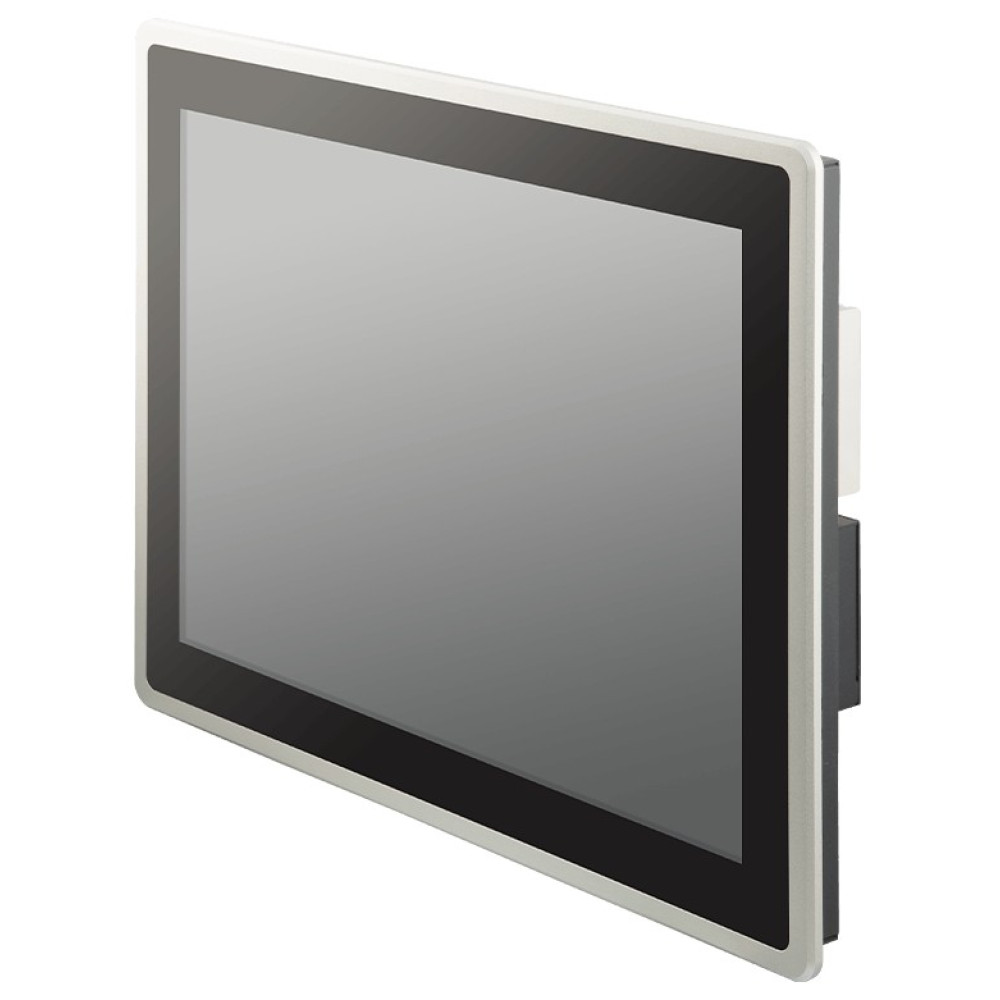

ARBOR iTC-1150R Fanless 15" Industrial Touch Panel PC with Intel Celeron J6413 CPU

ARBOR iTC-1150R Touch Panel PC, 1024 x 768 XGA LCD, 4 GB RAM, Rich I/O

The iTC-1150R stands out for its flexibility and rich input/output options, empowered by the Intel Elkhart Lake Cleron J6413 processor. This rugged panel PC comes with a 15" 1024 x 768 XGA LCD display. It utilizes resistive multi-touch for demanding automation environments such as the food industry and other factory applications.

This fanless and rugged panel boasts a robust aluminum front bezel, ensuring durability. With IP65 waterproof compliance, it's ideal for interactive information kiosks and digital terminals. Experience uninterrupted operation with the Supercap power backup module, a critical safety feature that ensures equipment can safely shut down during unexpected power failures, preventing data loss.

The iTC-1150R offers extensive connectivity and expansion options, including rich I/O (four COM ports, one 2.5GbE LAN port and one GbE LAN port, four USB 3.2 Gen 1 ports), dual video outputs (DisplayPort and DVI-D), and support for Mini PCIe expansion for wireless modules or additional storage. It supports a wide-range 9-36V DC power input with reverse protection and is designed for easy maintenance, with a clear internal layout.

It operates in a wide temperature range of -10 to 55ºC. With its rich features and built-in power safety solution, the iTC-1150R provides a reliable and versatile computing solution for various industrial automation and control applications.

Key Features

• Intel Celeron Processor J6413 (1.5M Cache, up to 3.00 GHz)
• 15" 1024 x 768 XGA LCD display
• Fanless design with Aluminum Front bezel
• Flush front panel with IP65 waterproof compliance
• 1 x RJ-45 port for GbE LAN, 1 x RJ-45 port for 2.5 GbE LAN
• 4 x USB 3.2 Gen1
• 4 x COM ports
• DisplayPort and DVI-D
• Easy-accessible expansion for storage and wireless module
• 9~36V wide-range DC input with reverse protection
• 1 x Mini PCIe slot
• Supports VESA and panel mount
• Supports Windows10 (64bit), Windows11 (64bit)

In the Box

1. iTC-1150R
2. User Manual
3. 4 x M3x4L screws (for 2.5" SSD/ HDD tray)
4. Panel-mount Clamps w/ screws (8 x clamps and 8 x M4x18L screws)
5. 10-pin plug (for D I/O)
6. 1 x Rubber O-ring
7. 3-pin plug x 2 (one for DC input block; one for Remote Control block)
