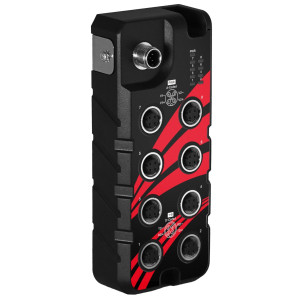

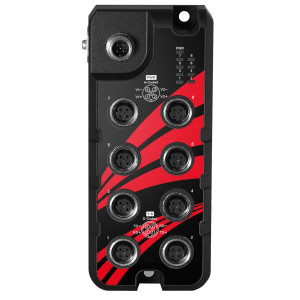

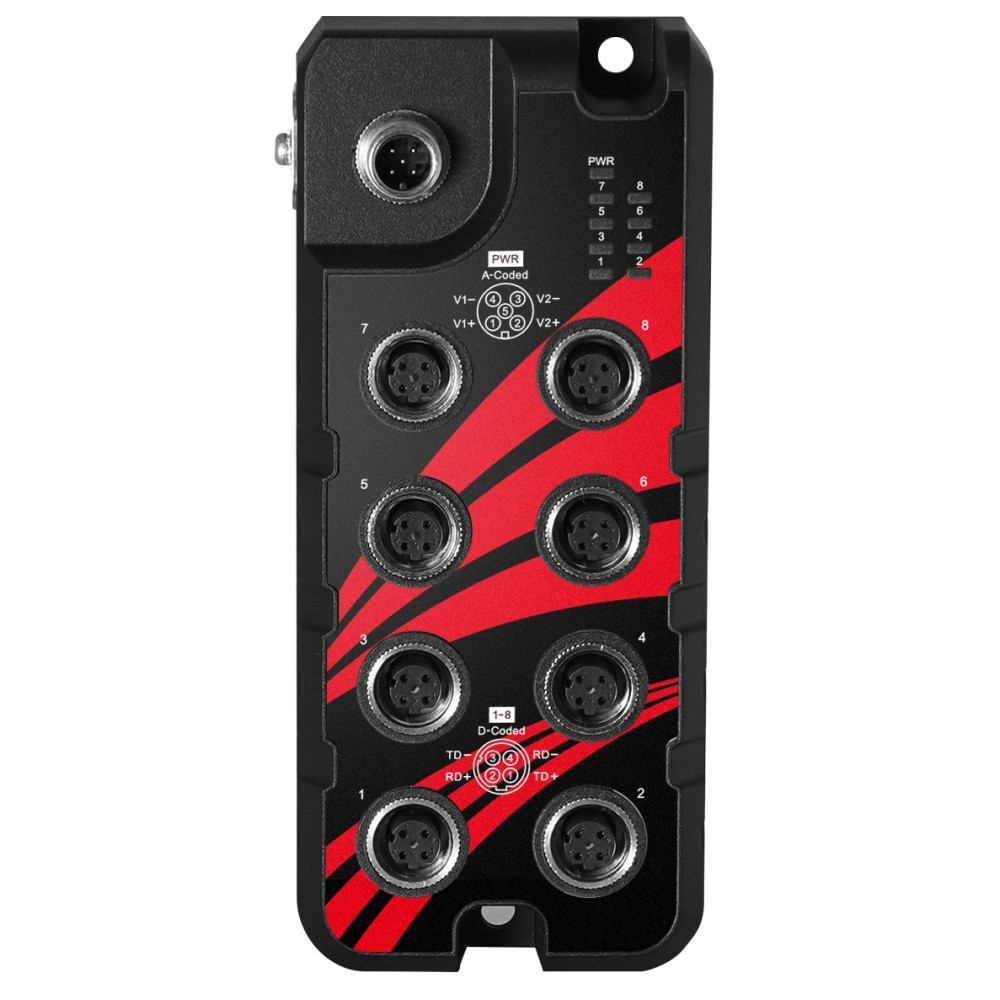

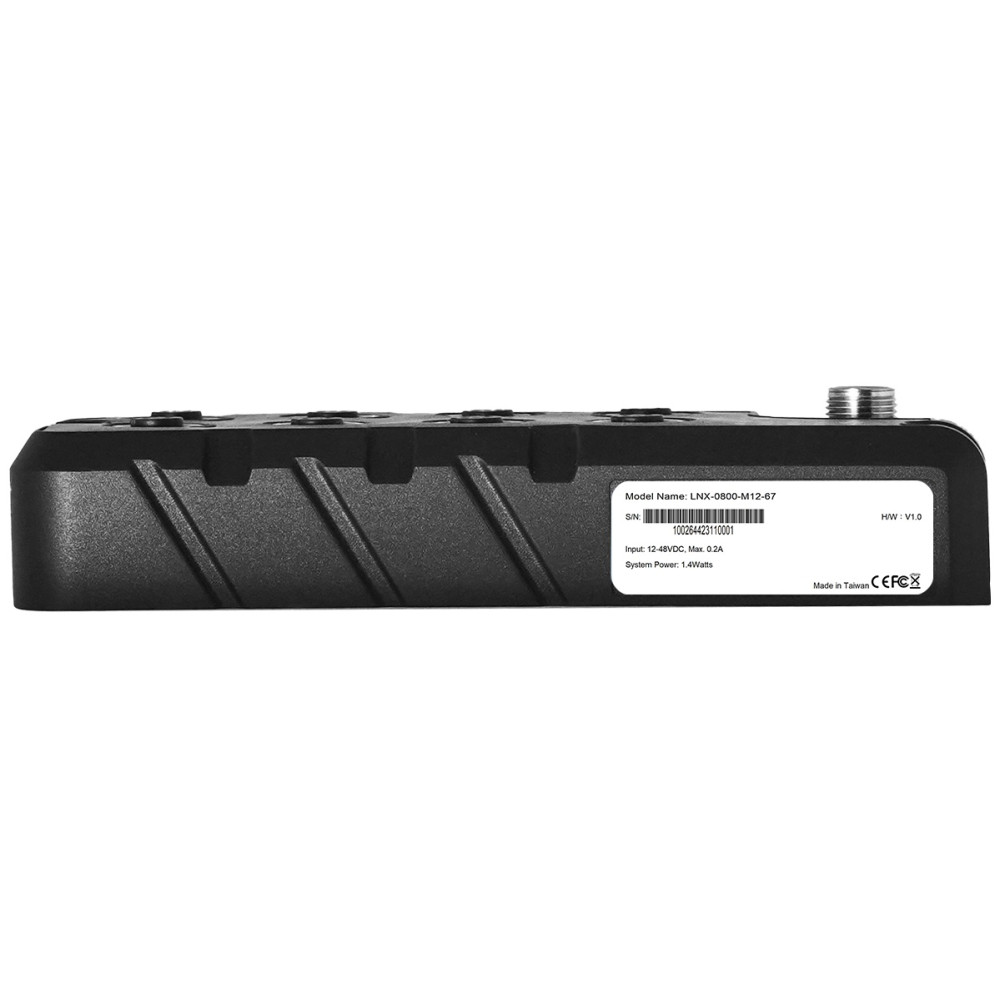

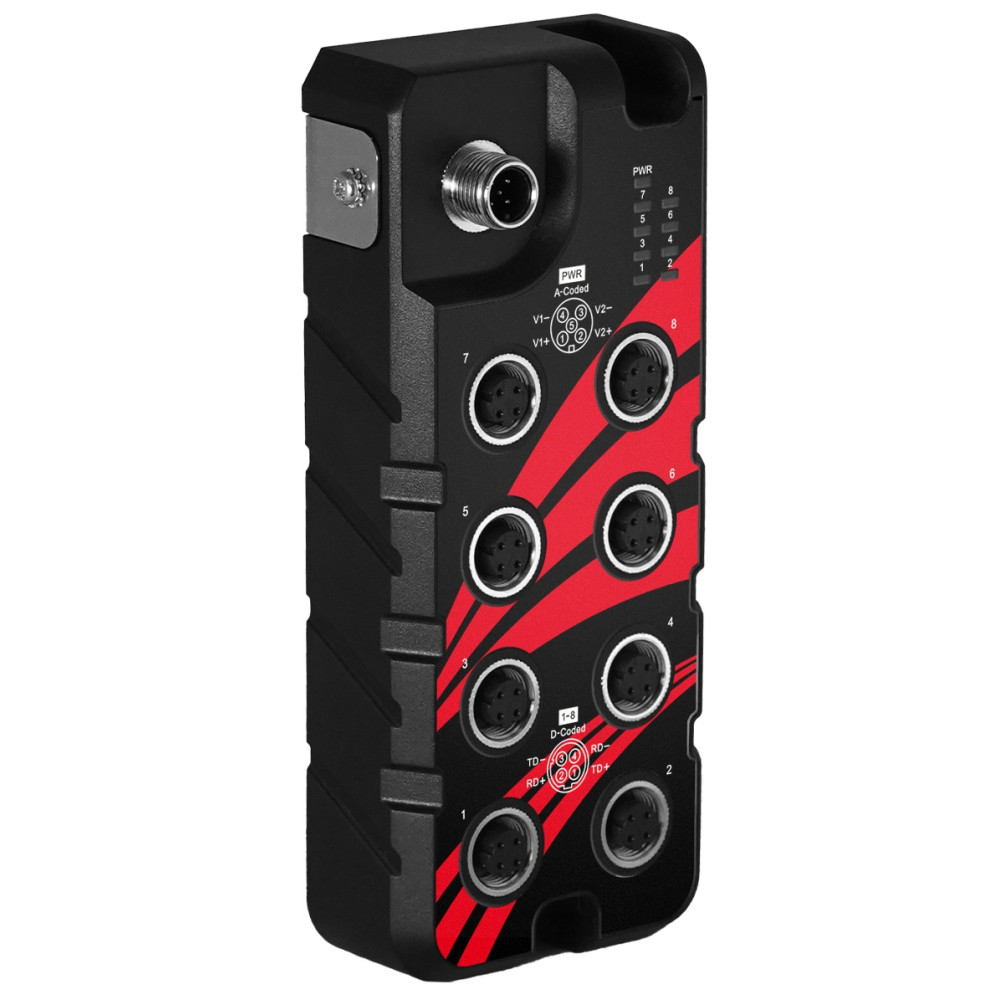

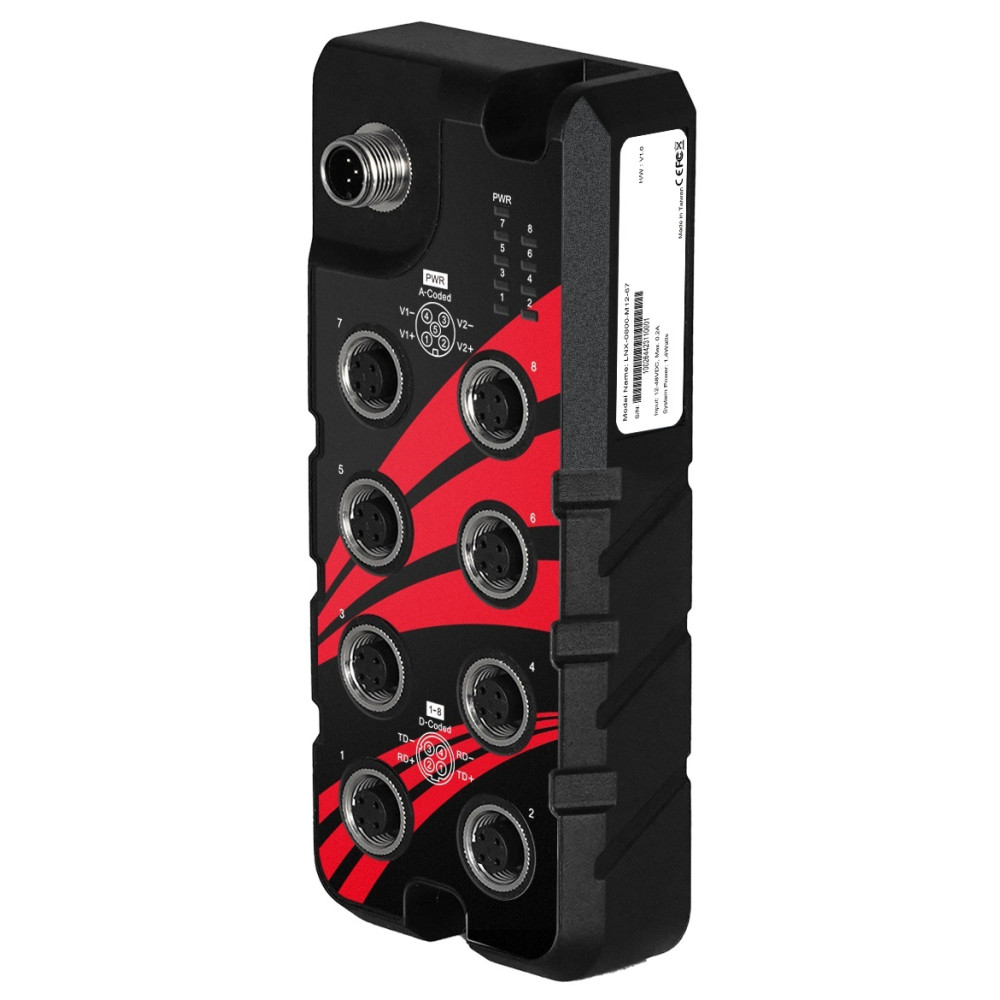

Antaira LNX-0800-M12-67 (-T) 8-Port Unmanaged IP67 Fast Ethernet Switch with M12

Antaira LNX-0800-M12-67 (-T) 8-Port Unmanaged Fast Ethernet Switch, M12 Connectors, IP67 Rated

Engineers and networking professionals count on Antaira Technologies’ Ethernet switches for two reasons - performance and high reliability. The LNX-0800-M12-67 is no exception. It is an 8-port, unmanaged Fast Ethernet switch featuring secure M12 connectors, wide operating temperature, and an IP67-rated enclosure. It’s built for the harshest industrial environments and ideal for vehicles, intelligent transportation, machines, and outdoor locations.

For critical operations, the rugged LNX-0800-M12-67 delivers with heavy-duty construction and reliable communication. The plastic IP67 rated case and its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications that are subject to high vibration and shock in environments containing dust, liquid, or laden with gas. Select from standard (-10° to 70° C) or extended (-40 to 75° C) operating temperature ranges. This switch supports the IEEE 802.3, 802.3u, 802.3x standards. A built-in relay warning feature alerts maintenance staff of a power outage or port failure. Because it’s an unmanaged switch, setup is quick and easy.

Key Features

• Supports 8x 10/100BASE-TX Fast Ethernet with Auto MDI / MDI-X
• Supports M12 (5-Pin A-coded Male) Power Connector
• Supports M12 (4-Pin D-coded Female) Connector
• IP67 rated plastic case
• Redundant Power Input
• DIN-Rail or Wall Mountable
• Optional wide operating temperature (-40 to 75°C)
• NDAA and TAA Compliant
• 5-Year Warranty

Configurations

LNX-0800-M12-67,     Standard Operating Temperature, -10° to 65°C
LNX-0800-M12-67-T,  Extended Operating Temperature, -40° to 75°C

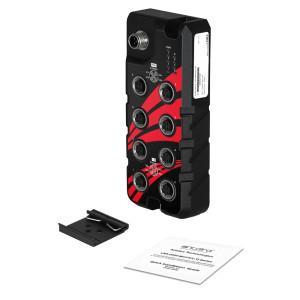

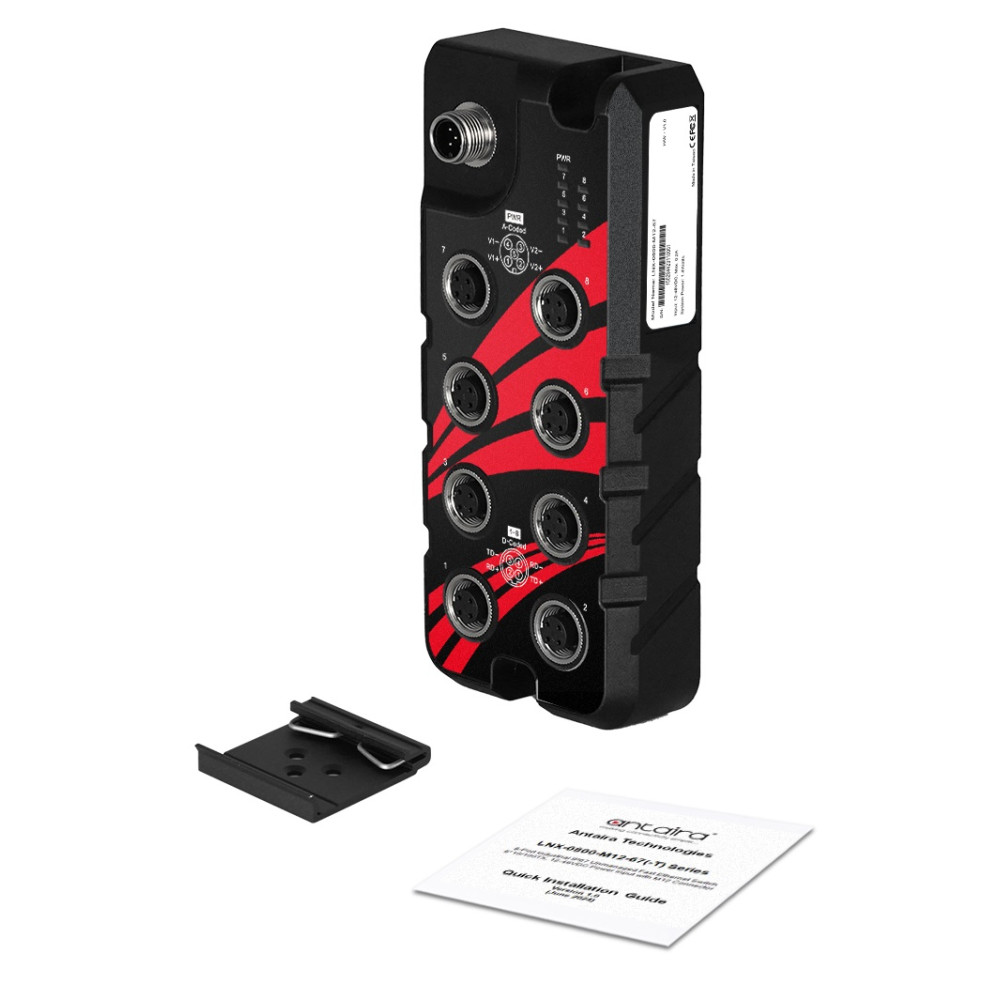

In the Box

1. LNX-0800-M12-67(-T)
2. Quick Installation Guide
3. DIN-Rail Kit with Screws
4. 8x M12 Protective Caps
5. 1x M12 Protective Cap for Power Input
