Antaira INJ-C201G-at-24 (-T) Industrial Gigabit PoE+ Injector

New Antaira INJ-C201G-at-24 (-T) 30-watt Industrial Gigabit PoE+ Injector
Model: INJ-C201G-at-24
Availability: 3 - 4 Weeks or Less
FREE SHIPPING !

Choose Options


* Operating Temperature:

Qty: Add to Cart

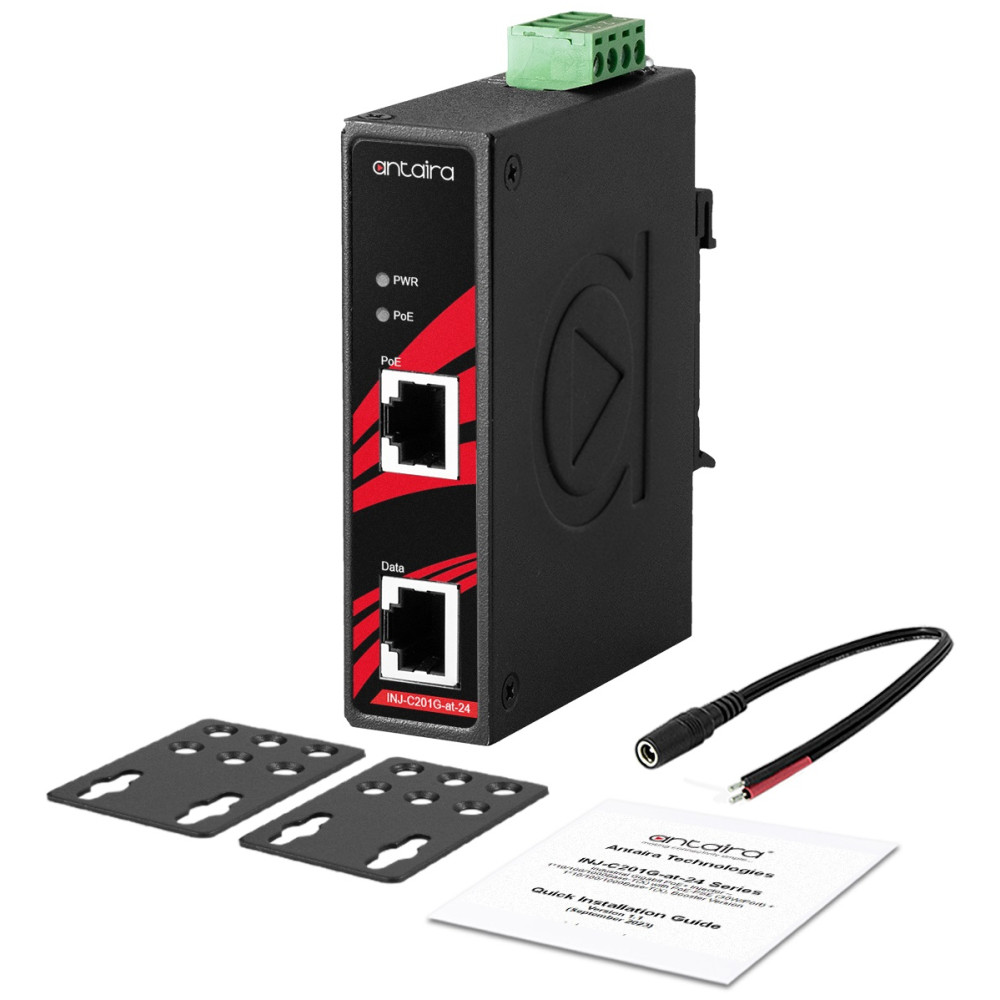

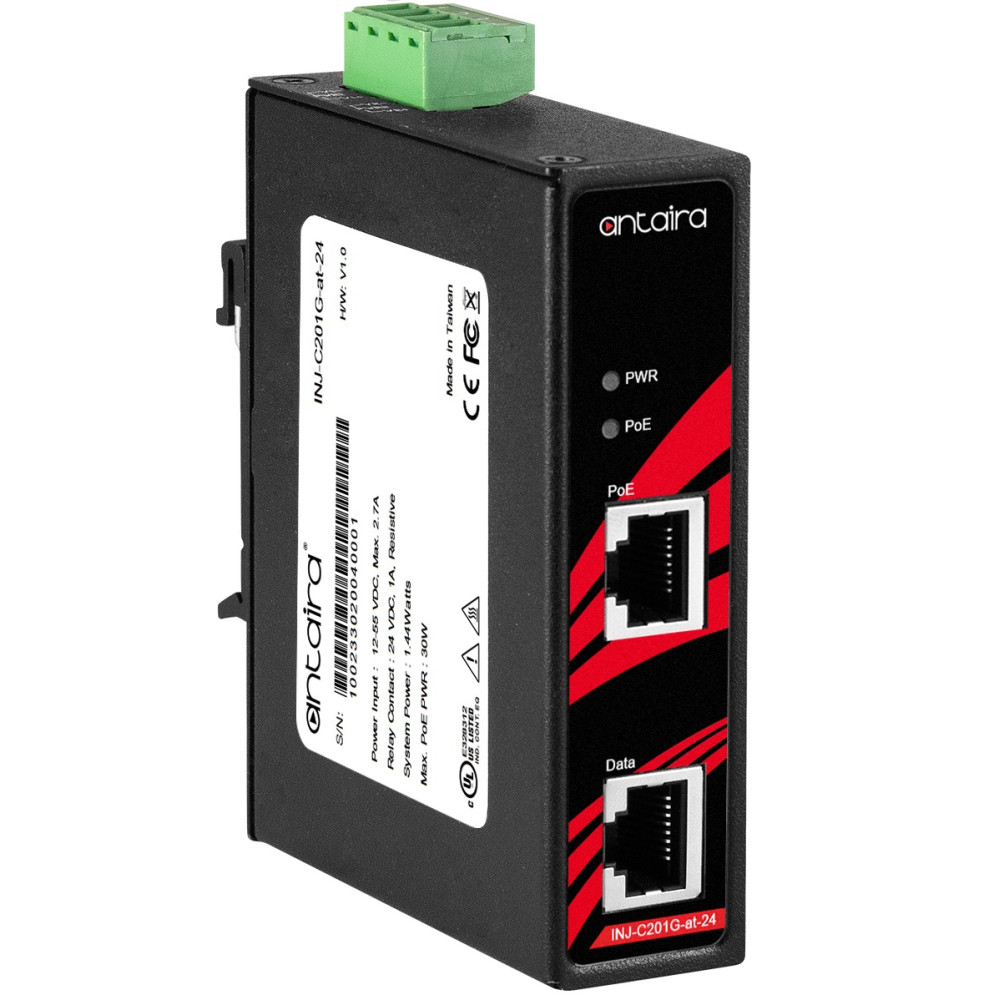

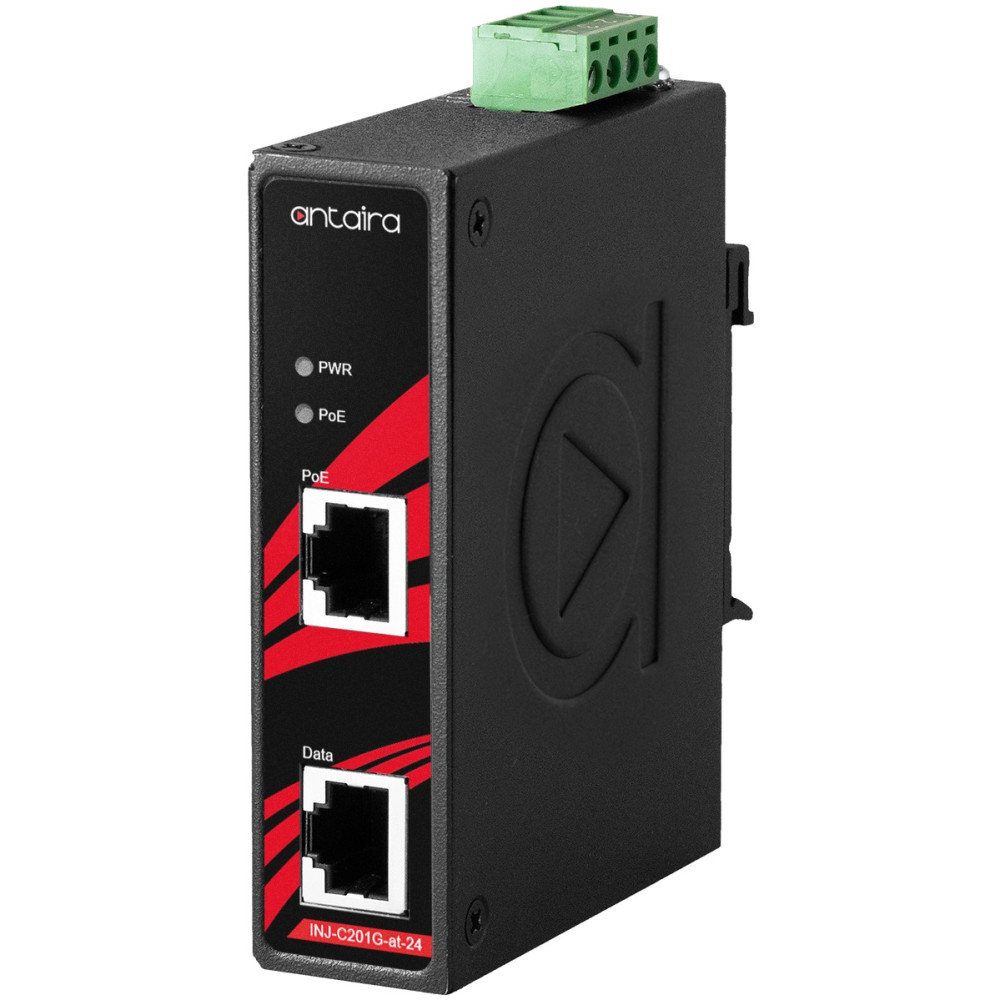

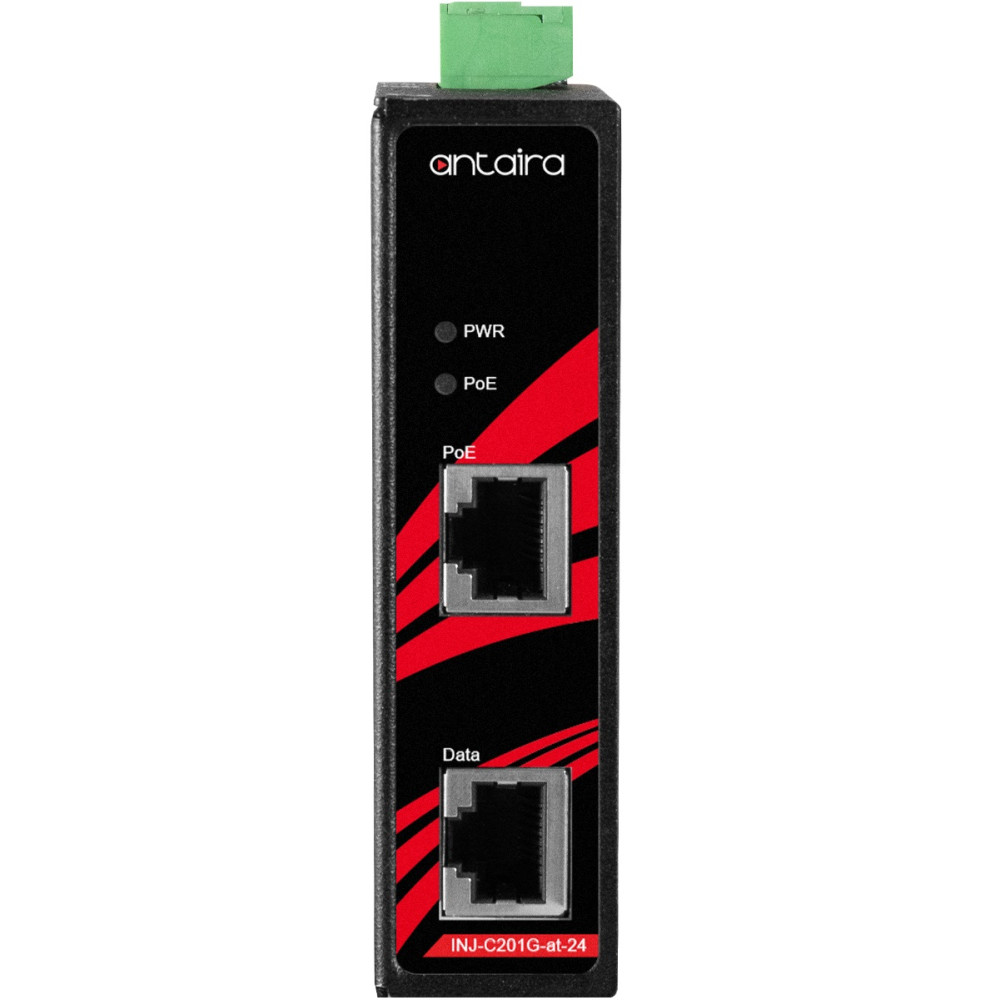

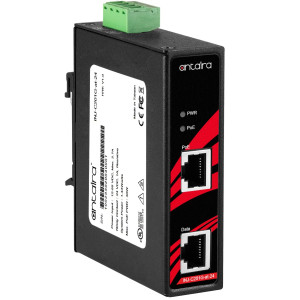

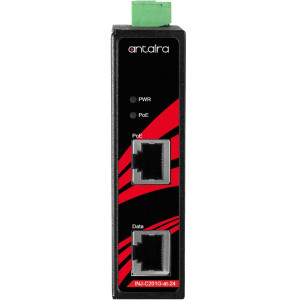

Antaira INJ-C201G-at-24 (-T) Industrial Gigabit PoE+ Injector, 2 Pair 30-Watt Output

The Antaira Technologies’ INJ-C201G-at-24 (-T) PoE+ Injector provides a solution for deploying data and power to PD devices from non-PoE switches and power inputs. This industrial PoE injector is a cost-effective solution for scenarios where only one device supports PoE functionality. The INJ-C201G-at-24 (-T) supports a 24VDC model with power booster technology, ensuring a full 30W PoE output, which is particularly useful for applications in the automation industry. The fanless design not only extends its lifespan but also makes it suitable for a wide range of industrial applications. Additionally, model INJ-C201G-at-24-T operates in extreme temperatures ranging from -40°C to 75°C, making it a reliable choice for the industrial market. With compliance to electrical and safety standards and a 5-year warranty, you can rest easy knowing this injector will reliably operate in the most demanding applications.

Key Features

  • Supports 10/100/1000BASE-T for PoE & Data Out
  • IEEE 802.3af/at PoE Compliant
  • Provide Data and Power over Ethernet to Power Device
  • Provides up to 30 Watts on PoE Port
  • Allows Power Input of 12~55VDC
  • IP30 Protection
  • Operating Temperature, Standard: -10° to 65°C, Extended: -40° to 75°C
  • DIN-Rail or Wall Mountable
  • NDAA and TAA Compliant
  • 5-Year Warranty

Configurations

INJ-C201G-at-24, Industrial Gigabit PoE+ Injector with standard operating temperature range, -10° to 65°C
NJ-C201G-at-24-T, Same as above with extended operating temperature range, -40° to 75°C

Bringing high-powered Power over Ethernet equipment online is only the start. Every industrial network has challenges, and our sales staff has the experience to help with yours. Contact us today to see how we can boost your performance and reduce costs.

Technology
CategoryPoE Injector & Splitter
Total Ports2
Ethernet Ports2 Gigabit (10/100/1000TX)
StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
Transfer Rate14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,148,000pps for Gigabit Port
Power
PoE Power Output30 Watts
Power Consumption1.44 W

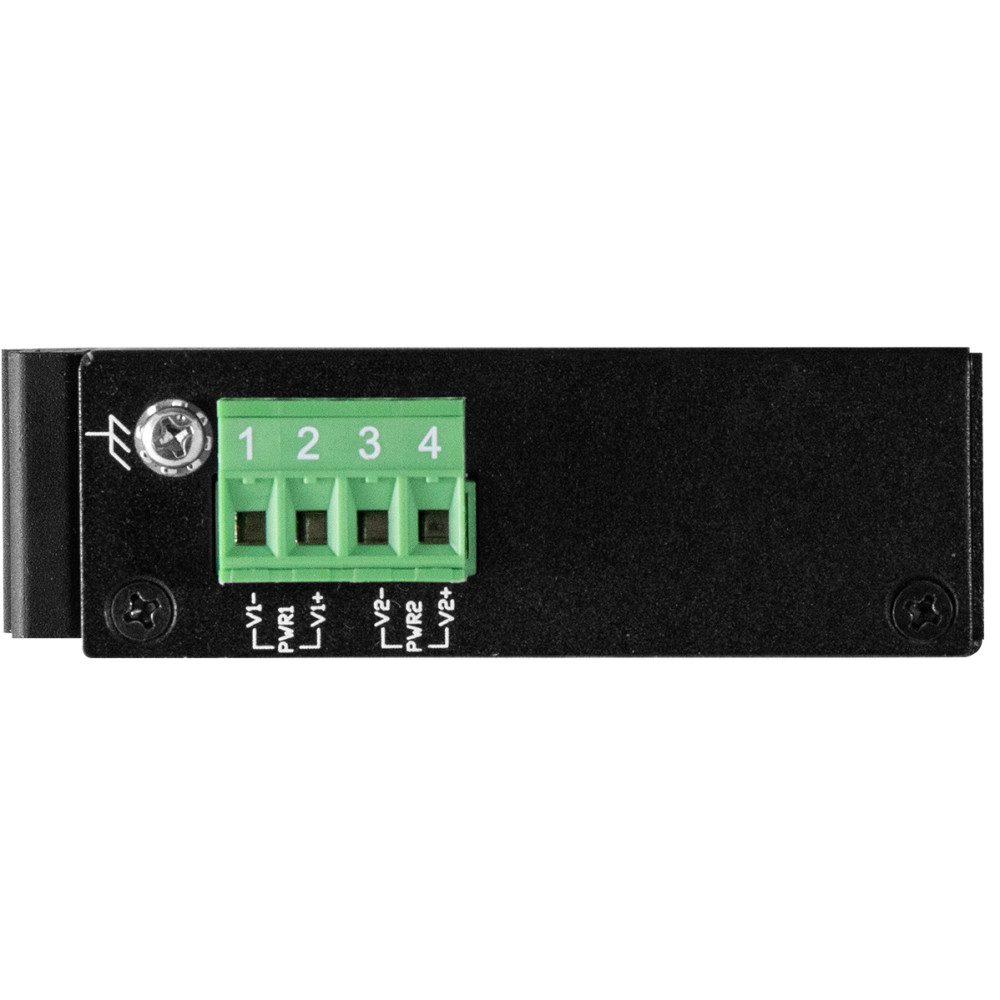

Connection4-Contact Terminal Block
Input Voltage12 to 55 VDC
Reverse Polarity ProtectionYes
Overload ProtectionYes
Mechanical
EnclosureMetal, IP30 Protection
MountingDIN-Rail & Wall Mounting
Shock / VibrationIEC 60068-2-27, IEC 60068-2-6
LED IndicatorsPower and PoE
Weight0.60 lbs
Dimensions26 x 95 x 75 mm (1.02 x 3.74 x 2.95 in.)
Ratings
Operating Temperature-40 to 75°C
Storage Temperature-40 to 85°C
Humidity5 to 95% non-condensing
RoHS CompliantYes
CertificationsFCC, CE, UL 61010-1, UL 61010-2-201
Warranty5 Years
