Taoglas MA584 (Comet) 4:1 Permanent Mount Puck Antenna with 4x4 MIMO WiFi

Taoglas MA584 4-in-1 Puck Style Antenna with 4x4 MIMO Wi-Fi, IP67, 300 mm Cables

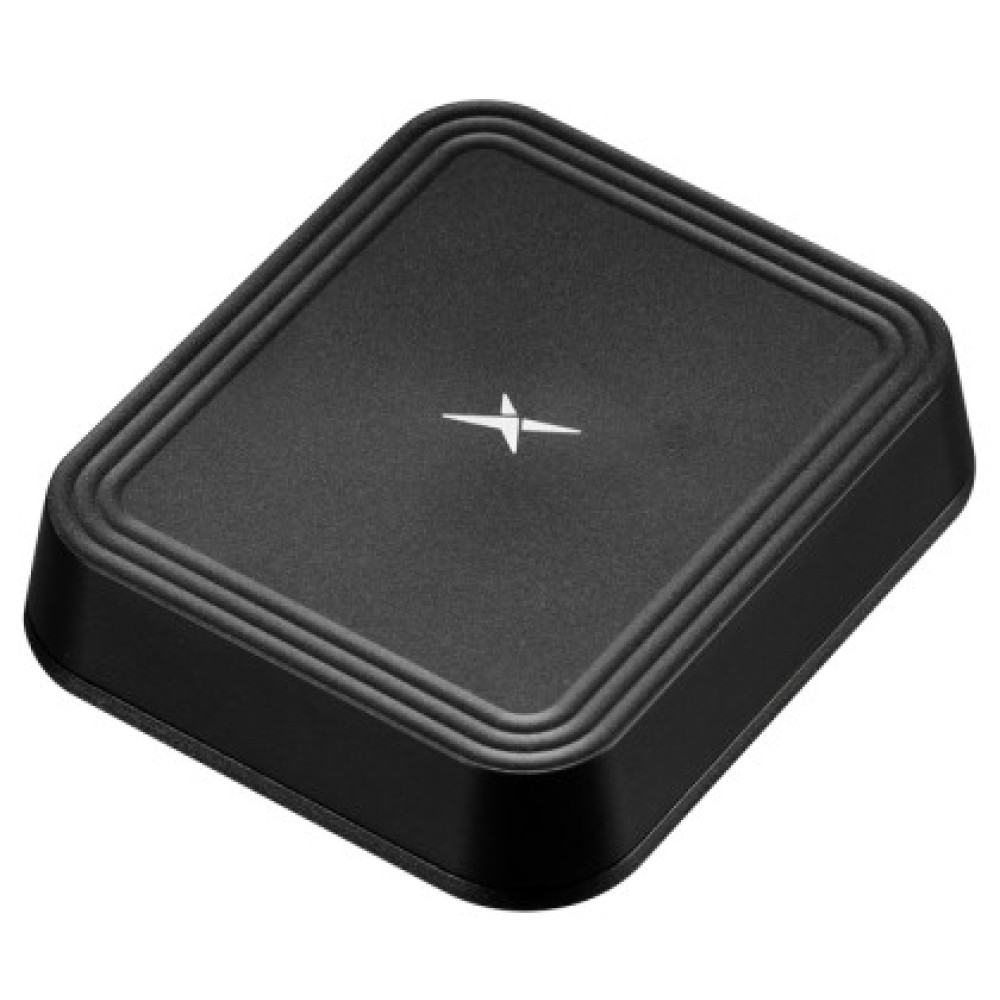

The Taoglas Comet MA584 is a low-profile, puck-style, screw-mount antenna. It contains four Wi-Fi antennas supporting multi-band coverage across 2.4 GHz, 5.8 GHz, and 7.125 GHz. Through innovative antenna engineering techniques, it delivers consistent gain and high efficiency across these bands performance that is typically difficult to achieve in smaller style antennas.

This robust design ensures dependable connectivity where other low-profile antennas fail, making the Comet series particularly well-suited for a variety of uses.

Typical Applications Include:

• Gateways, Routers & Industrial Networks
• Digital Signage and Point of Sale Terminals
• First Responder and Emergency Services

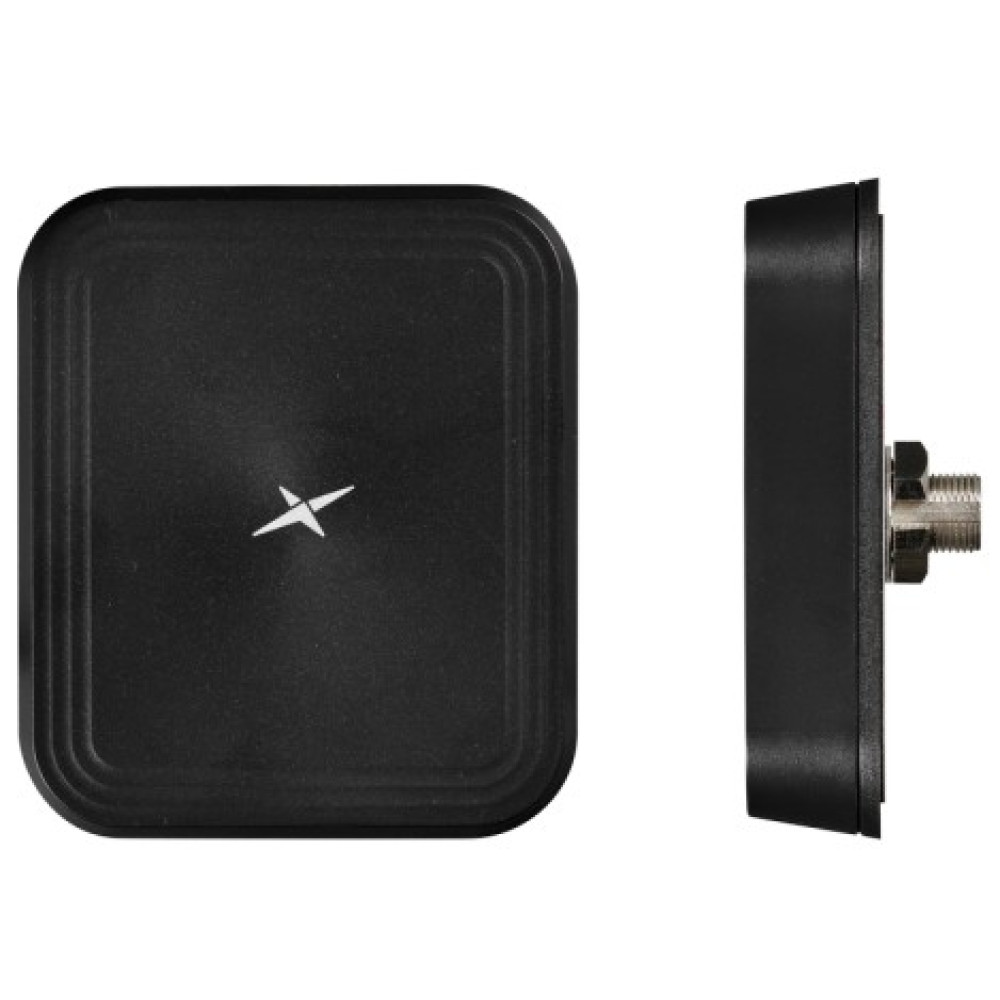

The MA584 has been designed as a permanent screw mount solution. This allows it to be utilized and installed in applications where a strong and secure mechanical attachment is required, ensuring reliable performance even in high-vibration or harsh environments. The four Wi-Fi connections utilize 300 mm of 1.37 Micro Coax Black cable with SMA(M) connectors as standard.

Key Features

• Low-profile Housing with Permanent Mount
• 4x4 MIMO Wi-Fi 2.4/5.8GHz/5.925 - 7.125 GHz
• IP67 Waterproof Enclosure
• Dimensions: 101 x 101 x 20 mm

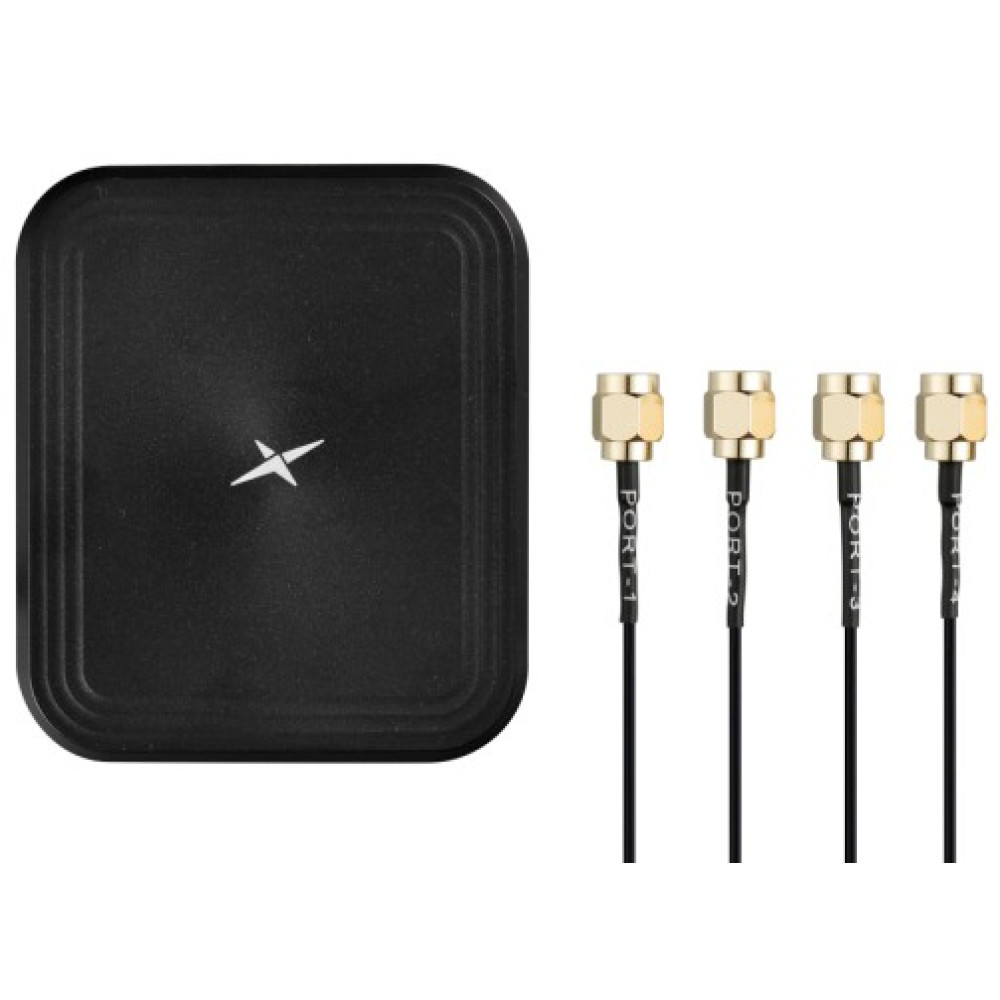

• 300mm of 1.37 Micro Coaxial Black Cable with SMA(M) connectors
• Black or white
• RoHS & Reach Compliant

Configurations

MA584.A.003, Antenna in black
MA584.W.003, Antenna in white
