Taoglas MA583 (Comet) 3:1 Permanent Mount Puck Antenna with MIMO 5G/4G & WiFi

Taoglas MA583 3-in-1 Puck Style Antenna with 5G/4G Cellular and Wi-Fi, IP67, 2 meter Cables

The Taoglas Comet MA583 is a low-profile, puck-style, screw-mount antenna that integrates two high-performance 5G/4G MIMO cellular elements and one Wi-Fi element. Covering all worldwide cellular frequencies from 600 MHz to 6 GHz, along with 2.4 GHz, 5 GHz and 6GHz Wi-Fi bands, it achieves stable gain and efficiency that are typically difficult to realize in such a compact form factor.

A key differentiator of the Comet MA583 is its ability to maintain strong performance when mounted directly on metallic enclosures. Competing antennas typically experience severe efficiency losses in the lower 5G/4G bands (617 - 960 MHz), but the Comet was designed specifically to overcome this challenge. Leveraging Taoglas’ proprietary all-metal PIFA design and advanced bandwidth optimization techniques, the MA583 delivers consistently higher efficiency and more reliable radiation even when installed on metal housings with feed cables routed inside.

This robust design ensures dependable connectivity where other low-profile antennas fail, making the Comet series particularly well-suited for a variety of uses.

Typical Applications Include:

• Telematics, Transport and Fleet Management
• Connected Kiosks, Digital Signage, and Point of Sale Terminals
• Public Safety and Critical Communications
• Construction, Mining, and Heavy Equipment

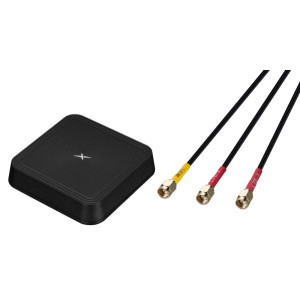

The MA583 has been designed as a permanent screw mount solution. This allows it to be utilized and installed in applications where a strong and secure mechanical attachment is required, ensuring reliable performance even in high-vibration or harsh environments. The cellular MIMO and WiFi connections feature 2m of TGC1.5DS coaxial cable with SMA(M) and RP-SMA(M) connectors as standard.

Key Features

• Low-profile Housing with Permanent Mount
• MIMO 5G/4G 600-6000 MHz
• Worldwide 5G Bands including legacy 4G, 3G, and 2G bands
• Wi-Fi 2.4 - 5.8GHz and 5.925 - 7.125 GHz
• IP67 Waterproof Enclosure
• Dimensions: 101 x 101 x 20 mm
• 2m Low Loss TGC-1.5DS cable with SMA(M) & RP-SMA(M) connectors
• Black or white
• RoHS & Reach Compliant

Configurations

MA583.A.001, Antenna in black
MA583.W.001, Antenna in white
