Taoglas MA582 (Comet) 2-in-1 Permanent Mount Puck Antenna with MIMO 5G/4G

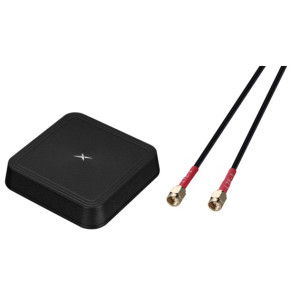

Taoglas MA582 2-in-1 Puck Style Antenna with 5G/4G Cellular, IP67, 2 meter Cables

The Taoglas Comet MA582 is a low-profile, puck-style, screw-mount antenna that integrates two high-performance 5G/4G MIMO cellular elements. Covering all worldwide cellular frequencies from 600 MHz to 6 GHz, it achieves stable gain and efficiency that are typically difficult to realize in such a compact form factor.

A key differentiator of the Comet MA582 is its ability to maintain strong performance when mounted directly on metallic enclosures. Competing antennas typically experience severe efficiency losses in the lower 5G/4G bands (617 - 960 MHz), but the Comet was designed specifically to overcome this challenge. Leveraging Taoglas’ proprietary all-metal PIFA design and advanced bandwidth optimization techniques, the MA581 delivers consistently higher efficiency and more reliable radiation even when installed on metal housings with feed cables routed inside.

This robust design ensures dependable connectivity where other low-profile antennas fail, making the Comet series particularly well-suited for a variety of uses.

Typical Applications Include:

• Telematics, Transport and Fleet Management
• Gateways and Routers
• Digital Signage, Smart Kiosks and Point of Sale Terminals
• First Responders, Public Safety and Critical Communications
• Construction, Mining, and Heavy Equipment

The MA582 has been designed as a permanent screw mount solution. This allows it to be utilized and installed in applications where a strong and secure mechanical attachment is required, ensuring reliable performance even in high-vibration or harsh environments. The cellular MIMO connections feature 2m of TGC1.5DS coaxial cable with SMA(M) connectors as standard.

Key Features

• Low-profile Housing with Permanent Mount
• MIMO 5G/4G 600-6000 MHz
• Worldwide 5G Bands including legacy 4G, 3G, and 2G bands
• IP67 Waterproof Enclosure
• Dimensions: 101 x 101 x 20 mm
• 2m Low Loss TGC-1.5DS cable with SMA(M) connectors
• Black or white
• RoHS & Reach Compliant

Configurations

MA582.A.001, Antenna in black
MA582.W.001, Antenna in white
