Manufacturer: Taoglas

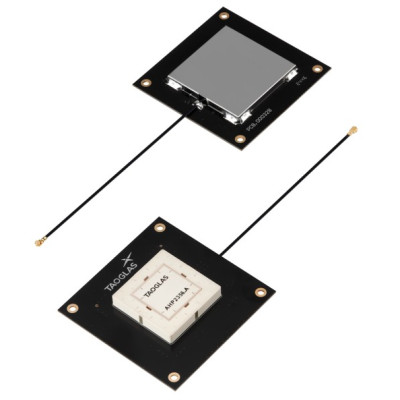

The Taoglas AHP2356A is a compact, high-performance GNSS L1/L2 active patch antenna designed for next generation positioning systems requiring high precision, reliability, and multiband support. Measuring 35 x 35 x 6 mm (antenna element) and 70 x 70 x 11 mm (with ground plane integration), it features a 2-stage LNA for enhanced signal clarity, excellent out-of-band rejection, and stable performance in demanding environments.
Covering GPS/QZSS (L1/L2), Galileo (E5b), GLONASS (G1), and BeiDou (B1I), the AHP2356A delivers strong, consistent reception across all major constellations, enabling robust and accurate navigation in mission critical applications. Its optimized gain, low noise figure, and excellent axial ratio ensure superior signal integrity, even in challenging RF conditions.
The antenna comes with a 100 mm ø1.37 mm coaxial cable terminated with an I-PEX MHF I connector as standard. Both cable and connector can be fully customized to suit your requirements, supporting seamless integration into compact devices. Tuned and tested on a 70 x 70 mm ground plane, it exhibits outstanding radiation patterns and stable performance, while maintaining a low-profile form factor suitable for space constrained designs.
The AHP2356A is fully RoHS, RED and REACH compliant, making it suitable for use in regulated markets worldwide. In addition, Taoglas offers integration and custom tuning services to optimize antenna performance for specific device environments.
| Technology | |
| Category | Antenna |
| Wireless | |
| Single / SISO Antennas | GPS |
| Gain | 28 dB (2 stage LNA) |
| Antenna Efficiency | 15% - 55.2% |
| Antenna Type | Active GPS, Galileo, GLONASS, BeiDou patch antenna module |
| Power | |
| Input Voltage | 1.8-5.5 V |
| Mechanical | |
| Cabling | 100 mm x Ø1.37 cable with I-PEX MHF I connector |
| Dimensions | 70 x 70 x 11 mm |
| Download Name | File Size |
| Taoglas AHP2356A Datasheet | 5.74MB |
