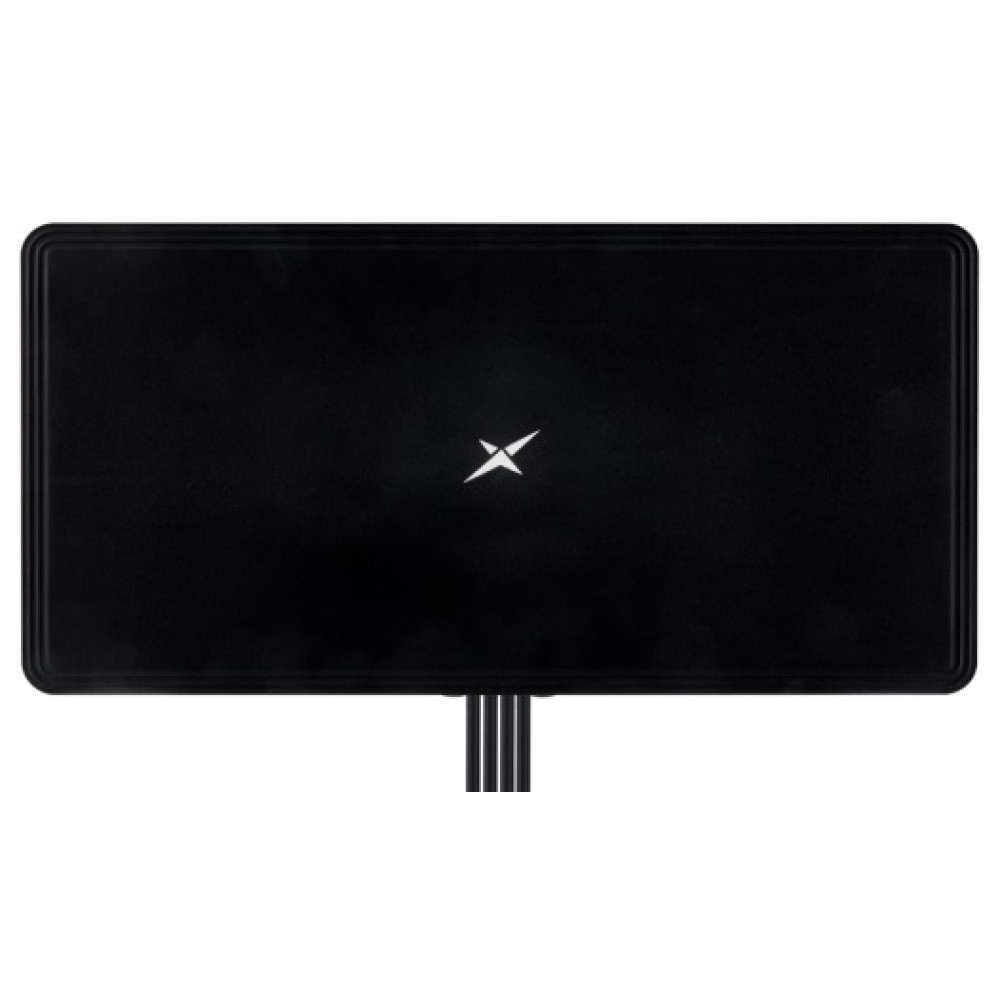

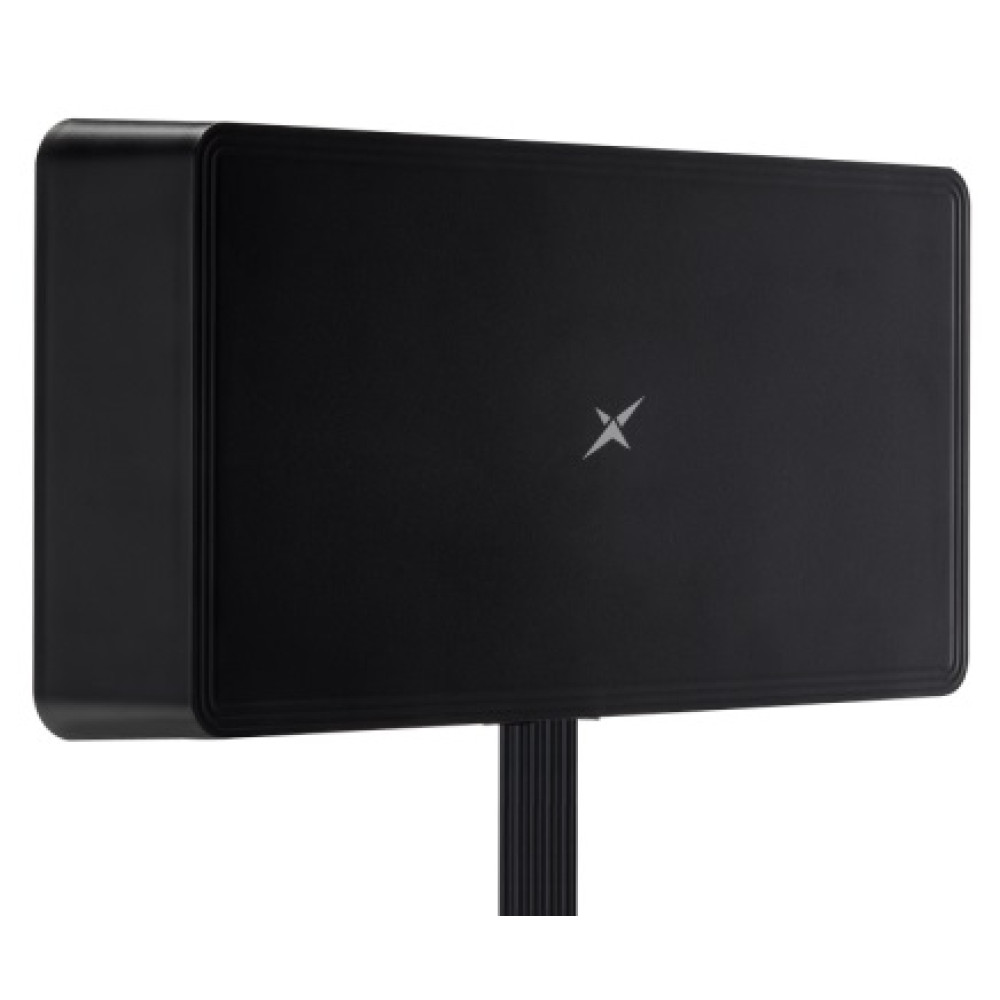

Taoglas TGX.08 8:1 5G MIMO Cross-Polarized Antenna with Multi Mount Bracket

Taoglas TGX.08 8-in1 Wideband 600 to 6000 MHz 5G 8x8 MIMO Omnidirectional Dipole Antenna

The Taoglas TGX.08 is an 8x8 5G MIMO cross-polarized omnidirectional dipole antenna with a wide bandwidth covering all worldwide sub 6GHz cellular bands from 600 to 6000 MHz. It uses eight dipole antennas to deliver the best possible throughput and quality improvements in transmitting and receive signal levels, leading to better coverage and performance, especially in urban environments. It is designed for multiple mounting options to allow for a variety of use cases such as adhesive, wall and glass mount.

The antenna is tuned for great performance at the recently established 5GNR bands between 3300 - 4200 MHz and covers Band 71 (617 MHz) at the lower end of the 5GNR frequency spectrum. High efficiency and good gain is achievable at each band on all MIMO antennas. The cross polarized antennas' layout also enhances MIMO performance capabilities, thus improving signal quality. This is achieved by applying polarization diversity with +/- 45-degree polarized signals received from most base station antennas and in turn, enhances throughput capacity giving the user the best possible cellular performance for their device.

The TGX.08 has been designed for typical applications including gateways, routers and wireless access points that require, high efficiency and unrivaled performance, and itself is a great 8x8 MIMO solution. The robust TGX.08 enclosure is IP67 rated and manufactured from ASA for exceptional mechanical performance. The bracket is designed to allow for multiple mounting options, including wall mounting and it is supplied with suction cups to facilitate glass mounting. All accessories for each mounting option are included with the antenna. The TGX.08 is an omnidirectional antenna, but the mounting bracket allows the user to position the antenna and lock it into place for optimal performance.

Key Features

• Highest efficiency for 600 - 6000 MHz wideband applications
• Fully 5GNR Cellular Operational
• Cross Polarized Dipole Antennas
• IP67 Rated Enclosure
• Omnidirectional Gain Patterns leading to better coverage
• Multi-function bracket including Wall, Pole and Glass Mount options
• Cable: 3m long TGC-200
• Connector: SMA (M)
• Dimensions: 338 x 171 x 60 mm
• RoHS and Reach Compliant
