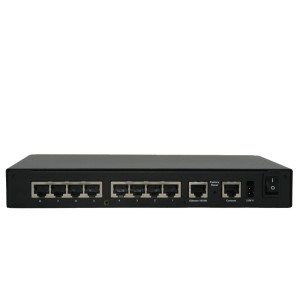

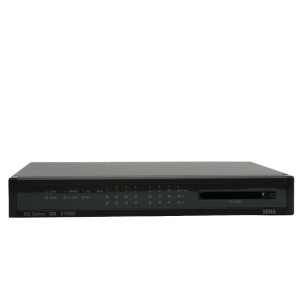

SENA STS800 8-Port Secure Terminal Server

Antaira STS800 8-Port Secure Terminal Server
Model: STS800
Availability: Discontinued

***DISCONTINUED***  This device server does not have an immediate replacement.  Please see "Related Products" below or contact our Sales Department for assistance with selecting a suitable replacement.

8-Port Secure Terminal Server

The STS800 is an 8-port secure terminal server (or multi-port device server) that makes up to 8 simultaneous legacy serial devices manageable by the industry-standard Ethernet network. Based on open network protocols such as TCP/IP and UDP, it gives you ultimate flexibility to your serial devices. With a PPPoE (PPP-over-Ethernet) connection feature of the STS Series, the RS232 serial devices can be managed over DSL-based broadband network.

  • Connects legacy serial devices to 10/100Base-T Ethernet network
  • Supports RS232 based serial devices, up to 230Kbps speed
  • Supports PC cards such as ATA memory, modem and wired/wireless LAN card
  • Powerful security support, SSL (Secure Socket Layer), RC4 and 3DES
  • Supports powerful Ethernet modem function
  • Dynamic DNS and PPPoE protocol for DSL connection to broadband Internet
  • Configuration via Web, Telnet or serial port
  • Management software for configuration and administration included
  • Surge protector included
  • Supports RFC 2217, Telnet COM Port Control Protocol

Included Items

  • STS800
  • Quick Start Guide
  • External Power Supply
  • CAT5 Cable
  • Cable Adapter Kit
  • CD Software
Technology
Total Ports8
Ethernet Ports1 Fast Ethernet (10/100TX)
EncodingFull support for AT commands
FunctionalitySupports static and dynamic IP Addresses
ProtocolARP, IP/ICMP, TCP, UDP, Telnet, SSH v1 & v2 | DNS, Dynamic DNS, HTTP, HTTPS | SMTP, DHCP, NTP, PPPoE, SNMP v1 & v2, SSL v2 & v3, TSL v2
Transfer Rate75bps to 230kbps
Operating System SupportWin 98/ME/NT4/2000/XP/Vista, Linux, Unix98
Serial Interface
Serial Ports8 RS-232
SignalsRx, Tx, RTS, CTS, DSR, DTR, GND
Network Management
IP SecurityID & Password, HTTPS, SSH, SSL, TSL, 3DES, RC4, IP Filtering
Console PortUpgrade using console, telnet/SSH and web
Configuration BackupVersatile system logging support for all system events
System ConfigurationWeb, Console port, Telnet/SSH, & HelloDevice Manager
Power
Power Consumption5 VDC 1.5A @ 5V
Input Voltage5 VDC
Surge ProtectionSurge protector equipped for each serial port
Mechanical
CablingCAT5 Cable & Cable Kit
Connector Type8-port RJ45 connector
Dimensions245 x 153 x 30 mm (9.6 x 6 x 1.2 inches)
Weight1.5kg
LCM DisplayPower, Ready, 10/100 Base Link, Serial Rx/Tx
Ratings
Operating Temperature5° C to 55° C
Storage Temperature-40° C to 66° C
CertificationsFCC (A), CE, MIC
Warranty5 Years
Tags: STS800
