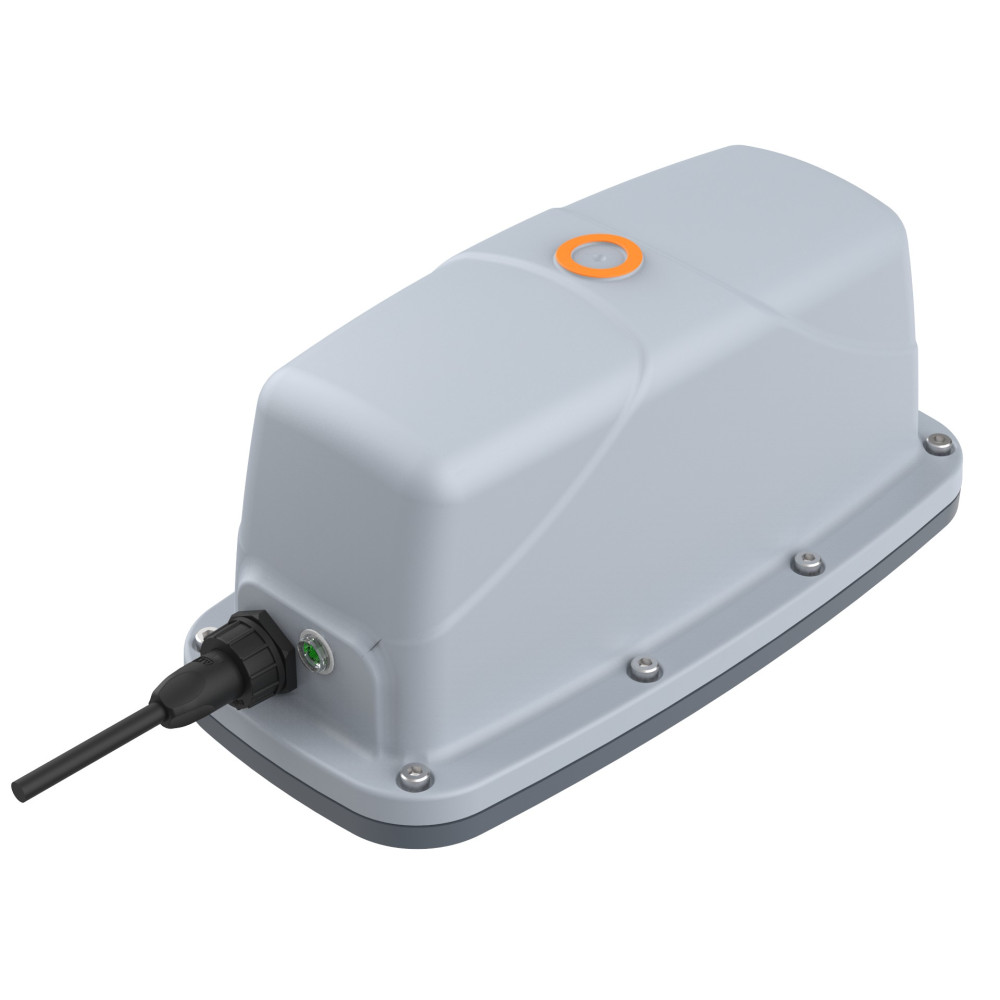

Poynting EPNT-7 4:1 Rugged 4x4 MIMO Wi-Fi Antenna Enclosure for Compact Routers

Poynting EPNT-7 4-in-1 Cross-Polarized, Omnidirectional, 4x4 Dual-Band WiFi CPE for Small Routers

The EPNT-4-V1-01 is a robust 4×4 MIMO dual-band Wi-Fi antenna enclosure designed to deliver superior wireless performance in the most demanding environments. Equipped with four dual-band antennas covering the 2.4 GHz and 5 - 6 GHz Wi-Fi bands, the EPNT-7 achieves up to 3.5 dBi gain at 2.4 GHz and up to 7.5 dBi gain at 5 - 6 GHz, ensuring powerful and reliable omnidirectional coverage. It was designed to integrate compact router modules with maximum dimensions of 108 mm x 73.5 mm x 20 mm, transforming it into a rugged mobile Wi-Fi CPE.

Whether installed on a Land Cruiser in a mine or a service vehicle in a port, the EPNT-7 keeps communications on the move. Its rugged enclosure is rated IP69K and ;IK08, protecting internal components from water, dust, and vibration. Secure cable routing and optional magnetic mounting make installation fast and reliable in almost any setting.

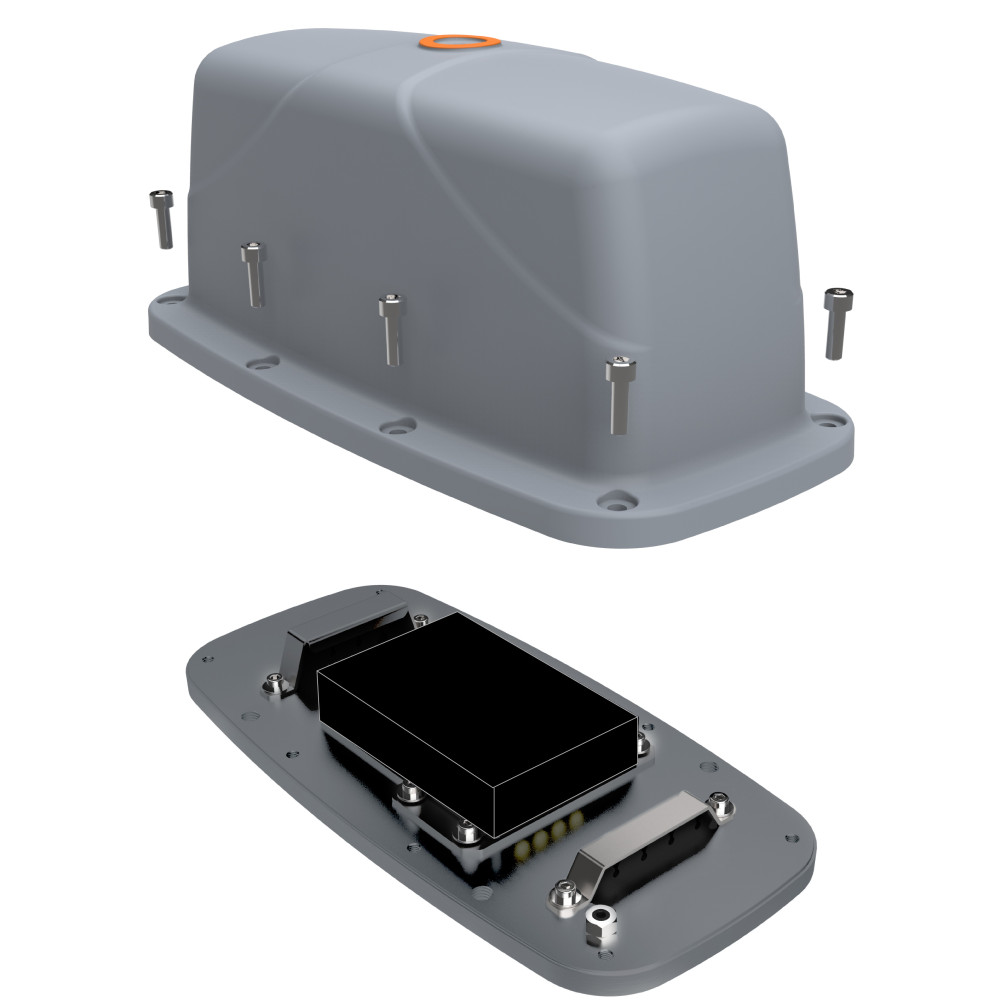

Designed as a plug-and-play enclosure to integrate compact router modules the EPNT-7 includes passive PoE, a thermal heatsink base, and a transparent LED window for quick diagnostics. Pre-drilled mount points simplify router installation and reduce cabling needs.

The EPNT-7 brings together rugged design, reliable wireless performance, and seamless integration, making it a powerful solution for Wi-Fi connectivity in extreme environments.

Applications

• Surface and underground mining - Reliable connectivity for vehicles and equipment in high-vibration environments
• Agriculture - Wireless backhauls for smart farming machinery
• Ports and harbours - Mobile Wi-Fi solutions for logistics vehicles and infrastructure monitoring
• Industrial warehousing - Connectivity for automated systems, remote sensors, and mobile assets

Introducing the EPNT-7

Key features

• Rugged outdoor antenna-integrated enclosure for compact router modules
• Short RF cables are used, minimizing signal loss
• 4x4 MIMO dual-band 2.4 GHz and 5 - 6 GHz Wi-Fi antennas
• Supports IEEE 802.11 b/g/n/ac/ax (Wi-Fi 4/5/6) standards

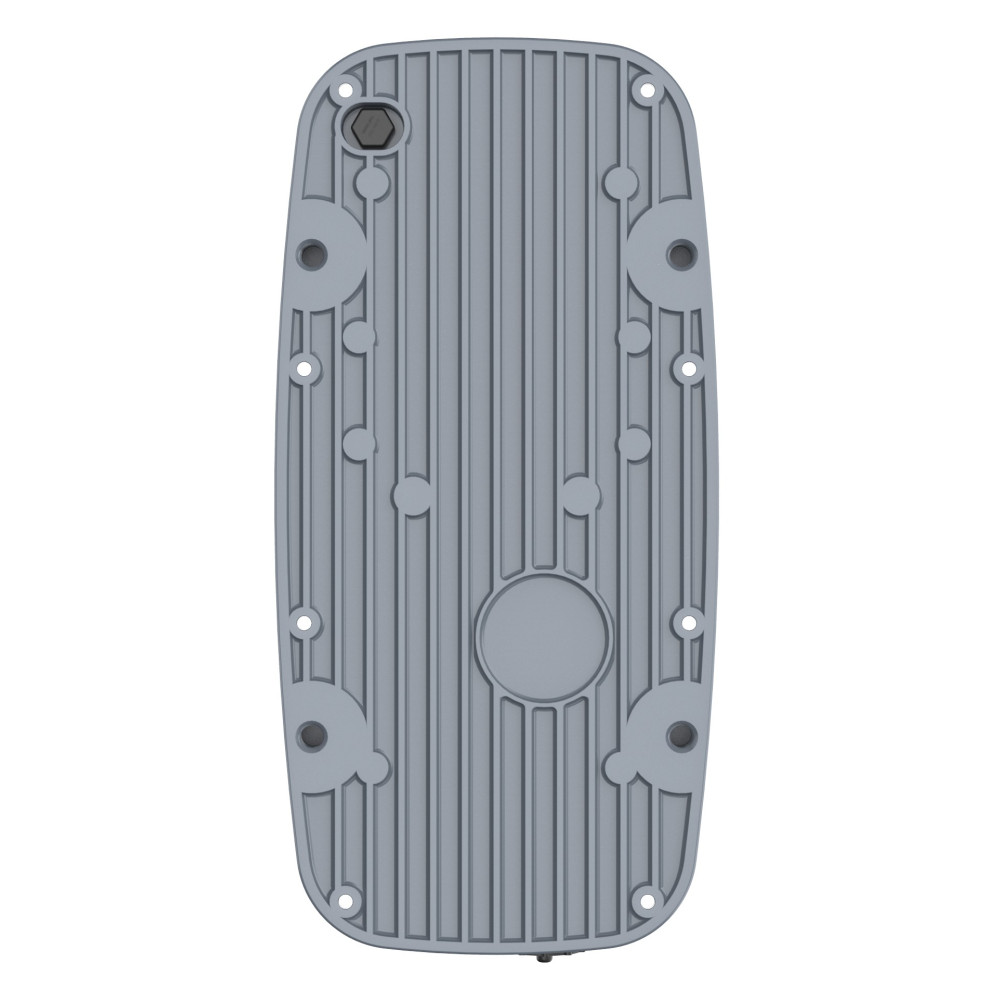

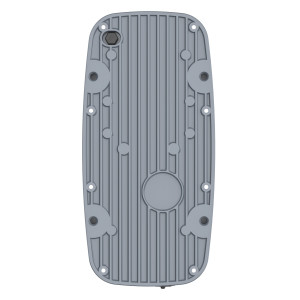

• Powder-coated cast aluminium base for heat dissipation and vibration-resistant cable strain reliefs

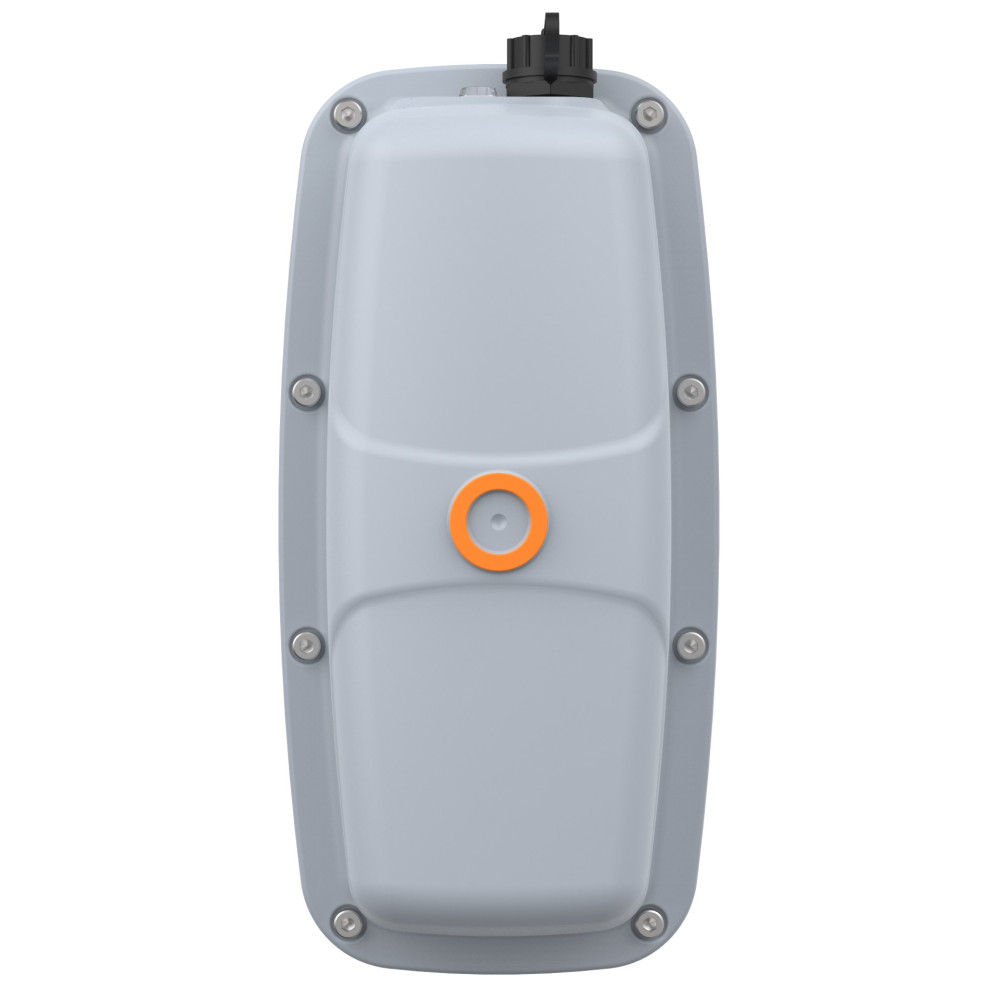

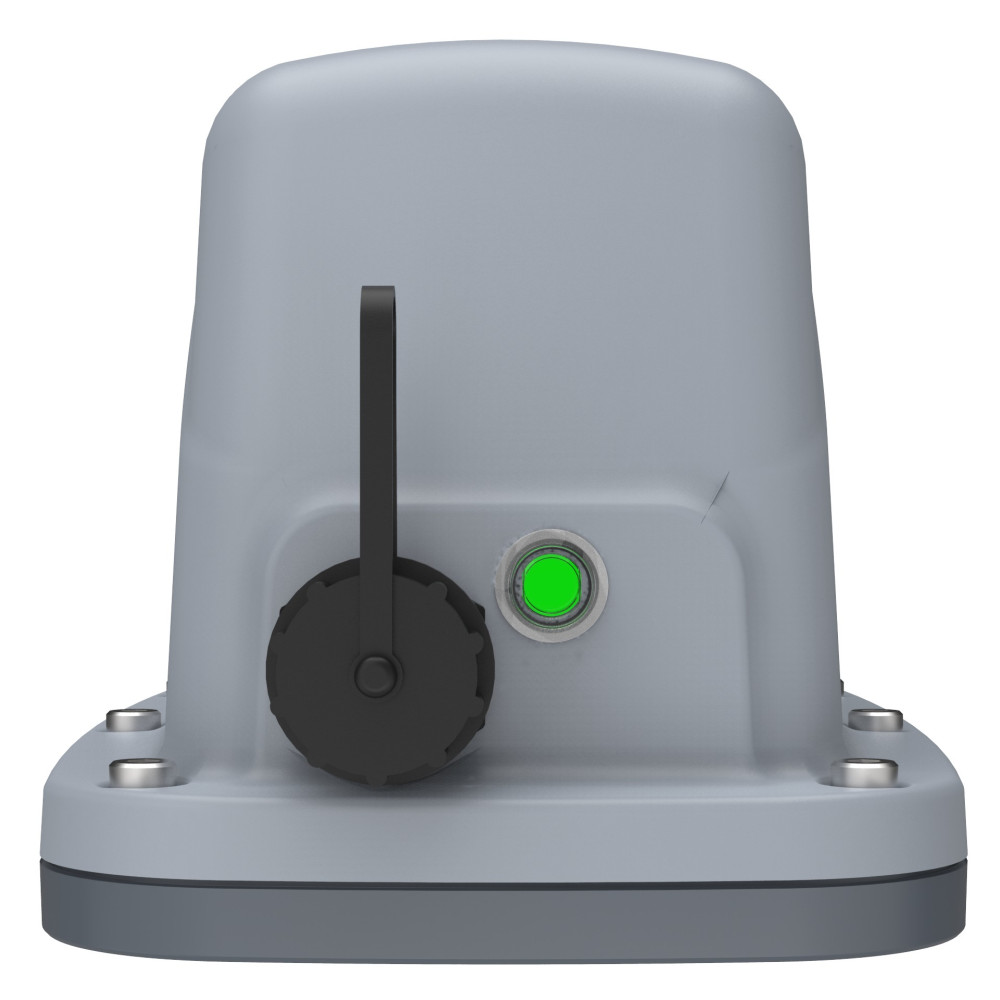

• LED status window for easy on-site diagnostics
• Rugged IP69K/IK08 rated housing for harsh industrial environments

In the Box

1. A-EPNT-0007-V1-01 antenna
2. Surface and Magnet Mount Kit
3. Router Mount kit
