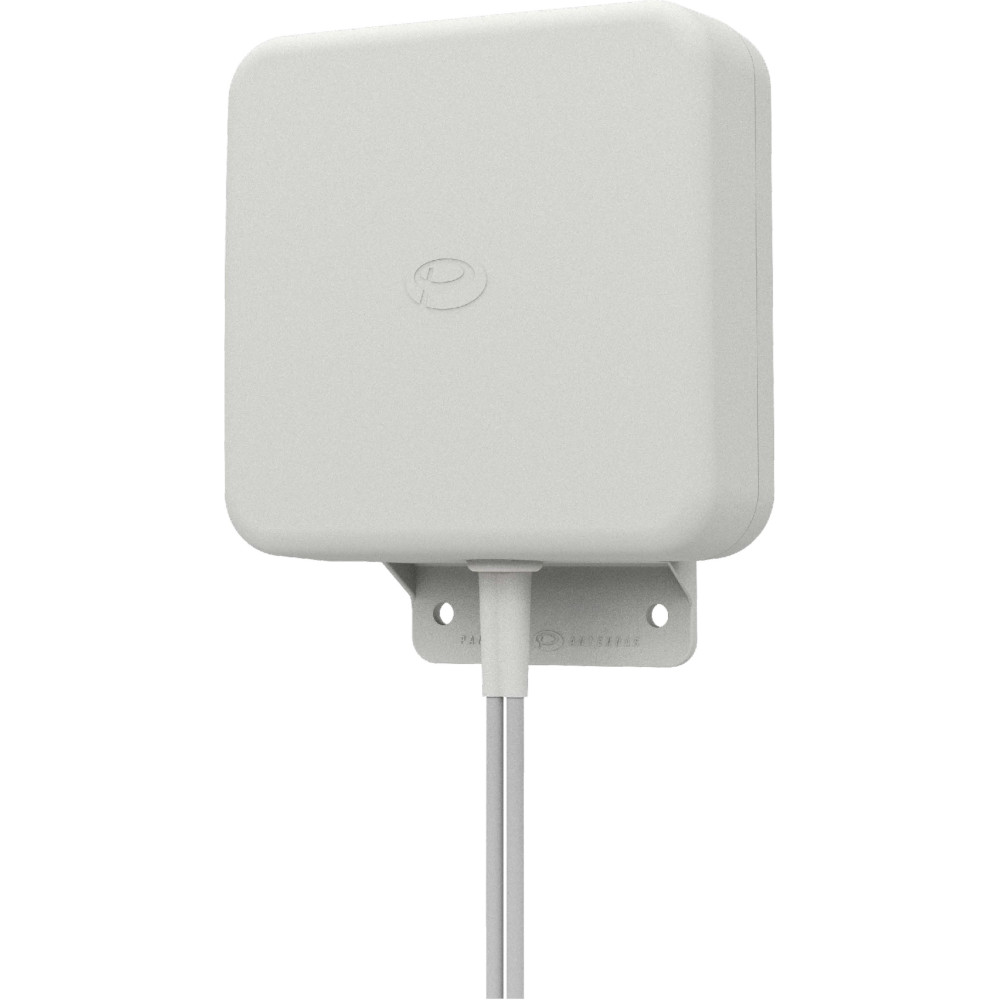

Panorama WGMM-6-60 3-in-1 MIMO 4G/5G LTE Omnidirectional Antenna with GPS

Panorama WGMM-6-60 3-in-1 Compact MIMO 4G/5G Cellular Antenna, 617-6000 MHz, 6.8 dBi

The WGMM-6-60 antenna provides a future proof solution for 4G and 5G connectivity. Incorporating two separately fed, ultra wideband elements in a single housing, it provides a robust 2x2 MIMO antenna system for the networks of today and tomorrow. It also features L1 GPS/GNSS support.

The rugged, weatherproof housing is designed for wall or mast mounting and hardware is provided. A desk stand is also included to enable the antenna to be easily used out of the box and installed internally.

The antenna is supplied with integrated 5m length ultra-low loss, double shielded, solid core CS32 coaxial cables which are halogen free, low smoke, flame retardant and meets the EU CPR with a Dca s2 d1 a1 classification, terminated with SMA plugs. The WGMM-6-60 is a cost effective value added product for network operators and service providers ensuring a stable network connection with improved data rates for subscribers, improving satisfaction and retention.

Key Features

• 2x2 MIMO for improved data rates & stable connectivity
• Wide frequency coverage: 617–960 / 1427–6000 MHz
• L1 GPS/GNSS support
• Integrated low loss 5m CS32 coaxial cables
• Designed for external or internal deployment
• Mast, wall, or desk mount
• IP65 rated

Configurations

WGMM-6-60-05NJ, 3-in-1 MIMO 5G cellular and GPS antenna with 0.5-meter cables and N-Type (f) connectors
WGMM-6-60-5SP, same as above with 5-meter cables and SMA (m) connectors
