Manufacturer: Panorama Antennas

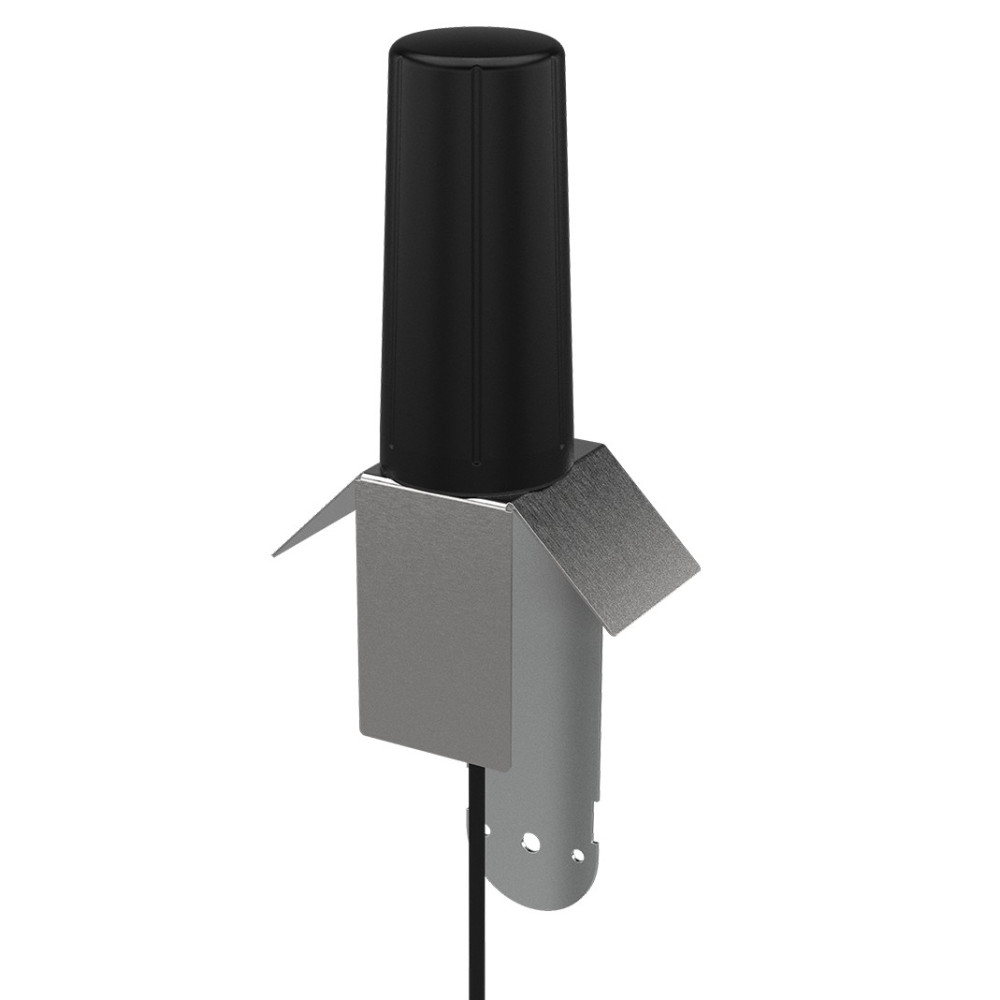

The B4BE-6-60 antenna is a cost effective omnidirectional broadband antenna range for 4G/5G devices operating at UHF and higher frequencies . It covers 410-520/617-960/1427-6000 MHz and is suitable for external or internal installation.
It can also be used as a UHF antenna or dual-band UHF / 7/800 MHz for PMR applications. The mounting bracket enables simple wall/panel mounting using the supplied screws & wall plugs or mast mounting using a pipe clip or cable ties (not supplied).
The omnidirectional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.
| Technology | |
| Category | Antenna |
| Wireless | |
| Single / SISO Antennas | Cellular | UHF |
| Pattern | Omnidirectional |
| Cellular Frequencies | 617 - 960 MHz, 1427 - 6000 MHz |
| VSWR | <2.5:1 |
| Gain | 9.6 dBi |
| Polarization | Vertical |
| Impedance | 50 Ohms |
| Power | 60 W |
| Mechanical | |
| Cabling | 5 meter CS32 |
| Connector Type | SMA male |
| Enclosure | ASA, aluminium, zinc plated steel (ASA UL 746C F2, UL 94-HB) |
| Mounting | Bracket included for wall mount |
| Dimensions | 125 H x 57 D mm |
| Ratings | |
| Operating Temperature | -40 to 85°C |
| Certifications | IP66 |
| Download Name | File Size |
| Panorama B4BE-460-6-60 Datasheet | 3.12MB |
| Panorama B4BE-460-6-60 Installation Instructions | 569.69KB |
