Manufacturer: Panorama Antennas

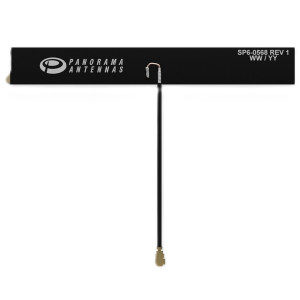

The TFD-868-915 antenna is a ground plane independent flexible PCB (FPCB) dipole antenna with a compact footprint covering 868/915 MHz (863-928 MHz) developed for embedded applications.

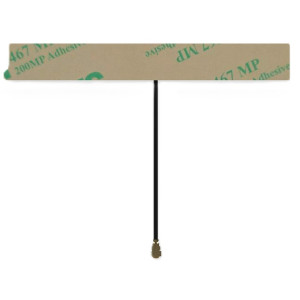

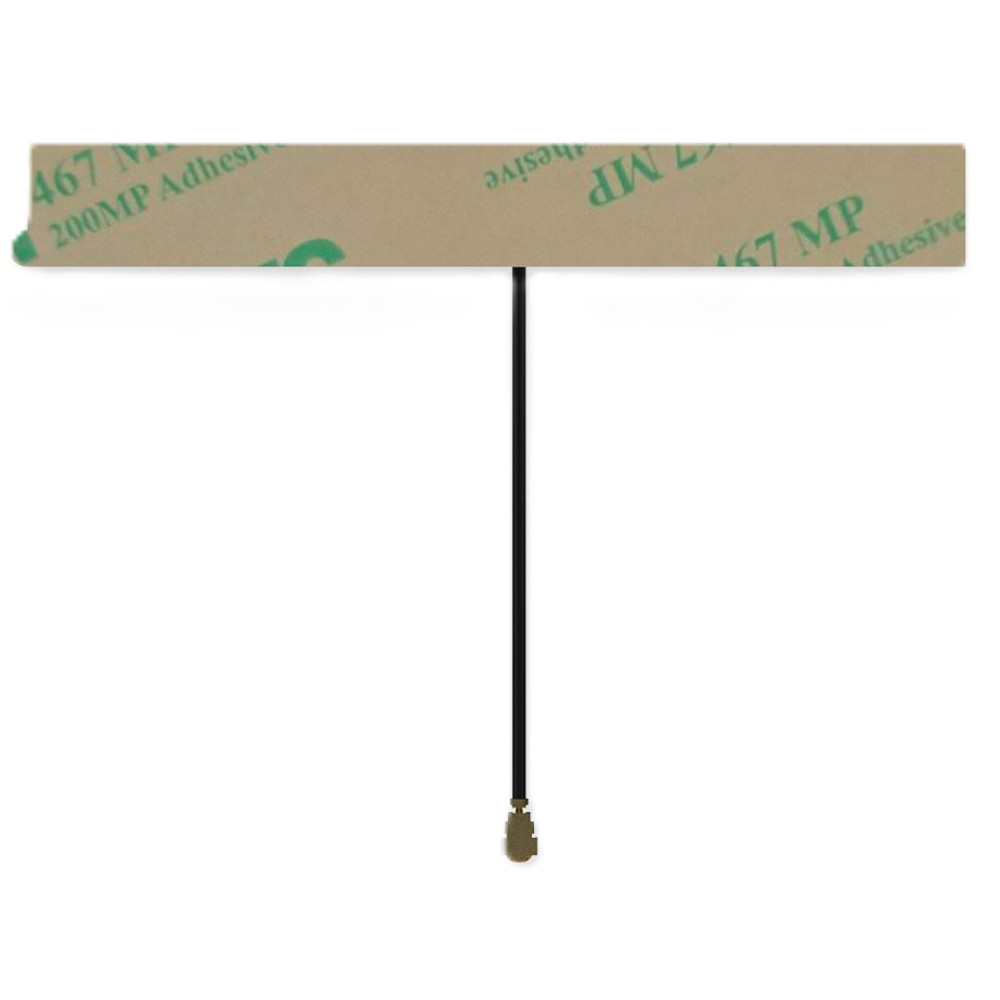

Designed for mounting on non-conductive surfaces the TFD-868-915 range is installed via a high-performance adhesive backing layer and is supplied with integrated C113 cable fitted with a right angle UFL plug.
TFD-868-915-005UFL, Antenna with 50 mm cable length
TFD-868-915-01UFL, Antenna with 100 mm cable length
TFD-868-915-02UFL, Antenna with 200 mm cable length
| Technology | |
| Category | Antenna |
| Wireless | |
| Single / SISO Antennas | ISM |
| Pattern | Omnidirectional |
| Cellular Frequencies | 863 - 928 MHz |
| VSWR | <2.5:1 |
| Power | 5 W maximum input |
| Mechanical | |
| Connector Type | Right angle UFL plug |
| Mounting | Embedded |
| Color | Black |
| Material | Flexible PCB substrate with adhesive backing |
| Dimensions | 75 mm L x 10 mm W x 1.6 mm H |
| Ratings | |
| Operating Temperature | -40° - 176°F (-40° - 80°C) |
| Download Name | File Size |
| Panorama TF[X] Range Installation Instructions | 740.56KB |
| Panorama TFD-868-915 Datasheet | 816.67KB |
