Panorama MFX-ICF4 Compressed VHF Helical Antenna
Model: MFX-ICF4
Availability: 4 to 6 Weeks

Choose Options

* Frequency Band:

Qty: Add to Cart
This product has a minimum quantity of 100

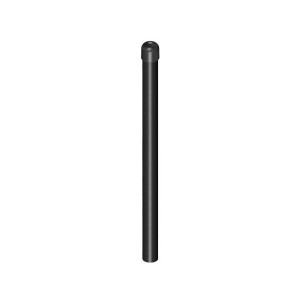

Panorama MFX-ICF4 VHF Helical Antenna for Portable Radios, SMA Connector

The MFX-ICF4 is a high-performance compressed VHF helical antenna offering excellent bandwidth and compatibility with numerous radios. A helical spring, manufactured by Panorama, is built from quality copper-clad steel. It’s inserted into a rugged injection-molded jacket of advanced TPU thermoplastic material, making it able to stand up to weather and daily abuse. The MFX-ICF4 is not only durable, but it is cost-effective as well. Choose from four VHF ranges. Contact Westward Sales for modified and custom-tuned portable radio antennas.

The MFX-ICF4 fits the Icom F3/4 SR, F3/4 GT and GS, F31/41/44 GT and GS, F12/22, and ICF25 radios.


MFX-ICF4-H4, 141 to 151 MHz frequency range
MFX-ICF4-H5, 149 to 159 MHz frequency range
MFX-ICF4-H6, 156 to 172 MHz frequency range
MFX-ICF4-H7, 162 to 174 MHz frequency range

Single / SISO AntennasVHF
VHF Frequency BandsH4 (141 - 151 MHz), H5 (149 - 159 MHz), H6 (152 - 162 MHz), H7 (162 - 174 MHz)
Gain-3 dBi peak gain
Power10 W maximum input
Connector TypeSMA male
Dimensions12.4 mm diameter
Operating Temperature-40 to 80°C
