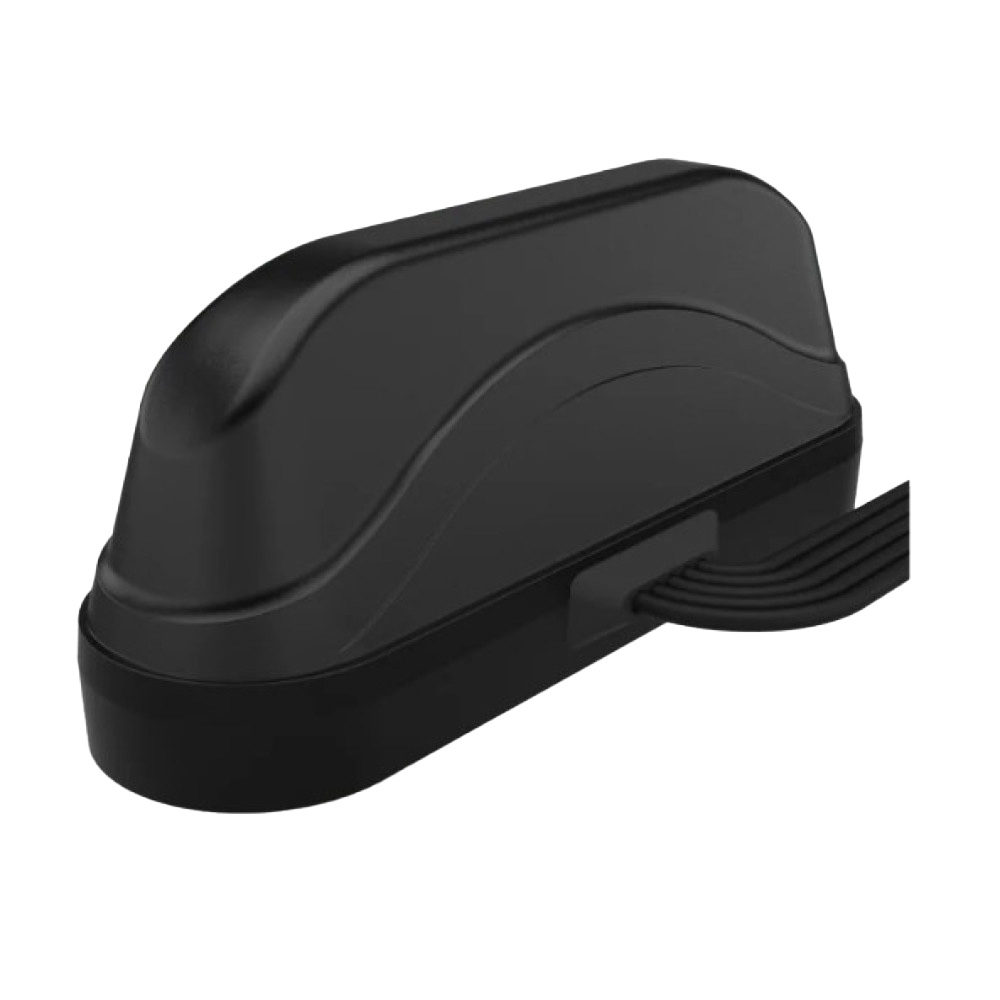

Panorama LGAMM-7-27-24-58 5-in-1 MIMO LTE, WiFi, GPS Antenna, Magnetic Base

Panorama LGAMM-7-27-24-58 Antenna with 2x2 MIMO and WiFi, GPS, and 10-Foot Cables

A multi-antenna combines several isolated antennas into a single, compact radome. When you need cellular, WiFi, and GPS with a magnetic mountable base, consider the 5-in-1 LGAMM-7-27-24-58 from Panorama. The 4G/5G LTE MIMO antennas operate within the 698 to 3800 MHz frequency range, and the WiFi MIMO antennas support both 2.4 GHz and 5 GHz bands. The 4-in-1 LGAMM-7-27-S24-58 model is available when you only need one WiFi connection.

The LGAMM-7-27-24-58 is ideal for temporary installations where a magnetic antenna may be installed or removed as needed. The aerodynamic radome withstands weather, vibration, and severe temperatures. The magnetic base fastens securely to the top surface of a vehicle, cabinet, or metal surface and 10-foot cables attach to the side. You can count on the convenient, affordable LGAMM-7-27-24-58 antenna to meet your demanding environments and last a lifetime.

Key Features

• Omnidirectional multi-antenna with 4G cellular, WiFi, and GPS
• Magnetic mounting base
• 2x2 MIMO LTE, 698-960 MHz, 1710-2170 MHz, and 2500-3800 MHz frequencies
• GPS L1 1575 with 26 dB LNA gain
• 2x2 MIMO WiFi supports 2.4 and 5.0 GHz frequencies
• 5 dBi peak gain
• 25 watts input power
• Ground plane independent
• 3-meter RG174 cables with SMA male connectors
• Rugged UV stable radome in black color
• Operating temperature from -30 to 70°
