Manufacturer: CyberPower

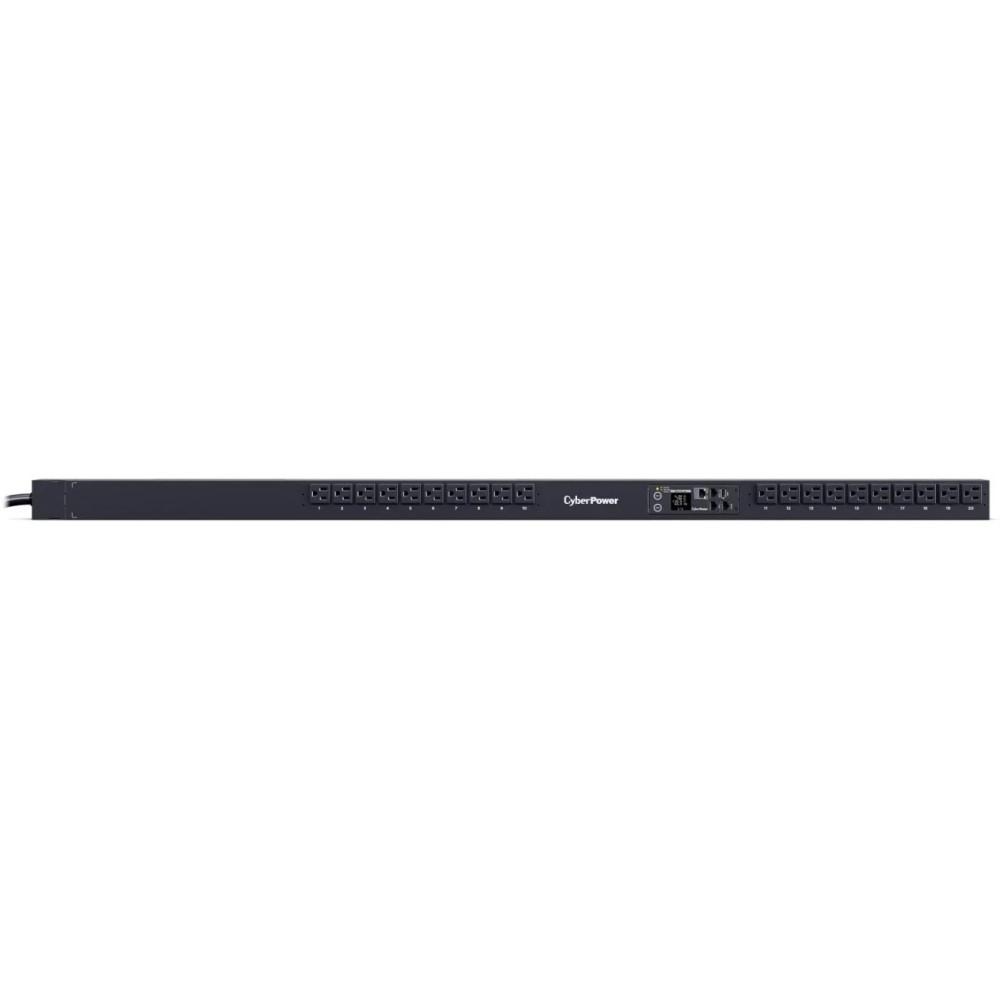

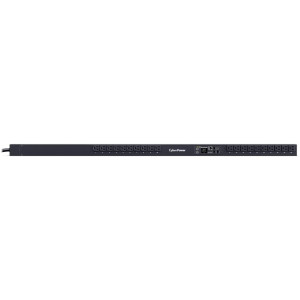

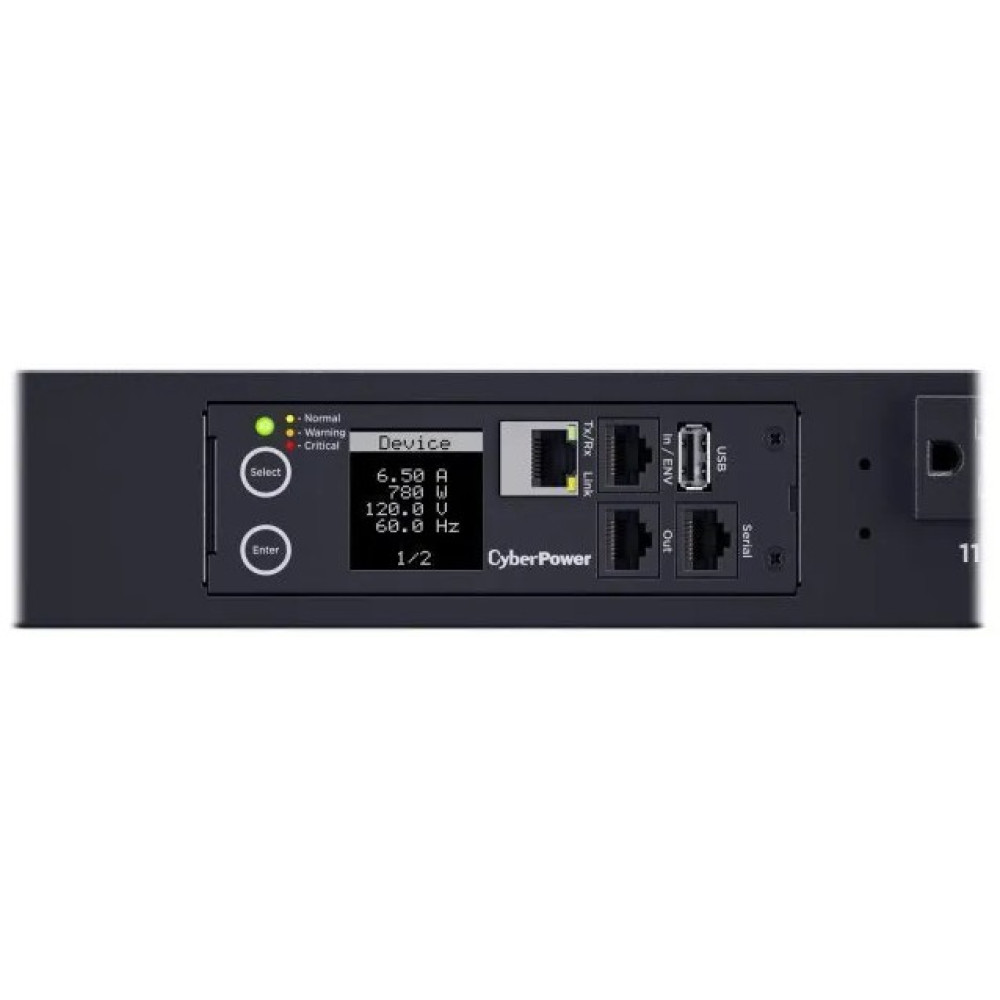

The CyberPower PDU31116, a 20-outlet, 0U rackmount monitored power distribution unit (PDU), provides 120V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally by using the LCD. Features include upgradeable firmware, SNMP network interface, durable metal housing, and horizontal/vertical mounting. It has a switch-free design, network-grade plugs and outlets, a power cord, and a cord retention tray.
The PDU31116 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.
| Power | |
| Output Voltage | 100 - 120 VAC |
| Input Voltage | 100 - 120 VAC |
| Mechanical | |
| Connector Type | RJ45, Serial hardware connection ports |

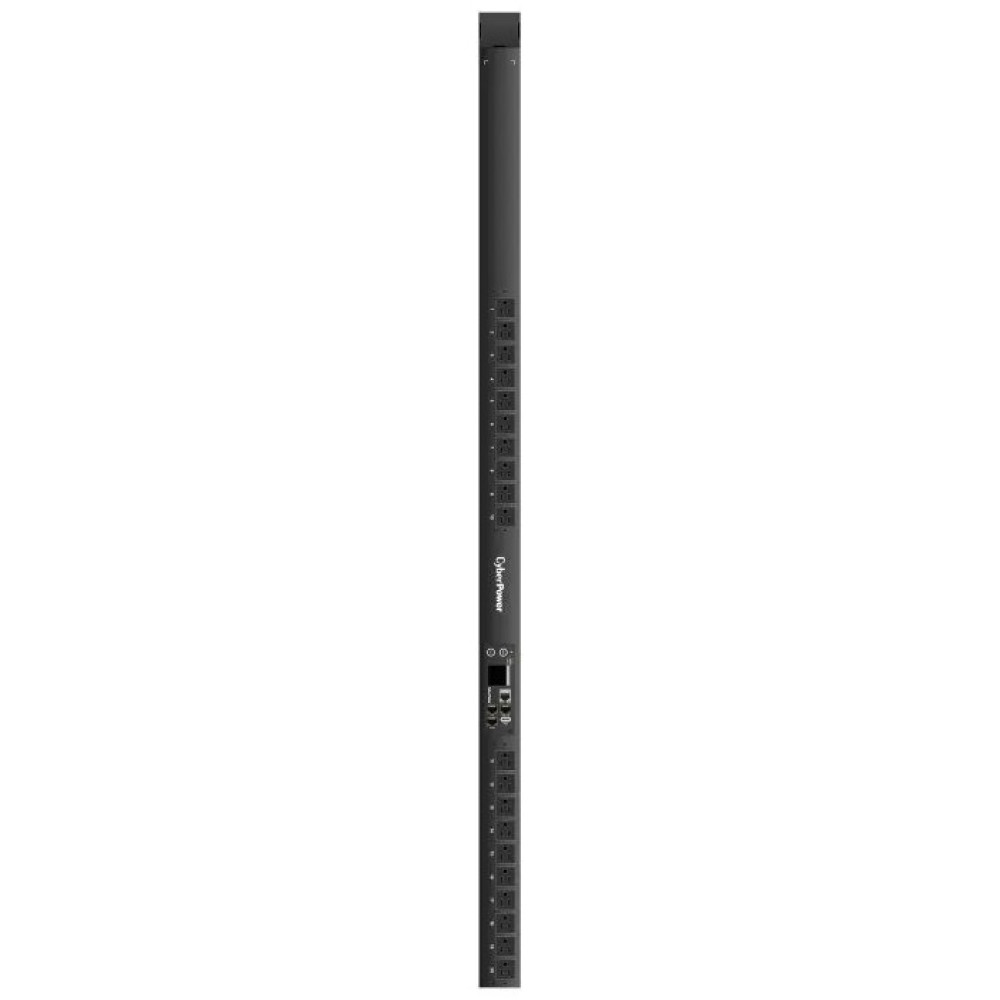

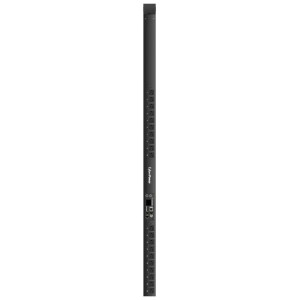

| Mounting | 0U Rack mountable, wallmount (horizontal or vertical) |
| LED Indicators | Load, Tx/Rx, LINK, Outlets |
| Color | Black |
| Material | Metal |
| Weight | 5.22 kg (11.5 lbs.) |
| Dimensions | 48 x 1349 x 56 mm (1.9 x 53.1 x 2.2 in.) |
| Ratings | |
| Operating Temperature | 32 - 140 °F (0 - 60 °C) |
| Storage Temperature | 5 - 149 °F (-15 - 65 °C) |
| Humidity | 0 - 95% non-condensing |
| Certifications | UL 62368-1, FCC Class A |
| Warranty | 3 Year |
| Download Name | File Size |
| CyberPower PDU31116 Datasheet | 399.2KB |
| CyberPower PDU31/34/41/44/71/74/81/84xxx User Manual | 6.12MB |
