Black Box LMC211A-KIT FlexPoint Media Converter Kit, 10BASE2 Coax to 10BASE-FL

New Black Box LMC211A-KIT Modular Media Converter, 10BASE2 Coax to 10BASE-FL, 850nm
Model: LMC211A-KIT
Availability: Contact Westward Sales
Standard Shipping & Handling
Qty: Add to Cart

Black Box LMC211A-KIT Modular Media Converter Kit, 850nm, Multimode, ST Connectors

FlexPoint Media Converters make it easy to expand your networks as your company grows. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.

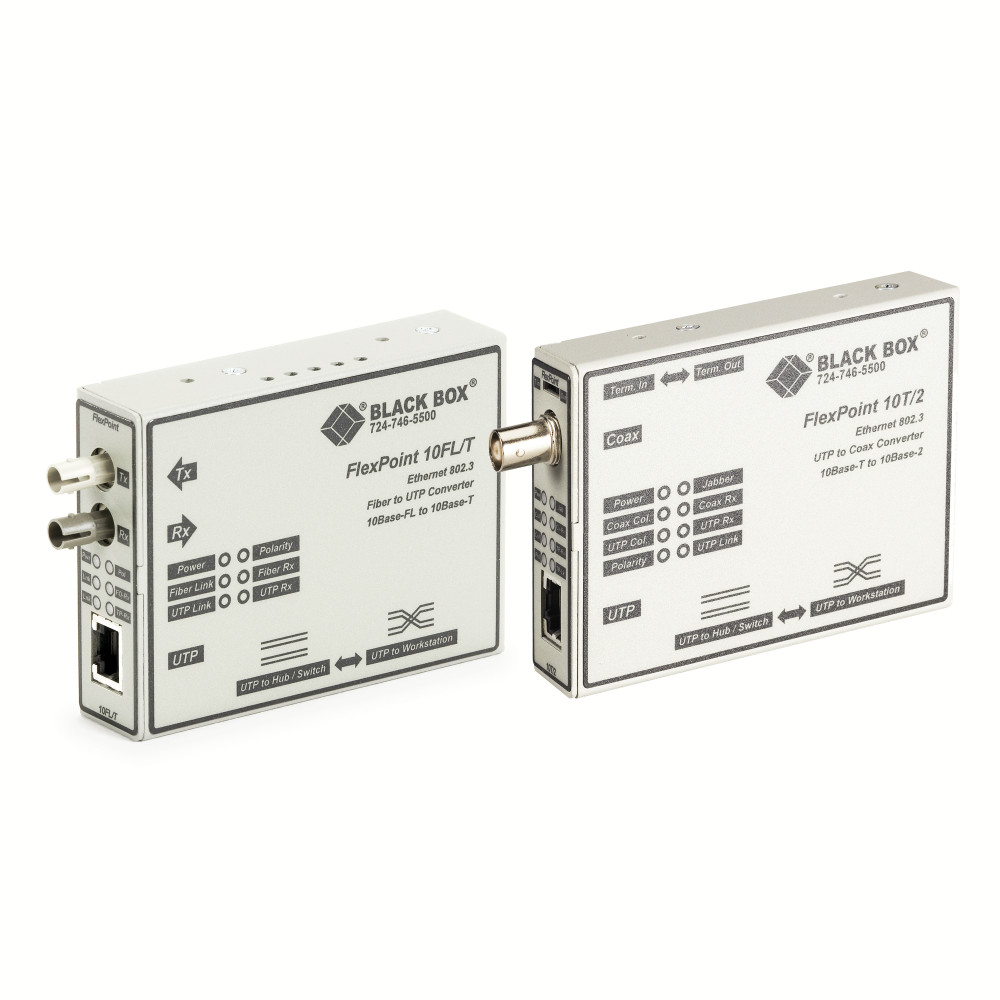

The LMC211A-KIT 10BASE-FL to 10BASE2 media converter kit connects a ThinNet LAN to Multimode fiber to form one network. The kit consists of a LMC210A, a short RJ-45 to RJ-45 cable, and a LMC212A-MM-R3. The LMC210A converts 10BASE2 BNC to 10BASE-T and will be connected through a short RJ-45 to RJ-45 cable to the LMC212A-MM-R3 which converts 10BASE-T to 10BASE-FL. The fiber connection has 850 nm Multimode ST connectors rated for a fiber length of 1.2 miles (2 km). On the coax side, the converters have BNC connectors and support 50-ohm cable at distances of up to 607 feet (185 m). You can connect up to 30 workstations to this segment per the 802.3 IEEE standard. A switch-selectable terminator is built in.

This legacy media converter technology is typically used by governments and banks.

Key Features

  • Kit includes two media converters, a 10BASE-T cable, and a power supply
  • Connects 10BASE-FL devices to ThinNet (coax) devices
  • Supports ThinNet cable to 185 meters (606.9 ft.) and up to 30 stations
  • UTP crossover switch plus automatic polarity detection
  • Switch-selectable ThinNet line termination
  • LEDs display status
  • Brings fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • 1 Year Double Diamond™ Warranty (Standard) included. Extended warranty available. Contact Westward Sales.

In the Box

  1. (1) Ethernet (10-Mbps) Media Converter - 10-Mbps Copper to 10-Mbps ThinNet (LMC210A) with Power Supply
  2. (1) Ethernet (10-Mbps) Media Converter - 10-Mbps Copper to 10-Mbps Multimode Fiber, (LMC212A-MM-R3) with Power Supply
  3. (1) 1.5-ft. (0.45-m) CAT5e Cable
Technology
CategoryMedia Converter
Media Converter TypeFiber to Ethernet
Total Ports2
Power
Rated Power110-VAC, 60-Hz, external power supply (230-VAC, 50-Hz version on request) or from Power Chassis
