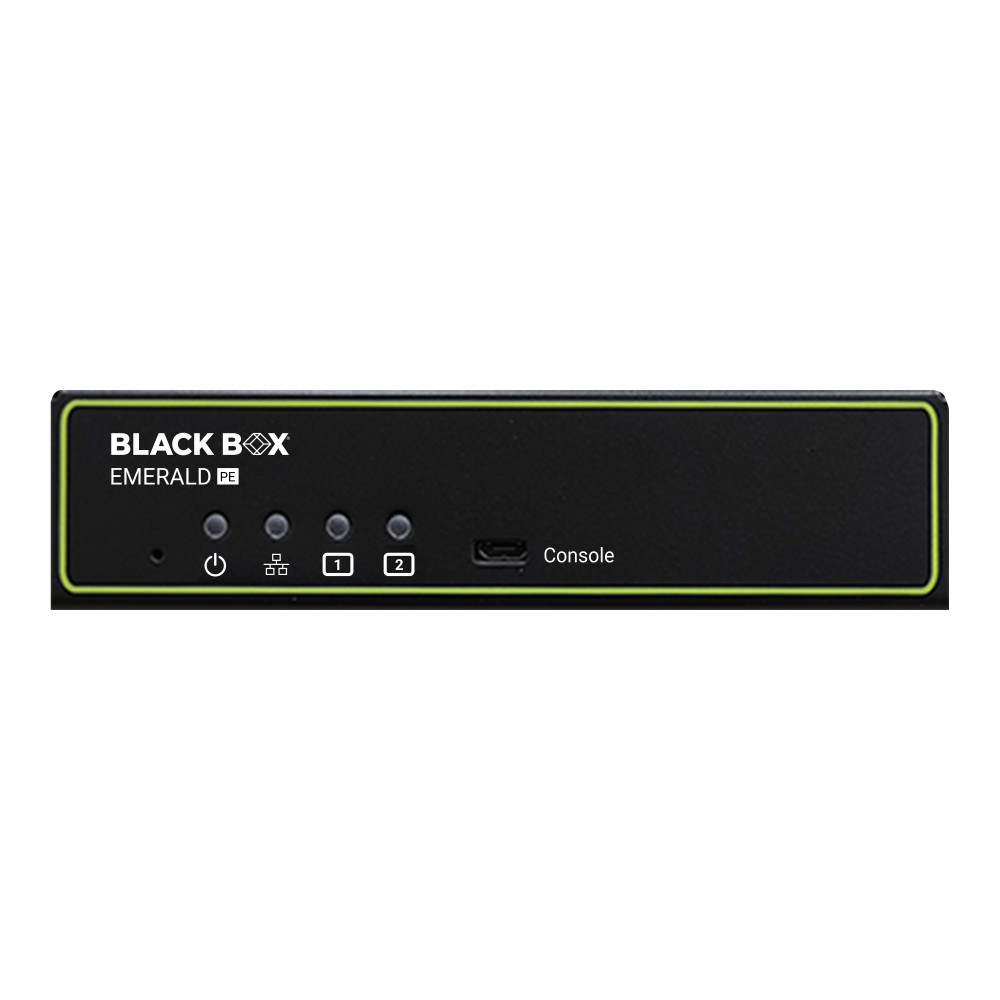

The EMD2002PE-DP-T is part of the Emerald Unified KVM Family. Emerald High-Performance KVM gives users a seamless desktop experience anywhere on a TCP/IP network with the actual hardware stored in a corporate data center or in the cloud. Deploy PE on standard corporate networks and across WANs, even for media-rich applications, like video and photo editing. Link TX and RX units in a point-to-point KVM extension over CATx up to 100 meters or even farther using an IP or WAN connection. Or connect multiple TX and RX units to an Emerald or IP matrix switch. Start small with a point-to-point extension, or scale Emerald infinitely by adding endpoints, with no extra chassis or cards. PE supports up to 32 endpoints. Manage larger systems centrally with Boxilla®.
Scale access infinitely and gradually over an existing network infrastructure. Emerald PE supports pixel-perfect HD DisplayPort video with 1920 x 1080 resolutions, ideal for medical imaging and control rooms. Emerald PE supports VM® and Microsoft®, HyperV®, using RDP 8.1 and RemoteFX.
Manage bandwidth and user access, deploy new endpoints, update firmware, and more via the RX's OSD or Boxilla, a hardware-based management appliance with a user-friendly, browser-based GUI. Redundant network ports offer 24/7 operation if one network fails. Connect the endpoints via two alternative direct links, a direct link, and a network connection, or two independent networks.
| Technology | |
| Encoding | Encryption via Secure Sockets Layer (SSL) over TCP/IP, 128-bit between TX and RX, user set between RX and Virtual Machine |
| Transmission Distance | 328 feet (100 m), use a network switch to get farther distances |
| Operating System Support | Microsoft Windows, Linux, Mac OS |
| Electrical | |
| Voltage | 100–240 VAC, 50/60 Hz |
| Interfaces | |
| Video Ports | DisplayPort with 16 foot (5 m) computer cable |
| Power | |
| Power Consumption | 36 Watts maximum (Unit consumes 9.5 Watts) |
| Mechanical | |
| Dimensions | |
| Weight | 0.8 lb. (363 g) |
| Ratings | |
| Operating Temperature | 32 to 104° F (0 to 40° C) |
| Storage Temperature | -4 to 140° F (-20 to 60° C) |
| Humidity | 5 to 95%, non-condensing |
| Download Name | File Size |
| Black Box Emerald KVM-Over-IP Technology User Manual | 1.46MB |
| Black Box Emerald Unified KVM Family Datasheet | 3.95MB |
