Manufacturer: Axiomtek

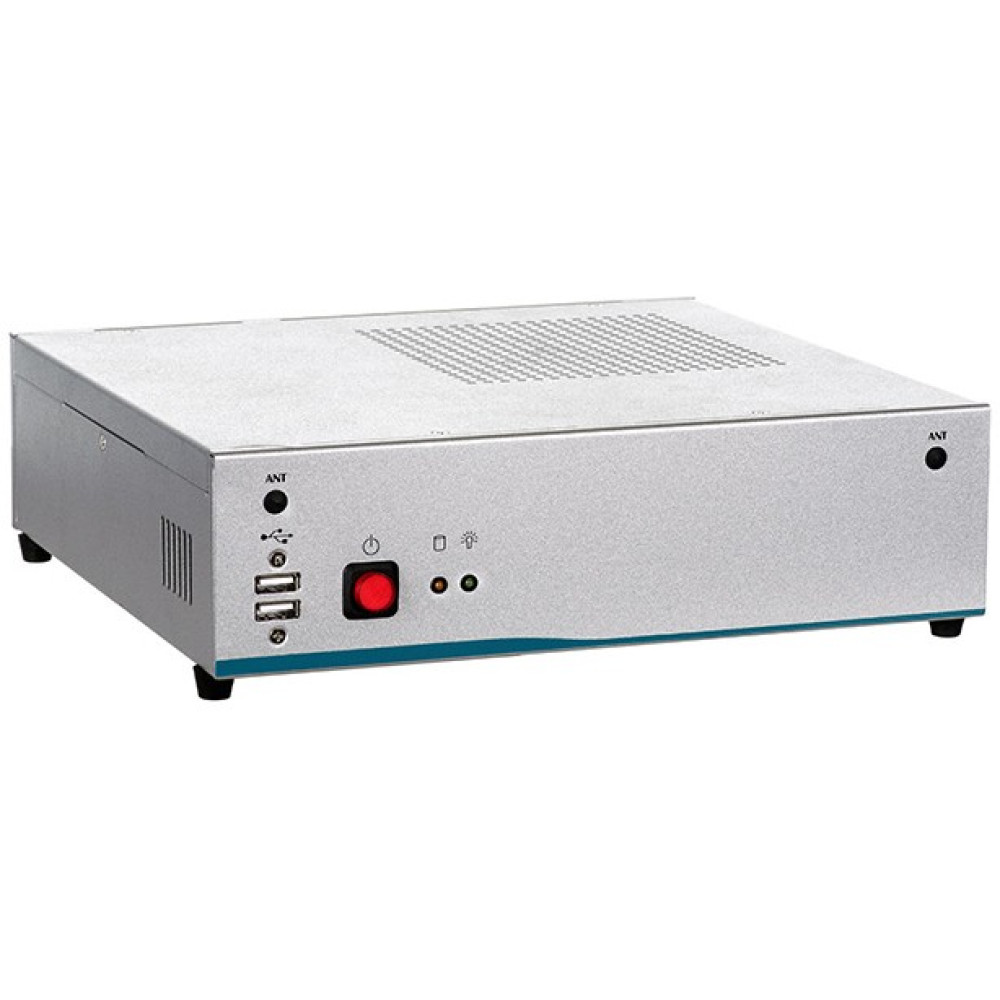

This ECM100 chassis is an embedded chassis specifically designed for Mini-ITX single-board computers (SBCs). The slim and customizable chassis is often used in industrial applications where space and reliability are important. The chassis itself does not contain a processor but houses the Mini-ITX motherboard and other components.
Our industrial computing and IoT networking devices improve every facet of your operation. Saving you time and money is our business. Contact Westward Sales to learn more.
| Computing | |
| System Type | Chassis |
| Form Factor | Mini-ITX |
| Drive Storage | Bay: 2 x 2.5" HDD (9.5 mm height) |
| Interfaces | |

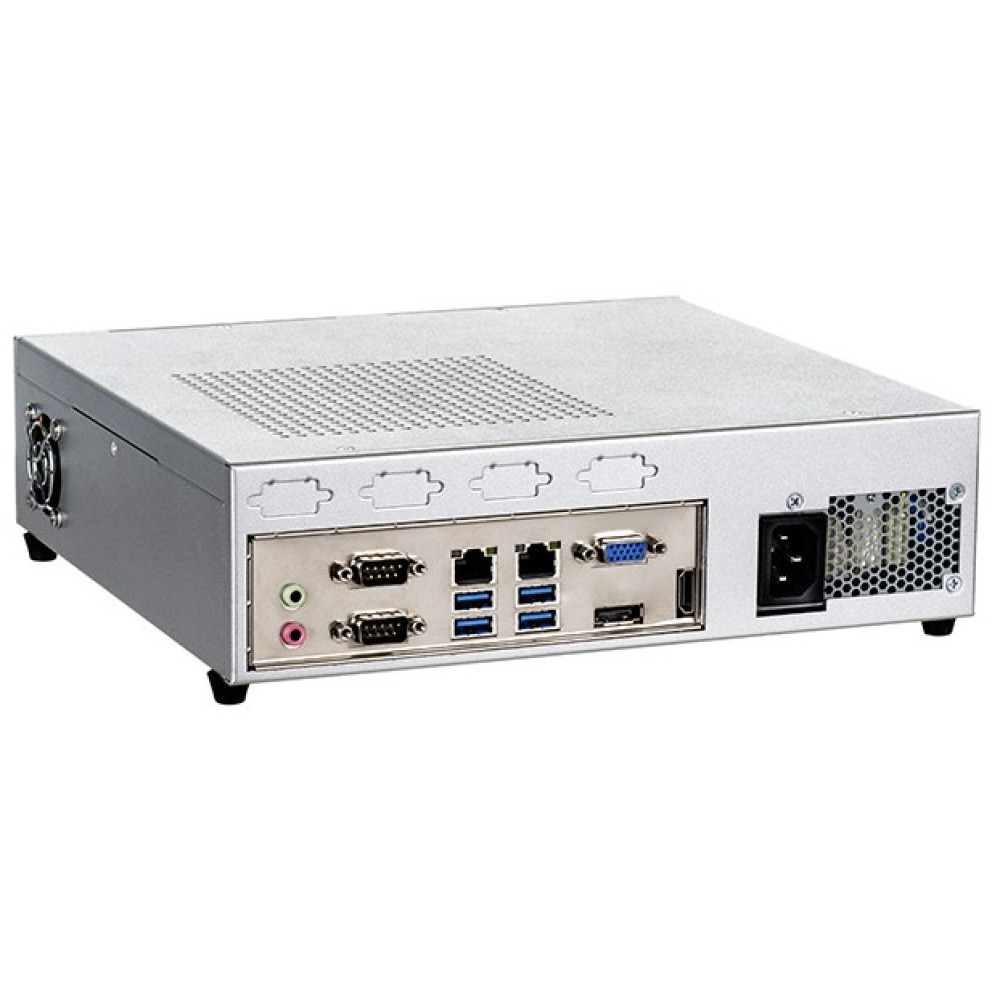

| I/O Ports | ATX power button, 2x USB 2.0 antenna, 2x SMA type connector opening for Antenna, Standard Mini-ITX I/O bracket space, 4 x Optional DB connector (COM/DIO/CAN) |
| Power | |
| Input Voltage | AC 115 to 230V |
| Mechanical | |
| LED Indicators | Power-on, HDD Active |
| Material | Heavy-duty cold-rolled steel |
| Dimensions | 265 x 250 x 71.5 mm (10.43" x 9.84" x 2.81") |
| Ratings | |
| Certifications | EMI pre-scan meets EN55022 Class A |
| Download Name | File Size |
| Axiomtek ECM100 Datasheet | 293.66KB |
