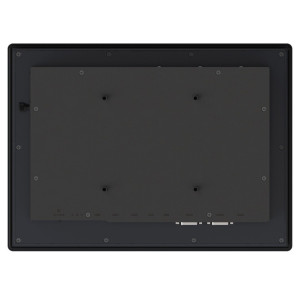

Axiomtek GOT112A-TWL-WCD 12.1" Touch Panel PC with Intel N150, IP65 Rated

Axiomtek GOT112A Heavy-Duty, Fanless 12.1" IP65 Rated Touch Panel PC

Combining a sleek aesthetic with industrial-grade resilience, the GOT112A-TWL-WCD is a 12.1" WXGA TFT fanless touch panel PC engineered for high-performance automation. At its core is the Intel N150 (Twin Lake) processor, delivering energy-efficient processing power within an ultra-slim, lightweight chassis. Built to thrive in demanding settings, this system operates reliably across an extended temperature range from -10°C to +50°C and features an IP65-rated front bezel and MIL-STD-810H compliance for superior protection against dust, water, and mechanical stress.

The GOT112A-TWL-WCD offers a highly adaptable architecture designed for modern connectivity and storage needs. Its versatile storage suite includes one M.2 Key M (PCIe Gen 3 x2 NVMe) slot, one mSATA slot, and a removable 2.5" SATA SSD bay for rapid data access and maintenance. For seamless integration into any network, it supports cutting-edge wireless standards including Wi-Fi 6E/7 and 4G LTE. This is complemented by an expansive I/O array featuring four USB ports, a dedicated Type-C port, dual Ethernet, and two COM ports. With its fanless, space-saving design, the GOT112A-TWL-WCD is the ideal solution for mission-critical applications in factory automation, precision machine control, and interactive information display systems.

Key Features

• 12.1" WXGA TFT LCD, 400 nits with LED backlight, PCAP
• Fanless design with Intel N-series N150 (Twin Lake), onboard 8GB LPDDR5 memory

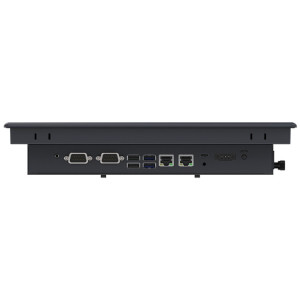

• 2 LAN, 4 USB, 1 USB Type C, 2 COM, and 1 Line-out
• Front bezel IP65 & rear cover IP30
• AT/ATX mode selectable via hardware switch
• Supports M.2 2242/2280 M-key (PCIe Gen 3 x2 NVMe), mSATA, and Wi-Fi (6E/7) or 4G LTE
• Supports removable 2.5" SATA SSD storage
• Supports Flexible I/O Window
• Operating temperature: -10°C to +50°C
• Supports panel mount, wall mount, VESA, and desktop stand

Accessories (call for pricing)

1. Panel mount kit
2. Wall mount kit
3. Stand kit
4. Wi-Fi + Bluetooth kit
5. AX92902 full-size PCI Express Mini module with Gigabit LAN
6. AX92903 full-size PCI Express Mini module with CAN bus
7. AX92906 full-size PCI Express Mini module with 2 COM
8. AX92918 full-size PCI Express Mini module with 2 Gigabit LAN
9. Adapter 60W/24V FSP060-DAAN3

Devices like the GOT112A-TWL-WCD bring computing solutions to industrial, retail, service, and other harsh operational settings where traditional computers would fail. The right embedded computer will improve workflow and productivity. However, a panel computer needs to fit a job's specific requirements to work best. Our experts are ready to apply our knowledge of HMI computers and networking technology to help you match the best devices to your project needs.
