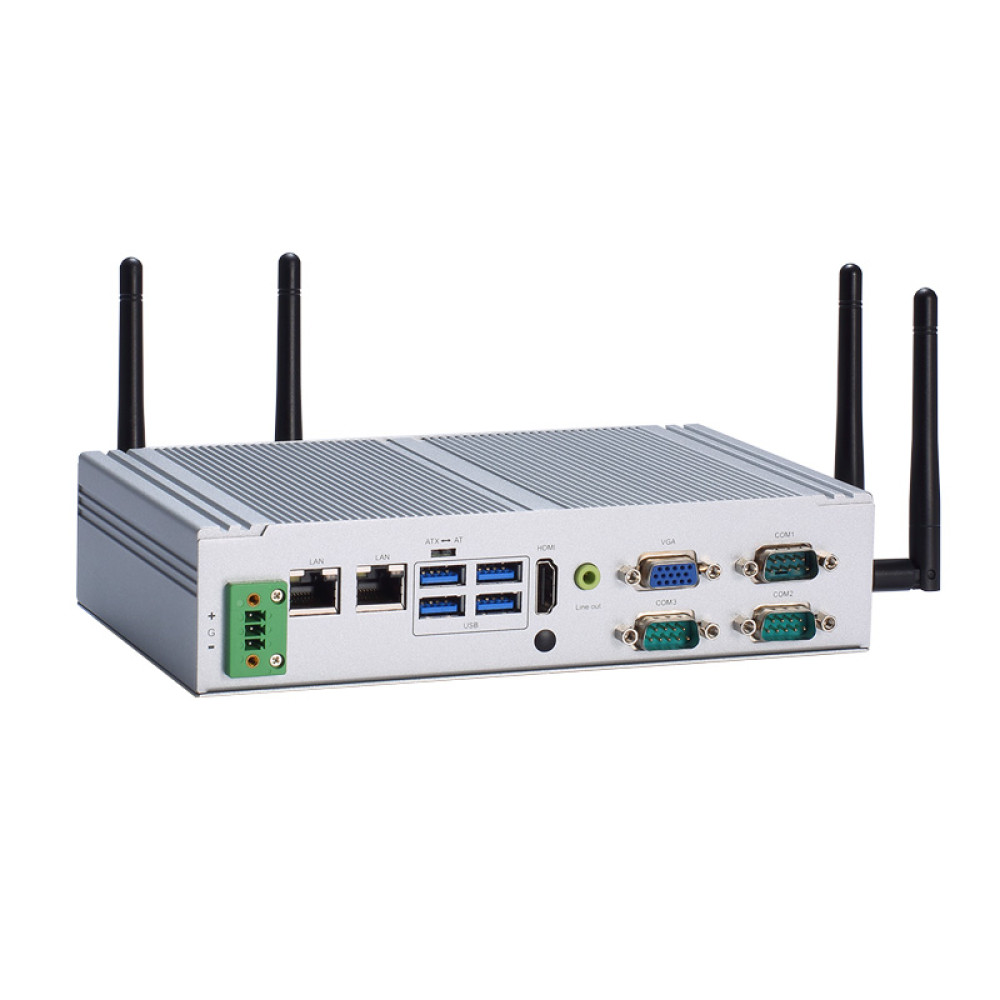

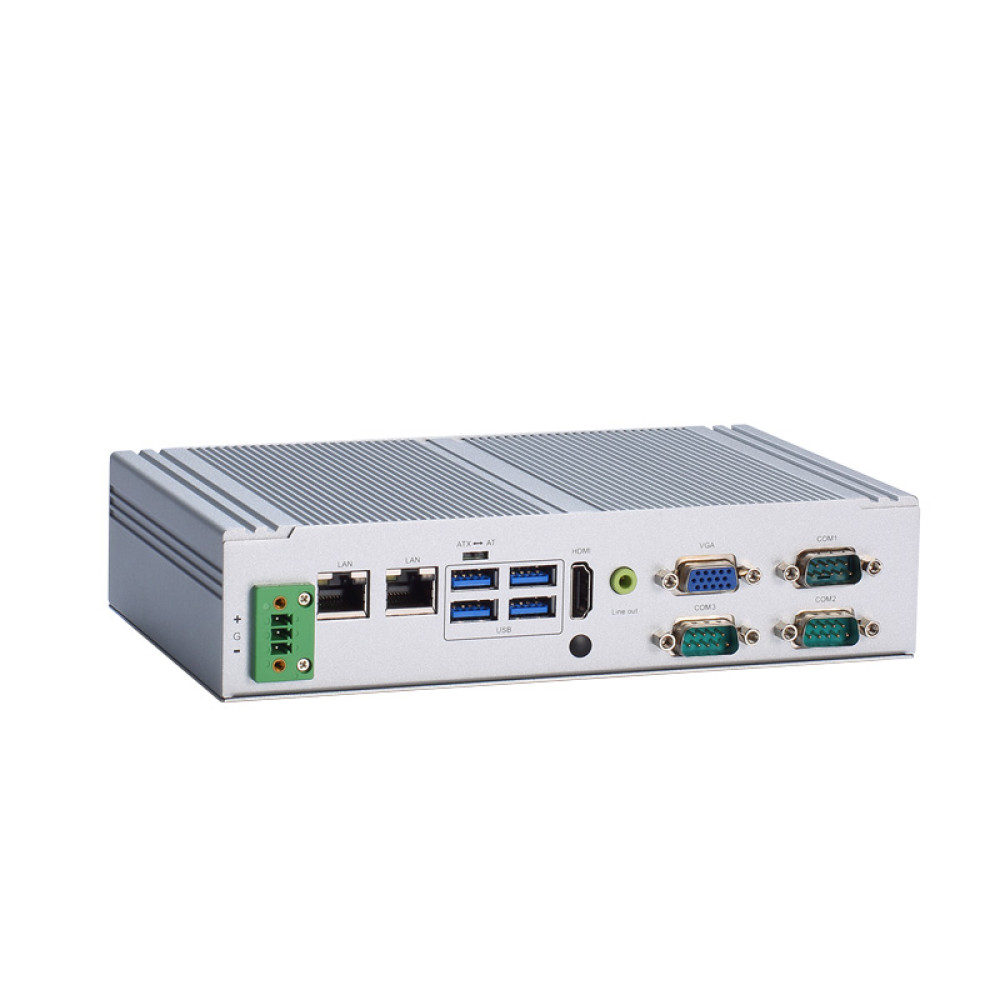

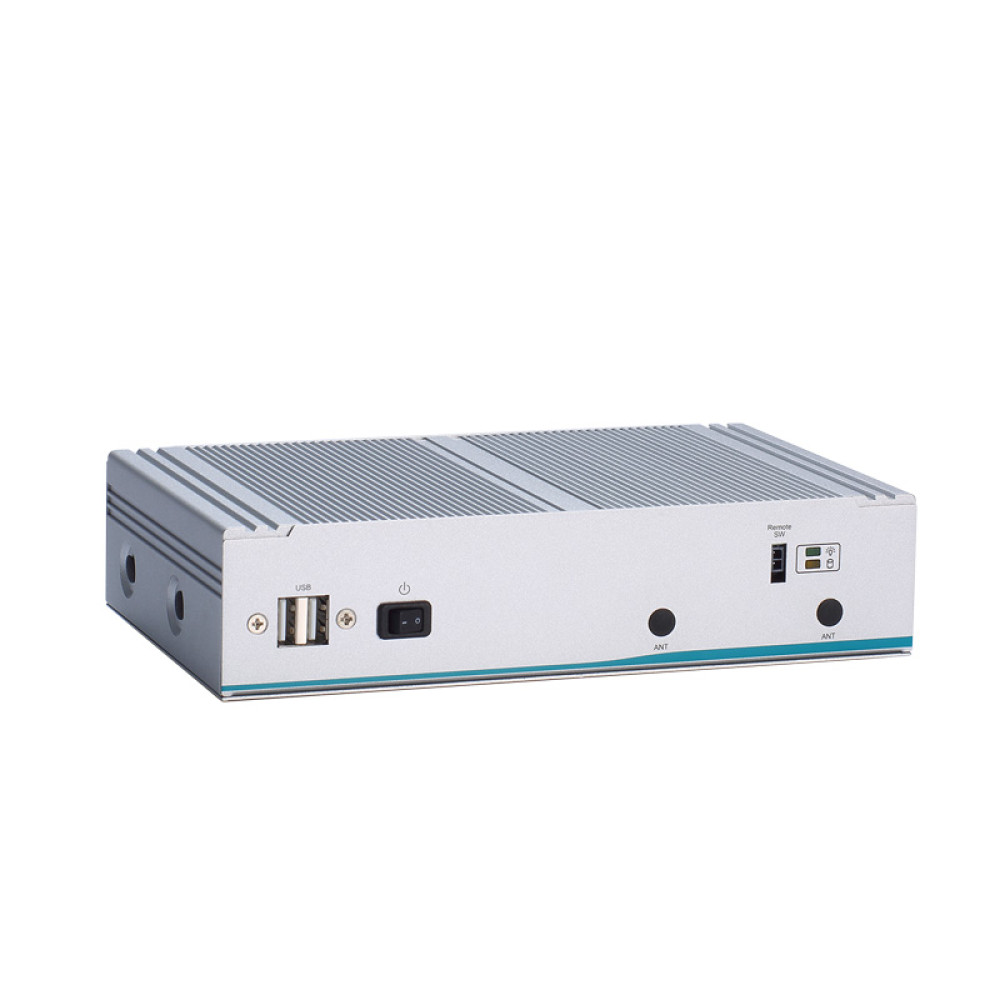

Axiomtek eBOX626A Fanless Embedded System with Intel Celeron J6412 CPU

Axiomtek eBOX626A Industrial Intel Celeron J6412 Computer, HDMI, VGA, 2.5 GbE, USB, Serial, & DC Input

The eBOX626A-FL from Axiomtek is a new slim-type fanless edge computing system that offers optimal data transferring with a 2.5GbE LAN and Wi-Fi 6 module support for automation. The eBOX626A is powered by the Intel Celeron processor J6412 (Elkhart Lake). Designed to operate reliably in industrial environments, the IP40-rated embedded system comes with a wide operating temperature of -20°C to +60°C, 3 Grms vibration resistance, and 9 to 36 VDC power input with phoenix type connector. It also utilizes the Trusted Platform Module (TPM) 2.0 function onboard to ensure data and network security. The eBOX626A is well-suited for data collection, industrial controllers, intelligent robotic control, intelligent gateway systems, machine failure prediction, and more industrial automation applications.

The Intel Elkhart Lake SoC embedded system has great expansions, including one full-size internal PCI Express Mini Card slot and one M.2 Key E slot for Wi-Fi/Wi-Fi 6 connection. The eBOX626A is designed with multiple COM ports, making the system more flexible for applications in industrial controllers.

The reliable eBOX626A comes with one 260-pin DDR4-3200 SO-DIMM slot with a total capacity of 32GB. One 2.5" SATA HDD drive bay and one mSATA are available for extensive storage needs. Dual displays are enabled via two HDMI and VGA ports. The outstanding edge computing system comes with rich I/O interfaces, including two RS-232, one RS-232/422/485, four USB 3.1 Gen2 ports, two USB 2.0, one 2.5GbE LAN port, one GbE LAN port, one HDMI 1.4b lockable port, and one VGA. Other interfaces include one ATX power switch, one ATX/AT quick switch, one remote power switch, and four antenna openings. This powerful computing embedded system supports Windows 11 IoT, Windows 10 IoT, and Linux.

Key Features

• Intel Celeron processor J6412 quad-core onboard (codename: Elkhart Lake)
• -20°C to +60°C operating temperature for harsh environment
• 1 HDMI and 1 VGA for dual-view display
• Trusted Platform Module (TPM) 2.0 onboard
• M.2 Key E for Wi-Fi/Wi-Fi 6 connection
• 9-36 VDC wide range power input with phoenix type connector

Optional Accessories

2.5” SATA HDD, 64 GB or above
2.5” SATA SSD 100 GB or above
DDR4 SO-DIMM, 8 GB - 32 GB
mSATA, 64MB or above
Din rail kit
Wall mount kit
VESA mount kit
Wi-Fi/LTE module

Contact Westward Sales today for customized pricing on the eBOX626A slim-type fanless edge computing system.
