For mission-critical industrial applications that demand robust performance, long-term support, and flexible expansion, ARBOR's Full-size SBCs are the ideal solution. Designed as Slot SBCs, these high-performance boards serve as the reliable core for a wide range of industrial systems. The HiCORE-i89Q1/i89Q2 full-size SBCs adhere to the PICMG 1.3 standard, ensuring compatibility with industrial chassis and backplanes. This modular design allows you to easily integrate into existing systems and scale to meet future demands.
This full-size SBCs guarantee seamless integration with various backplanes, supporting a combination of ISA, PCI, and PCIe buses. Powered by the latest Intel processors, the HiCore-i89Q delivers the stable and powerful performance required for complex industrial and high-performance computing (HPC) tasks. The slot-based design provides exceptional expandability, allowing you to easily add I/O cards and other functional modules to perfectly match your application's needs.
The HiCORE-i89Q is engineered to excel in demanding environments, including industrial automation, medical equipment, gaming machines, and communication systems.

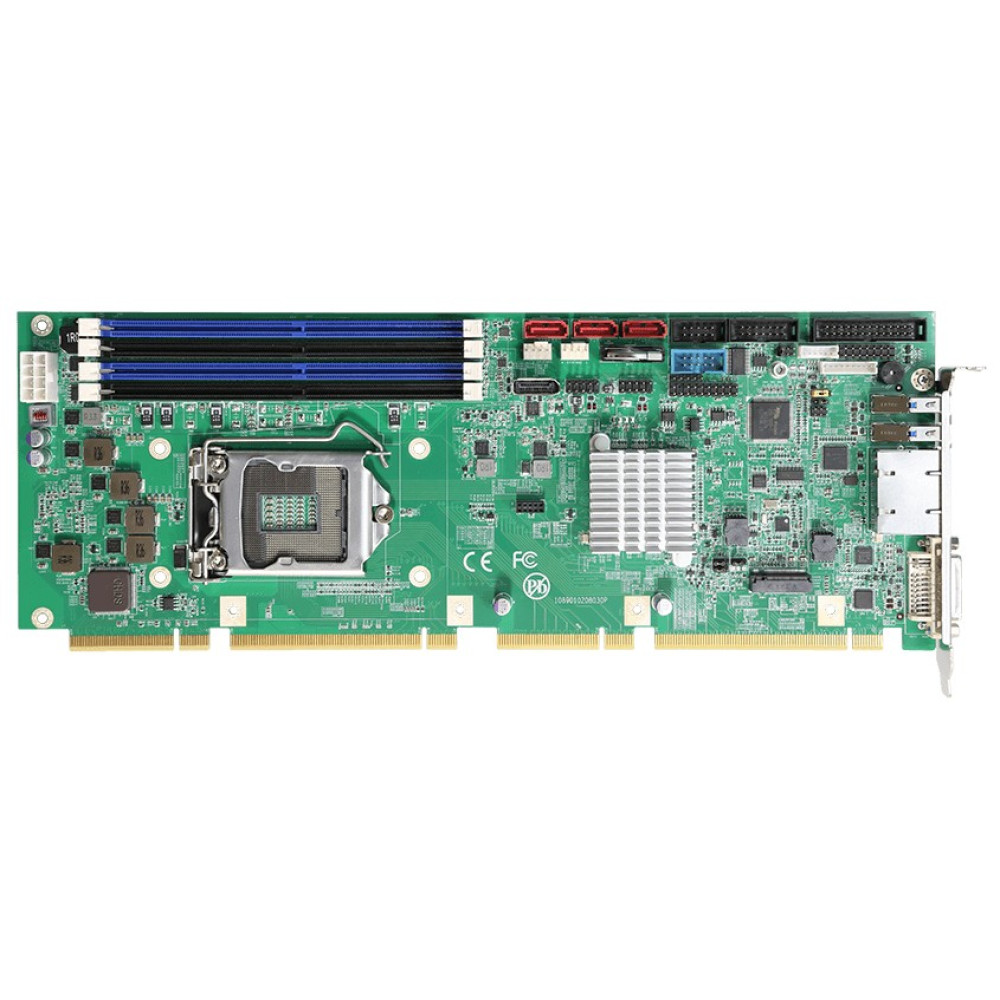

HiCORE-i89Q1-D-x4, PICMG 1.3 Full-size SBC with BIOS for 1 x PCIe x4 w/DVI-I for 6th/7th Generation Intel Core i7/ i5/ i3 processors
HiCORE-i89Q1-D-x1, Same as above with BIOS for 4 x PCIe x1 w/DVI-I

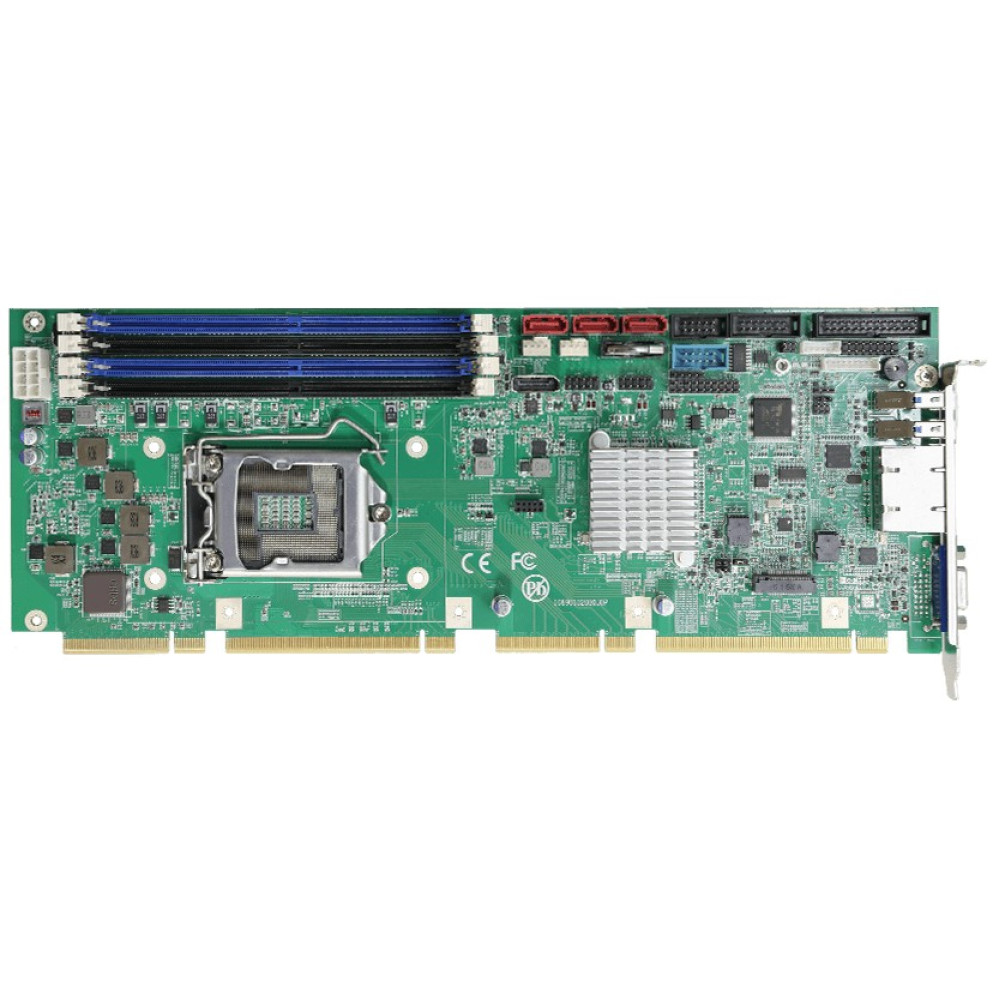

HiCORE-i89Q2-V-x4, Same as above with BIOS for 1 x PCIe x4 w/VGA
HiCORE-i89Q2-V-x1, Same as above with BIOS for 4 x PCIe x1 w/VGA
Customize your HiCORE-i89Q SBC card by calling us today. Our industrial computing and IoT networking devices improve every facet of your operation. Saving you time and money is our business. Contact Westward Sales to learn more.
Technology | |
Category | Industrial Motherboard |
Computing | |
Form Factor | PICMG |
CPU | Intel Core i9/i7/i5/i3 |
CPU Chipset | Intel PCH Q170 |
Maximum System Memory | 64GB |
System Memory Configuration | 4 x 288-pin DDR4 Long-DIMM sockets, supporting 2133/1866MHz SDRAM up to 64GB |
BIOS | AMI UEFI |
Expansion Slots | 1 x PCIe x4 Lanes or 4 x PCIe x1 Lanes, 1 x PCIe x16 lanes Gen. 3, 4 x PCI masters, LPC interface |
Watchdog Timer | 1~255 levels reset |
Video | |
Display Type | 1 x DVI-I port on board (HiCORE-i89Q1) or 1 x VGA port on board (HiCORE-i89Q2), 1 x DisplayPort |
Interfaces | |
USB | 4 x USB 2.0 ports to Golden finger, 4 x USB 2.0 ports w/ pin-header, 2 x USB 3.0/2.0 ports on bracket |
Audio | One 1x9-pin wafer connector for HD Audio daughterboard |
Mechanical | |
Dimensions | 338 x 126 mm (13.3" x 4.96") |
Ratings | |
Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
Humidity | 10 to 95% non-condensing |
