***DISCONTINUED *** This product is discontinued. An updated product is available. See the LNP-0800G (-24 -T).
The LNP-800AGH, from Antaira Technologies, is an unmanaged industrial Ethernet switch with 8 Gigabit (10/100/1000TX) ports featuring Power over Ethernet (PoE+). Compliant to the IEEE802.3at specification, it provides 30 watts of power per port. It’s ideal for connecting and powering IP cameras and other PoE devices. The unique, rugged design allows the LNP-800AGH to operate in harsh conditions and extreme temperatures. It’s suited for surveillance, factory automation, traffic monitoring, heavy industry, and utility applications.
Select between two voltage inputs of 48 – 55 VDC or low-power 12 – 36 VDC. The low power input requires a wider enclosure. See the dimensions below. The unit is available in standard and extended operating temperatures.
LNP-800AGH, Standard operating temperature, -10° to 70°C, redundant 48 - 55 VDC input, 26 x 95 x 144 mm
LNP-800AGH-T, Extended operating temperature, -40° to 75°C, redundant 48 - 55 VDC input, 26 x 95 x 144 mm
LNP-800AGH-24, Standard operating temperature, -10° to 70°C, redundant 12 - 36 VDC input, 41 x 95 x 144 mm
LNP-800AGH-24-T, Extended operating temperature, -40° to 75°C, redundant 12 - 36 VDC input, 41 x 95 x 144 mm
LNP-800AGH-T-CC, Conformal coated. See the LNP-800AGH-T-CC product page.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 8 |
| Ethernet Ports | 8 Gigabit (10/100/1000TX) PoE/PoE+, Auto MDI / MDI-X |
| Processing Type | Store and Forward |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3at |
| Protocol | CSMA/CD |
| Transfer Rate | 14,880pps for Ethernet; 148,800pps for Fast Ethernet; 1,488,000pps for Gigabit Ethernet |
| Jumbo Frame Support | 9.6 kB |
| MAC Table Size | 8 kB |
| Power | |
| PoE Power Output | Maximum 30 watts per PoE port |
| Power Consumption | 250 W fully loaded |
| Connection | 1 removable 6-pin terminal block |
| Input Voltage | 48 to 55 VDC, Redundant | 12 to 36 VDC, Redundant |
| EFT Protection | 2,000 VDC for Power Line |
| ESD Protection | 6,000 VDC for Ethernet |
| Reverse Polarity Protection | Yes |
| Overload Protection | Yes |
| PoE Pin Assignment | Output Pin: 1,2 (V+), 3,6 (V-) |
| Mechanical | |
| Enclosure | Metal, IP30 Protection |
| Mounting | DIN-rail or wall mount |
| Weight | 1.68 lbs. |
| Dimensions | 26.1 x 94.9 x 144.3 mm | 41 x 94.9 x 144.3 mm (24V option) |
| Ratings | |
| Operating Temperature | Standard: -10 to 60°C or Extended: -40 to 75°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5 to 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, UL60950-1, UL508,UL Class 1 Division 2, ISA 12.12.01 |
| Warranty | 5 Years |
| Download Name | File Size |
| LNP-800AGH Datasheet | 200.57KB |
| LNP-800AGH User Manual | 583.3KB |
| Antaira's UL Certification | 122.15KB |
| Image | Model | Product Name | Price | |
 |
DIN-RACK-2U | DIN-Rail to 19" Rack Mount Adapter, 2U Height, DIN-RACK-2U | $73.00 | |
 |
DIN-RAIL | DIN-Rail Track, Choice of 10 or 20 Inches Length | $8.00 | |
 |
PA-60-48 | Antaira PA-60-48-US (-EU) AC/DC 60W Adapter for PoE Devices, 48V Output | $47.00 | |
|
PA-120-48-US | Antaira PA-120-48-US AC to DC 120W Adapter for PoE Switches, 48V Output | $109.00 | |
 |

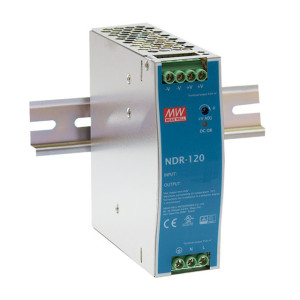

NDR-120 | MEAN WELL NDR-120 (-12,-24,-48) 120-Watt Power Supply, 12, 24, or 48 VDC Output | $60.45 |
