Manufacturer: TRENDnet

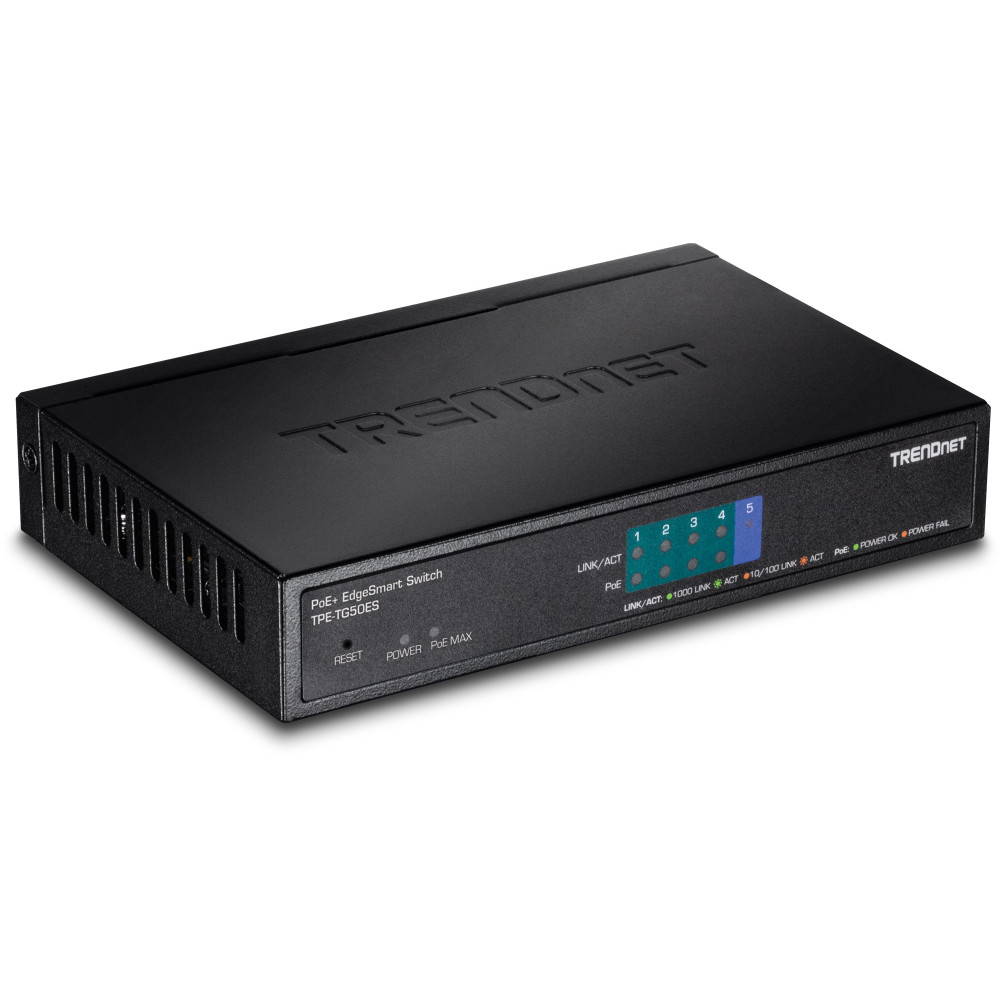

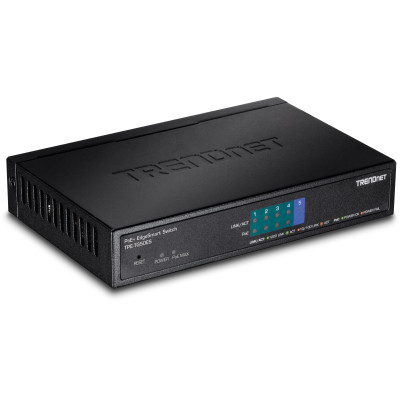

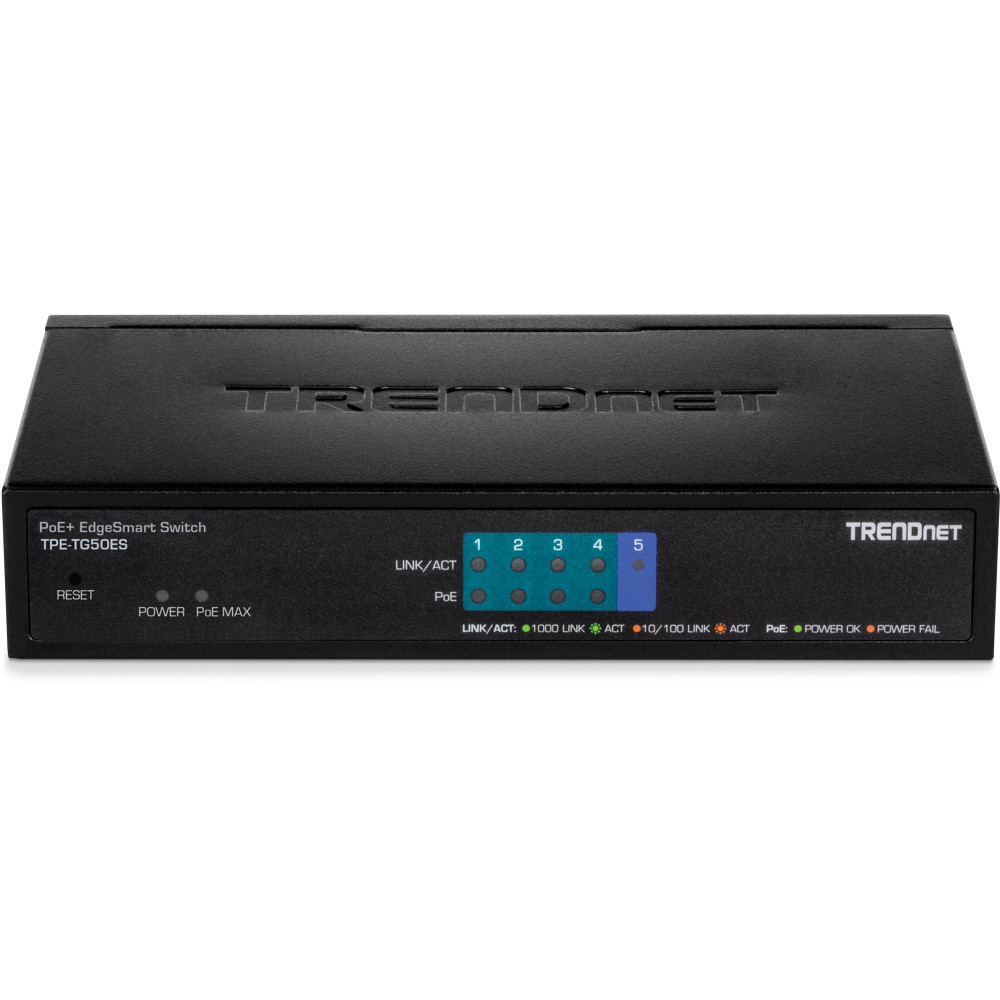

TRENDnet’s TPE-TG50ES 5-Port Gigabit EdgeSmart PoE+ Switch is a cost-effective rackmount PoE+ managed switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet’s TPE-TG50ES provides four gigabit PoE+ ports and one gigabit port for connecting devices, such as wireless access points, IP cameras, and VoIP handsets.
With a compact and lightweight metal housing design, this desktop PoE managed switch is also well-suited for wall mount installations. The fanless design is ideal for quiet environments that require silent operation.
The TPE-TG50ES gives you complete control over your network. It doesn’t just provide management that can be extended to plug-and-play equipment, it has the power and versatility to enable you to customize your network in the most efficient way possible. At the center of your operation, you want a switch that can handle virtually anything. Talk to us today. We’ll help you make the most of PoE options and other network enhancements to help cut unnecessary equipment and cables while improving overall network performance and capacity.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 5 |
| Ethernet Ports | 5 Gigabit PoE+ ports | 1 Gigabit port |
| Standards | IEEE 802.1d, IEEE 802.1w,IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit Ethernet: 2000 Mbps (full duplex) |
| Jumbo Frame Support | 9 KB |
| MAC Table Size | 2 K |
| Power | |
| Power Consumption | 34 W |
| Input Connection | 110 - 240V AC, 50/60Hz |
| Mechanical | |
| Mounting | Wall mountable, desktop |
| Weight | 380g (13.4 oz.) |
| Dimensions | 150 x 98 x 28mm (5.9 x 3.86 x 1.1 in.) |
| Ratings | |
| Operating Temperature | 0 - 40°C (32 - 104°F) |
| Humidity | 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE |
| MTBF | 2,942,586 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TPE-TG50ES/TPE-TG82ES Quick Installation Guide | 2.53MB |
| TRENDnet TPE-TG50ES Datasheet | 657.08KB |
| TRENDnet TPE-TG50ES User's Guide | 2.46MB |
