Manufacturer: TRENDnet

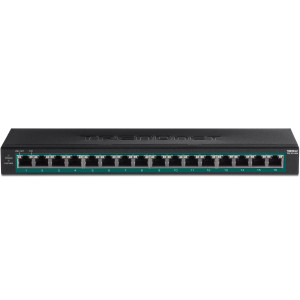

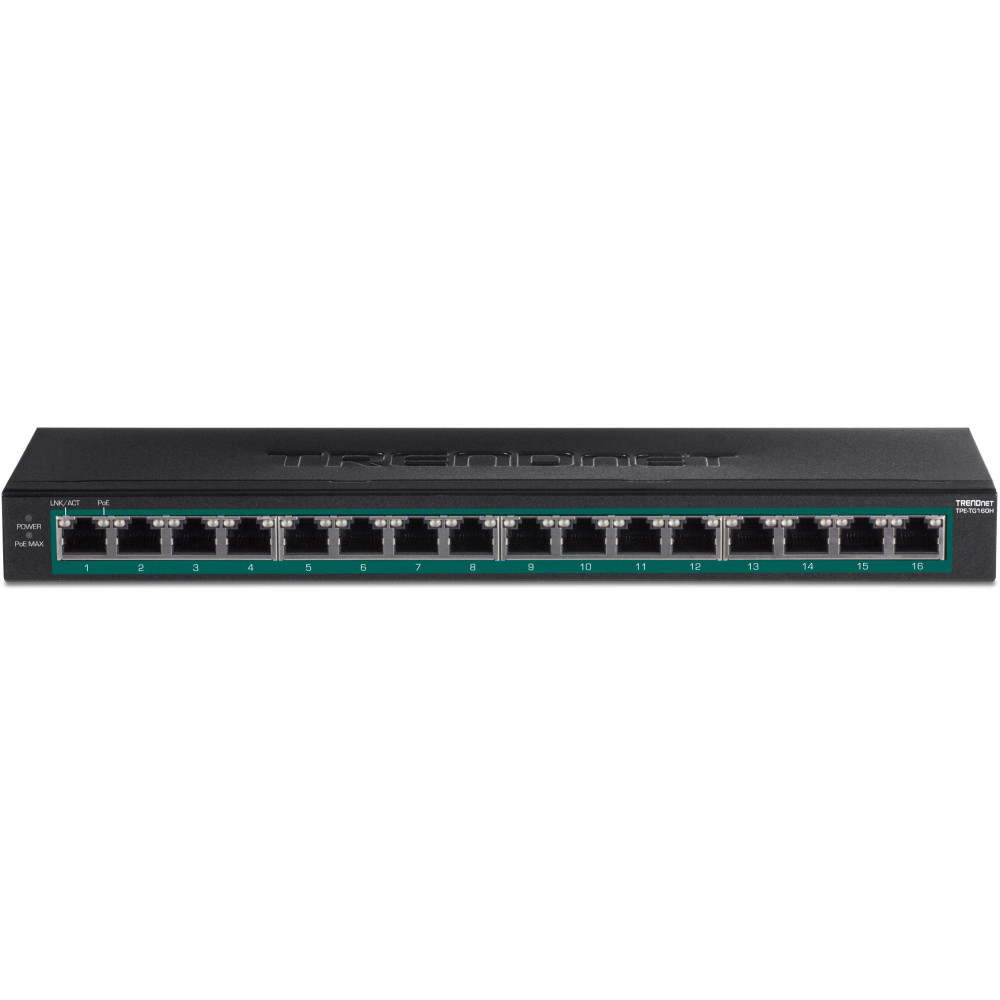

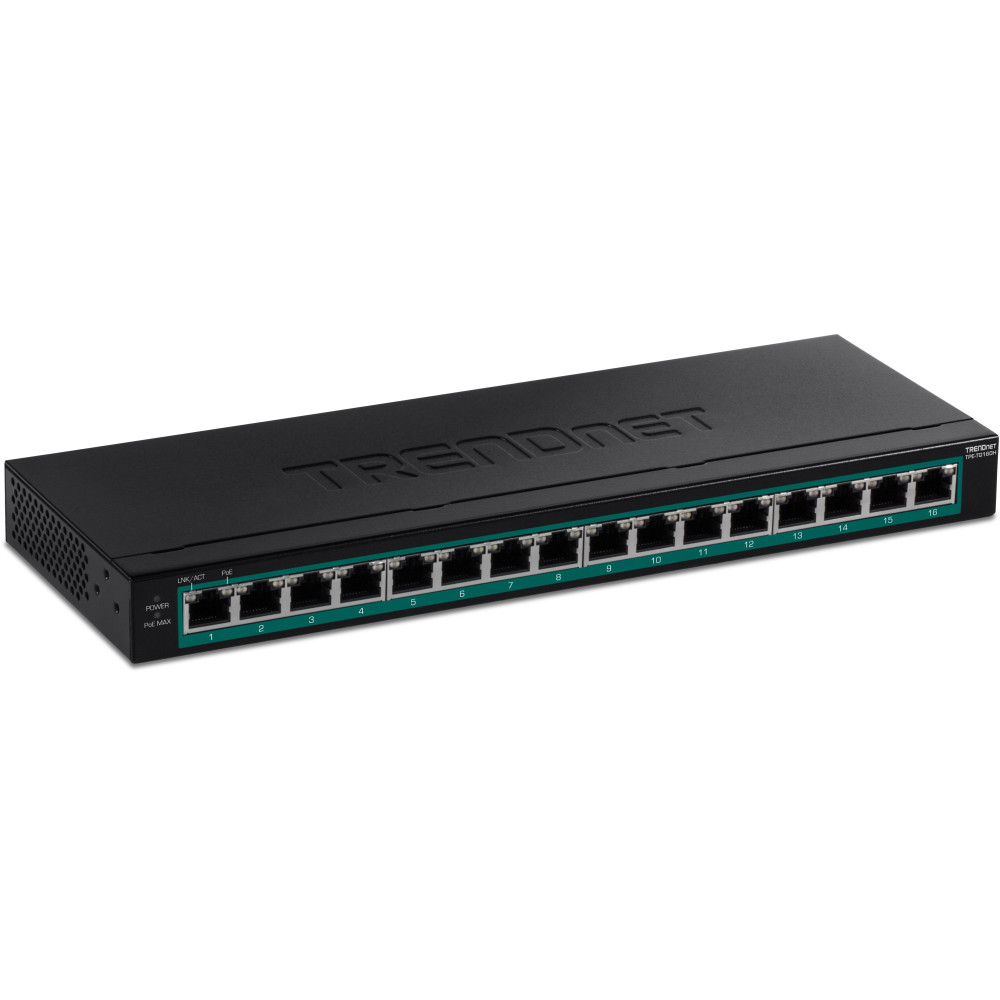

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's TPE-TG160H Unmanaged Gigabit PoE+ Switch. The fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. This fanless PoE+ switch deliver up to 30W per port of PoE power, and data over your existing Ethernet cables.
With PoE technology, users only need one set of cables to deliver both data and power. Connect and network your PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to this reliable TRENDnet fanless PoE+ switch.
Count on the TPE-TG160H rack-mount PoE+ Ethernet switch for high-performance and dependability. Get more information about this switch and other networking devices by speaking with a network specialist at Westward Sales today.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 16 |
| Ethernet Ports | 16 x Gigabit PoE+ ports |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3at, 802.3af |
| Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit: 2000 Mbps (full duplex) |
| Jumbo Frame Support | 10KB |
| MAC Table Size | 8K |
| Power | |
| PoE Power Output | Maximum 30 watts per PoE port |
| Power Consumption | 12.8W (no PD) |
| Input Voltage | 100 - 240V AC, 50/60Hz, DC 54V/2.78A |
| Overload Protection | Yes |
| Mechanical | |
| Enclosure | Metal |

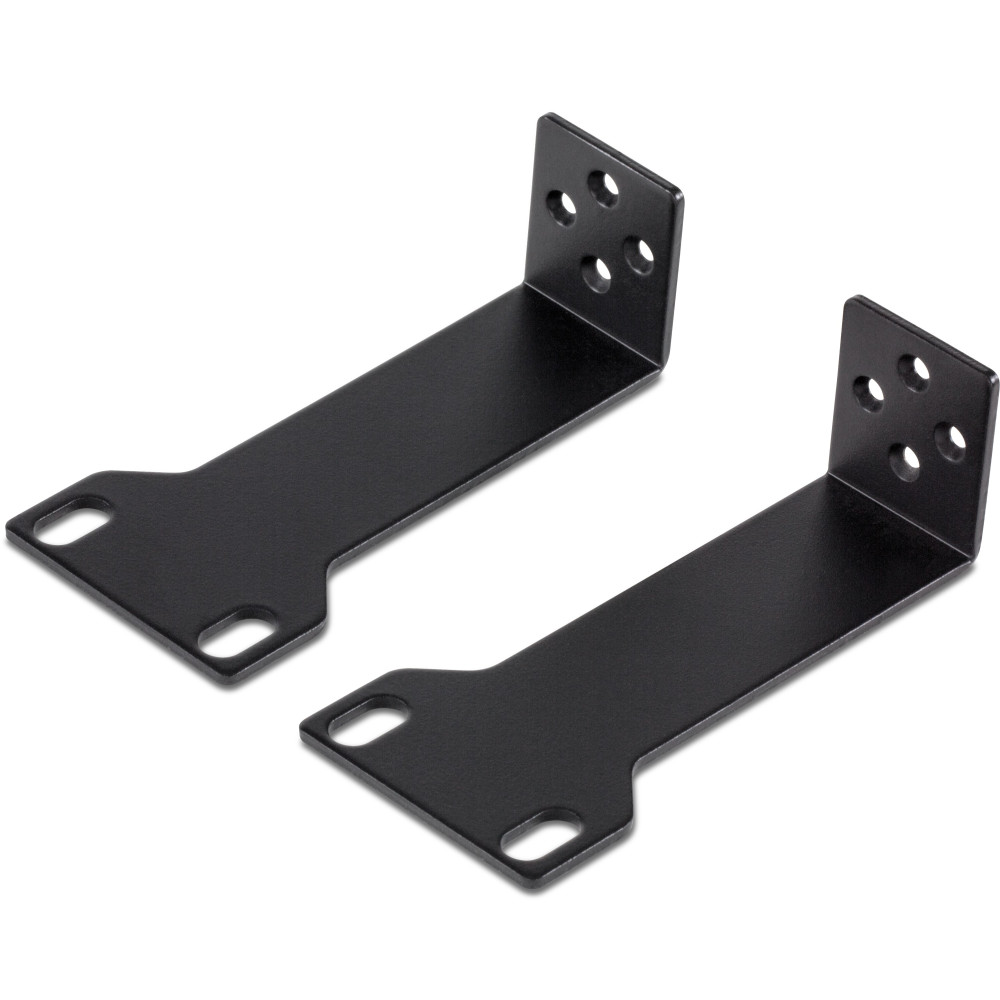

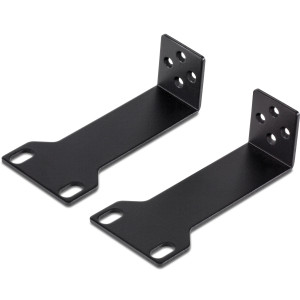

| Mounting | Rack mountable |
| Weight | 0.9kg (2 lbs.) |
| Dimensions | 286 x 102 x 27mm (11.3 x 4 x 1 in.) |
| Ratings | |
| Operating Temperature | 0° - 40° C (32° - 104° F) |
| Humidity | Max 90% non-condensing |
| Certifications | FCC, CE |
| MTBF | 988,148 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet TPE-TG160H/TPE-TG160g/TPE-TG240g Installation Guide | 4.2MB |
| TRENDnet TPE-TG160H Datasheet | 507.46KB |
