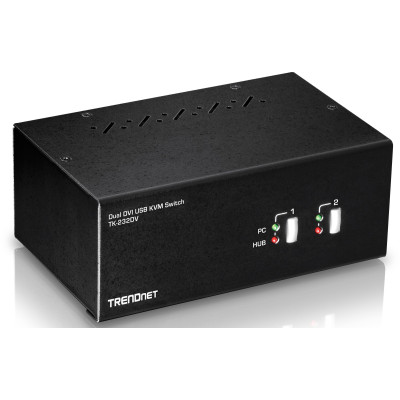

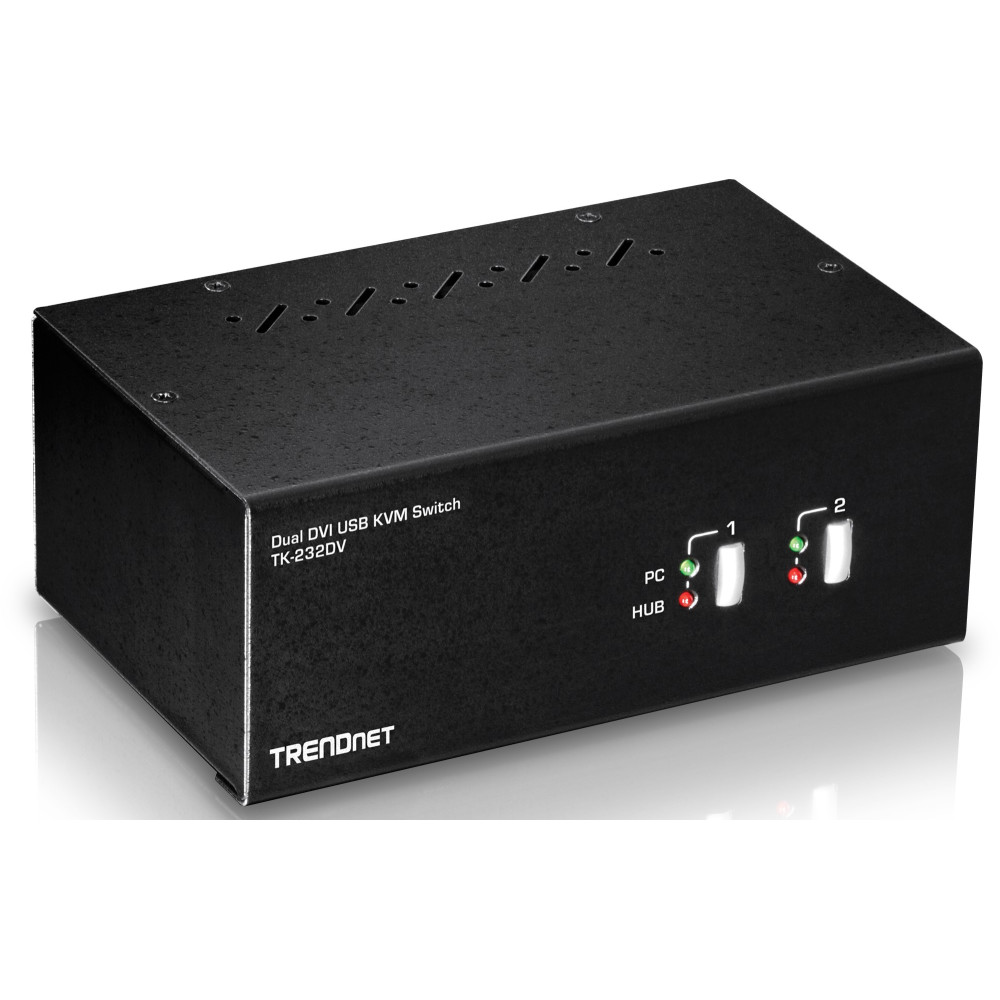

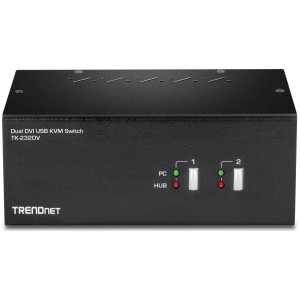

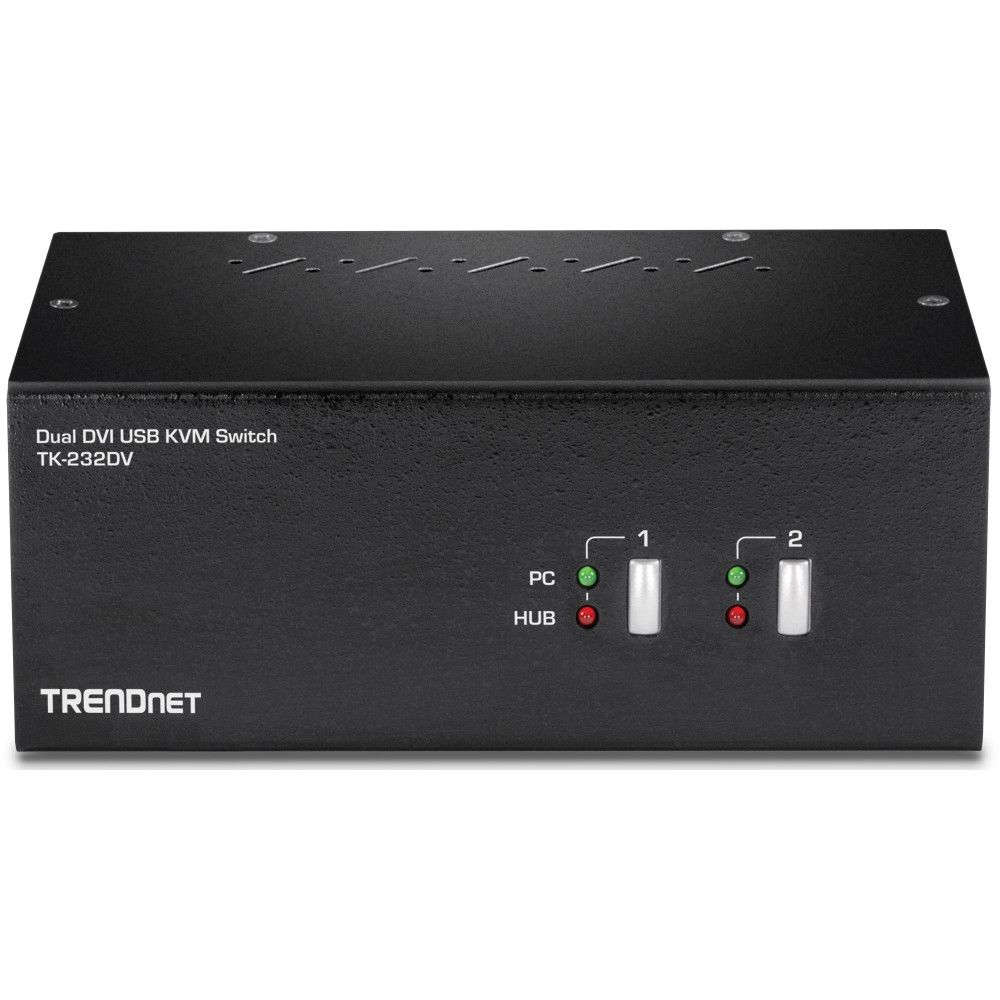

TRENDnet TK-232DV 2-Port Dual Monitor DVI KVM Switch

New TRENDnet TK-232DV 2-Port Desktop KVM Switch, 2046 x 1536 resolution, 2 USB 2.0
Model: TK-232DV
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

TRENDnet TK-232DV 2-Port KVM Desktop Switch, Controls 2 Computers, Dual DVI Monitor Support

TRENDnet's TK-232DV 2-Port Dual Monitor DVI KVM Switch allows you to control two computers with one set of console controls. Experience HD resolutions with no driver installation required. The TK-232DV is designed for dual monitor systems with USB mouse and keyboard connections. This dual monitor KVM switch also features a two-port USB hub to share storage devices or printers between computers.

Key Features

  • Dual Monitor DVI-I KVM switch
  • Designed for use with Dual DVI-I systems
  • 3.5mm speaker and microphone connections
  • Supports digital resolutions up to 1920 x 1200
  • Supports analog resolutions up to 2048 x 1536
  • 2-Port USB 2.0 hub for storage devices and printers

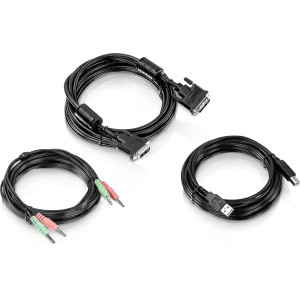

  • Required cabling sold separately (TK-CD06, TK-CD10, TK-CD15)
  • No CD installation required
  • Microphone jack: 3.5mm
  • NDAA / TAA compliant (U.S. and Canada only)
  • 2 year warranty

In the Box

  1. TK-232DV
  2. Quick Installation Guide
  3. Power adapter (9V DC, 2A)
Technology
CategoryKVM Switch
Video
ResolutionDigital: up to 1920 x 1200, Analog: up to 2048 x 1536

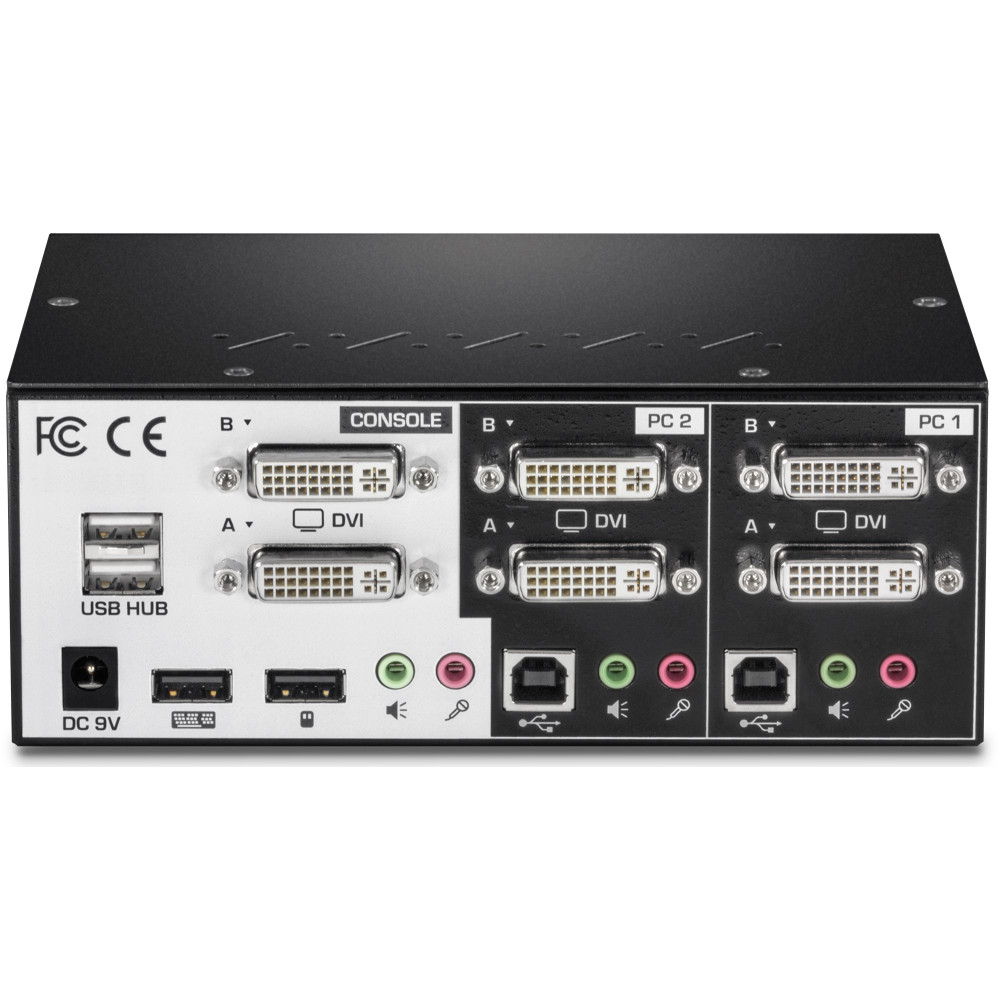

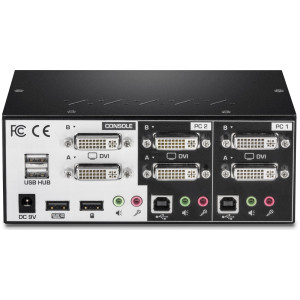

Interfaces
Video PortsDVI
Keyboard & MouseUSB Type B
Power
Power Consumption0.7 W Max
Output Voltage9V DC, 2A external power adapter
Input Voltage100 - 240V AC, 50/60Hz, 0.8A
Mechanical
Weight760 g (1.675 lbs.)
Dimensions163 x 100 x 66 mm (6.4 x 3.9 x 2.6 in.)
Ratings
Operating Temperature0° - 40° C (32° - 104° F)
HumidityMax. 90% non-condensing
CertificationsCE, FCC
Warranty2-Year
Tags: TK-232DV
