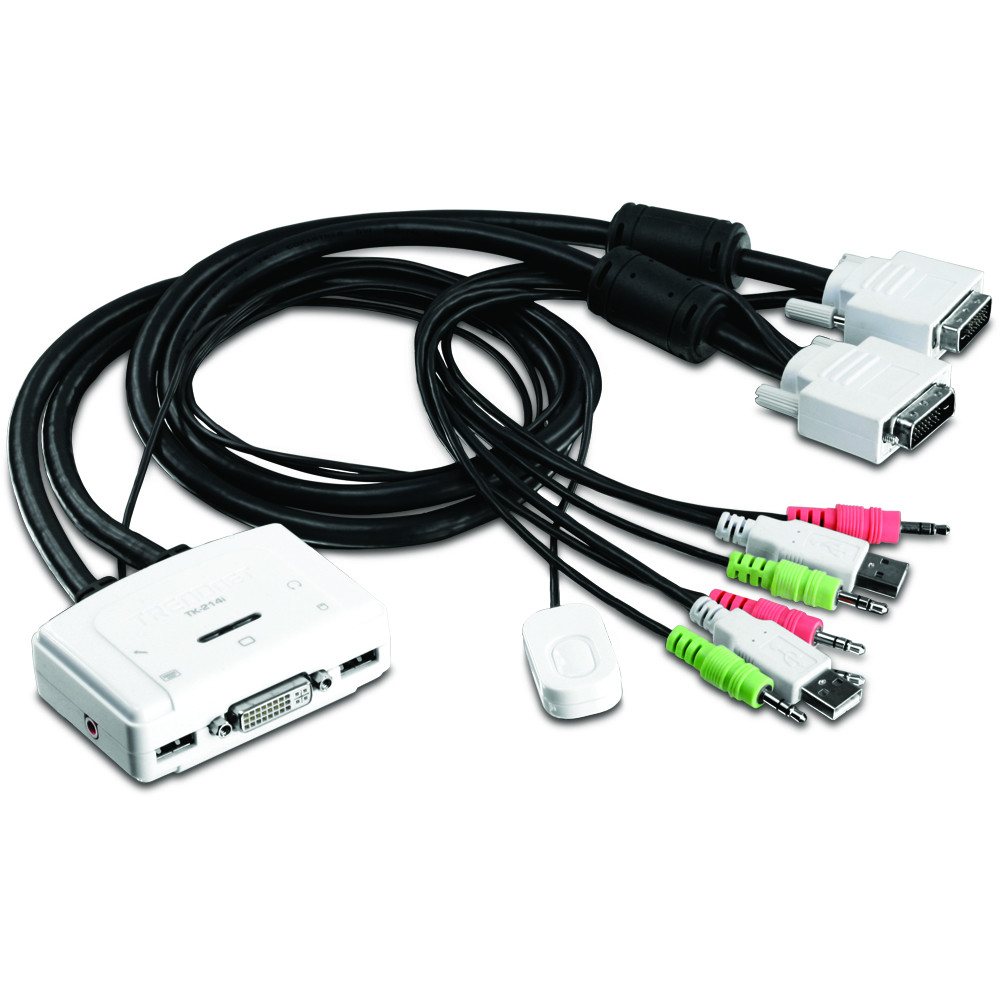

The 2-Port DVI USB KVM Switch Kit with Audio, model TK-214i, allows you to control 2 PC and/or Mac computers with one set of console controls. Manage laptops or desktops that have DVI, USB, and audio ports at the touch of a button with one set of USB keyboard, USB mouse, DVI monitor, microphone, and speakers. No driver installation is required. Simply plug in the devices to control 2 computers. A convenient toggle switch with a 1.5 m (5 ft.) extension cable can be placed in the most ergonomic location on your workstation.
View crystal clear Digital Video Interface (DVI) resolution at up to 1920 x 1200 pixels. Built in 0.9 m (3 ft.) combination cables include all the necessary USB, DVI, and audio connectors for each respective computer. This KVM switch does not need to be plugged into an outlet—it is powered by the connected computers. Download a Windows and Mac compatible utility to define Hot Keys, manage multiple audio ports, and create Auto Scan intervals.
Technology | |
Category | KVM Switch |
Operating System Support | Windows 8, 7, Vista, XP, Server 2003, 2000, 98 |
Video | |
Resolution | DVI-I 1920 x 1200 |
Interfaces | |
Video Ports | DVI-I |
Audio | 2x 3.5mm audio plug, 2 x 3.5mm microphone plug |
Keyboard & Mouse | USB Type A |
Power | |
Connection | USB powered |
Mechanical | |
LED Indicators | Computer 1 or Computer 2 Status Indicator |
Weight | 431g (15.2 oz.) |
Dimensions | 89 x 64 x 25 mm (3.5 x 2.5 x 1.0 in.) |
Ratings | |
Operating Temperature | 0° - 40° C (32° - 104° F) |
Humidity | Max. 90% non-condensing |
Certifications | CE, FCC |
Warranty | 2 year limited |
Download Name | File Size |
TRENDnet TK-214i Datasheet | 1.21MB |
TRENDnet TK-214i Quick Installation Guide | 3.02MB |
TRENDnet TK-214i User's Guide | 1.32MB |
