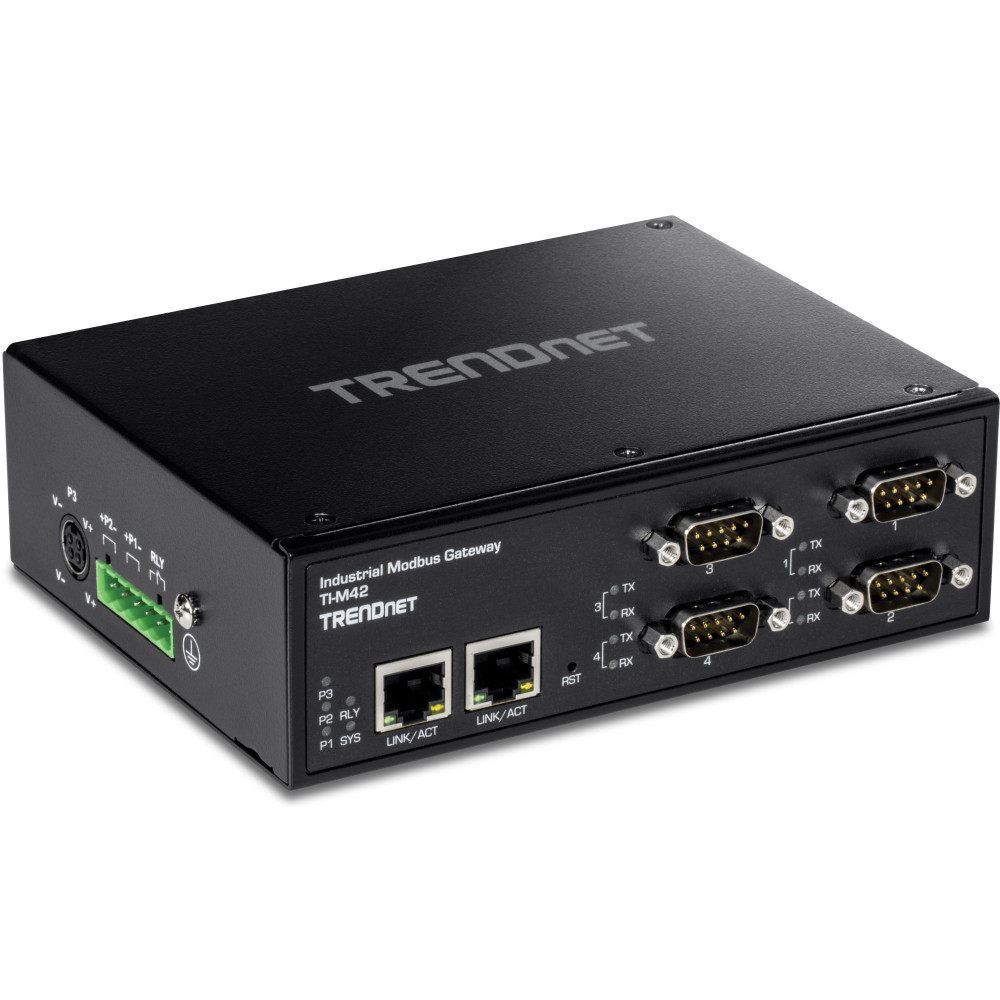

TRENDnet TI-M42 Industrial Modbus Gateway, 2 Ethernet Ports and 4 Serial Ports

TRENDnet TI-M42 Modbus TCP to Serial Industrial RTU/ASCII Gateway with 2 Ethernet Ports, IP30

TRENDnet’s TI-M42 Industrial Modbus Gateway provides four port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect RS-232/RS-422/RS-485 serial devices to the network.

This modbus gateway is designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, ESD/EMI/surge protection, and a wide operation temperature range of -40° - 75° C (-40° - 167° F).

Key Features

• 4 x serial port, 2 x Fast Ethernet ports
• Connects RS-232/RS-422/RS-485 serial devices to a network
• Supports up to 32 RS-422/RS-485 TCP serial devices per port, up to 128 slave devices per unit
• Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
• Configure via web management or telnet
• Auto-MDI/MDIX, RJ45 port with 10/100Mbps
• Serial port baud rate from 50bps to 921.6Kbps
• Compatible power supply: MDR-60-24 (sold separately)
• IP30 rated metal housing
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty
